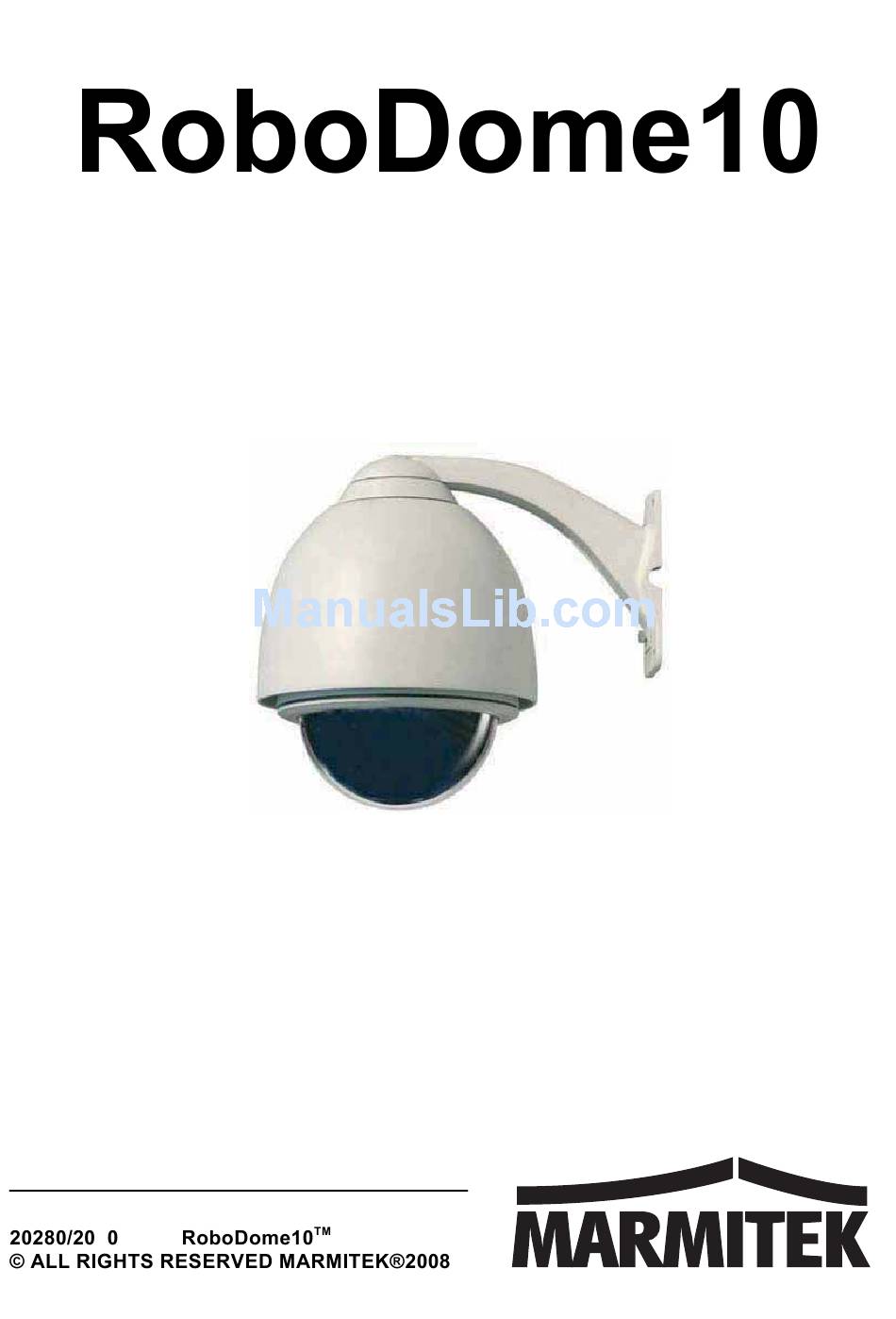

- Page 1 Outdoor IP Camera housing with heater and fan Quick Installation Guide 1 0707...
- Page 3 In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified.
- Page 4 The dome housing of the RoboDome10 is rain and dustproof to protect your IP RoboCam IP Camera from adverse environment conditions. Constructed from metal, the dome housing is compact and heavy duty. RoboDome10 has 2 brackets to make it suitable for the installation on different locations. The heater has two elements so that it can operate as a heater and defroster.
- Page 5 1) Unpack the carton and carefully take out the attachments. 2) Take out the cover of the wall-installed bracket (see Figure 1). 3) Take out system wires from the bracket (see Figure 2). 4) Fix the bracket on the wall (see Figure 3). 5) Rotate the vitreous cover counter clockwise and take it out (see Figure 4).
- Page 7 1.1 Pass the IP camera DC jack and Ethernet cable through the dome base: 1.2 Pass the DC Plug through the dome base: 1.3 Seal the rubber (Q7: the sealed rubber) back to the dome base. Make sure you also pass the power cord for the housing heater and fan through the sealed rubber.
- Page 8 2.1 Fasten the 5cm Hex Nut to the base bracket 2.2 Fasten the base bracket to the dome base with three Flat Head fasteners 2.3 Fasten the bracket to the Hex Nut of the bracket with three round head fasteners 2.4 And then fasten two 3.5cm Hex Nut to the bracket...
- Page 9 3.1 Fix the IP Camera to the upper bracket (BR001). PS: Please use the IP Camera stand’s Screw 3.2 Connect the IP camera to Power & Network. 3.3 Place the IP camera in the RoboDome10.
- Page 10 3.4 Fix it to the bracket (BR002) with two round head fasteners 3.5 Install the dome cover clock-wisely. Assembly finished. To obtain constant clear videos, user should clean the dome cover periodically. Be cautious when cleaning. Hold the dome cover ring only to avoid direct touch to the acrylic dome cover.
- Page 11 Input Voltage: 12V DC (included); 15W Dual-element heater is thermostatically controlled. Fan: activates at 45°C deactivates at 30°C Heater: activates at 5°C deactivates at 10°C Construction: Aluminum Finish: Beige coated Mounting Bracket: 1x Gooseneck pendent 1x 1 feet straight tube pendent IP value: IP66 Ambient temperature: -35°C ~ 55°C...
- Page 12 Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited.
