Marmitek robodome10 Quick Installation Manual

Outdoor ip camera housing with heater and fan

Advertisement

Quick Links

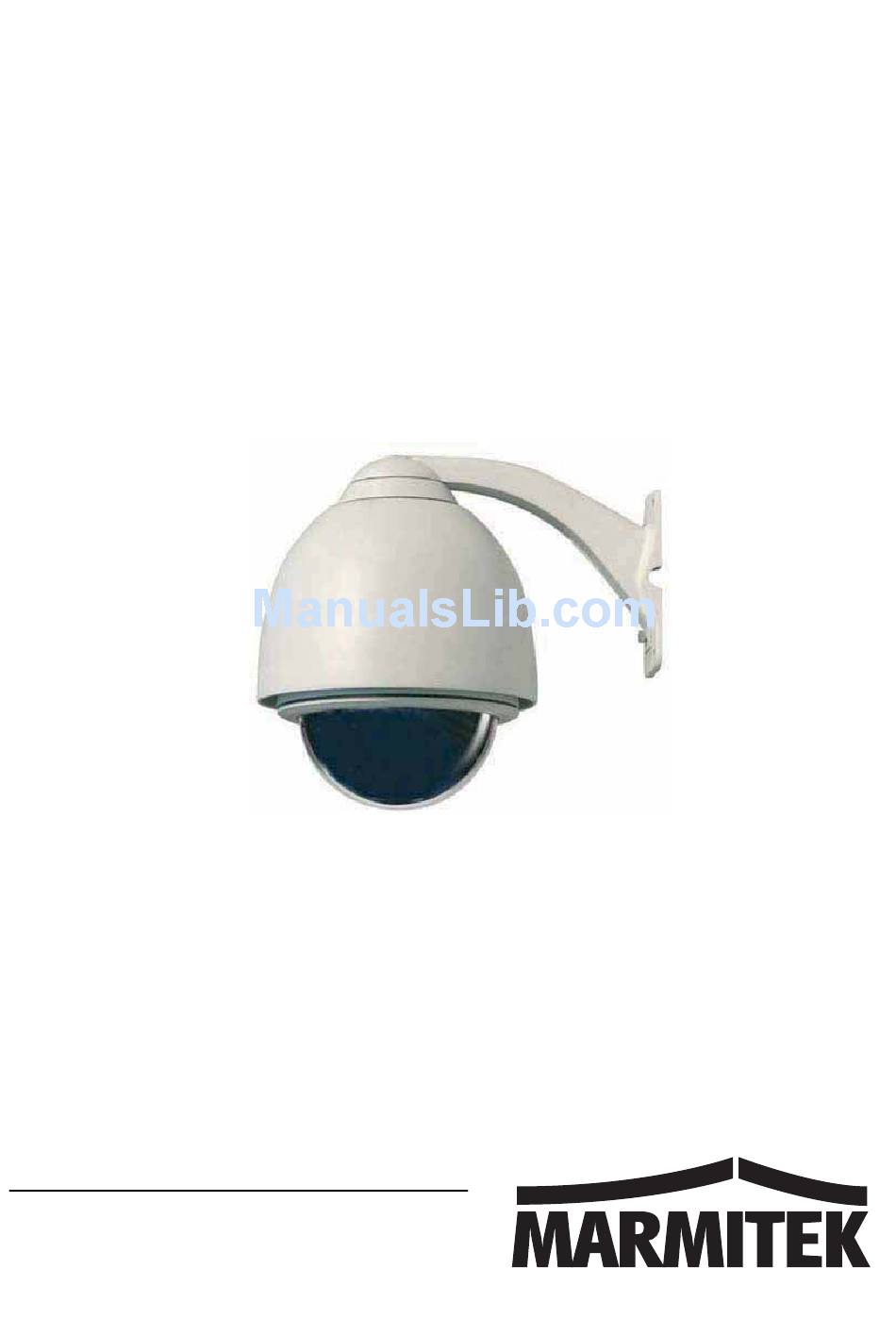

RoboDome10
Outdoor IP Camera housing
with heater and fan

Quick Installation Guide

TM
20280/20100707 RoboDome10
© ALL RIGHTS RESERVED MARMITEK®2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the robodome10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Marmitek robodome10

  • Page 1: Quick Installation Guide

    RoboDome10 Outdoor IP Camera housing with heater and fan Quick Installation Guide 20280/20100707 RoboDome10 © ALL RIGHTS RESERVED MARMITEK®2008...
  • Page 2 ©MARMITEK...
  • Page 3: Safety Warnings

    In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified.
  • Page 4: The Installation Of The System

    INTRODUCTION The dome housing of the RoboDome10 is rain and dustproof to protect your IP RoboCam IP Camera from adverse environment conditions. Constructed from metal, the dome housing is compact and heavy duty. RoboDome10 has 2 brackets to make it suitable for the installation on different locations. The heater has two elements so that it can operate as a heater and defroster.
  • Page 5 2. Steps of Installation (taking wall-installing style as example): 1) Unpack the carton and carefully take out the attachments. 2) Take out the cover of the wall-installed bracket (see Figure 1). 3) Take out system wires from the bracket (see Figure 2). 4) Fix the bracket on the wall (see Figure 3).
  • Page 6 2.1 Structure diagram of installation (Figure 6): 2.2 Structure diagram of pedestal assembly (Figure 5): ©MARMITEK...
  • Page 7 2.3 Steps to assemble pedestal with IP camera: Step 1 : Link IP Camera power cord and Ethernet cable 1.1 Pass the IP camera DC jack and Ethernet cable through the dome base: 1.2 Pass the DC Plug through the dome base: 1.3 Seal the rubber (Q7: the sealed rubber) back to the dome base.
  • Page 8 (Q1: M4x13). 2.3 Fasten the bracket (BR002) to the Hex Nut of the bracket (BR003) with three round head fasteners (Q6: M3 x7). 2.4 And then fasten two 3.5cm Hex Nut (Q4: M3 x20) to the bracket (BR002). ©MARMITEK...
  • Page 9 Step 3 : Installation of the IP Camera 3.1 Fix the IP Camera to the upper bracket (BR001). PS: Please use the IP Camera stand’s Screw 3.2 Connect the IP camera to Power & Network. 3.3 Place the IP camera in the RoboDome10. RoboDome 10...
  • Page 10 Use soft dry cloth or the substitute to clean the inner and outer surfaces. For hard contamination, use neutral detergent. Any cleanser for high grade furniture is applicable. ©MARMITEK...
  • Page 11 TECHNICAL SPECIFICATIONS: General Input Voltage: 12V DC (included); 15W Dual-element heater is thermostatically controlled. Fan: activates at 45°C deactivates at 30°C Heater: activates at 5°C deactivates at 10°C Construction: Aluminum Finish: Beige coated Mounting Bracket: 1x Gooseneck pendent 1x 1 feet straight tube pendent IP value: IP66 Ambient temperature: -35°C ~ 55°C...
  • Page 12: Declaration Of Conformity

    Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited.
  • Page 13 RoboDome 10...
  • Page 14 ©MARMITEK...
  • Page 15 RoboDome 10...
  • Page 16 ©MARMITEK...
