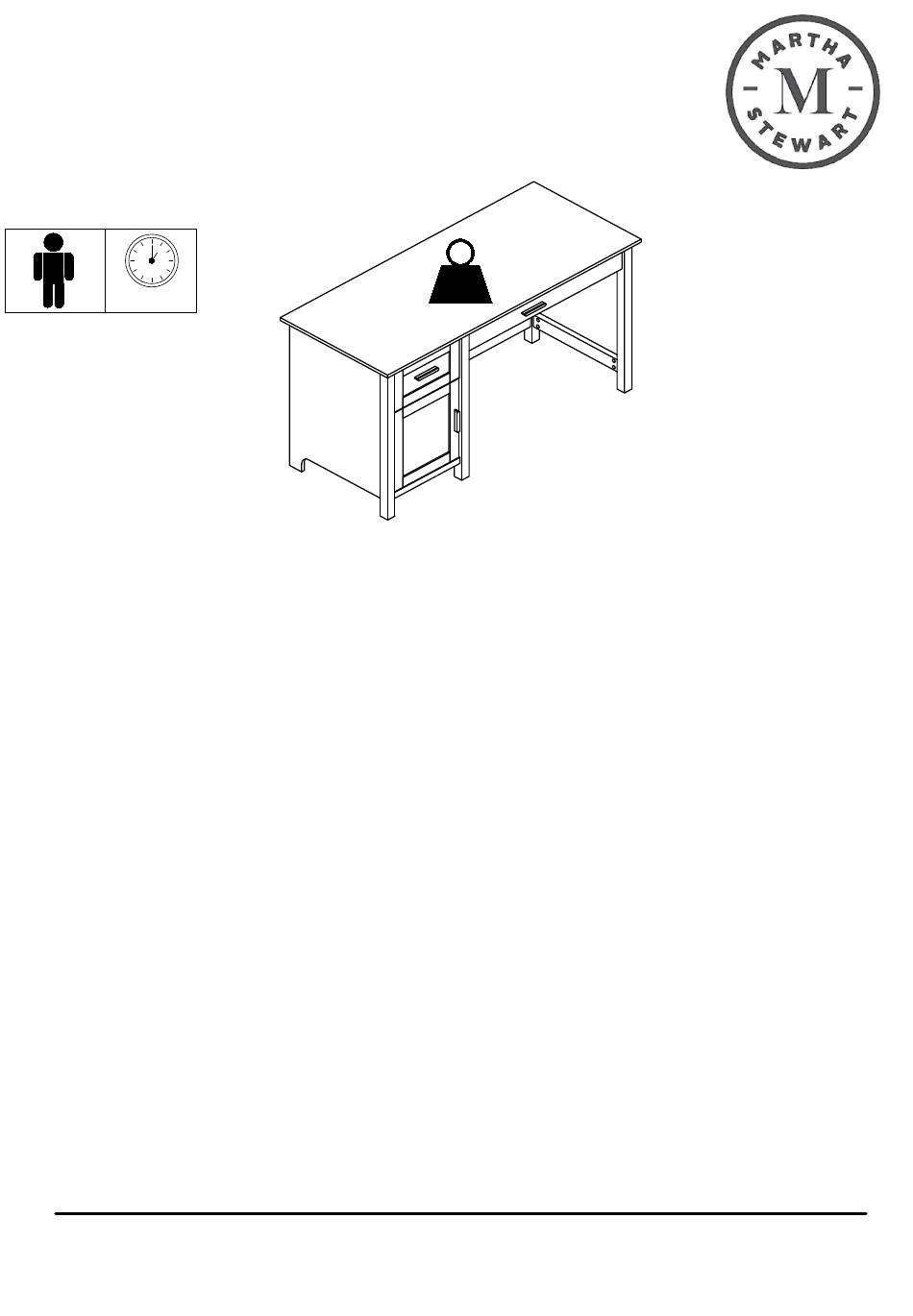

Martha Stewart 196861041297 Instruction Manual

Home office desk

Advertisement

Instruction Manual
Home Office Desk
196861041297
196861041303
196861189265
196861189272
2 hours
ASSEMBLY INSTRUCTIONS
Before You Begin:
Please identify all component parts and hardware pieces required before you begin. Carefully remove all of the
components from the packaging and set aside for assembly. Assemble on a soft surface to prevent scratching
during assembly.
Caution:
Tighten all components securely before use. Failure to do so may result in personal injury.
DO NOT use any sharp objects to open plastic wrapped components as damage to product or components may
result.
Warning:
CHOKING HAZARD - Small Parts. Adult Assembly
Required. DO NOT ALLOW CHILDREN TO CLIMB
ON FURNITURE
Serious or fatal injuries can occur from furniture tipping over. You must install Tipping Restraint Hardware
(where included) to help prevent the unit from tipping and causing accidental injury, instability, death or
damage. The tipping restraint is intended only as a safety measure, it is not a substitute for proper adult
supervision.
To help prevent furniture from tipping over it must be permanently attached to the wall. Anti-Tip Safety Wall
Straps suitable for the unit weight and wall materials (if not included) should be purchased and installed.
Customer Service Email: CustomerExperience@theubiquegroup.com | Phone: 866-552-2810
200LBS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 196861041297 and is the answer not in the manual?

Questions and answers

Summary of Contents for Martha Stewart 196861041297

  • Page 1 Instruction Manual Home Office Desk 196861041297 196861041303 196861189265 196861189272 200LBS 2 hours ASSEMBLY INSTRUCTIONS Before You Begin: Please identify all component parts and hardware pieces required before you begin. Carefully remove all of the components from the packaging and set aside for assembly. Assemble on a soft surface to prevent scratching during assembly.
  • Page 2: Care And Maintenance

    Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages.
  • Page 3: Tools Required

    Hardware Please ensure you have all the parts listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more hardware may be supplied than is required. Male Camlock x 58 Female Camlock x 58 Wood Dowel 8*30 x 28 4*30mm Screw x 9 Door Pin x 1...
  • Page 4: Hinge Adjustment

    Using Camlocks Step 1 Step 2 Connect the male Push the male camlock DO NOT OVER TIGHTEN. camlock as diected in into the entry hole. the assembly instructions using a scewdriver . Step 3 Step 4 Insert the female Turn the female camlock camlock as shown in the clockwise with a instruction .
  • Page 5 Parts...
  • Page 6 Parts Left Front Leg Middle Front Leg Right Panel Left Panel Bottom Panel 1 PC 1 PC 1 PC 1 PC 1 PC Door Hinge Strip Lower Trim Panel Center Shelf Left Back Panel Bottom Brace 1 PC 1 PC 1 PC 1 PC 1 PC...
  • Page 7 Step 1 18 PCS 4 PCS Step 2 8 PCS 8 PCS...
  • Page 8 Step 3 6 PCS Step 4 2 PCS 6 PCS...
  • Page 9 Step 5 2 PCS Step 6 4 PCS...
  • Page 10 Step 7 4 PCS Step 8...
  • Page 11 Step 9 8 PCS Step 10 8 PCS...
  • Page 12 Step 11 3 PCS 1 PC Step 12 6 PCS...
  • Page 13 Step 13 2 PCS Step 14 4 PCS 4 PCS...
  • Page 14 Step 15 4 PCS Step 16 4 PCS...
  • Page 15 Step 17 8 PCS Step 18 9 PCS 2 PCS 1 PC...
  • Page 16 Step 19 2 PCS Step 20 4 PCS 1 PC Installation with electric drills is prohibited here. Please use a screwdriver.
  • Page 17 Step 21 9 PCS Step 22 2 PCS Installation with electric drills is prohibited here. Please use a screwdriver.
  • Page 18 Step 23 4 PCS Installation with electric drills is prohibited here. Please use a screwdriver. Step 24 2 PCS...
  • Page 19 Step 25 9 PCS 2 PCS Step 26 4 PCS...
  • Page 20 Step 27 Step 28 4 PCS...
  • Page 21 Step 29 1 PC 2 PCS 4 PCS Step 30 5 PCS...
  • Page 22 Step 31 Step 32 5 PCS...
  • Page 23 Step 33 1 PC 2 PCS 4 PCS Step 34 1 PC...
  • Page 24 Step 35 1.Check Before Installing: Ensure the rails are secure and ball bearings are in place. 2.Prepare: Slide the ball bearings to the front of the rails. 3.Align & Insert: Line up the drawer rails with the main slides and insert both sides at once. If the drawers do not go in smoothly please remove and repeat Steps 1-3.
  • Page 25 Step 36 To Remove the Drawer: 1.Fully extend the drawer. 2.Push the left release latch up and the right one down. 3.Pull the drawer out while supporting it.
  • Page 26 Step 37 34 PCS Step 38 4 PCS 1 PC 2 PCS 2 PCS...
  • Page 27 Step 39 8 PCS Step 40 4 PCS 4 PCS...
  • Page 28 Step 41...
  • Page 29 INTERNAL & Door Adjustments UP & DOWN screw Components Name EXTERNAL screw The door side The cabinet side · Before adjusting the hinge, please check whether the cabinet is level. · Please adjust the hinge with the door open. · 2 people may be required to adjust the doors, one person holds the door and the other adjusts the screw.
  • Page 30 Loosen "internal & external screw" Loosen "internal & external screw" Leaning Doors slowly to make the top of the door slowly to make the bottom of tilt outward. the door tilt outward. Overlap Protruding to the underside Loosen screw a little Bottom Bottom Overlap...
  • Page 31 Drawer Adjustment Instructions 1.Fully extend the drawer. 2.Loosen the screw from the second hole position and remove it. 3. Slowly move the slide rail upward or downward. While moving, observe the height change of the front drawer panel to ensure that the left and right sides are even.
  • Page 32 Quality and Safety Guidelines • Please follow the static and dynamic weight capacity limits provided on this item. If you are unsure of the weight capacities for this product, email us at customerexperience@theubiquegroup.com or call 866-552-2810. • Please use this item on a stable, level surface only. All table legs should contact the flooring surface when in use.

This manual is also suitable for:

196861041303196861189265196861189272

Table of Contents
