Instruction Manual

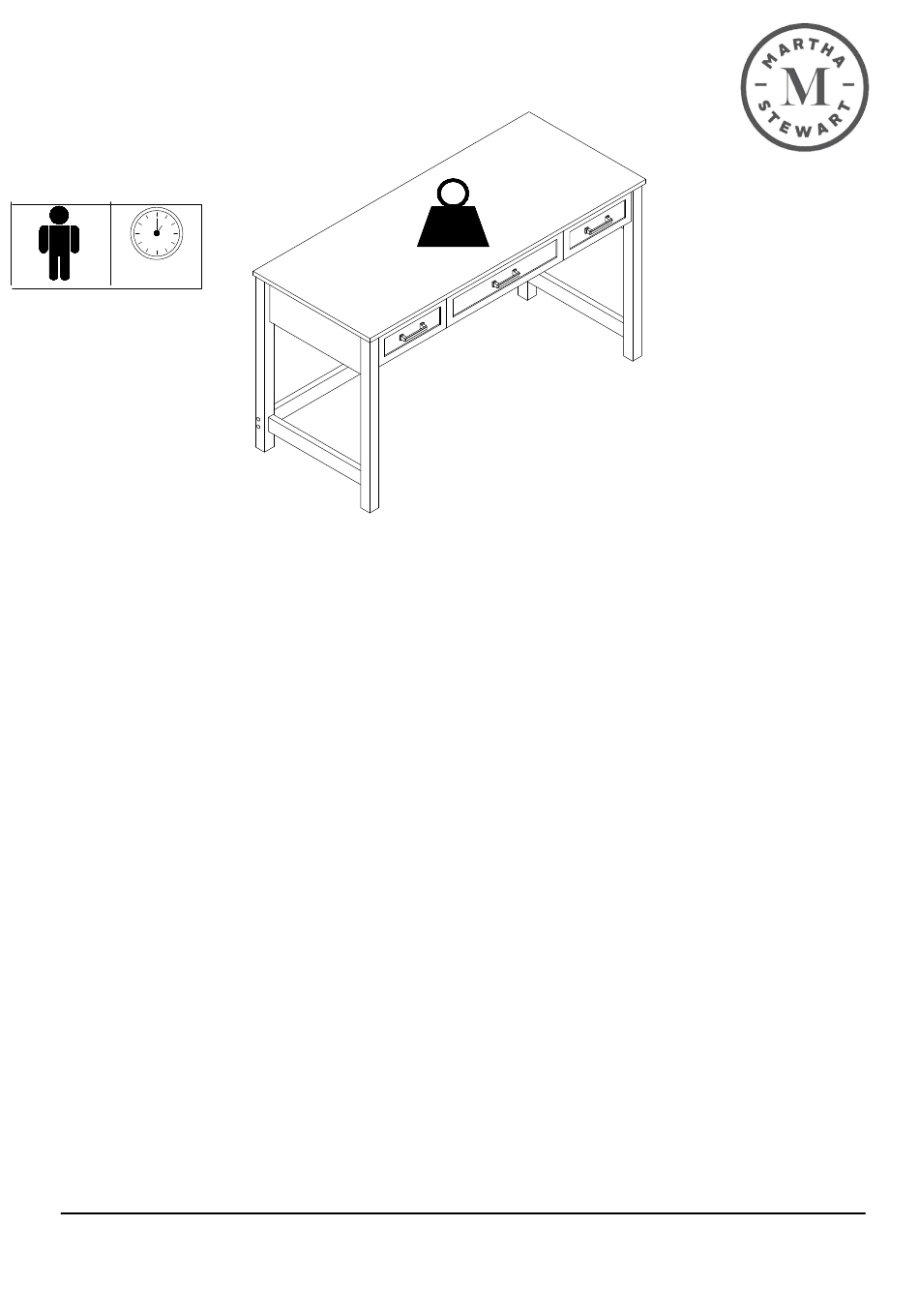

Home Office Desk
196861189296
196861189302
90 min
ASSEMBLY INSTRUCTIONS
Before You Begin: Phillips screwdriver and hammer or rubber mallet required (Not Included).
Please identify all component parts and hardware pieces required before you begin. Carefully remove all of the
components from the packaging and set aside for assembly. Assemble on a soft surface to prevent scratching
during assembly.
Caution:
Tighten all components securely before use. Failure to do so may result in personal injury.
DO NOT use any sharp objects to open plastic wrapped components as damage to product or components may
result.
Warning:
CHOKING HAZARD - Small Parts. Adult Assembly
Required. DO NOT ALLOW CHILDREN TO CLIMB
ON FURNITURE
Serious or fatal injuries can occur from furniture tipping over. You must install Tipping Restraint Hardware
(where included) to help prevent the unit from tipping and causing accidental injury, instability, death or
damage. The tipping restraint is intended only as a safety measure, it is not a substitute for proper adult
supervision.
To help prevent furniture from tipping over it must be permanently attached to the wall. Anti-Tip Safety Wall
Straps suitable for the unit weight and wall materials (if not included) should be purchased and installed.
Customer Service Email: CustomerExperience@theubiquegroup.com | Phone: 866-552-2810
200 LBS

Advertisement

loading
Need help?

Need help?

Do you have a question about the 196861189296 and is the answer not in the manual?

Questions and answers

Summary of Contents for Martha Stewart 196861189296

  • Page 1 Instruction Manual Home Office Desk 196861189296 196861189302 200 LBS 90 min ASSEMBLY INSTRUCTIONS Before You Begin: Phillips screwdriver and hammer or rubber mallet required (Not Included). Please identify all component parts and hardware pieces required before you begin. Carefully remove all of the components from the packaging and set aside for assembly.
  • Page 2: Care And Maintenance

    Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages.
  • Page 3: Tools Required

    Hardware Please check you have all the parts listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more hardware may be supplied than is required. Wood Dowel x 18 Male Camlock x 39 Female Camlock x 39 5*16mm Screw x 4 6.8*48mm Screw x 16...
  • Page 4 Using Camlocks Step 1 Step 2 Connect the male Push the male camlock DO NOT OVER TIGHTEN. camlock as diected in into the entry hole. the assembly instructions using a scewdriver . Step 3 Step 4 Turn the female camlock Insert the femle clockwise with a camlock as shown in the...
  • Page 5 Parts...
  • Page 6 Parts Center Brace Back Panel Center Brace Front Brace Bottom Brace 1 PC 1 PC 1 PC 1 PC 1 PC Right Middle Panel Right Panel Left Middle Panel Iron Bar Left Panel 1 PC 1 PC 1 PC 1 PC 1 PC Table Top Drawer Front Panel...
  • Page 7 Step 1 8 PCS Step 2 4 PCS 1 PC...
  • Page 8 Step 3 4 PCS 1 PC Step 4 4 PCS 1 PC...
  • Page 9 Step 5 4 PCS 1 PC Step 6 3 PCS...
  • Page 10 Step 7 14 PCS Step 8 7 PCS...
  • Page 11 Step 9 7 PCS Step 10 4 PCS...
  • Page 12 Step 11 4 PCS 4 PCS Step 12 4 PCS Using a hammer or rubber mallet, gently tap the floor glides into the bottoms of the legs.
  • Page 13 Step 13 10 PCS Step 14 12 PCS...
  • Page 14 Step 15 12 PCS Step 16 13 PCS...
  • Page 15 Step 17 13 PCS Step 18...
  • Page 16 Step 17 13 PCS Step 18 3 PCS 12 PCS...
  • Page 17 Step 19 1. Check Before Installing: Ensure the rails are secure and ball bearings are in place. 2. Prepare: Slide the ball bearings to the front of the rails. 3. Align & Insert: Line up the drawer rails with the main slides and insert both sides at once.
  • Page 18 Step 20 To Remove the Drawer: 1. Fully extend the drawer. 2. Push the left release latch up and the right one down. 3. Pull the drawer out while supporting it.
  • Page 19 Step 21 24 PCS...
  • Page 20 Drawer Adjustment Instructions 1. Fully extend the drawer. 2.Loosen the screw from the second hole position and remove it. 3. Slowly move the slide rail upward or downward. While moving, observe the height change of the front drawer panel to ensure that the left and right sides are even.
  • Page 21 Quality and Safety Guidelines • Please follow the static and dynamic weight capacity limits provided on this item. If you are unsure of the weight capacities for this product, email us at customerexperience@theubiquegroup.com or call 866-552-2810. • Please use this item on a stable, level surface only. All table legs should contact the flooring surface when in use.
