GEDA MULTILIFT P6 Instruction Manual

Construction hoist
Hide thumbs

Advertisement

Table of Contents

Appendix 02 to
Instruction Manual BL106
Construction hoist
For the transport of material and persons
Special feature: Assembly after truck transport

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTILIFT P6 and is the answer not in the manual?

Questions and answers

Related Manuals for GEDA MULTILIFT P6

Summary of Contents for GEDA MULTILIFT P6

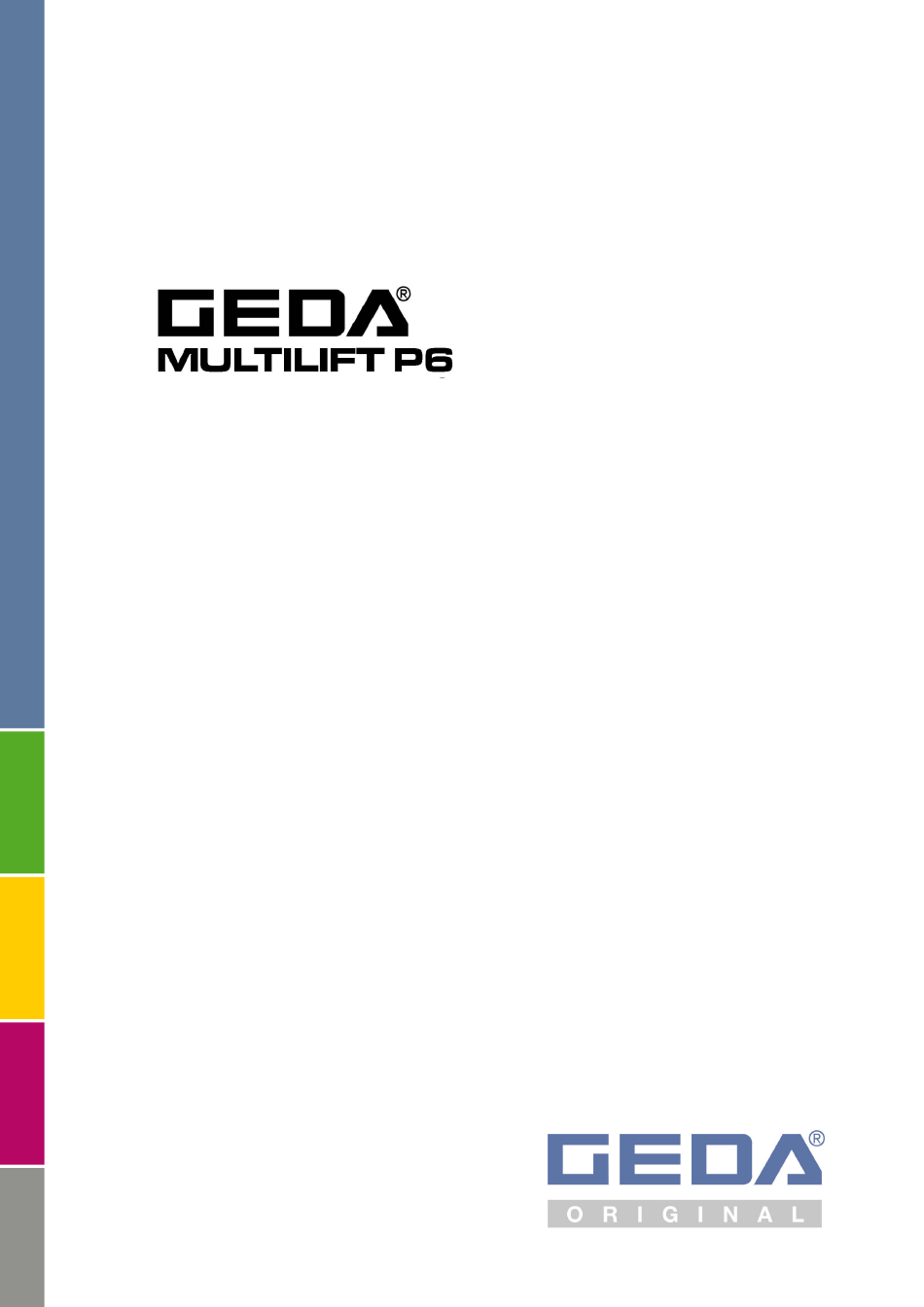

  • Page 1 Appendix 02 to Instruction Manual BL106 Construction hoist For the transport of material and persons Special feature: Assembly after truck transport...

  • Page 3: Table Of Contents

    Mounting the impact buffer ................. 7 General Information These instructions present a supplement to the Assembly and Operating Manual BL106 (MULTILIFT P6). For transport on a closed truck, the protective buffers on the foot section must be removed and the car lowered carefully onto car supports (wooden blocks) on the foot section.

  • Page 4: Raising The Car And Mounting The Protective Buffers

     Raising the car and mounting the protective buffers GEDA MULTILIFT P6 Raising the car and mounting the protective buffers Raising the car CAUTION Guiding roller moves out of the base mast Raising the car is only possible when two mast sections were first mounted on the base mast.

  • Page 5: Activate Put Down Appliance

     GEDA MULTILIFT P6 Raising the car and mounting the protective buffers CAUTION The UP button (1) must be pressed because this control bridges the emergency limit switch. If the red drop test control buttons or the DOWN button are pressed by accident, the motor brake will release and the motor can drop hard onto the foot section (risk of damage).
  • Page 6  Raising the car and mounting the protective buffers GEDA MULTILIFT P6  Push up the setting lever (2) and raise to release.  Using the setting lever (2), push the put down appliance to the car side of the mast.

  • Page 7: Opening The Base Enclosure

     GEDA MULTILIFT P6 Raising the car and mounting the protective buffers Opening the base enclosure WARNING Danger to life Working / loitering under the car is only permitted once the put down appliance has been activated. Close the enclosure after the work is complete and remove the put down appliance.
  • Page 8  Raising the car and mounting the protective buffers GEDA MULTILIFT P6  Remove all car supports (6).  After working inside the enclosure, close the latter again with the element of the base enclosure.  Pull out the setting lever again and swivel it downward.
