Red Digital Cinema EPIC-W GEMINI Operation Manual

Table of Contents

Quick Links

Download this manual

EPIC-W GEMINI

OPERATION GUIDE

V7.0

RED.COM

Table of Contents

Need help?

Do you have a question about the EPIC-W GEMINI and is the answer not in the manual?

Questions and answers

Summary of Contents for Red Digital Cinema EPIC-W GEMINI

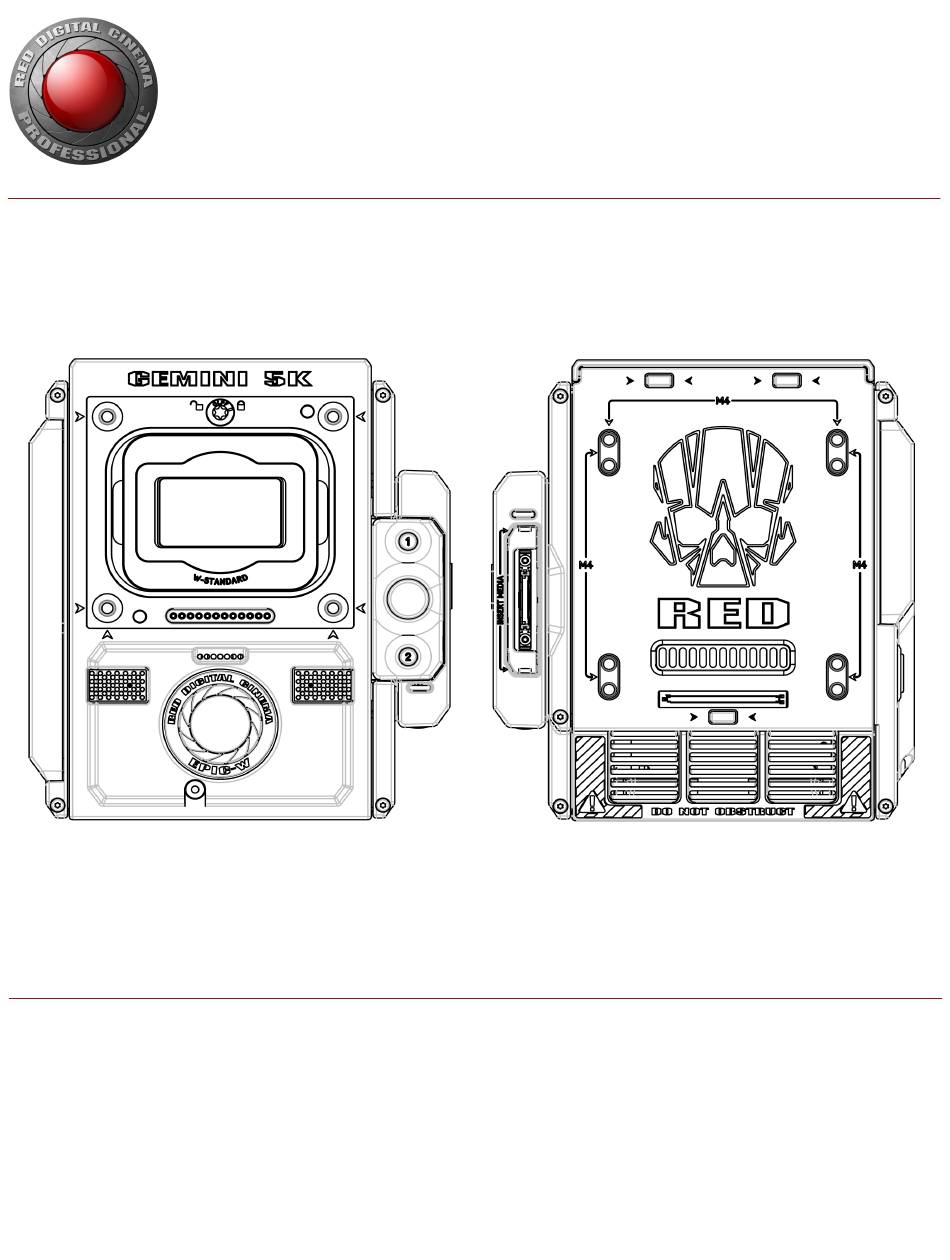

Page 1 EPIC-W GEMINI OPERATION GUIDE V7.0 RED.COM...
Page 2: Table Of Contents
EPIC-W GEMINI OPERATION GUIDE TABLE OF CONTENTS Table of Contents Live Action Area Disclaimer Lower Status Row Copyright Notice Navigation Controls Trademark Disclaimer CHAPTER 5: Advanced Menus Translation Disclaimer Access the Advanced Menus Compliance Statements Image Menu Safety Instructions Monitoring Menu...
Page 3 EPIC-W GEMINI OPERATION GUIDE Compatible Genlock Devices CHAPTER 11: Upgrade Camera Firmware 185 Verify Current Camera Firmware Upgrade Camera Firmware CHAPTER 12: Camera System Maintenance BRAIN and Accessory Exterior Surfaces Clean EVF Screen Clean LCD Screens Water Damage Adjust Back Focus...
Page 4: Disclaimer
EPIC-W GEMINI OPERATION GUIDE DISCLAIMER TRANSLATION DISCLAIMER ® has made every effort to provide clear and accurate This document was originally prepared in English, and any translations information in this document, which is provided solely for the user’s are provided for convenience only. While reasonable efforts were information.
Page 5: European Union Compliance Statements
EPIC-W GEMINI OPERATION GUIDE EUROPEAN UNION COMPLIANCE STATEMENTS RED declares that the radio CAUTION: Exposure Radio Frequency equipment described in this Radiation. document comply with the R&TTE Directive (1999/5/EC) issued by the Commission of The device shall be used in such a manner that the potential for the European Community.
Page 6: Safety Instructions
EPIC-W GEMINI OPERATION GUIDE USAGE RESTRICTIONS FOR PRODUCTS THAT INCORPORATE SAFETY INSTRUCTIONS RED COMMAND PROTOCOL DO NOT use the camera or accessories near water. Avoid exposing your camera to moisture. The unit is not waterproof, so Products that fall into this category are denoted...
Page 7 EPIC-W GEMINI OPERATION GUIDE DO NOT operate or store near any heat sources such as radiators, heat registers, stoves, or any other apparatus that produce heat. Store in a protected, level and ventilated place. WARNING: DO NOT expose the battery to Avoid exposure to temperature extremes, damp, severe vibration, excessive heat.
Page 8: Battery Storage And Handling
EPIC-W GEMINI OPERATION GUIDE DO NOT transport or store the battery together with metal objects BATTERY STORAGE AND HANDLING such as jewelry, hairpins, etc. as they may generate heat if they come into contact with the battery. WARNING: Failure to read, understand, and DO NOT discard the battery into fire or heat.
Page 9: Shipping Disclaimer
EPIC-W GEMINI OPERATION GUIDE SHIPPING DISCLAIMER Shipment of Lithium Ion cells and batteries is subject to national and international shipping requirements. A Class 9 Certified shipper is required to transport these products within the United States. REDVOLT, REDVOLT-V, REDVOLT XL, and RED BRICK batteries are considered Dangerous Goods.
Page 10: Chapter 1: Product Introduction
EPIC-W GEMINI OPERATION GUIDE CHAPTER 1: PRODUCT INTRODUCTION ® ® The RED EPIC-W 5K S35 features the GEMINI 5K S35 sensor, RED’s highest-sensitivity sensor to date. The EPIC- W 5K S35 is a powerful, dual sensitivity camera that offers the ability to shoot in either Low Light or Standard modes.
Page 11: R3D File Format And Redcode
EPIC-W GEMINI OPERATION GUIDE R3D FILE FORMAT AND REDCODE ® All videos and frames are recorded to the R3D file format. The R3D file format was developed by RED to provide an efficient and manageable RAW video data format that promotes advanced post production editing capabilities. In the R3D file format, the digital image received from the sensor is formatted as a pixel-defect corrected (but in all other aspects unprocessed) 16-bit per pixel RAW data frame.
Page 12: Post Production
EPIC-W GEMINI OPERATION GUIDE POST PRODUCTION NOTE: Third-party applications may have limited compatibility with R3D files. Third-party developers must use the most recent R3D SDK to offer compatibility with the latest RED firmware. Many non- linear editing systems (NLEs) can open and edit RED footage. Each NLE version may have specific compatibility requirements, such as camera firmware version or camera type.
Page 13: Hdrx And Magic Motion
EPIC-W GEMINI OPERATION GUIDE HDRX AND MAGIC MOTION HDRX ® HDRX extends dynamic range up to six (6) stops by simultaneously capturing two (2) images of identical resolution and frame rate. The first image is a normally exposed track (A-track), while the second is an underexposed track (X- track) with an exposure value that reflects the additional stops of highlight protection.
Page 14: Chapter 2: Camera System Components
EPIC-W GEMINI OPERATION GUIDE CHAPTER 2: CAMERA SYSTEM COMPONENTS NOTE: Modules, expanders, and lens mounts are NOT HOT SWAPPABLE, meaning you cannot remove or install these items while the camera is turned on. Before installing or removing these items, you MUST turn off the camera.
Page 15: Brain
EPIC-W GEMINI OPERATION GUIDE BRAIN Figure: EPIC-W 5K S35 ® The DSMC BRAIN is the image processing center of the camera system and supports power, media, and other modules. ® The only ports on the BRAIN are the DSMC2 Top Handle port and EVF/LCD ports. A port expander or power module is required to power the camera.
Page 16 EPIC-W GEMINI OPERATION GUIDE BRAIN LEDS This section describes the LED functions for the camera. NOTE: When the camera is powered only by battery and not AC power, the Power Status LED (PWR) on the expander or module does not turn on. You can press the button on the battery to check the battery charge level.
Page 17 EPIC-W GEMINI OPERATION GUIDE BRAIN CONNECTORS, FOCUS HOOK, AND BACK FOCUS Figure: EPIC-W 5K S35 Ports and Features # PORT/ITEM DESCRIPTION 1 Primary EVF/LCD Port Mount a DSMC2 RED Touch LCD 2 Top Handle Port Mount the DSMC2 Top Handle or DSMC2 Outrigger Handle. This is the only...
Page 18 EPIC-W GEMINI OPERATION GUIDE MEDIA BAY CONTROLS Figure: EPIC-W 5K S35 Media Bay Controls CONTROL DESCRIPTION User Key 1 Programmable key User Key 1 + 2 Press: Eject Media REC Button Programmable key Full Press: Record Toggle Half Press: AF Start...
Page 19 EPIC-W GEMINI OPERATION GUIDE MEDIA BAY LEDS Figure: EPIC-W 5K S35 Media Bay LEDs This section describes the LED functions for the media bay. # LED COLOR/FLASHING DESCRIPTION 1 Media Status LED (Back of media No media mounted bay) Green Preview;...
Page 20: Red Mini-Mag System
EPIC-W GEMINI OPERATION GUIDE RED MINI-MAG SYSTEM Figure: RED MINI-MAG (120GB) NOTE: For more information, see the DSMC Media Operation Guide, available at www.red.com/downloads. ® ® RED MINI-MAG SSDs deliver fast and reliable recording options for your camera. A RED STATION enables you to connect media to your computer for offloading and editing.
Page 21: Expanders
EPIC-W GEMINI OPERATION GUIDE EXPANDERS NOTE: Only one (1) expander module can be used at a time. RED offers the following DSMC2 expanders: ITEM PART NUMBER DSMC2 Base Expander 720-0033 DSMC2 REDVOLT Expander 720-0040 DSMC2 Jetpack Expander 720-0039 DSMC2 Jetpack-SDI Expander...
Page 22: Dsmc2 Redvolt Expander
EPIC-W GEMINI OPERATION GUIDE DSMC2 REDVOLT EXPANDER Figure: DSMC2 REDVOLT Expander Designed for advanced configurations, the DSMC2 REDVOLT Expander mounts directly to the camera and offers an expansive array of I/O connectors and functionality available for the camera system. The DSMC2 REDVOLT Expander features ports for power in (DC IN), Genlock (BNC), Timecode (LEMO), GIG-E, and more.
Page 23: Dsmc2 Jetpack Expander
EPIC-W GEMINI OPERATION GUIDE DSMC2 JETPACK EXPANDER Figure: DSMC2 Jetpack Expander The DSMC2 Jetpack Expander is specifically designed for aerial, gimbal, handheld, and other lightweight/remote configurations. This expander features standard connectors for power (DC-IN), CTRL, and SYNC for all of your Timecode and Genlock needs.
Page 24: Dsmc2 Jetpack-Sdi Expander
EPIC-W GEMINI OPERATION GUIDE DSMC2 JETPACK-SDI EXPANDER Figure: DSMC2 Jetpack-SDI Expander The DSMC2 Jetpack-SDI Expander is designed for aerial, gimbal, handheld, and other lightweight/remote applications that require 3G-SDI output. Featuring connections for power (DC IN), SDI (3G-SDI), Gigabit Ethernet (GIG-E), AUX power, SYNC, and CTRL, the DSMC2 Jetpack-SDI Expander provides a low-profile expander solution.
Page 25: Dsmc2 V-Lock I/O Expander
EPIC-W GEMINI OPERATION GUIDE DSMC2 V-LOCK I/O EXPANDER Figure: DSMC2 V-Lock I/O Expander The DSMC2 V-Lock I/O Expander offers a variety of Input/Output connections, as well as an industry standard V-Lock mount to power your DSMC2 camera using RED BRICK and REDVOLT-V batteries.
Page 26 EPIC-W GEMINI OPERATION GUIDE WARNING: While third-party batteries may be mechanically compatible with the camera system, the manufacturer is responsible for the performance and stability of third-party options, not RED. Damage to the camera system or third- party devices caused by using third-party power options is not covered under warranty. The camera may be unable to determine and display the voltage or remaining battery capacity of third-party power options.
Page 27: Dsmc2 Power Modules
EPIC-W GEMINI OPERATION GUIDE DSMC2 POWER MODULES ITEM PART NUMBER DSMC2 REDVOLT XL Module 740-0034 DSMC2 V-Lock Battery Module 720-0052 DSMC2 Gold Mount Battery Module 720-0053 1. The DSMC2 Gold Mount Battery Module supports Gold Mount batteries only. NOTE: If a power module is attached to the DSMC2 REDVOLT Expander, the power out connectors on the module are enabled only if power is connected to the module (via DC IN or a battery).
Page 28: Dsmc2 V-Lock Battery Module
EPIC-W GEMINI OPERATION GUIDE DSMC2 V-LOCK BATTERY MODULE Figure: DSMC2 V-Lock Battery Module The DSMC2 V-Lock Battery Module is a low profile cable-free module that enables you to power your DSMC2 BRAIN and camera accessories using RED BRICK, REDVOLT-V, or other standard V-Lock batteries. The V-Lock mount and protected release button ensure ongoing power even during mobile shoots.
Page 29 EPIC-W GEMINI OPERATION GUIDE DSMC2 GOLD MOUNT BATTERY MODULE Figure: DSMC2 Gold Mount Battery Module The DSMC2 Gold Mount Battery Module is a low profile cable-free module that enables you to power your DSMC2 BRAIN and camera accessories using standard Gold Mount batteries. The Gold Mount and protected release button ensure ongoing power even during mobile shoots.
Page 30: Red Batteries And Chargers
EPIC-W GEMINI OPERATION GUIDE RED BATTERIES AND CHARGERS Figure: REDVOLT XL (left) and REDVOLT (right) The REDVOLT, REDVOLT-V, REDVOLT XL, and RED BRICK are lightweight, rechargeable lithium-ion battery cells that provide sustained power to the camera. These batteries provide long-term mobile power and attach to the camera via a power module or other RED accessory.
Page 31: Displays And Electronic Viewfinders
EPIC-W GEMINI OPERATION GUIDE DISPLAYS AND ELECTRONIC VIEWFINDERS RED offers the following displays and electronic viewfinders (EVFs): NOTE: RED offers multiple mounting solutions for each camera type. ITEM RESOLUTION TILT SWIVEL PART NUMBER DSMC2 RED Touch 7.0" LCD (Woven CF) 1920 x 1136 Total: 180°...
Page 32 EPIC-W GEMINI OPERATION GUIDE RED LCDS Figure: DSMC2 RED Touch 7.0" LCD RED displays provide important camera parameters on the graphical user interface (GUI) and offer a variety of monitor viewing options. RED touchscreen displays enable you to use gestures to navigate menus and adjust camera parameters.
Page 33 EPIC-W GEMINI OPERATION GUIDE BOMB EVFS Figure: BOMB EVF (OLED) The BOMB EVF (LCOS) and BOMB EVF (OLED) deliver specialized viewing solutions for the camera. The BOMB EVF (LCOS) is a high-definition, lightweight, and low-profile viewfinder. The BOMB EVF (OLED) uses OLED technology, providing deeper blacks and more color accurate images.
Page 34 EPIC-W GEMINI OPERATION GUIDE DSMC2 RED EVF The DSMC2 RED EVF (OLED) is a high definition electronic viewfinder designed as the ideal single-viewer monitoring solution. Featuring the latest OLED technology, this EVF provides an unmatched personal viewing experience with a 1080p OLED micro-display, and improved color accuracy with 30-bit RGB color represenation.
Page 35 EPIC-W GEMINI OPERATION GUIDE DSMC2 RED EVF FEATURES Figure: DSMC2 RED EVF # FEATURE DESCRIPTION 1 DSMC2 RED EVF The DSMC2 RED EVF Mount. Mount DO NOT overtighten the black tension ring on the EVF connector. The EVF is designed to allow rotation even when the tension ring is fully engaged.
Page 36: Lemo Adaptors
EPIC-W GEMINI OPERATION GUIDE LEMO ADAPTORS This section describes the DSMC2 LEMO Adaptor A and the DSMC2 LEMO Adaptor B. These adaptors enable you to use EPIC/SCARLET displays with your DSMC2 camera and use DSMC2 displays with your EPIC/SCARLET camera.
Page 37: Camera Control Modules
EPIC-W GEMINI OPERATION GUIDE CAMERA CONTROL MODULES This section describes the camera control modules. These devices provide a wide array of programmable buttons, controls, and other features to interact with the camera. RED offers the following controls: ITEM PART NUMBER DSMC2 SIDEKICK™...
Page 38 EPIC-W GEMINI OPERATION GUIDE DSMC2 SIDE HANDLE Figure: DSMC2 Side Handle Designed for shooters who prefer a compact handheld configuration, the DSMC2 Side Handle offers the most ergonomic handle option—attaching directly to the side of the camera BRAIN. The DSMC2 Side Handle features a molded rubber grip and puts primary camera controls right at your fingertips. The Focus Control Wheel (front) offers direct control over lens focus, while the Iris Control Wheel (side) supports iris functions.
Page 39 EPIC-W GEMINI OPERATION GUIDE DSMC2 TOP HANDLE Figure: DSMC2 Top Handle Ergonomic and intuitive, the DSMC2 Top Handle was engineered entirely around the most important action for any shooter—the record button. This intelligent top handle puts a new Record Start/Stop button at your fingertips, using built-in integrated circuitry.
Page 40 EPIC-W GEMINI OPERATION GUIDE DSMC2 TACTICAL TOP PLATE Figure: DSMC2 Tactical Top Plate Machined from robust 7075 Aluminum, the DSMC2 Tactical Top Plate mounts to the top of your DSMC2 BRAIN to provide 1/4-20 and 3/8-16 mounting points for RED and third-party accessories. This plate is specifically designed to provide reliable and seamless functionality with existing DSMC2 battery modules, expanders, and accessories.
Page 41: Lens Mounts
EPIC-W GEMINI OPERATION GUIDE LENS MOUNTS RED offers the following lens mounts: Figure: DSMC S35 Mg PL Mount 2.0 ITEM PART NUMBER DSMC S35 Mg PL Mount 2.0 725-0024 DSMC S35 Ti PL Mount (Captive) 725-0022 DSMC S35 Al Canon Mount (Captive)
Page 42: Interchangeable Olpfs
EPIC-W GEMINI OPERATION GUIDE INTERCHANGEABLE OLPFS The camera system includes intelligent, interchangeable optical low pass filters (OLPFs). The camera automatically recognizes the OLPF type installed, eliminating the need to configure OLPF settings in the camera menu. RED offers the following modular DSMC2 S35 interchangeable OLPFs:...
Page 43: Rails, Mounts, Tactical Gear, And Cables
EPIC-W GEMINI OPERATION GUIDE RAILS, MOUNTS, TACTICAL GEAR, AND CABLES RED offers a wide variety of support gear, mounting platforms, cables, accessories, and other equipment. For more information, visit the RED Store at www.red.com/store. C O PYR I G HT © 2 0 1 8 R ED.C O M , LLC...
Page 44: Chapter 3: Basic Operations
EPIC-W GEMINI OPERATION GUIDE CHAPTER 3: BASIC OPERATIONS POWER OPERATIONS This section describes the basic power operations of the camera system. For more information, see the DSMC Power Operation Guide, available at www.red.com/downloads. NOTE: Modules, expanders, and lens mounts are NOT HOT SWAPPABLE, meaning you cannot remove or install these items while the camera is turned on.
Page 45: Approved External Dc Power
EPIC-W GEMINI OPERATION GUIDE APPROVED EXTERNAL DC POWER The camera accepts input voltages of 11.5 V to 17 V DC, and can draw a maximum current of 9 A. The camera can be powered continuously by connecting one (1) of the following to an attached module or expander:...
Page 46 EPIC-W GEMINI OPERATION GUIDE AUTO BOOT ON POWER The DSMC2 Jetpack Expander, DSMC2 Jetpack-SDI Expander, DSMC2 REDVOLT Expander, and the DSMC2 V-Lock I/O Expander feature a selector switch that enables the camera to automatically boot when power is provided via the DC IN connector on the expander.
Page 47: Configure Your Camera
EPIC-W GEMINI OPERATION GUIDE CONFIGURE YOUR CAMERA This section describes common options for configuring your camera system. DSMC2 SIDEKICK: INSTALL/REMOVE INSTALL THE DSMC2 SIDEKICK This section applies to the following items: DSMC2™ SIDEKICK (Forged CF) DSMC2 SIDEKICK (Woven CF) DSMC2 SIDEKICK (Magnesium) NOTE: Each DSMC2 SIDEKICK is compatible with all DSMC2 cameras.
Page 48 EPIC-W GEMINI OPERATION GUIDE INSTALL THE DSMC2 SIDE HANDLE WARNING: Before installing or removing this item, you MUST turn off the camera. REQUIRED TOOL(S): T10 TORX driver (if a SIDEKICK Cover or DSMC2 SIDEKICK is installed), M2.5 hex key 1. Turn off the camera.
Page 49 EPIC-W GEMINI OPERATION GUIDE DSMC2 EXPANDER: INSTALL/REMOVE INSTALL A DSMC2 EXPANDER This section applies to the following items: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 REDVOLT Expander DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander WARNING: Before installing or removing this item, you MUST turn off the camera.
Page 50 EPIC-W GEMINI OPERATION GUIDE DSMC2 POWER MODULES: INSTALL/REMOVE DSMC2 power module options include: DSMC2 REDVOLT XL Module DSMC2 V-Lock Battery Module DSMC2 Gold Mount Battery Module INSTALL THE DSMC2 POWER MODULE The DSMC2 power modules mount to the rear of the following items:...
Page 51 EPIC-W GEMINI OPERATION GUIDE DSMC2 TOP HANDLE AND DSMC2 OUTRIGGER HANDLE: INSTALL/REMOVE INSTALL THE DSMC2 TOP HANDLE OR DSMC2 OUTRIGGER HANDLE WARNING: Before installing or removing this item, you MUST turn off the camera. REQUIRED TOOL(S): 3/16" hex key 1. Turn off the camera.
Page 52 EPIC-W GEMINI OPERATION GUIDE INSTALL THE FOCUS HOOK SCREW The camera comes with a screw stored in the bottom of the media bay, called the focus hook screw. You can install this screw in the Focus Hook Mounting point (along the sensor plane), and then pull focus from that location. You can either attach measuring tape directly to the screw, or you can install a hook to the screw, and attach the measuring tape to the hook.
Page 53: Interchangeable Olpf System
EPIC-W GEMINI OPERATION GUIDE INTERCHANGEABLE OLPF SYSTEM WARNING: Read these instructions carefully and in their entirety before removing or installing an OLPF. Damage to the OLPF module, camera, or sensor due to improper handling or use is not covered under warranty.
Page 54: Use A Tripod Or Monopod
EPIC-W GEMINI OPERATION GUIDE USE A TRIPOD OR MONOPOD This section describes the camera mounting points and mounting equipment for use with a tripod or monopod. The camera is equipped with two (2) 3/8-16 mounting holes and one (1) 1/4-20 mounting hole on the bottom of the camera.
Page 55: Video Monitor Outputs
EPIC-W GEMINI OPERATION GUIDE VIDEO MONITOR OUTPUTS ® NOTE: HD- SDI and HDMI ports are only available on select DSMC2 expanders. For more information, go to "Input/Output Connectors" on page 214. The monitoring path converts RAW sensor data to a white balanced 12-bit depth 1920 x 1080 pixel RGB 4:4:4 video signal.
Page 56: Record
EPIC-W GEMINI OPERATION GUIDE RECORD Perform one of the following actions to begin recording: Press PWR/REC on the camera. Press REC on the media bay. Press START/STOP on the DSMC2 Top Handle or DSMC2 Outrigger Handle. Trigger start/stop with a compatible third-party trigger.
Page 57 EPIC-W GEMINI OPERATION GUIDE EXTERNAL RECORD NOTE: HD- SDI and HDMI ports are only available on select DSMC2 expanders. For more information, go to "Input/Output Connectors" on page 214. You can record to an external recorder without recording to an SSD. To record to an external device only, follow the instructions below: 1.
Page 58: Chapter 4: Basic Menus And Controls
EPIC-W GEMINI OPERATION GUIDE CHAPTER 4: BASIC MENUS AND CONTROLS GUI MENU INTRODUCTION This section describes the structure and layout of the graphical user interface (GUI) that overlays the video monitor signal. Advanced GUI menu controls enable convenient access to menus, overlays, and other critical camera information.
Page 59: Upper Status Row (Basic Menu)
EPIC-W GEMINI OPERATION GUIDE UPPER STATUS ROW (BASIC MENU) The Upper Status Row displays basic project parameters. The currently selected parameter in the Upper Status Row is underlined with a red bar. The Upper Status Row is also known as the Basic Menu.
Page 60 EPIC-W GEMINI OPERATION GUIDE ACCESS ADVANCED MENUS For every Upper Status Row item, you can select the Advanced... button to access the related menu in the Advanced Menus. For example, select Advanced... in the Frame Rate menu to open Menu > Settings > Project > Frame Rate.
Page 61 EPIC-W GEMINI OPERATION GUIDE FEATURE: EDIT LIST Select the Edit List... button in the Upper Status Row menus to change the values that display for each setting. For example, if you open the Frame Rate menu and select Edit List..., the camera lets you add or remove values.
Page 62 EPIC-W GEMINI OPERATION GUIDE REDCODE Select the target REDCODE compression ratio for your project. If the camera is able to achieve the target compression ratio, the compression ratio displays in white. If the camera is unable to achieve the target compression ratio, the compression ratio displays in yellow, and the camera uses the next possible compression ratio.
Page 63: Live Action Area
EPIC-W GEMINI OPERATION GUIDE LIVE ACTION AREA The Live Action Area contains the recorded image area, Look Around area, and various overlays. The color of each overlay can be customized to maximize the contrast between the guide(s) and scene being captured.
Page 64 EPIC-W GEMINI OPERATION GUIDE LENS INFORMATION This section describes the lens information displays when a supported lens is attached. PL LENSES Displays the focal length and focal distance when a DSMC PL mount is installed and a lens with the Cooke S4/i system (or equivalent) is attached.
Page 65: Lower Status Row
EPIC-W GEMINI OPERATION GUIDE LOWER STATUS ROW The Lower Status Row provides access to key system information and camera values. Figure: Lower Status Row # ITEM SUB-ITEM/DESCRIPTION DETAILS 1 Camera Mode Swipe up to toggle Motion/Stills/Playback modes "Camera Mode" on page 67 2 Histogram Histogram;...
Page 66 EPIC-W GEMINI OPERATION GUIDE # ITEM SUB-ITEM/DESCRIPTION DETAILS 4 Media Status Media location and remaining capacity; file type (R3D and/or "Media Menu" on page 110 third-party proxy); tap to open the Media Menu 5 Power Status DC voltage or remaining battery capacity; tap to open the "Power Status"...
Page 67: Camera Mode
EPIC-W GEMINI OPERATION GUIDE CAMERA MODE The Camera Mode allows you to seamlessly toggle between Motion mode, Stills mode, and Playback. To select a camera mode, select the Camera Mode icon in the Lower Status Bar, swipe up, and select a camera mode.
Page 68: System Status Indicators
EPIC-W GEMINI OPERATION GUIDE HISTOGRAM NOTE: The sharpness setting affects the Histogram, RAW Level Bars, and RAW Clip Meter. For more information, go "Output Sharpness" on page 93. This section describes the elements that comprise the Histogram section in the Lower Status Row. This section of the GUI helps ensure that recorded footage is properly exposed.
Page 69 EPIC-W GEMINI OPERATION GUIDE CAL: T/E INDICATOR The CAL: T/E indicator shows changes to temperature (T) or exposure (E) in relation to the active calibration map. If the temperature or exposure change significantly, calibrate the sensor at the desired temperature and exposure. Failure to properly calibrate the sensor may reduce image quality.
Page 70: Wifi Indicator
EPIC-W GEMINI OPERATION GUIDE LAN INDICATOR ® NOTE: The GIG-E port is only available on the DSMC2 REDVOLT Expander and DSMC2 Jetpack-SDI Expander. For more information, go to "Input/Output Connectors" on page 214. The LAN indicator shows the current status of an external LAN connection through the Gig-E port.
Page 71: Navigation Controls
EPIC-W GEMINI OPERATION GUIDE NAVIGATION CONTROLS This section describes basic controls for navigating the camera menus. TOUCHSCREEN NAVIGATION You can control certain settings and navigate the camera menu using buttons and gestures on the RED Touch displays. RED TOUCH DISPLAY BUTTONS RED Touch displays offer intuitive menu control and four (4) programmable buttons.
Page 72 EPIC-W GEMINI OPERATION GUIDE RED TOUCH DISPLAY GESTURES Navigate the menus using a touchscreen by using the following gestures: Tap: Tap has many functions: Tap to select a Basic Menu, submenu, or button. If a menu is open, tap anywhere outside the menu to save any changes and close the menu.
Page 73 EPIC-W GEMINI OPERATION GUIDE SWIPE-UP MENU The Swipe-Up Menu is available in the Lower Status Row on RED Touch displays and provides Swipe-Up Shortcuts for Motion mode, Stills mode, and Playback. For example, select the Camera Mode icon in the Lower Status Bar, swipe up, and select a Camera Mode.
Page 74: Navigation Group
EPIC-W GEMINI OPERATION GUIDE NAVIGATION GROUP Figure: Navigation Group (DSMC2 SIDEKICK™ Pictured) The Navigation Group is the primary control interface on the DSMC2 SIDEKICK and DSMC2 Side Handle. # NAVIGATION GROUP ELEMENT DESCRIPTION 1 Scroll Wheel Select and adjust the value of a selected setting...
Page 75 EPIC-W GEMINI OPERATION GUIDE DSMC2 SIDEKICK Figure: DSMC2 SIDEKICK # CONTROL/ITEM DESCRIPTION 1 User Keys (A–D) A: Cycle Auto-Focus Mode B: Auto White Balance C: Toggle: Magnify D: Toggle Exposure Mode 2 MENU Button Access menus or exit currently selected menu 3 Navigation Group Navigate menus and menu items;...
Page 76: Operation Modes
EPIC-W GEMINI OPERATION GUIDE OPERATION MODES The DSMC2 SIDEKICK display reflects the currently selected mode. Use the Scroll Wheel and Directional Keys to navigate menus. Press MENU to access the Advanced Menu. Press MODE to toggle between the following modes: Remote Mode: Navigate with DSMC2 SIDEKICK controls, using an attached LCD, EVF, or other monitor as a reference.
Page 77 EPIC-W GEMINI OPERATION GUIDE DSMC2 SIDEKICK DISPLAY The DSMC2 SIDEKICK OLED display provides basic camera parameters during operation. Figure: DSMC2 SIDEKICK OLED (Local Mode) The DSMC2 SIDEKICK displays the following camera parameters: ITEM DESCRIPTION Frame Rate Current Recording Frame Rate...
Page 78 EPIC-W GEMINI OPERATION GUIDE DSMC2 SIDE HANDLE Figure: DSMC2 Side Handle # CONTROL/ITEM DESCRIPTION 1 Focus Control Wheel Clockwise (Away from camera): Increase focus distance Counter-Clockwise (Toward camera): Decrease focus distance 2 Focus/Record Button Half-press for auto-focus; full press to Start/Stop Record...
Page 79 EPIC-W GEMINI OPERATION GUIDE FOCUS CONTROL WHEEL The Focus Control Wheel allows you to physically control the focus length directly from the DSMC2 Side Handle. The wheel features 270° rotation, and each physical location on the wheel maps directly to a specific focus length of the lens.
Page 80: Chapter 5: Advanced Menus
EPIC-W GEMINI OPERATION GUIDE CHAPTER 5: ADVANCED MENUS ACCESS THE ADVANCED MENUS To access the Advanced menus, perform one of the following: ® Tap the Menu button on the DSMC2 SIDEKICK™. Tap the Menu icon on the touchscreen. Open any menu in the Upper Status Row, and then select the Advanced... button.
Page 81: Legacy Mode
EPIC-W GEMINI OPERATION GUIDE IMAGE PIPELINE To set up the image pipeline, go to Menu > Image > Image Pipeline. IMAGE PIPELINE MODE OPTIONS The camera offers two (2) different ways to process your image. Each mode changes which sub-menus are available in the Image menu.
Page 82 EPIC-W GEMINI OPERATION GUIDE IPP2 MODE To use IPP2 mode, follow the instructions below: 1. Go to Menu > Image > Image Pipeline > Options. 2. Select IPP2 from the Mode drop-down menu. With IPP2, the Color Space and Gamma Curve are always REDWideGamutRGB and Log3G10, respectively.
Page 83: Output Summary
EPIC-W GEMINI OPERATION GUIDE OUTPUT SUMMARY The Output Summary menu is an information-only menu that displays what image information is applied to the R3D files and proxy files. To view the output summary, go to Menu > Image > Image Pipeline > Output Summary.
Page 84: Auto White Balance
EPIC-W GEMINI OPERATION GUIDE WHITE BALANCE Select a color temperature. The range is 1700 to 10,000 KELVIN, and the default is 5600 KELVIN. TINT Color temperature calculations assume a pure light source that may not be true in the specific scene the camera is imaging.
Page 85: Sensor Sensitivity
EPIC-W GEMINI OPERATION GUIDE ISO MENU To select an ISO setting, go to Menu > Image > ISO. SENSOR SENSITIVITY Select a Sensor Sensitivity: Standard: Use in normal shooting conditions in which you would expose near ISO 800. Provides the best highlight retention.
Page 86 EPIC-W GEMINI OPERATION GUIDE FLUT NOTE: This feature is only available in Legacy mode. For more information, go to "Image Pipeline" on page 81. Floating Point Lookup Table (FLUT) is an exposure control exclusive to RED. FLUT works like a traditional ISO setting, but can be fine-tuned in post production to any level of exposure precision.
Page 87 EPIC-W GEMINI OPERATION GUIDE ISO CALIBRATION ® ® ® RED cameras with HELIUM , MONSTRO , and GEMINI sensors have an ISO calibration that better matches a light meter and improves overall exposure quality. RED cameras with HELIUM, MONSTRO, and GEMINI sensors therefore depict a one stop brighter image compared to prior sensors (when set to an otherwise identical ISO, T-stop, and shutter speed).
Page 88 EPIC-W GEMINI OPERATION GUIDE GAIN NOTE: This menu is only available in Legacy mode. For more information, go to "Image Pipeline" on page 81. Adjust the red channel, blue channel, and green channel individually. The range for each is 0.0 (none of the color) to 10.0, and the default for each is 1.0.
Page 89: Monitoring Menu
EPIC-W GEMINI OPERATION GUIDE MONITORING MENU The Monitoring menu is new to firmware v6.4. The Monitoring menu includes tools that control different monitor outputs, Look Around, and overlays. MONITORS To set up monitor preferences, go to Menu > Monitoring and select the monitor whose preferences you want to change.
Page 90 EPIC-W GEMINI OPERATION GUIDE RESOLUTION Select the output resolution for monitors (you cannot select a resolution for LCDs and EVFs, since the resolution is determined automatically). For more information about available HD-SDI and HDMI resolutions, go to "3G-SDI (HD- SDI) Out" on page 221 "HDMI Out"...
Page 91: Test Signal
EPIC-W GEMINI OPERATION GUIDE FLIP/MIRROR NOTE: This setting is ONLY available on the DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD, RED Touch 7.0" LCD, and RED Pro Touch 7.0" LCD. Mirror and flip (invert) the graphical user interface (GUI) and footage, effectively rotating the entire displayed image 180°.
Page 92: Audio Tone
EPIC-W GEMINI OPERATION GUIDE AUDIO TONE To apply an audio tone, follow the instructions below: 1. Go to Menu > Monitoring > Test Signals. 2. Toggle Tone On/Off. LOOK AROUND To enable Look Around, go to Menu > Monitoring > Look Around.
Page 93 EPIC-W GEMINI OPERATION GUIDE OUTPUT SHARPNESS Control the sharpness of each monitor output. Move to the left for a sharper image; move to the right for a less sharp image. NOTE: The sharpness setting affects the Histogram, RAW Level Bars, RAW Clip Meter, and false color modes. For more information, go to "Histogram"...
Page 94: Overlays Menu
EPIC-W GEMINI OPERATION GUIDE OVERLAYS MENU The Overlays menu includes settings that display on top of the monitor image. TOOLS The Tools menu provides access to false color and display modes. For more information, see the Exposure with RED Cameras: False Color & Zebra Tools article , available at www.red.com/learn/red-101/exposure-false-color-zebra-tools.
Page 95 EPIC-W GEMINI OPERATION GUIDE FALSE COLOR MODES: EXPOSURE To enable, go to Menu > Overlays > Tools > False Color > Exposure. The Exposure tool displays a color overlay on top of a desaturated image that allows you to check for proper exposure.
Page 96 EPIC-W GEMINI OPERATION GUIDE FALSE COLOR MODES: GIO SCOPE To enable, go to Menu > Overlays > Tools > False Color > Gio Scope. Displays a color overlay on top of a desaturated image, identifying 16 increments within the dynamic range of the sensor.
Page 97 EPIC-W GEMINI OPERATION GUIDE DISPLAY MODES: LOG VIEW NOTE: Log View is only available in IPP2 mode. For more information, go to "Image Pipeline" on page 81. To enable, go to Menu > Overlays > Tools > Log View. When enabled, the camera displays images in REDWideGamutRGB and Log3G10 that are only affected by the ISO, Exposure Adjust, Color Temperature, and Tint settings.
Page 98 EPIC-W GEMINI OPERATION GUIDE ENABLE ZEBRA INDICATORS 1. Go to Menu > Overlays > Tools > Zebras. 2. Select a Zebra: Zebra 1: Video: Areas of the image exposed within the IRE range are indicated by red diagonal lines at –45°. Default is 98 to 100 IRE.
Page 99 EPIC-W GEMINI OPERATION GUIDE CAMERA AND LENS STATUS To set up what camera and lens info displays as part of the overlay, go to Menu > Overlays > Status. CAMERA STATUS OVERLAYS EXPOSURE Shutter Speed: Displays the exposure time in seconds (1/xx sec). When you change the frame rate in this mode, the shutter speed stays the same, but the shutter angle changes.
Page 100 EPIC-W GEMINI OPERATION GUIDE RACK SHOW DISTANCE On: Displays the focus distance of each rack point on the Live Action Area when rack focus is enabled. For more information, go to "Set Up Rack Focus" on page 136. Off: Does not display the focus distance of rack points when rack focus is enabled. (Default) GUIDES Use the Guides menu to configure the Frame Guide, Action Guide, and Title Guide.
Page 101: General Tab
EPIC-W GEMINI OPERATION GUIDE GENERAL TAB Enable/Disable and select the location (Relative To), color, and opacity of the following elements: Center: The center crosshair. Grid: Rule-of-thirds grid. Shading: The shaded region outside of the area of interest. CUSTOM OVERLAYS Create custom overlays that include specific items. Overlays can be stored on the camera or transferred to SSD to be shared with other cameras.
Page 102 EPIC-W GEMINI OPERATION GUIDE CREATE AND EDIT OVERLAYS 1. Go to Menu > Overlays > Custom. 2. Select Create, or select an existing overlay and select Clone or Edit. 3. If creating a new overlay, enter a name for the overlay and select OK.
Page 103: Power Menu
EPIC-W GEMINI OPERATION GUIDE POWER MENU The Power menu displays the power status of all attached power sources and allows you to turn off the camera. To access the Power Menu, go to Menu > Power. NOTE: For more information about powering the camera, see the...
Page 104 EPIC-W GEMINI OPERATION GUIDE SHUTDOWN Shutdown controls are interlocked to prevent the camera from being accidentally turned off. For more information about different ways to turn off your camera, go to "Turn Off the Camera" on page 45. 1. Go to Menu > Power.
Page 105: Playback
EPIC-W GEMINI OPERATION GUIDE PLAYBACK To view clips from the SSD: Go to Menu > Playback. Press the Record/Playback toggle in the lower left corner of the touchscreen. NOTE: The camera uses RGB color space in Playback mode by default, regardless of settings in Record mode. To playback clips in RAW mode, enable to RAW mode.
Page 106: Playback Controls
EPIC-W GEMINI OPERATION GUIDE PLAYBACK CONTROLS GENERAL PLAYBACK CONTROLS Figure: Playback Controls CONTROL DESCRIPTION Clips View clips as thumbnails Load Previous Clip Loads the previous clip in the playlist. Frame-by-Frame Moves through the clip frame-by-frame in reverse. Reverse Reverse Play/Pause Plays clip in reverse, and toggles between play and pause.
Page 107 EPIC-W GEMINI OPERATION GUIDE PLAYBACK FILE TYPE Figure: Playback Controls CONTROL DESCRIPTION R3D Playback Plays the R3D clip. ProRes Plays the Apple ProRes clip. C O PYR I G HT © 2 0 1 8 R ED.C O M , LLC...
Page 108: Control Description
EPIC-W GEMINI OPERATION GUIDE PLAYBACK SPEED AND LOOPING Figure: Playback Controls CONTROL DESCRIPTION 13 Play Once Plays clip to the end, and does not repeat the clip. 14 Loop Plays the clip on a loop. 15 Loop Loops all clips in the playlist. To create a playlist, go to Menu > Playback > Menu > Media >...
Page 109 EPIC-W GEMINI OPERATION GUIDE PLAYBACK MARKERS Figure: Playback Controls CONTROL DESCRIPTION 17 In Point Sets a red In Point marker in the Playback Status Bar. Use an In Point marker in conjunction with an Out Point marker to play only a certain portion of a clip. The In/Out Point markers help when the clip is long and you want to focus on a particular segment.
Page 110: Media Menu
EPIC-W GEMINI OPERATION GUIDE MEDIA MENU The Media Menu allows you to format and eject an SSD and to view and load clips on the SSD. more information about using media, DSMC Media Operation Guide available www.red.com/downloads. DEVICE Format and eject (unmount) the SSD.
Page 111: Presets Menu
EPIC-W GEMINI OPERATION GUIDE PRESETS MENU The camera has the following presets: Camera Presets: These store and recall camera setup information, such as in-camera Looks, key mappings, I/O configurations, and more. The camera has a number of factory-installed presets. Looks: These allow you to save the specific color, image, white balance, and detail settings to be used for other projects.
Page 112 EPIC-W GEMINI OPERATION GUIDE CREATE PRESETS 1. Set up the camera how you want the preset to be configured. For example, if you want to create a preset specifically for your zebra indicators, first configure the zebras the exact way that you want them to be in the preset.
Page 113 EPIC-W GEMINI OPERATION GUIDE MANAGE IMPORTED LOOKS Manage Looks imported from REDCINE-X PRO in the Presets > Looks tab. When exporting Looks from camera to SSD, the Looks are saved to a folder on the SSD called “Looks”. You can perform the following actions with imported Looks: : Export selected Looks from camera to SSD.
Page 114: Settings Menu
EPIC-W GEMINI OPERATION GUIDE SETTINGS MENU PROJECT The Project menu includes settings that define the recorded file, including recording frame rate, exposure, and format. FRAME RATE RECORDING FRAME RATE Select the recording frame rate (also referred to as the capture frame rate). The recording frame rate is the number of frames per second (fps) that are recorded.
Page 115: Integration Time
EPIC-W GEMINI OPERATION GUIDE EXPOSURE/SHUTTER Select the exposure (shutter speed / shutter angle) of each frame. You can change exposure while recording. Decreasing shutter speed increases the amount of time that light hits the sensor, which increases exposure and motion blur of moving objects.
Page 116: Timecode Source
EPIC-W GEMINI OPERATION GUIDE TIMECODE NOTE: Using timecode requires ports that are only available on select DSMC2 expanders. For more information, go to "Input/Output Connectors" on page 214. RED cameras use non-drop frame timecode. For more information about timecode, go to "Timecode, Genlock, Multi-...
Page 117 EPIC-W GEMINI OPERATION GUIDE FORMAT Use the Format menu to select the resolution, aspect ratio, anamorphic setting, and Look Around setting. To access the Format menu, go to Menu > Settings > Project > Format. The available aspect ratios are determined by the selected resolution.
Page 118 EPIC-W GEMINI OPERATION GUIDE RESOLUTION DIMENSIONS (PIXELS) DIMENSIONS (MM) WIDTH HEIGHT WIDTH HEIGHT DIAGONAL 4K 3:2 3840 2560 23.04 15.36 27.69 4K 4:3 3840 2880 23.04 17.28 28.80 4K 6:5 2592 2160 15.55 12.96 20.24 4K 4:1 4096 1024 24.58 6.14...
Page 119 EPIC-W GEMINI OPERATION GUIDE RESOLUTION DIMENSIONS (PIXELS) DIMENSIONS (MM) WIDTH HEIGHT WIDTH HEIGHT DIAGONAL 2.5K 4:3 2400 1800 14.40 10.80 18.00 2.5K 5:4 2400 1920 14.40 11.52 18.44 2.5K 4:1 2560 15.36 3.84 15.83 2.5K 8:1 2560 15.36 1.92 15.48...
Page 120 EPIC-W GEMINI OPERATION GUIDE ANAMORPHIC Select an Anamorphic setting, if applicable. The anamorphic setting de-squeezes the image on the monitor and marks the footage as anamorphic in the clip metadata. When you open the clip in REDCINE-X PRO, the program automatically de-squeezes the image.
Page 121: Continuous Record
EPIC-W GEMINI OPERATION GUIDE RECORDING The Recording menu includes: Mode, Codec, Frame Processing, Pre-Record, and Indicator. MODE You can select the following recording modes: Continuous Record, Internal Timelapse Timer, Frame Trigger, REDCODE Burst, Speed Ramp Mode, Multi-Shot, and Motion + Stills.
Page 122 EPIC-W GEMINI OPERATION GUIDE FRAME TRIGGER NOTE: This mode is not available in Stills mode. NOTE: Audio is not recorded in Frame Trigger mode. In Frame Trigger mode, the camera records the specified number of frames for each external trigger. This mode limits the REDCODE based on sustainable record rates.
Page 123 EPIC-W GEMINI OPERATION GUIDE REDCODE BURST NOTE: This mode is not available in Stills mode. NOTE: Audio is not recorded in REDCODE Burst mode. In REDCODE Burst mode, the camera can record at a lower compression (REDCODE) for the specified amount of frames.
Page 124 EPIC-W GEMINI OPERATION GUIDE MULTI-SHOT NOTE: The camera does not sync timecode in Multi-Shot mode. NOTE: This mode is available in Motion mode, but is only recommended in Stills mode. NOTE: Audio is not recorded in Multi-Shot mode. Multi-Shot mode removes restrictions on Recording Frame Rate and REDCODE, allowing you to shoot at a high resolution, high frame rate, and low compression.
Page 125 EPIC-W GEMINI OPERATION GUIDE ENABLE MULTI-SHOT MODE To enable Multi-Shot mode, follow the instructions below: 1. Set the camera to Stills mode. For more information, go to "Camera Mode" on page 67. 2. Go to Menu > Settings > Recording > Mode.
Page 126 EPIC-W GEMINI OPERATION GUIDE APPLE PRORES INFORMATION By default, the camera records all videos and stills in the REDCODE RAW file format (records R3D files). You also have the option to record Apple ProRes files. This section provides general information about recording Apple ProRes files with the camera: NOTE: If Look Around is enabled, the Look Around area is recorded in the Apple ProRes file.
Page 127 EPIC-W GEMINI OPERATION GUIDE FILE STRUCTURE OF RECORDED APPLE PRORES FILES When recording R3D + Apple ProRes, this is the file structure of the recorded files on the SSD (when the SSD is formatted as FAT32): .RDM Folder .RDC Folder .mov...
Page 128 EPIC-W GEMINI OPERATION GUIDE AVID DNXHD AND AVID DNXHR INFORMATION By default, the camera records all videos and stills in the REDCODE RAW file format (records R3D files). You also have the option to record to Avid DNxHD and Avid DNxHR (records .mxf files). This section provides general information about recording Avid DNxHD/HR with the camera: NOTE: If Look Around is enabled, the Look Around area is recorded in the Avid DNxHD/HR file.
Page 129 EPIC-W GEMINI OPERATION GUIDE FILE STRUCTURE OF RECORDED AVID CODEC FILES When recording R3D + Avid DNxHD/HR, this is the file structure of the recorded files on the SSD (when the SSD is formatted as FAT32): .RDM Folder .RDC Folder .R3D...
Page 130 EPIC-W GEMINI OPERATION GUIDE SELECT RECORD FILE FORMAT NOTE: For more information on which codecs your camera offers, go to "Technical Specifications" on page 206. To select what file formats to record to, follow the instructions below. 1. Go to Menu > Settings > Recording > Codec.
Page 131: Frame Processing
EPIC-W GEMINI OPERATION GUIDE FRAME PROCESSING NOTE: Frame processing is not supported in Speed Ramp Mode. For more information, go to "Speed Ramp Mode" page 122. Frame processing allows for the combination of multiple captured frames into one recorded frame. The combination occurs before the resulting frame is encoded.
Page 132 EPIC-W GEMINI OPERATION GUIDE PRE-RECORD To set up Pre-Record, go to Menu > Settings > Recording > Pre-Record. When enabled, the Pre-Record setting continuously captures a cache of footage before recording starts. Select to have 4 to 30 seconds (incremented at two second intervals) of pre-record time added to the actual footage. When Pre- Record is enabled, you will not miss the start of a shot by being a little slow on the trigger.
Page 133 EPIC-W GEMINI OPERATION GUIDE HDRX MENU NOTE: HDRX mode cannot be modified when test signals are enabled. NOTE: You cannot change the exposure when HDRX is enabled. In HDRx mode, the camera records two (2) exposures within the interval that it would usually record only one (1). The primary exposure is normal, and uses the standard aperture and shutter settings (the “A track”).
Page 134: Focus Menu
EPIC-W GEMINI OPERATION GUIDE FOCUS MENU To access the Focus menu, go to Menu > Settings > Focus. The Focus menu includes: Mode and Rack. MODE TAB Use the Mode tab to select a focus setting. To set up focus, follow the instructions below: 1.
Page 135: Target Color
EPIC-W GEMINI OPERATION GUIDE TARGET COLOR Both the Center and Spot targets change color to indicate if the objects in the target are in focus. Blue: Camera is focusing Red: Objects are out of focus Yellow: Objects are almost in focus...
Page 136 EPIC-W GEMINI OPERATION GUIDE AUTOFOCUS PERFORMANCE Autofocus performance may be reduced in the following conditions: Subject is too dark or distant. Subject is too bright or close. Inadequate contrast between the subject and background. Inadequate surface contrast or detail. Scene has reflective highlights.
Page 137: Exposure Assist Menu
EPIC-W GEMINI OPERATION GUIDE EXPOSURE ASSIST MENU To access the Exposure Assist menu, go to Menu > Settings > Exposure Assist. The Exposure Assist menu provides access to settings for the Auto Exposure (AE) feature. The AE feature maintains a constant image brightness, even if the actual scene brightness changes.
Page 138 EPIC-W GEMINI OPERATION GUIDE SPEED The Speed setting determines how quickly the algorithm adapts to changing light. Slow: Settings adapt in small steps. Use this setting for fewer and gradual adjustments. Normal: Settings adapt in medium steps. Fast: Settings adapt in large steps.
Page 139: Key Mapping
EPIC-W GEMINI OPERATION GUIDE SETUP The Setup menu includes: Keys, Date/Time, Communication, GPIO/Sync, Fan Control, Lens, and Motor Control. KEYS Map keys to often-used actions to easily control the camera. For a full list of the default key mappings, go to "Default...
Page 140 EPIC-W GEMINI OPERATION GUIDE SOFT KEYS The following sets of soft keys are available on the touchscreen: A, B, C, D: Left side of the touchscreen 1, 2, 3, 4: Right side of the touchscreen To map or remap a soft key, select an action from the drop-down menu next to the key you want to map.
Page 141 EPIC-W GEMINI OPERATION GUIDE CAMERA To access the Camera menu, go to Menu > Settings > Setup > Communication. Use the Camera menu to set up a unique identifier for your camera (or a group of cameras). All command filtering happens on the receiver side of the communication link.
Page 142 EPIC-W GEMINI OPERATION GUIDE WIFI The camera offers a WiFi connection that provides communication support for third-party applications. The camera uses the RED Command Protocol (R.C.P.) to communicate information between the camera and an application. As with all wireless devices, the communication range may be affected by the environment and any radio frequency (RF) interference that may be present.
Page 143 EPIC-W GEMINI OPERATION GUIDE CONNECT WIRELESSLY TO A DEVICE VIA AD-HOC MODE In Ad-Hoc mode, the camera and your device connect to each other. To connect the camera to your device via an ad- hoc network, follow the instructions below: 1.
Page 144 EPIC-W GEMINI OPERATION GUIDE 6. Select Scan to search for available wireless networks. The available wireless networks (access points) display. 7. Highlight the wireless network that your device is connected to and select Select. Figure: Select Wireless Network 8. If you select an encrypted network, follow the instructions below to enter the passphrase for the network: A.
Page 145 EPIC-W GEMINI OPERATION GUIDE 11. Connect your device to the same wireless network that the camera is connected to. The steps in this procedure depend on what type of device and operating system you are using. For example, if you are connecting an iOS device, go to Settings >...
Page 146: Genlock Source
EPIC-W GEMINI OPERATION GUIDE GPIO SYNC NOTE: Using general purpose inputs/outputs and sync requires a DSMC2 expander. For more information, go to "Input/Output Connectors" on page 214. SYNC Use the Sync menu to set up genlock and Motion Control (MoCo). For more information, go to "Timecode, Genlock,...
Page 147 EPIC-W GEMINI OPERATION GUIDE FAN AND TEMPERATURE MANAGEMENT To select a fan control mode, go to Menu > Settings > Setup > Fan Control. The camera is controlled by complex thermal algorithms to ensure that the sensor and camera operate at safe temperatures.
Page 148 EPIC-W GEMINI OPERATION GUIDE MANUAL Select a speed for the fans in both record and standby modes. The fans self-adjust to maintain the selected speeds. The default Maximum Record Speed is 75% and the default Maximum Preview Speed is 75%. The range for both Maximum Record Speed and Maximum Preview Speed is 25–100%.
Page 149 EPIC-W GEMINI OPERATION GUIDE LENS To access the Lens menu, go to Menu > Settings > Setup > Lens. LENS TAB The options displayed on the Lens tab change based on the attached lens mount. PL MOUNT Enable Power to Lens: Ensures that the camera powers the lens via the lens mount. This feature is enabled by ®...
Page 150: Motor Control
EPIC-W GEMINI OPERATION GUIDE LENS INFO TAB The Info tab displays the attached lens mount and lens information. LENS METADATA TAB If a supported lens is attached, the camera autopopulates some Lens Metadata fields. You can also manually edit the Lens Metadata fields to describe the attached lens.
Page 151: Maintenance
EPIC-W GEMINI OPERATION GUIDE MAINTENANCE The Maintenance menu includes: Save Log, Upgrade, Calibrate, Self- Test, Reset Defaults, Rediscover, System Status, and OLPF. SAVE A LOG FILE A log file is a detailed text file of the processes and operations performed by the camera. If you contact RED for support, you may be asked to send a log file.
Page 152: Touch Screen
EPIC-W GEMINI OPERATION GUIDE SELF-TEST The Self-Test menu includes: Enable/Disable Sensor Test Pattern and Touchscreen. ENABLE/DISABLE SENSOR TEST PATTERN The Sensor Test Pattern is used during manufacturing and stress testing. For more information, go to "Perform a Stress Test" on page 191.
Page 153: Restore System
EPIC-W GEMINI OPERATION GUIDE RESTORE SYSTEM Restore System offers two (2) types of restores: Reset Defaults and Wipe Camera. RESET DEFAULTS Reset Defaults changes all settings to the factory default values. To perform a Reset Defaults, follow the instructions below: 1.
Page 154: Camera Info
EPIC-W GEMINI OPERATION GUIDE RCP CONNECTIONS Lists any RCP clients the camera is connected to. CAMERA INFO Displays the following camera information: Type: Camera type and sensor type. Firmware Version: Current firmware version. PIN: The personal identification number that is specific to your camera.
Page 155 EPIC-W GEMINI OPERATION GUIDE THIRD-PARTY OLPFS WARNING: RED does not guarantee that third-party OLPFs will work as intended. Any damage caused by using a third-party OLPF, or any undesirable effects to the footage caused by using a third-party OLPF, is not covered under any RED warranty.
Page 156: Chapter 8: Sensor Calibration
EPIC-W GEMINI OPERATION GUIDE CHAPTER 8: SENSOR CALIBRATION Sensor calibration, also known as black shading, is a process during which the camera optimizes image quality by ensuring that pixel sensitivity remains consistent throughout the sensor. Calibrating the sensor generates a calibration map based on system and environment settings.
Page 157: Calibrate Sensor: Manual Capture
EPIC-W GEMINI OPERATION GUIDE CALIBRATE SENSOR: MANUAL CAPTURE The camera offers two (2) ways to calibrate the sensor: Manual Capture and Auto Capture. This section describes how to calibrate the sensor with Manual Capture. When you start a Manual Capture, the camera calibrates the sensor at the current exposure and temperature setting.
Page 158 EPIC-W GEMINI OPERATION GUIDE 9. Select OK on the dialog box that opens. The system initializes and then makes multiple passes through the following phases of the calibration: Capturing Analyzing Erasing Programming 10. When the Calibration Successful dialog displays, select OK to complete the process.
Page 159: Calibrate Sensor: Auto Capture
EPIC-W GEMINI OPERATION GUIDE CALIBRATE SENSOR: AUTO CAPTURE NOTE: The camera cannot export calibration maps created by Auto Capture. The camera offers two (2) ways to calibrate the sensor: Manual Capture and Auto Capture. This section describes how to calibrate the sensor with Auto Capture.
Page 160 EPIC-W GEMINI OPERATION GUIDE 5. Select which Sensor Sensitivity you want to calibrate at: Low Light Only: This option displays when the current Sensor Sensitivity is Low Light. Standard Only: This option displays when the current Sensor Sensitivity is Standard.
Page 161: Calibration Map Naming Conventions
EPIC-W GEMINI OPERATION GUIDE CALIBRATION MAP NAMING CONVENTIONS All calibration maps for Low Light Sensor Sensitivity are marked with the "LL" symbol. Each calibration map has a unique name that uses the format described in the table below: NAME DESCRIPTION...
Page 162: Calibration Management
EPIC-W GEMINI OPERATION GUIDE CALIBRATION MANAGEMENT To apply, export, and import calibration maps, go to Menu > Settings > Maintenance > Calibrate. In Camera: The calibration maps that are saved internally on the camera: Factory: This is the calibration map generated during the manufacturing process. (Default) All other: The user-created calibration maps.
Page 163: Chapter 9: Audio System
EPIC-W GEMINI OPERATION GUIDE CHAPTER 9: AUDIO SYSTEM AUDIO OVERVIEW The BRAIN has two (2) integrated dual channel digital stereo microphones that record uncompressed audio at 24-bit 48 kHz. These microphones offer you the ability to capture scratch-track audio. For more information, go to "BRAIN"...
Page 164: Control
EPIC-W GEMINI OPERATION GUIDE CONTROL NOTE: If using a third-party module, some audio controls may not be available in-camera. To adjust the input, pre-amplifier, and headphone settings, select Control. CHANNEL 1/2 AND CHANNEL 3/4 To set up Channel 1/2 and 3/4, go to Menu > Settings > Audio > Control.
Page 165: Pre-Amp Gain
EPIC-W GEMINI OPERATION GUIDE PRE-AMP GAIN The pre-amplifier range and default value depend on the attached expander. To adjust amplification levels, follow the instructions below: 1. Go to Menu > Settings > Audio > Control > Pre-Amp Gain. 2. Move the Pre-Amp (pre-amplifier) sliders up and down to adjust the amplification levels.
Page 166: Mix
EPIC-W GEMINI OPERATION GUIDE NOTE: If using a third-party module, some audio controls may not be available in-camera. The camera features a digital audio mixer that controls the volume and stereo settings for each input channel. The mixer affects audio monitoring (such as headphones) and audio recorded to external devices. The mixer DOES NOT affect audio embedded in the R3D file.
Page 167 EPIC-W GEMINI OPERATION GUIDE INCOMING AUDIO CHANNELS When you select Input as the VU Meter Source, the Audio Meter displays the incoming audio channels (default). For more information, go to "VU Meter" on page 99. Channel 1 and Channel 2 are the default channels, correlating with the MIC-1 and MIC-2 inputs on the camera.
Page 168: Audio During Playback
EPIC-W GEMINI OPERATION GUIDE AUDIO DURING PLAYBACK The camera plays all recorded channels during playback (via headphones or HDMI and HD- SDI monitors), and automatically unmutes any muted audio outputs. To access audio settings during playback, go to Menu > Settings > Audio and select the following tabs:...
Page 169 EPIC-W GEMINI OPERATION GUIDE 5. Select the Record varispeed audio in a separate WAV file check box. This option is available only when the Recording Frame Rate is higher than the Project Time Base. The Audio Meters display in the Lower Status Row. For more information, go to "Audio Meter (VU Meter)"...
Page 170: Chapter 10: Timecode, Genlock, Multi-Camera Setup
EPIC-W GEMINI OPERATION GUIDE CHAPTER 10: TIMECODE, GENLOCK, MULTI- CAMERA SETUP This chapter describes timecode, genlock, and multi-camera operations such as 3D and array setup. ® NOTE: Timecode and genlock require a DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, DSMC2 Jetpack-SDI Expander, or DSMC2 REDVOLT Expander.
Page 171 EPIC-W GEMINI OPERATION GUIDE SET UP INTERNAL TIMECODE To set up and adjust timecode generated by the camera, follow the instructions below: 1. Go to Menu > Settings > Project > Timecode. 2. Select the desired Timecode Display mode. 3. Set Source to RTC.
Page 172 EPIC-W GEMINI OPERATION GUIDE INPUT EXTERNAL TIMECODE NOTE: This procedure requires a DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, DSMC2 Jetpack- SDI Expander, or DSMC2 REDVOLT Expander. For more information, go to "Input/Output Connectors" on page 214. To input timecode generated by an external device, follow the instructions below: 1.
Page 173: Genlock
EPIC-W GEMINI OPERATION GUIDE GENLOCK NOTE: Using genlock requires a DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, DSMC2 Jetpack- SDI Expander, or DSMC2 REDVOLT Expander. For more information, go to "Input/Output Connectors" on page 214. Generator locking (genlock) is a tri-level signal used to synchronize video and audio systems. Genlock is based on SMPTE 296M and 274M.
Page 174 EPIC-W GEMINI OPERATION GUIDE SENSOR SYNC NOTE: Using genlock requires a DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, DSMC2 Jetpack- SDI Expander, or DSMC2 REDVOLT Expander. For more information, go to "Input/Output Connectors" on page 214. ® NOTE: HDRX is not available when Genlock Sensor Sync is enabled.
Page 175: Master/Slave Operation
EPIC-W GEMINI OPERATION GUIDE REQUIRED CABLE DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, or DSMC2 Jetpack-SDI Expander: 790-0154, 3BNC-to-00 LEMO DSMC2 REDVOLT Expander: 75 ohm BNC cable (such as the RED HD-SDI Cable, P/N 790-0341) MASTER/SLAVE OPERATION NOTE: Master/Slave operation, including stereo/3D and camera arrays, requires a GIG-E port, which is available on the DSMC2 REDVOLT Expander and DSMC2 Jetpack-SDI Expander.
Page 176 EPIC-W GEMINI OPERATION GUIDE SET UP MASTER/SLAVE OPERATION NOTE: Master/Slave operation requires a GIG-E port, which is available on the DSMC2 REDVOLT Expander and DSMC2 Jetpack-SDI Expander. For more information, go to "GIG-E (Ethernet)" on page 231. 1. Connect the cameras using the Master/Slave Gig-E Cable: A.
Page 177 EPIC-W GEMINI OPERATION GUIDE 3. On the Slave camera(s), follow the instructions below: A. Go to Menu > Settings > Setup > Communication. B. Type a name for the camera (Example: CAM B, RIGHT, SLAVE, etc) in the Camera ID field.
Page 178 EPIC-W GEMINI OPERATION GUIDE SET REEL NUMBER, CAMERA ID, AND CAMERA POSITION NOTE: Camera ID and Camera Position settings can also be found at Menu > Settings > Project > Slate > Camera. To prepare media and slate settings for a Master/Slave or Stereo/3D production, follow the instructions below: 1.
Page 179: Camera Position
EPIC-W GEMINI OPERATION GUIDE MULTI-CAMERA CLIP NAMING CONVENTIONS This section describes automatic camera-generated clip naming conventions based on slate settings. Cameras use the Reel No, Cam ID, and Cam Pos settings to generate a custom clip name. For example, if you have two (2) cameras in Master/Slave configuration and format media on both cameras with the...
Page 180: Set Up Stereo/3D Configuration
EPIC-W GEMINI OPERATION GUIDE SET UP STEREO/3D CONFIGURATION NOTE: Master/Slave operation requires a GIG-E port, which is available on the DSMC2 REDVOLT Expander and DSMC2 Jetpack-SDI Expander. For more information, go to "GIG-E (Ethernet)" on page 231. This section describes basic procedures for connecting two (2) cameras in a Master/Slave configuration for 3D operation.
Page 181: Camera Array
EPIC-W GEMINI OPERATION GUIDE CAMERA ARRAY SET UP A CAMERA ARRAY NOTE: Master/Slave operation, including stereo/3D and camera arrays, requires a GIG-E port, which is available on the DSMC2 REDVOLT Expander and DSMC2 Jetpack-SDI Expander. For more information, go to "GIG-E (Ethernet)"...
Page 182: Set Up Motion Control (Moco)
EPIC-W GEMINI OPERATION GUIDE SET UP MOTION CONTROL (MOCO) NOTE: Motion Control requires a DSMC2 Base Expander. For more information, go to "Input/Output Connectors" on page 214. NOTE: When using MoCo, set the frame rate to be at least two times (2x) the fastest trigger rate used. When using MoCo, REDCODE is calculated based on fps/2.
Page 183 EPIC-W GEMINI OPERATION GUIDE 6. Select Sync Out from the GPO Function drop-down menu. (Optional) Figure: MoCo BRAIN GPIO Settings 7. Supply a pulse from the Motion Control device to sync the shutter to the rising edge of the sync input.
Page 184: Compatible Timecode Devices
EPIC-W GEMINI OPERATION GUIDE COMPATIBLE TIMECODE DEVICES The following timecode devices are compatible with the camera. Additional timecode devices may be compatible, but have not yet been tested by RED. Ambient ACL 202CT Ambient LOCKIT ACL 203 Ambient ACL 204...
Page 185: Chapter 11: Upgrade Camera Firmware
EPIC-W GEMINI OPERATION GUIDE CHAPTER 11: UPGRADE CAMERA FIRMWARE Your camera functionality may be upgraded by installing the latest firmware. Make a habit of frequently visiting Downloads www.red.com/downloads to check for new versions of camera firmware, updated operation guides, and post production software.
Page 186 EPIC-W GEMINI OPERATION GUIDE 12. Verify that the firmware version listed matches the firmware version that you downloaded. For more information, go "Verify Current Camera Firmware" on the previous page. 13. Reformat the SSD before recording. C O PYR I G HT © 2 0 1 8 R ED.C O M , LLC...
Page 187: Chapter 12: Camera System Maintenance
EPIC-W GEMINI OPERATION GUIDE CHAPTER 12: CAMERA SYSTEM MAINTENANCE ® All RED products are designed for rugged durability, but precision instruments demand proper care. Follow the instructions in this chapter to clean, maintain, and store your devices. WARNING: DO NOT rinse or immerse the camera or other accessories in water. Keep dry at all times.
Page 188: Clean Evf Screen
EPIC-W GEMINI OPERATION GUIDE CLEAN EVF SCREEN ® NOTE: This section describes only how to clean the screen on the DSMC2 RED EVF, and not how to clean the entire device. This section explains how to clean the screen on the DSMC2 RED EVF. The screen is accessed by removing the DSMC2 RED EVF Modular Optical Block.
Page 189: Water Damage
EPIC-W GEMINI OPERATION GUIDE APPROVED LCD SCREEN CLEANERS Use only the following products to clean LCD screens: Ionized rubber air bulb ® Delkin Devices Sensor Solution Lens swabs Dry optical wipes RED Microfiber Bag NOTE: Before cleaning the screen with swabs or wipes and a cleaning solution, ALWAYS use an ionized rubber air bulb to remove any solid particles.
Page 190: Adjust Back Focus
EPIC-W GEMINI OPERATION GUIDE ADJUST BACK FOCUS Adjust back focus by using the RED Focus or a focus chart. For more information about using the RED Focus, see the RED Focus Operation Guide, available at www.red.com/downloads. The camera also features a back focus adjustment screw. For more information, go to "BRAIN"...
Page 191: Chapter 13: Troubleshoot Your Camera
EPIC-W GEMINI OPERATION GUIDE CHAPTER 13: TROUBLESHOOT YOUR CAMERA PERFORM A STRESS TEST Perform a stress test before important projects to ensure the reliability and stability of your gear. A stress test subjects your camera system and equipment to the increased stress of prolonged operation. If any components are developing issues, this test will help identify those problems before you have an equipment failure during a major shoot.
Page 192: General Troubleshooting
EPIC-W GEMINI OPERATION GUIDE GENERAL TROUBLESHOOTING FIRMWARE DOES NOT UPGRADE SYMPTOM During an attempt to upgrade firmware, the PWR and REC LEDs flash red. After an attempt to upgrade firmware, the firmware version does not change. POTENTIAL RESOLUTIONS After downloading the firmware upgrade file, ensure that you unzip the file before saving it to the SSD.
Page 193: Cannot See Menus On Lcd Touchscreen
EPIC-W GEMINI OPERATION GUIDE CAMERA DISPLAYS N/A FOR APERTURE SYMPTOM The camera displays N/A for aperture when a lens is attached. POTENTIAL RESOLUTIONS Ensure that your lens is completely locked in place. Remove your lens mount. Check the connection points for damage or debris. Install your lens mount.
Page 194: Lcd Flicker
EPIC-W GEMINI OPERATION GUIDE LCD FLICKER SYMPTOM The LCD or monitor is flickering. POTENTIAL RESOLUTIONS Set the LCD frequency to 60 Hz. For more information, go to "Frequency" on page 90. Use a different cable. Ensure cables are properly attached. LCD BLANK AT STARTUP SYMPTOM When you turn on the camera, the LCD does not show any image.
Page 195 EPIC-W GEMINI OPERATION GUIDE TIGHTEN DC IN CONNECTOR SYMPTOM The DC IN connector nut is loose. POTENTIAL RESOLUTIONS Tighten the loose DC IN connector nut using a pair of heavy duty strong point tweezers. WARNING: DO NOT OVERTIGHTEN. ® Optional: Add a small amount of Loctite 222 (low strength thread locker) to the threads of the DC IN connector nut to prevent the connector from becoming loose again.
Page 196 EPIC-W GEMINI OPERATION GUIDE IMAGE APPEARS GRAINY SYMPTOM Image or footage appears grainy. POTENTIAL RESOLUTIONS Calibrate the sensor before recording additional clips. For more information, go to "Sensor Calibration" on page 156. Check the histogram to ensure proper exposure. Noise occurs if an image is overexposed or underexposed.
Page 197 EPIC-W GEMINI OPERATION GUIDE TIMECODE OR GENLOCK DOES NOT FUNCTION SYMPTOM The SYNC, GEN, and/or TC light is red, yellow, or greyed out. POTENTIAL RESOLUTIONS Ensure that your timecode or genlock device is compatible. For more information, go to "Compatible Timecode Devices"...
Page 198 EPIC-W GEMINI OPERATION GUIDE NO HDMI SIGNAL SYMPTOM No HDMI signal from the expander. EXPLANATION The secondary LCD/EVF port (on the side of the camera) and the HDMI port cannot be used at the same time. For more information, go to "LCD/EVF Left / HDMI Select"...
Page 199: Error Messages
EPIC-W GEMINI OPERATION GUIDE ERROR MESSAGES “CRITICAL FAILURE” OR “SERIOUS ERROR” MESSAGES SYMPTOM When you upgrade or turn on the camera, the display shows a message with the phrase “Critical Failure” or “Serious Error”. POTENTIAL RESOLUTIONS Update the camera firmware to the latest release build available for download at www.red.com/downloads.
Page 200 EPIC-W GEMINI OPERATION GUIDE ERROR 0X00000020 OR ERROR 0X20 SYMPTOM The display shows one of the following messages: Error 0x00000020. Please save log and send to RED Support. ERROR 0x20. Media integrity error. Please secure format the SSD. If the issue persists, save log file and contact RED Support with the log file, method of powering camera, and camera configuration.
Page 201 EPIC-W GEMINI OPERATION GUIDE ERROR 0X11D SYMPTOM The display shows the following message: "Media integrity error. Please secure format the SSD. If the issue persists, save log file and contact RED Support with the log file, method of powering camera, and camera configuration."...
Page 202 EPIC-W GEMINI OPERATION GUIDE AUDIO BUFFER OVERFLOW WARNING SYMPTOM The error message "Audio Buffer Overflow" displays. POTENTIAL RESOLUTIONS Update the camera firmware to the latest release build available for download at www.red.com/downloads. Perform a secure format of the SSD. For more information, see the...
Page 203: Media Bay And Red Mini-Mag Issues
EPIC-W GEMINI OPERATION GUIDE MEDIA BAY AND RED MINI-MAG ISSUES SYMPTOMS LEDs on media bay do not illuminate when expected. RED MINI-MAG does not mount to camera. POTENTIAL RESOLUTIONS Ensure RED MINI-MAG is fully inserted in the media bay. Perform a system restore.
Page 204: Back Focus Lock (Lock Sensor)
EPIC-W GEMINI OPERATION GUIDE BACK FOCUS LOCK (LOCK SENSOR) The camera has a Back Focus lock, which locks the sensor in place to prevent it from moving. Locking the sensor is different from checking back focus. To lock the sensor, follow the instructions below:...
Page 205 EPIC-W GEMINI OPERATION GUIDE 4. Use a T8 TORX driver to install the screw in the Back Focus Lock position. DO NOT exceed 80 in-oz, or damage may occur. WARNING: DO NOT OVERTIGHTEN. Figure: Back Focus Successfully Locked 5. Reinstall the side module (or side panel). For more information, go to "Configure Your Camera"...
Page 206: Appendix A: Technical Specifications
EPIC-W GEMINI OPERATION GUIDE APPENDIX A: TECHNICAL SPECIFICATIONS EPIC-W 5K S35 TECHNICAL SPECIFICATIONS EPIC-W 5K S35 SPECIFICATION DESCRIPTION ® Sensor Type GEMINI 15.4 Megapixel Dual Sensitivity CMOS Effective Pixels 5120 x 3000 Sensor Size 30.72 mm x 18.00 mm (Diagonal: 35.61 mm) Dynamic Range 16.5+ stops (Both Sensitivities)
Page 207 EPIC-W GEMINI OPERATION GUIDE EPIC-W 5K S35 SPECIFICATION DESCRIPTION ® Avid Codecs DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps DNxHD 444 and HQX (1920 ×...
Page 208: Specification
EPIC-W GEMINI OPERATION GUIDE EPIC-W 5K S35 SPECIFICATION DESCRIPTION ® ® ® ® ® Video Editing Adobe Premiere Pro, Avid Media Composer , DaVinci Resolve , Edius Pro , Final Cut ® ® Software , Vegas Pro Compatibility 1. REDCODE values and max frame rates may vary based on selected acquisition format, aspect ratio, project time base, Look Around setting, and SSD.
Page 209: Appendix B: Mechanical Drawings
EPIC-W GEMINI OPERATION GUIDE APPENDIX B: MECHANICAL DRAWINGS EPIC-W 5K S35 BRAIN NOTE: Dimensions are shown in mm. The optical axis height of the camera is 95.90 mm. FRONT VIEW Figure: EPIC-W 5K S35 Front View C O PYR I G HT © 2 0 1 8 R ED.C O M , LLC 9 5 5 - 0 1 5 9 _V 7 .0 , R EV - G...
Page 210: Back View
EPIC-W GEMINI OPERATION GUIDE BACK VIEW Figure: EPIC-W 5K S35 Back View C O PYR I G HT © 2 0 1 8 R ED.C O M , LLC 9 5 5 - 0 1 5 9 _V 7 .0 , R EV - G | 2 1 0...
Page 211: Side View (Right)
EPIC-W GEMINI OPERATION GUIDE SIDE VIEW (RIGHT) Figure: EPIC-W 5K S35 Side View (Right) C O PYR I G HT © 2 0 1 8 R ED.C O M , LLC 9 5 5 - 0 1 5 9 _V 7 .0 , R EV - G | 2 1 1...
Page 212: Side View (Left)
EPIC-W GEMINI OPERATION GUIDE SIDE VIEW (LEFT) Figure: EPIC-W 5K S35 Side View (Left) C O PYR I G HT © 2 0 1 8 R ED.C O M , LLC 9 5 5 - 0 1 5 9 _V 7 .0 , R EV - G | 2 1 2...
Page 213: Top View
EPIC-W GEMINI OPERATION GUIDE TOP VIEW Figure: EPIC-W 5K S35 Top View BOTTOM VIEW Figure: EPIC-W 5K S35 Bottom View C O PYR I G HT © 2 0 1 8 R ED.C O M , LLC 9 5 5 - 0 1 5 9 _V 7 .0 , R EV - G | 2 1 3...
Page 214: Appendix C: Input/Output Connectors
EPIC-W GEMINI OPERATION GUIDE APPENDIX C: INPUT/OUTPUT CONNECTORS This appendix provides pinout information for the input/output connectors on the following components: ® DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 REDVOLT Expander DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander DSMC2 Tactical Top Plate NOTE: When connecting a cable to a connector, align the key and red marker on the cable connector with the corresponding key and marker on the device connection.
Page 215: Dsmc2 Base Expander
EPIC-W GEMINI OPERATION GUIDE DSMC2 BASE EXPANDER Figure: DSMC2 Base Expander # CONNECTOR CONNECTOR DETAILS TYPE 1 Stereo 3.5mm stereo "Stereo Microphone" on page 232 Microphone 2 Headphone Jack 3.5mm stereo "Headphone" on page 233 3 SYNC 4-pin 00B LEMO "SYNC (Video Sync In) with SYNC Trigger Button Circuit" on page 223...
Page 216: Dsmc2 V-Lock I/O Expander
EPIC-W GEMINI OPERATION GUIDE DSMC2 V-LOCK I/O EXPANDER Figure: DSMC2 V-Lock I/O Expander # CONNECTOR CONNECTOR TYPE DETAILS 1 AUX Power P-Tap 2-pin Female "AUX Power (P-Tap)" on page 238 2 Stereo 3.5mm stereo "Stereo Microphone" on page 232 Microphone 3 Headphone 3.5mm stereo...
Page 217: Dsmc2 Redvolt Expander
EPIC-W GEMINI OPERATION GUIDE DSMC2 REDVOLT EXPANDER Figure: DSMC2 REDVOLT Expander CONNECTOR CONNECTOR TYPE DETAILS AUX PWR 4-pin 0B LEMO "AUX Power (4-Pin LEMO)" on page 237 SDI 1 and 2 "3G-SDI (HD-SDI) Out" on page 221 HDMI HDMI 1.2, Type A "HDMI Out"...
Page 218: Dsmc2 Jetpack Expander
EPIC-W GEMINI OPERATION GUIDE DSMC2 JETPACK EXPANDER Figure: DSMC2 Jetpack Expander # CONNECTOR CONNECTOR TYPE DETAILS 1 CTRL 4-pin 00B LEMO "CTRL (RS232 Control)" on page 227 2 HDMI HDMI 1.2, Type A "HDMI Out" on page 222 3 DC IN 6-pin 1B LEMO "DC IN (Power Input)"...
Page 219: Dsmc2 Jetpack-Sdi Expander
EPIC-W GEMINI OPERATION GUIDE DSMC2 JETPACK-SDI EXPANDER Figure: DSMC2 Jetpack-SDI Expander # CONNECTOR CONNECTOR DETAILS TYPE 1 CTRL 4-pin 00B LEMO "CTRL (RS232 Control)" on page 227 2 AUX 2-pin 0B LEMO "AUX Power 2-Pin LEMO, 1.5A" on page 236 3 GIG-E 9-pin 0B LEMO "GIG-E (Ethernet)"...
Page 220: Dsmc2 Tactical Top Plate
EPIC-W GEMINI OPERATION GUIDE DSMC2 TACTICAL TOP PLATE Figure: DSMC2 Tactical Top Plate # CONNECTOR CONNECTOR DETAILS TYPE 1 START/STOP Fischer 3-pin 102 "START/STOP" on page 232 2 MONITOR 16-pin LEMO Custom digital video and power interconnection between the camera and RED LCD/EVF;...
Page 221: Record/Monitor Out Ports
EPIC-W GEMINI OPERATION GUIDE RECORD/MONITOR OUT PORTS 3G-SDI (HD-SDI) OUT The following expanders feature an HD-SDI connector: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 REDVOLT Expander (labeled as “SDI-1” and “SDI-2”) DSMC2 Jetpack-SDI Expander (labeled as “SDI”) A standard 75 ohm BNC connector provides the following output:...
Page 222: Frequency (Hz)
EPIC-W GEMINI OPERATION GUIDE HDMI OUT The following expanders feature an HDMI 1.2 (Type A) connector: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 Jetpack Expander DSMC2 REDVOLT Expander NOTE: For more information about HDMI wireless transmitter support, go to "HDMI Wireless Transmitters"...
Page 223: Communication Ports
EPIC-W GEMINI OPERATION GUIDE COMMUNICATION PORTS SYNC (VIDEO SYNC IN) WITH SYNC TRIGGER BUTTON CIRCUIT The DSMC2 Base Expander features a SYNC connector with a SYNC Trigger Button Circuit. The 4-pin 00B LEMO SYNC connector accepts timecode, genlock, and General Purpose Input (GPI) signals.
Page 224: Compatible Cables
EPIC-W GEMINI OPERATION GUIDE SYNC TRIGGER BUTTON CIRCUIT The SYNC connector has a 3.3 V Schmitt trigger (5 V tolerant). The trigger is not a switch closure circuit, so it requires that the trigger source supplies current. Both edges of the input signal may be used as a trigger.
Page 225 EPIC-W GEMINI OPERATION GUIDE SYNC (VIDEO SYNC IN) WITH CONTACT CLOSURE STYLE TRIGGER INPUT The following expanders feature a SYNC connector with contact closure style trigger input: DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander DSMC2 V-Lock I/O Expander The 4-pin 00B LEMO SYNC connector accepts timecode, genlock, and General Purpose Input (GPI) signals. To operate the GPI contact closure style trigger, short Pin 2 (GPI) to Pin 1 (ground).
Page 226 EPIC-W GEMINI OPERATION GUIDE CONTACT CLOSURE STYLE TRIGGER BUTTON CIRCUIT (SYNC) The diagram below shows the contact closure style trigger button circuit on the SYNC connector. Figure: Contact Closure Style Trigger Button Circuit Diagram (SYNC) COMPATIBLE CABLES 790-0154: 3BNC-to-00 LEMO Sync Cable...
Page 227: Ctrl (Rs232 Control)
EPIC-W GEMINI OPERATION GUIDE CTRL (RS232 CONTROL) The following expanders feature a CTRL connector: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander DSMC2 REDVOLT Expander The 4-pin 00B LEMO CTRL connector supports RS232 remote control for 3D camera communication and third-party metadata ingest applications.
Page 228: Serial (Rs232 Control)
EPIC-W GEMINI OPERATION GUIDE SERIAL (RS232 CONTROL) The DSMC2 REDVOLT Expander features a SERIAL connector. The 7-pin 0B LEMO SERIAL connector supports RS232 RX, RS232 TX, and a General Purpose Input (GPI) trigger (active-low switch closure). The connector also offers auxiliary power out, with a maximum sustained current draw of 1.5A.
Page 229 EPIC-W GEMINI OPERATION GUIDE CONTACT CLOSURE STYLE TRIGGER BUTTON CIRCUIT The diagram below shows the contact closure style trigger button circuit on the connector. Figure: Contact Closure Style Trigger Button Circuit Diagram COMPATIBLE CABLES For GPI applications, you can use this cable:...
Page 230 EPIC-W GEMINI OPERATION GUIDE TIMECODE The DSMC2 REDVOLT Expander features a Timecode (TC) connector. The LEMO EAG.0B.305.CLN connector supports SMPTE timecode input and output. Pins 2 and 3 can be used together to receive a balance SMPTE 12M serial timecode input. Pin 2 can be used by itself (leave pin 3 open) to receive a single-ended SMPTE 12M serial timecode input.
Page 231: Gig-E (Ethernet)
EPIC-W GEMINI OPERATION GUIDE GIG-E (ETHERNET) The following expanders feature a GIG-E connector. DSMC2 Jetpack-SDI Expander DSMC2 REDVOLT Expander The GIG-E 9-pin 0B LEMO connector provides a 1000BASE-T (IEEE 802.3ab) gigabit Ethernet connection for remote camera setup, master/slave camera communication, and external metadata ingest. Since the GIG-E connector does...
Page 232: Audio Ports
EPIC-W GEMINI OPERATION GUIDE START/STOP The DSMC2 Tactical Top Plate features a START/STOP connector. The Fischer 3-pin 102 supports record start/stop via compatible third-party triggers. Figure: START/STOP Connector (Looking at the Connector) FISCHER 3-PIN CONNECTOR SIGNAL DESCRIPTION DIRECTION GROUND Common ground...
Page 233 EPIC-W GEMINI OPERATION GUIDE AUDIO 1 AND 2 The DSMC2 REDVOLT Expander features two (2) full-size XLR audio in connectors. The two (2) 3-pin XLR connectors provide input for two (2) audio channels. Each port supports 48 V 10mA phantom power.
Page 234: Power Ports
EPIC-W GEMINI OPERATION GUIDE POWER PORTS DC IN (POWER INPUT) The following expanders feature a DC IN connector: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander DSMC2 REDVOLT Expander The 6-pin 1B LEMO connector accepts DC input power from 11.5 V DC to 17 V DC. A built-in power conditioner protects against reverse- polarity connections, electrostatic discharge (ESD), undervoltage, overvoltage, and overcurrent.
Page 235 EPIC-W GEMINI OPERATION GUIDE COMPATIBLE CABLES 790-0138: RED 2B-to-1B LEMO Power Adaptor Cable 790-0164: XLR Power Cable (10') 790-0165: XLR Power Cable (30") AUX POWER 2-PIN LEMO, 3.0A The DSMC2 REDVOLT Expander features an auxiliary power out connector (3.0A). The 2-pin 0B LEMO connector (LEMO EEG.0B.302.CLL) supplies unregulated (+) 11.5 to 17 VDC battery pass-through power.
Page 236 EPIC-W GEMINI OPERATION GUIDE AUX POWER 2-PIN LEMO, 1.5A The DSMC2 Jetpack-SDI Expander features an auxiliary power out connector (1.5A). The 2-pin 0B LEMO connector (LEMO EEG.0B.302.CLL) supplies unregulated (+) 11.5 to 17 VDC battery pass-through power. The maximum sustained current draw is 1.5A.
Page 237: Usb Power
EPIC-W GEMINI OPERATION GUIDE AUX POWER (4-PIN LEMO) The DSMC2 REDVOLT Expander features an auxiliary power out connector. The LEMO EAG.0B.304.CLN connector supplies unregulated (+) 11.5 to 17 VDC battery pass-through power. The maximum sustained current draw is 1.5A. Figure: Front Face of AUX PWR Connector (Looking at the Camera) LEMO EAG.0B.304.CLN CONNECTOR...
Page 238 EPIC-W GEMINI OPERATION GUIDE AUX POWER (P-TAP) The DSMC2 V-Lock I/O Expander features an AUX power out connector. The AUX power out connector features an industry-standard P-Tap connector and supplies conditioned VBATT at a maximum of 3.0A of power. Figure: P-Tap Connector (Looking at Camera)
Page 239: Appendix D: Lens Mounts And Lenses
EPIC-W GEMINI OPERATION GUIDE APPENDIX D: LENS MOUNTS AND LENSES LENS MOUNTS This section describes camera lens mounts. Camera mounts may be configured with 19mm rods to accommodate most cinematography lenses, matte boxes, and follow focus systems. DSMC RED MOTION MOUNT ®...
Page 240 EPIC-W GEMINI OPERATION GUIDE 5. Loosen and remove the four (4) M4x0.7 x 8 mm lens mount screws in a cross pattern (“X” pattern) using a T20 TORX driver. NOTE: Some lens mounts have captive screws that are not removable.
Page 241: Lenses
EPIC-W GEMINI OPERATION GUIDE INSTALL A LENS MOUNT NOTE: You can change lens mounts in the field. However, RED recommends that you change lens mounts only in a dust-free environment. REQUIRED TOOL(S): T20 TORX driver 1. Ensure that the camera is turned off and remove any accessories or cables that may interfere with installation.
Page 242 EPIC-W GEMINI OPERATION GUIDE POSITIVE LOCK (PL) LENSES This section describes the appropriate method for attaching and detaching PL lenses. For more information, refer to the original manufacturer’s instructions. This section also lists lenses supported by the camera PL mounts.
Page 243 EPIC-W GEMINI OPERATION GUIDE FUJINON T2.9 CABRIO PREMIER PL LENSES NOTE: The VTR switch on the lens is mapped to Record: Toggle by default. The VTR switch can be mapped to another key. NOTE: Fujinon lenses running older versions of lens firmware might not send correct data to the camera.
Page 244 EPIC-W GEMINI OPERATION GUIDE CANON EF LENSES ® This section describes the appropriate method for attaching and detaching Canon EF lenses. For more information, refer to the original manufacturer’s instructions. ® This section also lists lenses supported by the DSMC Canon EF Mount.
Page 245: Focal Length
EPIC-W GEMINI OPERATION GUIDE DSMC CANON MOUNT SUPPORTED LENSES The DSMC Canon Mount and DSMC RED MOTION MOUNT S35 Ti Canon (Captive) lens mount electronically support the following lenses: COMPATIBLE LENS TYPE FOCAL LENGTH Canon CN-E Canon CN-E 18-80mm T4.4 COMPACT-SERVO...
Page 246 EPIC-W GEMINI OPERATION GUIDE COMPATIBLE LENS TYPE FOCAL LENGTH Canon EF Canon EF 70-200mm f/2.8 L IS II with 1.4x Extender Canon EF 70-200mm f/2.8 L IS II with 2x Extender Canon EF 70-200mm f/2.8L USM Canon EF 70-200mm f/4L Canon EF 70-200mm f/4L with 1.4x Extender...
Page 247 EPIC-W GEMINI OPERATION GUIDE COMPATIBLE LENS TYPE FOCAL LENGTH Canon EF Canon EF 300mm f/2.8L IS II USM with 1.4x III Extender Canon EF 300mm f/2.8L IS II USM with 2x III Extender Canon EF 300mm f/4L IS Canon EF 300mm f/4.0 L IS with 1.4x Extender Canon EF 300mm f/4.0 L IS with 2.0x Extender...
Page 248 EPIC-W GEMINI OPERATION GUIDE COMPATIBLE LENS TYPE FOCAL LENGTH Canon EF-S Canon EF-S 10-18mm f/4.5-5.6 IS STM Canon EF-S 10-22mm f/3.5-4.5 USM Canon EF-S 15-85mm f/3.5-5.6 IS USM Canon EF-S 17-55mm f/2.8 IS USM Canon EF-S 18-55mm f/3.5-5.6 IS Canon EF-S 18-55mm f/3.5-5.6 IS II Canon EF-S 18-135mm f/3.5-5.6 IS STM...
Page 249 EPIC-W GEMINI OPERATION GUIDE COMPATIBLE LENS TYPE FOCAL LENGTH Tamron SP Tamron SP 10-24mm f/3.5-4.5 Di II LD Tamron SP 15-30mm f/2.8 Di VC USD Tamron SP 24-70mm f/2.8 Di VC USD Tamron SP 28-75mm f/2.8 XR Di LD Aspherical IF Macro Tamron SP 70-200mm f/2.8 Di VC USD...
Page 250 EPIC-W GEMINI OPERATION GUIDE NIKON F-MOUNT LENSES ® This section describes the appropriate method for attaching and detaching Nikon F- Mount lenses. For more information, refer to the original manufacturer’s instructions. This section also lists lenses supported by the DSMC Nikon F-Mount.
Page 251 EPIC-W GEMINI OPERATION GUIDE COMPATIBLE LENS TYPE FOCAL LENGTH Nikkor AF-S AF-S Nikkor 10-24mm f/3.5-4.5G ED DX AF-S Nikkor 12-24mm f4G ED DX AF-S Nikkor 14-24mm f/2.8G ED AF-S Nikkor 17-35mm f/2.8D ED IF AF-S Nikkor 17-55mm f/2.8G ED DX AF-S Nikkor 20mm f/1.8G ED N...
Page 252 EPIC-W GEMINI OPERATION GUIDE COMPATIBLE LENS TYPE FOCAL LENGTH 1, 2 1, 2 Zeiss Otus Zeiss Otus 55mm f/1.4 Zeiss Otus 85mm f/1.4 ZF.2 APO Zeiss Planar Zeiss Planar T* 50mm f/1.4 ZF.2 Zeiss Planar T* 85mm f/1.4 ZF.2 1. Iris control only, no AF.
Page 253 EPIC-W GEMINI OPERATION GUIDE AL LEICA-M MOUNT LENSES ® This section describes the appropriate method for attaching and detaching Leica-M lenses. For more information, refer to the original manufacturer’s instructions. This section also lists lenses supported by the DSMC AL Leica-M Mount.
Page 254: Appendix E: Default Key Functions
EPIC-W GEMINI OPERATION GUIDE APPENDIX E: DEFAULT KEY FUNCTIONS NOTE: If using a third-party module, the default GPI functions may match the inputs offered by the module (instead of the RED defaults). DEFAULT KEYS ITEM FUNCTION ® Camera BRAIN Record Full Press...
Page 255 EPIC-W GEMINI OPERATION GUIDE ITEM FUNCTION ® DSMC2 SIDEKICK™ User A Press AF Mode: Cycle User B Press WB: Auto Calc User C Press Magnify: Toggle User D Press Exposure Check: Toggle User A+D Press SM: Toggle Key Lock Nav Menu Press...
Page 256 EPIC-W GEMINI OPERATION GUIDE ITEM FUNCTION DSMC2 Side Handle User A Press AF Mode: Cycle User B Press WB: Auto Calc User C Press Magnify: Toggle User D Press Exposure Check: Toggle Nav Menu Press Navigation: Menu Nav North Press...
Page 257: Appendix F: Menu Map
EPIC-W GEMINI OPERATION GUIDE APPENDIX F: MENU MAP SETTINGS PLAYBACK MEDIA PRESETS MONITORING OVERLAYS POWER IMAGE } Device } Camera Presets } Power In } Playback Screen } Clips } Looks } Power Out } Auto Presets } Power Save...

Red Digital Cinema EPIC-W GEMINI Operation Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Red Digital Cinema EPIC-W GEMINI

Summary of Contents for Red Digital Cinema EPIC-W GEMINI

Table of Contents
