ATTACHING THE DENZ PREMIUM OPTICS TO THE RED
COMPACT EVF
Product Management
March 11, 2024 19:33
To attach the DENZ Premium Optics to the DSMC2 RED EVF or RED COMPACT EVE, follow the
steps below:
1. Remove the optics.

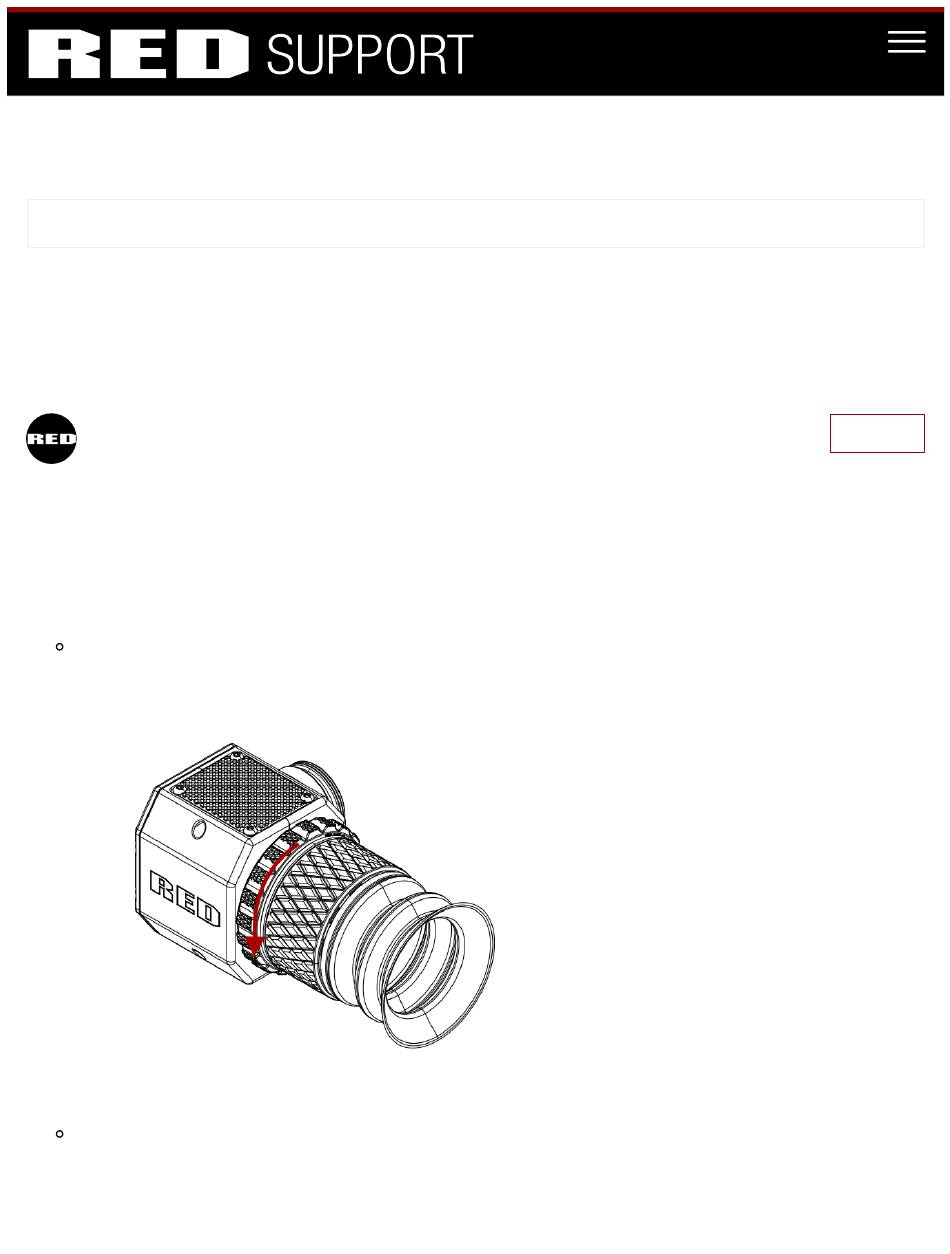

To remove the optics, hold the optics block with one hand so it does not fall when released;
with the other hand, move the locking wheel counter-clockwise until you feel a hard stop.
Slowly move the optics away from the EVF until it is clear of the internal cavity. Store the optics
in a dust and moisture free environment. If you need to clean the OLED screen before
attaching the new optics, a guide can be found below.
›
V-RAPTOR Ecosystem
FOLLOW
Advertisement
Related Manuals for Red Digital Cinema DENZ PREMIUM OPTICS
Summary of Contents for Red Digital Cinema DENZ PREMIUM OPTICS
- Page 1 FOLLOW March 11, 2024 19:33 To attach the DENZ Premium Optics to the DSMC2 RED EVF or RED COMPACT EVE, follow the steps below: 1. Remove the optics. To remove the optics, hold the optics block with one hand so it does not fall when released;...
- Page 2 2. Attaching the new optics. To attach the new optics, observe the alignment pin on the EVF optical block and alignment notch on the Denz Optics; both will need to be aligned to securely mount. Carefully install the Denz Optics assembly onto the EVF, ensuring both the alignment pin and alignment notch mate correctly.
- Page 3 Once secured, rotate the locking wheel clockwise until it stops. 3. Ensure the new optics are secure. Before letting go of the new optics, ensure it does not come loose or wobble. CLEANING THE EVF SCREEN NOTE: This section describes only how to clean the screen on the DSMC2® RED EVF and RED COMPACT EVF, and not how to clean the entire device.
- Page 4 RED EVF MOUNT WING NUT INSTALLATION GUIDE To attach the RED Compact EVF with Denz Premium Optics to the RED EVF Mount or RED EVF Extension Arm, you must replace the thumb screws with wing nuts; these are included with the Denz...
- Page 5 1. Remove the thumb screw Remove the thumb screw located by the EVF attachment wheel, as indicated below. 2. Attaching the wing nut Attach the included shim over the screw threads and screw in the wing nut into the exposed hole.
- Page 6 the screw). Was this article helpful? 0 out of 0 found this helpful Have more questions? Submit a request ...
- Page 7 RED Compact EVF Operation Guide V-RAPTOR [X] UPGRADE FAQ RF to PL Adapter w/ Electronic ND - Lens Compatibility ATTACHING THE DENZ PREMIUM OPTICS TO THE RED COMPACT EVF DSMC3 EVF - FAQs V-RAPTOR [X] - Extended Highlights DSMC3 RED TOUCH 7.0” RIGID HINGE INSTALLATION GUIDE...
-
