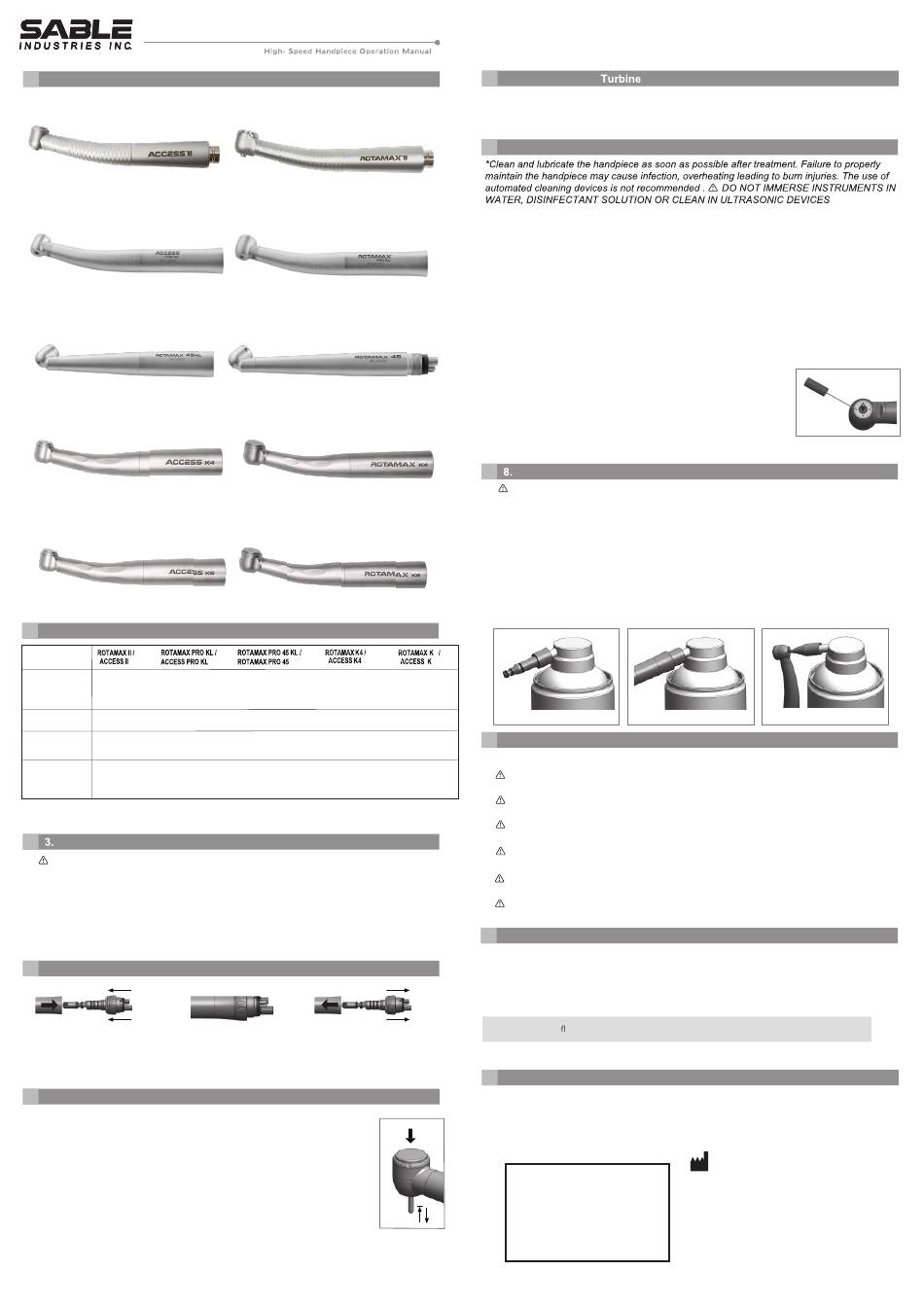

Sable ACCESS II Operation Manual

ACCESS/ROTAMAX High Speed Series
1. Product Description
ACCESS II/ROTAMAX II
PN 2000003, 2000004
ACCESS/ROTAMAX PRO KL
PN 2000021, 2000022
ROTAMAX PRO 45KL/ROTAMAX PRO 45
PN 2000023, 2000024
ACCESS K4 / ROTAMAX K4
PN 2000028, 2000029
ACCESS K6 / ROTAMAX K6
PN 2000030, 2000031
2. Specifications
Model
2-Hole 360
KaVo
®
Quick Connect (NO)
MULTIflex
Connection
4-Hole 360
LUX (FO)
Quick Connect (NO)
Rotation T>350,000; T>350,000;
Speed (rpm) M>400,000 M>400,000
Bur size (mm)
Ø1.59-1.60
Ø1.59-1.60
Recommended
Driving
42 PSI / 3 BAR 42 PSI / 3 BAR
Air Pressure
(PSI/BAR)
*T: torque head; M: mini head; FO: fiber optic; NO: non-optic
**Chip air pressure must be greater than water pressure and both values need to be set at the same time
Safety Notes
1. Once handpiece is damage (ie. deformed caused by hit) or improperly use (ie.
sterilized above suggested temperature), be sure not to continue using it.
2. Before operation, always make sure the product and its accessories meet the specified
requirements (ie. drive air pressure, lubrication, etc).
3. Please contact our dealer or us with proof of purchase, whenever you have problems such as
abnormal vibration, exceeding temperature or unusual noise, etc.
4. Avoid contact between the instrument head and soft tissue (risk of burning due to the press
button heating up).
4. Installation
Fig. 1 Install EZclick connector Fig. 2 Rotate the connector to install
To install or remove handpiece, please follow the steps illustrated from Fig. 1 to Fig. 3
(Please refer to the coupling manufacturers' instructions.)
5. Changing Bur
1. Follow the direction of the arrows shown in attached image (Fig. 4) to
install or remove bur.
2. Put on protective gloves to reduce the risk of interactive inflection,
especially not to touch the used burs without proper protection.
3. Make sure bur is tightly secured before operation, otherwise risks of
injury to doctors, patients or the third party could occur.
4. Bur must be complied with ISO requirement. Burs not in good conditions
such as being bent or damaged, or are deviated from ISO standards and
in improper length may decrease the lifetime of the handpiece or even
cause severe consequences such as injury to people.
5. Do not press the button while bur is rotating, otherwise it could harm internal
parts.
KaVo MULTIflex
KaVo MULTIflex LUX (FO) / ®
® ®
4-Hole Type
®
MW 4-Hole Fixed Back (NO)
Connection
T>325,000-400,000;
>400,000
M>380,000-430,000
Ø1.59-1.60
Ø1.59-1.60
42 PSI / 3 BAR (FO)
42 PSI / 3 BAR
32 PSI / 2.2 BAR (NO)
Fig. 3 Strip EZclick connector
6. Replacement of
1. Please contact Sable Industries (or dealer) and let technicians replace the Turbine.
2. Do not use unsuitable Turbines or spare parts, otherwise could damage the handpiece and
result in severe consequences during treatment.
7. Cleaning
1. Protective gloves should be worn every time hand piece is to be cleaned and lubricated.
2. Detach the handpiece from the coupler and remove the bur.
3. Use clean cloth with mild cleaning solution to clean the handpiece surface carefully to remove
any residue.
4. Operate the handpiece at the chair-side for at least 20 seconds to purge fluids.
*Wash the handpiece and irrigation nozzle under running water following the procedures below.
(Water condition: <38ºC (100ºF), >3.5L/min; water should be same quality as drinking water).
5. Clean the external surfaces of the handpiece with a soft bristled toothbrush for 15 seconds
or more.
6. Clean around the bur insertion hole for 15 seconds or more, using an interdental brush
(wire thickness 0.7mm) that conforms to size 4 in ISO 16409.
7. Under appropriate lighting (natural office lighting), inspect the
handpiece for blood or other debris. If any visible debris remain,
repeat the process until the handpiece is visually clean.
8. Wipe the exterior of the handpiece clean using a cloth moistened
with disinfectant or ethanol with a concentration of 60-90%
(ie. Isopropyl).
Lubrication and Maintenance
1.
Use dental handpiece lubrication oil for maintenance, any unspecified oil not intended for
lubricating handpieces could shorten the lifetime and harm human body.
2. To lubricate High Speed Series handpiece, put Spray Nozzle into nozzle of the lubrication oil
can (Fig. 6). Connect handpiece with the nozzle (Fig. 7) and inject lubrication oil for 2-3 seconds.
3.
Be sure to lubricate the handpieces prior to sterilization and run the handpieces for 20-30
seconds to emit residual oil and dirt.
4. To lubricate handpiece chucks, put Shaft Spray Nozzle into nozzle of the lubrication oil can
and inject lubrication oil into the chuck (Fig. 8) and 1 second. It's recommended to lubricate
chuck at least once a week and then proceeds step 2.
5. After unpacking and prior to first use, be sure to lubricate with oil and run the handpieces in
low rotation speed for 30 seconds and in full speed for 20-30 seconds to emit residual oil.
6
6
KaVo MULTIflex
®
LUX 6-Hole Type
Connection
Fig. 6
T>325,000-400,000;
M>380,000-430,000
9. Sterilization
Ø1.59-1.60
Sable suggests sterilization in accordance with ISO 117373-2-2019.
Place handpiece in single-use sterile bag and proceed steam prevacuum sterilization.
1.
42 PSI / 3 BAR
Do not open the sterile bag before use in order to avoid contact infection.
Use qualified sterilization equipment specified by the authority/government for sterilization
2.
procedures.
3.
Do not use chemical steam nor immerse handpiece or cartridge/rotor in disinfectant
solution, otherwise could damage the handpiece and cause severe consequences.
4. *For 2000021, 2000022
(Drying time is 30 minutes).
* For 2000003, 2000004 Sterilization PreVac cycle is a minimum of 15 minutes at 134ºC.
(Drying time is 40 minutes).
*For 2000023, 2000024, 2000028, 2000029, 2000030, 2000031
Sterilization PreVac cycle is at 134ºC for 5 minutes. (Drying time is 20 minutes).
10. Disclaimer
1. Information in this operation manual were carefully reviewed. We cannot assume any liability
for any damage arising from improper use of the handpiece or from use of this manual.
2. Products are subject to change without notice.
3. Indications for Use: High Speed Series Handpieces are intended for removing carious parts
of tooth, proceeding cavity and crown preparations.
®
KaVo & MULTI ex
CAUTION: U.S. Federal law resticts the use of this device to licensed professionals.(Rx Only)
11. Quality and Service
All of our products have passed strict QC procedures before delivery. Please note that improper
use or not using the recommended parts and accessories or modifying our products without our
approval may shorten the lifetime of the product or cause damage. Please contact us or dealers
with proof of purchase for consultation whenever you have any questions.
Dealer
Fig. 4 Changing Bur
Fig. 7
Sterilization PreVac cycle is a minimum of 15 minutes at 132ºC.
®
are the registered trademarks of Kaltenbach & Voigt GmbH CO. ,Germany.
Manufactured by
SABLE INDUSTRIES INC.
100 Campbell Avenue, Suite 5
Kitchener, Ontario, N2H 4X8
TEL: +1-800-368-8106
FAX:+1-519-579-9323
Email: info@sableindustriesinc.com
PPIS 1036 REV-B
Fig. 5 Cleaning
Fig. 8
