LG 7811 Series Service Manual

LG 7811 Series Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

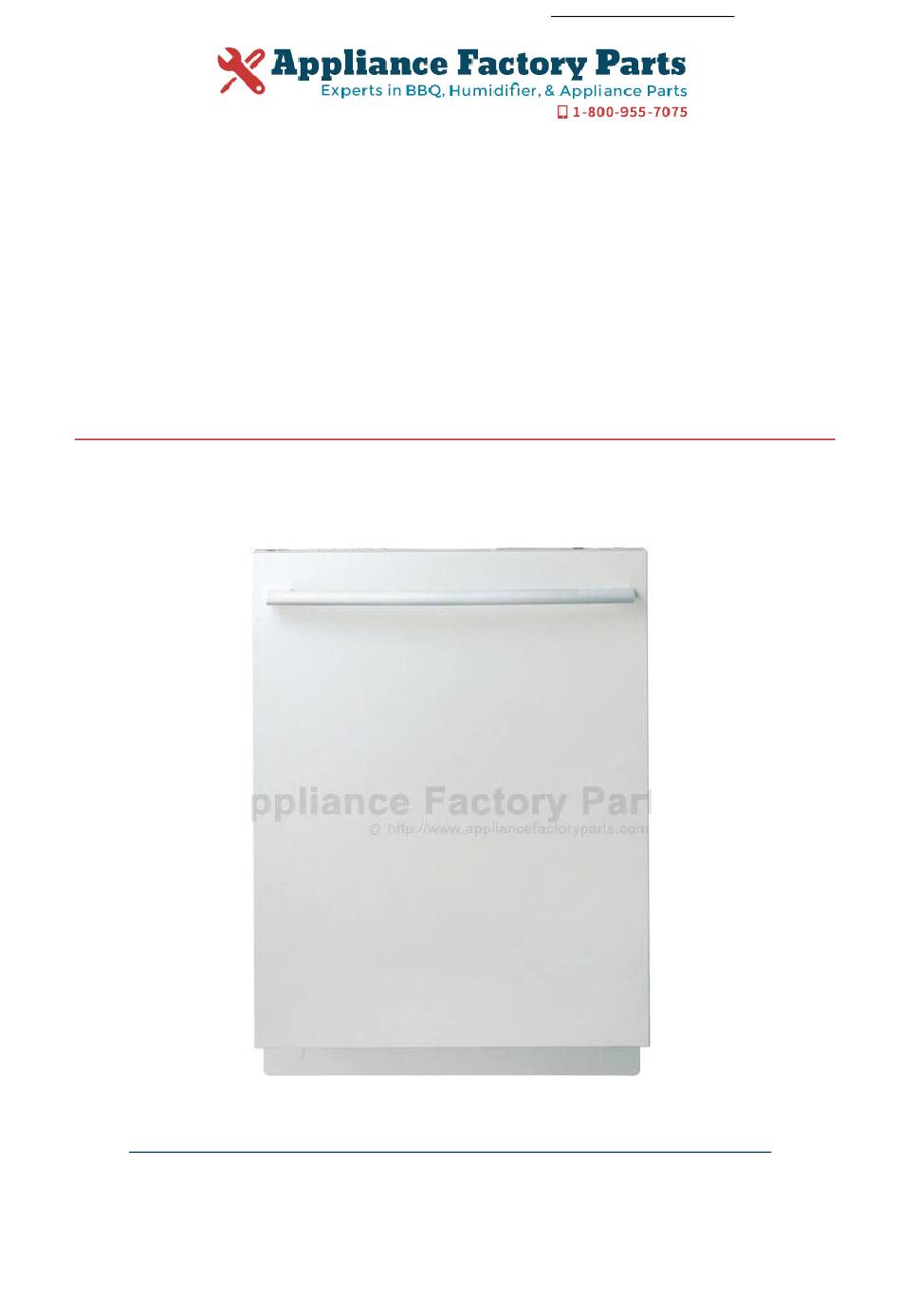

This Owner's Manual is provided and hosted by Appliance Factory Parts.
LG LDF6810WW
Owner's Manual
Shop genuine replacement parts for LG LDF6810WW
Find Your LG Dishwasher Parts - Select From 102 Models
-------- Manual continues below --------

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7811 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG 7811 Series

Summary of Contents for LG 7811 Series

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG LDF6810WW Owner's Manual Shop genuine replacement parts for LG LDF6810WW Find Your LG Dishwasher Parts - Select From 102 Models -------- Manual continues below --------...
  • Page 2 P/No. : MFL37554801...
  • Page 3 DISHWASHER SERVICE MANUAL NOTE BEFORE SERVICING THE UNIT, PLEASE READ THIS MANUAL CAREFULLY FOR SAFETY AND CORRECT SERVICES. MODEL : LDF6810(WW,BB,ST), LDF7810(WW,BB,ST), LDF7811(WW,BB,ST) LDS5811(WW,BB,ST), LDF8812(WW,BB,ST) LDF6810(WW,BB,ST) / 01, LDF7810(WW,BB,ST) / 01 LDF7811(WW,BB,ST) / 01, LDS5811(WW,BB,ST) / 01 LDF6810(WW,BB,ST) / 02, LDS5811(WW,BB,ST) / 02 LDF8812(WW,BB,ST) / 01...

  • Page 4: Table Of Contents

    CONTENTS 1. CAUTION......................... 4 2. SPECIFICATIONS ......................5 3. WIRING DIAGRAM......................6 4. FEATURES & TECHNICAL EXPLANATION ..............7 5. PARTS NAME ........................ 18 6. PROGRAM CHART ..................... 22 7. HOW TO DISASSEMBLE .................... 26 8. TROUBLE SHOOTING METHODS ................35 A.

  • Page 5: Caution

    CAUTION ! DISCONNECT POWER CORD BEFORE SERVICING RECONNECT ALL GROUNDING DEVICES IMPORTANT SAFETY NOTICE ! This service information is intended for individuals possessing adequate backgrounds of electrical, electronic and mechanical experience. Any attempt to repair this appliance may result in personal injury and property damage.

  • Page 6: Specifications

    2. SPECIFICATION SPECIFICATION ITEM Rated Voltage / Frequency AC 120V/60Hz Installation Built-In Place Settings Product Dimension(in) 23 7/8 x 25 x 33 7/8 Product Weight(lbs) 7811, 7810, 8812 series : 115lbs, 5811/ 6810 series : 110lbs Door Color White, Black, Stainless Tub Material Stainless Steel Control...

  • Page 7: Wiring Diagram

    3. WIRING DIAGRAM 1. 7811 / 7810 / 6810 serise 2. 8812 serise - 6 -...

  • Page 8: Features & Technical Explanation

    (Max. 14 in.) The tall tub provides large dishes loading as well as large capacity. LG dishwashers let you load oversized items in the Lower and Upper Rack. Slim Direct Motor Newly introduced Slim Direct Inverter motor is inverter-controlled. Speed is controlled based on program selection.
  • Page 9 4-2. Display Panel 4-2-1. LDF 7811/7810 Series Control panel may vary on some models. PROGRAM • Press the program that corresponds to your desired wash cycle. INDICATOR • Child lock: Lamp will turn on when Child Lock setting is on. •...
  • Page 10 SPRAY DELAY START POWER (INTENSITY) • Repeated pressing of the • If you want to delay the start of • For operating, press this Spray button will select a selected program, press the button first for power on. Strong, Medium or Delay Start button.
  • Page 11 4-2-2. LDF 5811 Series SPRAY (INTENSITY) • Repeated pressing of the Spray button will select Strong, Medium or Soft. SANITARY/ CHILD LOCK HALF LOAD EXTRA RINSE • Lock the control buttons • Repeated pressing of the • In case of a small load, use the to prevent the settings Rinse button will select upper or lower rack only to save...
  • Page 12 PROCESSING INDICATOR TIME LEFT INDICATOR • Child lock: Lamp will turn • Current program • Before starting, the display window shows on when Child Lock phase is indicated. the running time of the selected program. setting is on. • After starting, the display window shows •...
  • Page 13 4-2-3. LDF 6810 Series Control panel may vary on some models. PROGRAM • Press the program that corresponds to your desired wash cycle. INDICATOR • Child lock: Lamp will turn on when Child Lock setting is on. • Rinse Aid: Refill with Rinse aid when Lamp turns on.

  • Page 14: Child Lock

    DELAY START • If you want to delay the start of a selected program, press the Delay Start button. • Each press of Delay Start will delay the start of the cycle by one hour. • The delay start time can be adjusted from 1 to 12 hours in one-hour increment.
  • Page 15 4-2-4. LDF 8812 Series Control panel may vary on some models. PROGRAM Front Display Process Indicator (SignaLight • Press the program that corresponds to your desired wash cycle. WASH RINSE CLEAN INDICATOR • Child Lock( ): Lamp will turn on when Child Lock setting is on.

  • Page 16: Delay Start

    SPRAY DELAY START POWER (INTENSITY) • Repeated pressing of the • If you want to delay the start of • After operating, the power Spray button will select a selected program, press the automatically switches off Strong( ), Medium( ) Delay Start button.

  • Page 17: Test Mode

    4-3. TEST MODE 4-3-1. LDF 7811/7810/8812 LDS 5811 Series CHECK PROGRAM The number of Door open/ BUTTON Front Display Load and Checking points pushing button Display closed Rinse + Time Delay + 1 TIME 3H/U2 n : 3H/U:02 All LEDs are lighting Both POWER S/W Soak...
  • Page 18 4-3-2. LDF 6810 Series CHECK PROGRAM The number of Door open/ BUTTON Load and Checking points pushing button Display closed Upper Only + Time Delay + 1 TIME 3H/U2 All LEDs are lighting Both POWER Power Scrub 1 TIME All LEDs are lighting Both Normal 1 TIME...

  • Page 19: Parts Name

    5. PARTS NAME 5-1. LDF 7811/7810 Series Control Panel Removable Tines Front Display Lower Spray Arm Door Handle Detergent & Rinse Aid Dispenser Front Cover Vapor Vent Cover Lower Cover Upper Rack Leveling Foot Cutlery Basket Side Cabinet Lower Rack Base Top Display Top Spray Arm...
  • Page 20 5-2. LDF 5811 Series Control Panel Top Spray Arm Front Display Upper Spray Arm Door Handle Removable Tines Power Button Lower Spray Arm Front Cover Detergent & Rinse Aid Dispenser Lower Cover Vapor Vent Cover Leveling Foot Upper Rack Side Cabinet Cutlery Basket Base Lower Rack...
  • Page 21 5-3. LDF 6810 Series Control Panel Lower Spray Arm Door Handle Detergent & Rinse Aid Dispenser Front Cover Vapor Vent Cover Lower Cover Upper Rack Leveling Foot Cutlery Basket Side Cabinet Lower Rack Base Top Display Top Spray Arm Power Button Upper Spray Arm INSTALL BRACKET WOOD SCREW...
  • Page 22 5-3. LDF 8812 Series Control Panel Removable Tines Front Display (SignaLight Lower Spray Arm Door Handle Detergent & Rinse Aid Dispenser Front Cover Vapor Vent Cover Lower Cover Tub Lamp (IllumiTub Leveling Foot Upper Rack Side Cabinet Cutlery Basket Base Lower Rack Top Spray Arm Top Display...

  • Page 23: Program Chart

    6. PROGRAM CHART(SCHEMATIC DIAGRAM) 6-1. LDF 7811/7810/8812 LDS 5811 Series Drain Stop Water Supply Wash Stop Drain Wash Drain Wash Drain Water Supply Drain Water Supply Wash Stop Drain Wash Drain Wash Drain Water Supply Drain Water Supply Wash Stop Drain Wash Drain...
  • Page 24 6-2. LDF 6810 Series Drain Stop Water Supply Wash Stop Drain Wash Drain Wash Drain Water Supply Drain Water Supply Wash Stop Drain Wash Drain Wash Drain Water Supply Drain Water Supply Wash Stop Drain Wash Drain Wash Drain Water Supply Drain Water Supply Wash...
  • Page 25 6-3. LDF 7810 / 01, 7811 / 01, 8812, LDS 5811 / 01 Series LDF 8812 / 01, LDS 5811 / 02 Series - 24 -...
  • Page 26 6-4. LDF 6810 / 01 Series, LDF 6810 / 02 Series - 25 -...

  • Page 27: How To Disassemble

    7. HOW TO DISASSEMBLE BEFORE DISASSEMBLING THE DISHWASHER ; 1) Remove the cord from electric outlet to avoid electric shock. 2) Close the Water Tap (faucet). 3) Remove all dishes and items in the dishwasher. 4) Remove the Lower Rack and the Upper Rack. 5) Remove the inlet hose and drain hose connetion to avoid the hose damages.
  • Page 28 3-1. Door Assembly (LDF 6810/7811/7810/8812 Series) 1) Front Cover Open the door. Remove 12 screws(stainless). 2) Control Panel Assembly Remove 2 screws(Stainless). Remove the wire connections. Control Panel Front Cover Be sure the wiring should not be changed in reassembling Remove the Latch assembly.
  • Page 29 3-2. Door Assembly (LDF 5811 Series) 1) Front Cover Open the door. Remove 6 screws(Stainless). 2) Control Panel Assembly Remove 8 screws(Stainless). Remove the wire connections. Control Panel Front Cover Be sure the wiring should not be changed in reassembling Remove the Latch assembly.
  • Page 30 3) Fan Assembly Inner Cover Gasket Open the Door. Remove 4 screws and a earth screw for Detergent Door Bracket. Dispenser Fan Assembly Remove the wire connector. Ramove the Air Duct. Ramove Hose with Clamp.(Some Moels) Air Vent Turn the Inner Cover counterclockwise. Hose 4) Detergent Dispenser Close the door...
  • Page 31 4. Lower Frame 1) Press the holder hook as shown in figure. 2) Remove 4 screws. Lower Frame Lead Wire Holer Lead Wire Holer Hook 5. Put the Dishwasher upside down. 6. Drain Hose Holder 1) Press the holder hook as shown in figure. 2) Pull the Drain Hose and remove the Drain Hose Holder.
  • Page 32 7. Base Cover Base Cover 1) Remove 2 screws. 2) Pull the Base Cover out. Cabinet Base 8. Harness & Hose Assembly 1) Remove the wiring connections. 2) Remove the Hose connections from Sump Assembly. You can see the information of Wiring Diagram at the back of Lower Cover.
  • Page 33 9. Cabinet Base Cabinet Base 1) Remove 8 screws. 2) Lift it upward. 10. Inlet Valve 1) You can disassemble the lnlet Valve by Cabinet Base removing the 2 screws. Inlet Valve 11. Air Braker Assembly 1) Disconnect the 3 hoses assembly. 2) Turn the Air Braker Nut counterclockwise.
  • Page 34 12. Sump Assembly Sump Holder Remove 2 screws. Remove the Sump Holder and push the Sump Assembly down with pulling aside Hook. Be careful not to drop the Sump Assembly to the bottom. Hook Sump Assembly 1) Heater & Drain Motor Pull the Heater out of the Sump after Drain Pump releasing the nut.
  • Page 35 When you reassemble the Sump Assembly, be careful not to kink, tear and take off the seals. 13. Holder Supporter, Tub Packing and Hinge Supporter Assembly. Rotate the screwdriver, after slide it into the gap between Stopper Roller and Rail Roller. LDF 7811/7810/5811/6810 Series You must take off Stopper Roller(F117) by –...

  • Page 36: Trouble Shooting Methods

    8.TROUBLE SHOOTING METHODS A. TROUBLE SHOOTING ACCORDING TO DISPLAYED ERROR MESSAGE POSSIBLE CAUSE ERROR MESSAGE REMEDY FOR ERROR OCCURRENCE Take action on Water Supply The Water Supply Tap is closed. INLET ERROR The Water Supply is shut off. device. The Inlet Hose is kinked. The Water Pressure is very low.

  • Page 37: Error Message

    POSSIBLE CAUSE ERROR MESSAGE REMEDY FOR ERROR OCCURRENCE EXCESS ERROR The Inlet Valve is troubled. Replace the Inlet Valve. The Controller is troubled. Repair or replace the Controller. displayed Condition Excessive water is sup- plied than normal water level.(Automatically drain Pump operated.) THERMAL ERROR The Inlet Water Temperature is...

  • Page 38: Trouble Diagnoses And Repair By Symptom

    B. TROUBLE DIAGNOSES AND REPAIR BY SYMPTOM No Power on when the power button pressed. • Re-connect the Powr connection. The Power connection is correctly connected. • Check the electricity is failed or not. The Fuse or Circuit Breaker • Replace the Fuse or Circuit Breaker of house. of house is O.K? The Power Switch or •...
  • Page 39 The Wash Pump/Motor does not run. • close the Door tightly. The Door is tightly closed? • Check the Door Switch in Latch Handle. • Re-connect the wiring connections related to the The Wiring connections is OK? Washing Motor. The Blade is not locked •...
  • Page 40 Washing Results are not Satisfactory After washing, are there still White deposits or streaks on Reduce the amount of Rinse-Aid the dishes? (for Streak) After washing, are there still food soils on the dishes? Check that : - the amount of detergent Correctly used or not - Filters clogged or not.
  • Page 41 Power Button not automatically off after operation. Check the button is blocked by foreign materials. Check the Power Switch.(Replace it, if necessary.) Check the Controller.(Replace it, if necessary.) - 40 -...

  • Page 42: Installation Instruction

    9. INSTALLATION INSTRUCTION Step 1: PREPARE CUPBOARD OPENING 1. This dishwasher is designed to fit a standard dishwasher opening as shown below. 2. Select a location as close to sink as possible for easy connections to water and drain lines. 3.
  • Page 43 Step 2: PREPARE THE ELECTRICAL WIRING WARNING For personal safety, remove house fuse or open circuit breaker before installation. Do not use an extension cord or adapter plug with this dishwasher. Electrical and grounding connections must comply with the national electrical code/provincial and municipal code and/or other local codes.
  • Page 44 Step 3: PREPARE THE WATER SUPPLY CONNECTION 1. This dishwasher may be connected to either hot or cold water. If the water can not be maintained below 149 (65 ), the dishwasher must be connected to cold water. 2. When connecting the dishwasher water line, sealing tape or compound should be used to avoid leaks.
  • Page 45 Step 5: INSTALL THE DISHWASHER IN CUPBOARD 1. Remove the Lower Cover and orient dishwasher as shown below. 2. Before sliding the dishwasher into the cupboard opening, make all necessary height adjustments using the legs. 3. Slide the dishwasher into the cabinet opening carefully. Make sure that the drain hose inside the cabinet is not kinked.

  • Page 46: Step 6: Drain Line Connection

    Step 6: DRAIN LINE CONNECTION 1. If the end of the drain hose does not fit to the drain line, use an adapter (not supplied) that must be resistant to heat and detergent and may be obtained from a plumbing shop. 2.

  • Page 47: Step 7: Water Supply Connection

    Step 7: WATER SUPPLY CONNECTION 1. When connecting, sealing tape or sealing compound should be used to avoid water leaks. 2. Before connecting, turn off the water supply. Inlet Valve 3. After fitting the Elbow into the Elbow Inlet Valve, slide the Flexible Stainless Tube or Copper Tube Water Supply Tube into the Elbow.

  • Page 48: Step 9: Final Checks

    Step 9: FINAL CHECKS 1. Turn electrical power back on at the circuit breaker. 2. Turn house water supply back on. 3. Operate the dishwasher through one cycle (Quick cycle is recommended) to check for water leaks and operating conditions. 4.

  • Page 49: Exploded View

    10. EXPLODED VIEW LDF8812 Series LDF7810 Series LDS5811 Series LDF7811 Series ACCESSORIES LDF6810 Series LDF7810 Series LDF7811 Series LDF8812 Series LDF6810 Series *005 - 48 -...
  • Page 50 EXPLODED VIEW LDF 8812 Series only F240 A008 A007 A006 F101 *005 E010 A005 A020 F001 Check the Rating A010 Model No. and refer Appendix.B M210 A130 A160 M260 M261 A040 M270 M262 A003 M300 - 49 -...
  • Page 51 EXPLODED VIEW - TUB ASSEMBLY LDF8812 (Ref 32page) M086 F040 F121 F122 F123 F060 F045 F050 F022 M090 F041 F042 F043 F171 F011 F014 F013 F117 F144 F132 F110 F143 F117 M005 M006 F011 F210 CAUTION F013 For change M006, you should be check S/No. Sump Assembly P/No.
  • Page 52 EXPLODED VIEW - RACK ASSEMBLY (LDF7811/7810/8812 LDS5811 Series) LDF8812 Serise only LDS5811 Serise only A151 A152 A150 F192 A158 F004 A156 A159 A080 F005 A070 A155 A101 A060 A158 A073 A102 A151 A157 A103 A074 A140 A149 A144 A147 A147 A050 F191 A148...
  • Page 53 EXPLODED VIEW - RACK ASSEMBLY (LDF6810 Series) A150 A158 A080 A101 A102 A151 A152 A103 A140 A144 A157 A147 A142 A141 - 52 -...
  • Page 54 EXPLODED VIEW - PANEL ASSEMBLY (LDF7811/7810 LDS5811 Series) CAUTION For change K251, you should be check S/No. Main PCB Assembly P/No. Serial No. 602 ~ 612 701~ LDF7811-- 6871DD1014A 6871DD1006E 6871DD1006J LDF7810-- 6871DD1014C 6871DD1006G 6871DD1006L LDS5811-- 6871DD1014B 6871DD1006F 6871DD1006K LDF6811-- 6871DD1006D 6871DD1006H 6871DD1006M...
  • Page 55 EXPLODED VIEW - PANEL ASSEMBLY (LDF6810/8812 Series) CAUTION For change K251, you should be check S/No. Main PCB Assembly P/No. Serial No. 602 ~ 612 701~ LDF7811-- 6871DD1014A 6871DD1006E 6871DD1006J LDF7810-- 6871DD1014C 6871DD1006G 6871DD1006L LDS5811-- 6871DD1014B 6871DD1006F 6871DD1006K LDF6811-- 6871DD1006D 6871DD1006H 6871DD1006M K216...
  • Page 56 EXPLODED VIEW - DOOR ASSEMBLY CAUTION Change K100, K110, K124, You should be check Serial No. & Rating Model K100 K110 *Check the Rating Model No. and refer Appendix.A K121 K122 K101 701##### Serial No. ~ 612##### 712##### ~ ~ 711##### K001 LDF7811XX LDF7811XX/01...
  • Page 57 EXPLODED VIEW - DOOR ASSEMBLY LDF7811Series LDF8812Series K006 K230 K006 K230 K006 K006 K005 K005 K010 K010 K030 K030 LDF7810/ LDF6810Series K006 LDF5811Series K006 K005 A120 K010 K010 K030 Check the Rating Model No. and refer Appendix.B - 56 -...
  • Page 58 EXPLODED VIEW - SUMP ASSEMBLY(P/N : 3485ED1002A) MODEL: LDF6810(WW,BB,ST), LDF7810(WW,BB,ST) LDF7811(WW,BB,ST), LDS5811(WW,BB,ST) M001 M110 M038 M037 M025 M130 M035 M028 M120 M027 M026 M007 M031 M087 M034 M088 M220 M050 M036 M060 M081 - 57 -...
  • Page 59 EXPLODED VIEW - SUMP ASSEMBLY(P/N : AJH31248601) MODEL : LDF8812(WW,BB,ST), LDF6810(WW,BB,ST)/01, LDF7810(WW,BB,ST)/01 LDF7811(WW,BB,ST)/01, LDS5811(WW,BB,ST)/01 LDF8812(WW,BB,ST)/01, LDF6810(WW,BB,ST)/02, LDS5811(WW,BB,ST)/02 M001 M038 M110 M025 M130 M036 M221 M027 M028 M120 M031 M220 M088 M034 M026 M050 M007 M036 M087 M081 M060 - 58 -...

  • Page 60: Replacement Part List

    11. REPLACEMENT PART LIST CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6100WB/BB/TB Run_Date : 2005-01-30 YOUR MODEL: LDF7811WW/BB/ST SPECIFICATION: 120V 60Hz DESC PART No.
  • Page 61 PART NAME PART No. SPEC&COLOR Q'ty E010 BUSHING 4830ED4001A F001 FRAME ASSEMBLY 3211DD1001A F004 NOZZLE ASSEMBLY 5249DD2001A TOP NOZZLE F005 SHAFT NOZZLE 4370ED3006A TOP NOZZLE F011 SPRING, HINGE 4970ED4004A F013 CONNECTOR ASSEMBLY 4933DD3001A F014 HINGE, BRACKET 4810ED4004A F022 SENSOR ASSEMBLY 6501DD2001A F040 GUIDE ASSEMBLY...
  • Page 62 PART NAME PART No. SPEC&COLOR Q'ty K203 WINDOW 3790ED3007E K207 COVER, GUIDE 3550ED3012A 3720ED1005A K208 PANEL, CONTROL 3720ED1005B 3720ED1005C 5020ED3011A K209 BUTTON, POWER SWITCH 5020ED3011B 5020ED3011A K215 COVER, GUIDE 3550ED1009A 5020ED3012C K216 BUTTON, CONTROL OPTION BUTTON 5020ED3012D 3791DD3001E 3846ER1001A K220 MARK, PET 3846ER1001B 3846ER1001A...
  • Page 63 CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6090WB/BB/TB Run_Date : 2005-01-30 YOUR MODEL: LDS5811WW/BB/ST SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS * 001 MANUAL ASSEMBLY, OWNER’S...
  • Page 64 PART NAME PART No. SPEC&COLOR Q'ty F001 FRAME ASSEMBLY 3211DD1001A F004 NOZZLE ASSEMBLY 5249DD2001A TOP NOZZLE F005 SHAFT NOZZLE 4370ED3006A TOP NOZZLE F011 SPRING, HINGE 4970ED4004A F013 CONNECTOR ASSEMBLY 4933DD3001A F014 HINGE, BRACKET 4810ED4004A F022 SENSOR ASSEMBLY 6510DD2001A F040 GUIDE ASSEMBLY 4975DD1001A F041 HOSE, INLET...
  • Page 65 PART NAME PART No. SPEC&COLOR Q'ty K212 BUTTON, CONTROL 5020DD3001A DELAY START 5020DD2003A 5020DD2003B K216 BUTTON, CONTROL OPTION BUTTON 5020DD2003C 5020DD2002A K217 BUTTON, CONTROL 5020DD2002B PROGRAM BUTTON 5020DD2002C 3846ER1001A K220 MARK, PET 3846ER1001B 3846ER1001A K230 WINDOW 3790DD3002A OPTION WINDOW K251 PWB(PCB) ASSEMBLY, MAIN 6871DD1006B K252...
  • Page 66 CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6105WB/BB/TB Run_Date : 2005-01-30 YOUR MODEL: LDF7810WW/BB/ST SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS * 001 MANUAL ASSEMBLY, OWNER’S...

  • Page 67: Door Frame

    PART NAME PART No. SPEC&COLOR Q'ty E010 BUSHING 4830ED4001A F001 FRAME ASSEMBLY 3211DD1001A F004 NOZZLE ASSEMBLY 5249DD2001A TOP NOZZLE F005 SHAFT NOZZLE 4370ED3006A TOP NOZZLE F011 SPRING, HINGE 4970ED4004A F013 CONNECTOR ASSEMBLY 4933DD3001A F014 HINGE, BRACKET 4810ED4004A F022 SENSOR ASSEMBLY 6501DD2001A F040 GUIDE ASSEMBLY...
  • Page 68 PART NAME PART No. SPEC&COLOR Q'ty 3790ED3007D K203 WINDOW 3790ED3007D TOP WINDOW 3790ED3007E K207 COVER, GUIDE 3550ED3012A 3720ED1005A K208 PANEL, CONTROL 3720ED1005B 3720ED1005C 5020ED3011A K209 BUTTON, POWER SWITCH 5020ED3011B 5020ED3011A K215 COVER, GUIDE 3550ED1009A 5020ED3012C K216 BUTTON, CONTROL 5020ED3012D OPTION BUTTON 5020ED3012E 3846ER1001A K220...
  • Page 69 CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6300WB/BB/TB Run_Date : 2005-01-30 YOUR MODEL: LDF6810WW/BB/ST SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS * 001 MANUAL ASSEMBLY, OWNER’S...
  • Page 70 PART NAME PART No. SPEC&COLOR Q'ty F011 SPRING, HINGE 4970ED4004A F013 CONNECTOR ASSEMBLY 4933DD3001A F014 HINGE, BRACKET 4810ED4004A F022 SENSOR ASSEMBLY 6501DD2001A F040 GUIDE ASSEMBLY 4975DD1001A F041 HOSE, INLET 5214DD3001A F042 HOSE, CONNECTOR 5214DD3003A F043 HOSE, CONNECTOR 5214DD3002A F045 COVER, PROTECT 3550DD2001A F050 NUT, DRAWING...
  • Page 71 PART NAME PART No. SPEC&COLOR Q'ty K203 WINDOW 3790ED3007P K207 COVER, GUIDE 3550ED3012B 3720ED1005E K208 PANEL, CONTROL 3720ED1005F 3720ED1005D 5020ED3011A K209 BUTTON, POWER SWITCH 5020ED3011B 5020ED3011A K215 COVER, GUIDE 3550ED1009B 5020ED3012C 5020ED3012D K216 BUTTON, CONTROL OPTION BUTTON 5020ED3012E 3846ER1001A K220 MARK, PET 3846ER1001B 3846ER1001A...
  • Page 72 CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6100(WB,BB,TB) Run_Date : 2007-01-02 YOUR MODEL: LDF7811(WW,BB,ST) / 01 SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS *001...
  • Page 73 PART NAME PART No. SPEC&COLOR Q'ty E010 Bush 4830ED4001A F001 Frame Assembly 3211DD1001A F004 Nozzle Assembly 5249DD2001A TOP NOZZLE F005 Shaft, Nozzle 4370ED3006A TOP NOZZLE F011 Spring, Hinge 4970ED4004A F013 Connector Assembly 4933DD3001A F014 Bracket, Hinge 4810ED4004A F022 Sensor Assembly 6501DD2001A F040 Guide Assembly...
  • Page 74 PART NAME PART No. SPEC&COLOR Q'ty K203 Window 3790ED3007E K207 Cover, Guide 3550ED3012A K208 Panel, Control 3720ED1005A 3720ED1005B 3720ED1005C K209 Button, Power Switch 5020ED3011A 5020ED3011B 5020ED3011C K215 Cover, Guide 3550ED1009A K216 Button, Control 5020ED3012C 5020ED3012D OPTION BUTTON 5020ED3012E K220 Name Plate, Pet 3846ER1001A 3846ER1001B 3846ER1001A...
  • Page 75 CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6090(WB,BB,TB) Run_Date : 2007-01-02 YOUR MODEL: LDS5811(WW,BB,ST) / 01 SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS *001...
  • Page 76 PART NAME PART No. SPEC&COLOR Q'ty F001 Frame Assembly 3211DD1001A F004 Nozzle Assembly 5249DD2001A TOP NOZZLE F005 Shaft, Nozzle 4370ED3006A TOP NOZZLE F011 Spring, Hinge 4970ED4004A F013 Connector Assembly 4933DD3001A F014 Bracket, Hinge 4810ED4004A F022 Sensor Assembly 6501DD2001A F040 Guide Assembly 4975DD1001A F041 Hose, Inlet...
  • Page 77 PART NAME PART No. SPEC&COLOR Q'ty K212 Button, Control 5020DD3001A K216 Button, Control 5020DD2003A 5020DD2003B 5020DD2003C K217 Button, Control 5020DD2002A 5020DD2002B 5020DD2002C K220 Name Plate, Pet 3846ER1001A 3846ER1001B 3846ER1001C K230 Window 3790DD3002A K251 PCB Assembly, Main 6871DD1006K K252 PCB Assembly, Display 6871DD2003A K260 Locker Assembly...
  • Page 78 CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6105(WB,BB,TB) Run_Date : 2007-01-02 YOUR MODEL: LDS7810(WW,BB,ST) / 01 SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS *001...
  • Page 79 PART NAME PART No. SPEC&COLOR Q'ty E010 Bushing 4830ED4001A F001 Frame Assembly 3211DD1001A F004 Nozzle Assembly 5249DD2001A TOP NOZZLE F005 Shaft, Nozzle 4370ED3006A TOP NOZZLE F011 Spring, Hinge 4970ED4004A F013 Connector Assembly 4933DD3001A F014 Bracket, Hinge 4810ED4004A F022 Sensor Assembly 6501DD2001A F040 Guide Assembly...
  • Page 80 PART NAME PART No. SPEC&COLOR Q'ty K203 Window 3790ED3007C 3790ED3007D 3790ED3007E K207 Cover, Guide 3550ED3012A K208 Panel, Control 3720ED1005A 3720ED1005B 3720ED1005C K209 Button, Power Switch 5020ED3011A 5020ED3011B 5020ED3011C K215 Cover, Guide 3550ED1009A K216 Button, Control 5020ED3012C 5020ED3012D OPTION BUTTON 5020ED3012E K220 Name Plate, Pet 3846ER1001A...
  • Page 81 CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6300(WB,BB,TB) Run_Date : 2007-01-02 YOUR MODEL: LDF6810(WW,BB,ST) / 01 SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS *001...
  • Page 82 PART NAME PART No. SPEC&COLOR Q'ty F011 Spring, Hinge 4970ED4004A F013 Connector Assembly 4933DD3001A F014 Bracket, Hinge 4810ED4004A F022 Sensor Assembly 6501DD2001A F040 Guide Assembly 4975DD1001A F041 Hose,Inlet 5214DD3001A F042 Hose, Connector 5214DD3003A F043 Hose, Connector 5214DD3002A F045 Cover, Protect 3550DD2001A F050 Nut, Common...
  • Page 83 PART NAME PART No. SPEC&COLOR Q'ty 3790ED3007P K207 Cover, Guide 3550ED3012A K208 Panel, Control 3720ED1005E 3720ED1005F 3720ED1005D K209 Button, Power Switch 5020ED3011A 5020ED3011B 5020ED3011C K215 Cover, Guide 3550ED1009A K216 Button, Control 5020ED3012C 5020ED3012D OPTION BUTTON 5020ED3012E K220 Name Plate, Pet 3846ER1001A 3846ER1001B 3846ER1001A...

  • Page 84: Upper Rack

    CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6310TB Run_Date : 2007-01-02 YOUR MODEL: LDF8812ST SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS *001 MANUAL ASSEMBLY, OWNERS...
  • Page 85 PART NAME PART No. SPEC&COLOR Q'ty F011 SPRING, HINGE 4970ED4004A F013 CONNECTOR ASSEMBLY 4933DD3001A F014 BRACKET, HINGE 4810ED4004A F022 SENSOR ASSEMBLY 6501DD2001A F040 GUIDE ASSEMBLY 4975DD1001A F041 HOSE, INLET 5214DD3001A F042 HOSE, CONNECTOR 5214DD3003A F043 HOSE, CONNECTOR 5214DD3002A F045 COVER, PROTECT 3550DD2001A F050 NUT, COMMON...

  • Page 86: Drain Motor

    PART NAME PART No. SPEC&COLOR Q'ty M034 BLADE 5832DD4001A M035 PACKING MFZ32863101 M036 HOLDER 4930DD3008A M038 HOLDER 4930DD3012A M050 MOTOR ASSEMBLY, AC 4681EA2002D DRAIN MOTOR M060 MOTOR ASSEMBLY, DC 4681ED1004A M081 HEATER ASSEMBLY 5301DD1001A M086 SWITCH, MICRO 3W40025P M087 SENSOR ASSEMBLY 6501ED2002F SOIL SENSOR M088...
  • Page 87 CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6090(WB,BB,TB) Run_Date : 2007-12-03 YOUR MODEL: LDS5811(WW,BB,ST) / 02 SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS *001...
  • Page 88 PART NAME PART No. SPEC&COLOR Q'ty A158 HOLDER 4930DD3005A A159 RACK 3750DD2002A A160 FILTER ASSEMBLY 6201EC1006A A301 SCREW,TAPTITE 1SBF0402418 E010 BUSH 4830ED4001A F001 FRAME ASSEMBLY 3211DD1001A F004 NOZZLE ASSEMBLY 5249DD2001A TOP NOZZLE F005 SHAFT,NOZZLE 4370ED3006A TOP NOZZLE F011 SPRING,HINGE 4970ED4004D F013 CONNECTOR ASSEMBLY 4933DD3001A...
  • Page 89 PART NAME PART No. SPEC&COLOR Q'ty K201 BUTTON,CONTROL 5020DD2001B 5020DD2001C K203 WINDOW 3790DD3001A 3790DD3001B PROGRESS WINDOW 3790DD3001B K209 BUTTON,CONTROL 5020DD2004A 5020DD2004B POWER BUTTON 5020DD2004C K212 BUTTON,CONTROL 5020DD3001A 5020DD3001A DELAY START BUTTON 5020DD3001C K216 BUTTON,CONTROL 5020DD2003A 5020DD2003B OPTION BUTTON 5020DD2003C K217 BUTTON,CONTROL 5020DD2002A 5020DD2002B...

  • Page 90: Junction Box

    PART NAME PART No. SPEC&COLOR Q'ty M210 VALVE ASSEMBLY,INLET 5221DD1001A M220 VALVE,CHECK 5220ED4004A DRAIN M260 BASE,CABINET MAM34326301 M261 COVER ASSEMBLY,BASE ACQ31707201 M262 CASE 3110DD3002A JUNCTION BOX M270 4778DD3001A M300 ACCESSORY ASSEMBLY 5001DD2001D LEVELING KIT M301 SCREW,CUSTOMIZED 4W51229F BASE + HINGE SUPPORT M302 SCREW,CUSTOMIZED 1SZZED3005A...
  • Page 91 CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6300(WB,BB,TB) Run_Date : 2007-12-03 YOUR MODEL: LDF6810(WW,BB,ST) SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS *001 MANUAL ASSEMBLY,OWNERS...
  • Page 92 PART NAME PART No. SPEC&COLOR Q'ty F005 SHAFT,NOZZLE 4370ED3006A TOP NOZZLE F011 SPRING,HINGE 4970ED4004A F013 CONNECTOR ASSEMBLY 4933DD3001A F014 BRACKET,HINGE 4810ED4004A F022 SENSOR ASSEMBLY 6501DD2001A F040 GUIDE ASSEMBLY 4975DD1001A F041 HOSE,INLET 5214DD3001A F042 HOSE,CONNECTOR 5214DD3003A F043 HOSE,CONNECTOR 5214DD3002A F045 COVER,PROTECT 3550DD2001A F050 NUT,COMMON...
  • Page 93 PART NAME PART No. SPEC&COLOR Q'ty K200 PANEL ASSEMBLY,CONTROL AGL32599304 K201 BUTTON,CONTROL 5020ED3008E PROGRAM BUTTON 5020ED3008E 5020ED3008E K203 WINDOW 3790ED3007Q 3790ED3007R 3790ED3007P K207 COVER,GUIDE 3550ED3012B PROGRAM K209 BUTTON,POWER SWITCH 5020ED3011A POWER BUTTON 5020ED3011B 5020ED3011C K215 COVER,GUIDE 3550ED1009B OPTION K216 BUTTON,CONTROL 5020ED3012C PROGRAM OPTION 5020ED3012D...
  • Page 94 PART NAME PART No. SPEC&COLOR Q'ty M261 COVER ASSEMBLY,BASE ACQ31707201 DRAIN M262 CASE 3110DD3002A M270 4778DD3001A M270 4778DD3001A JUNCTION BOX M300 ACCESSORY ASSEMBLY 5001DD2001D M301 SCREW,CUSTOMIZED 4W51229F LEVELING KIT M302 SCREW,CUSTOMIZED 1SZZED3005A BASE + HINGE SUPPORT M303 SCREW,CUSTOMIZED 1SZZED3006A SUMP FILTER M304 SCREW,CUSTOMIZED 1SZZFA4305A...
  • Page 95 CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: LD-6310TB Run_Date : 2007-12-03 YOUR MODEL: LDF8812ST / 01 SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS *001...
  • Page 96 PART NAME PART No. SPEC&COLOR Q'ty F013 CONNECTOR ASSEMBLY 4933DD3001A F014 BRACKET,HINGE 4810ED4004A F022 SENSOR ASSEMBLY 6501DD2001A F040 GUIDE ASSEMBLY 4975DD1001A F041 HOSE,INLET 5214DD3001A F042 HOSE,CONNECTOR 5214DD3003A F043 HOSE,CONNECTOR 5214DD3002A F045 COVER,PROTECT 3550DD2001A F050 NUT,COMMON 4020FD3641C F060 GASKET 4986DD3001A F101 PACKING 3920DD3002A F121...
  • Page 97 PART NAME PART No. SPEC&COLOR Q'ty K303 SCREW,CUSTOMIZED 1SZZED3002A LATCH~PANEL K304 SCREW,CUSTOMIZED 1SZZED3003A DOOR LINER~FRONT COVER M001 HOLDER 4930DD3002A M005 GASKET MDS37912401 SUMP GASKET M006 SUMP ASSEMBLY AJH31248601 M007 SUMP AJH32598001 M025 VALVE,CHECK MJX32862501 VARIO M026 MOTOR ASSEMBLY,AC,DRAIN 4681ED3001B VARIO MOTOR M027 SWITCH,MICRO 3W40025C...

  • Page 98: Casing Ass Embly

    Appendix. A CHANGED PART FROM DEC. 2007 BEFORE AFTER (LDF9810ST, S/N : ~1DD10001) (LDF9810ST / 01, S/N : 1DD10001~) K001 4937DD1001B 4937DD1001C DOORLINER ASSEMBLY *Casing ASM & Vent were chang ed to Improve Dr ying performance *Hose added 5835ED2002D ABT35083801 K11 0 CASING ASS EMBLY...
  • Page 99 Appendix. B B-1. Modified parts to improve drying performance. - Check original parts & replace (or modify) with new parts to improve drying performance. BEFORE AFTER F001 AGL33667101 AGL33667101 Square Hole added FRAME ASSEMBLY, (Jan. 2007~ ) LOWER *Frame was modif ied to av oid interf erence with new vent F174...
  • Page 100 Appendix. B B-2. Modified parts to improve drying performance. - Check original parts & replace (or modify) with new parts to improve drying performance. Part Numbers BEFORE AFTER K010 3550DD1004A NOTE: It is (LDS5811 Series Only) recommended Trim Front Cover to modify this (Dec.
  • Page 101 Appendix. C ¡ If it is necessary to retrofit an earlier model with the new drying system, please follow the instructions below for modifying or replacing parts. 1) Remove front door panel & control panel. 2) Remove old blower & vent. 3) Cut the door liner white felt pad as shown*.
  • Page 102 Appendix. C ¡ Retrofit instructions continued 6) Using the new vent as a template, drill a new hole* for mounting the vent. Attach the vent using the black screw from the old vent. Align the bottom of the vent with the bottom of the door panel when assembling vent. * NOTE: Be careful not to damage the door liner w hen dr illing the hole.
  • Page 103 MEMO - 102 - - 102 -...
  • Page 104 MEMO - 103 -...

This manual is also suitable for:

7810 series6810 series5811 series8812 series7811/01 series7810/01 series ... Show all
