LG LDS5811BB Owner's Manual

Lg dishwasher owner's manual
Hide thumbs Also See for LDS5811BB:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual See also: Service Manual, Instruction and Installation Manual
☎ ☎ 1-800-243-0000
24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE
Dishwasher
MODEL : LDS5811WW / LDS5811BB / LDS5811ST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDS5811BB and is the answer not in the manual?

Questions and answers

Related Manuals for LG LDS5811BB

Summary of Contents for LG LDS5811BB

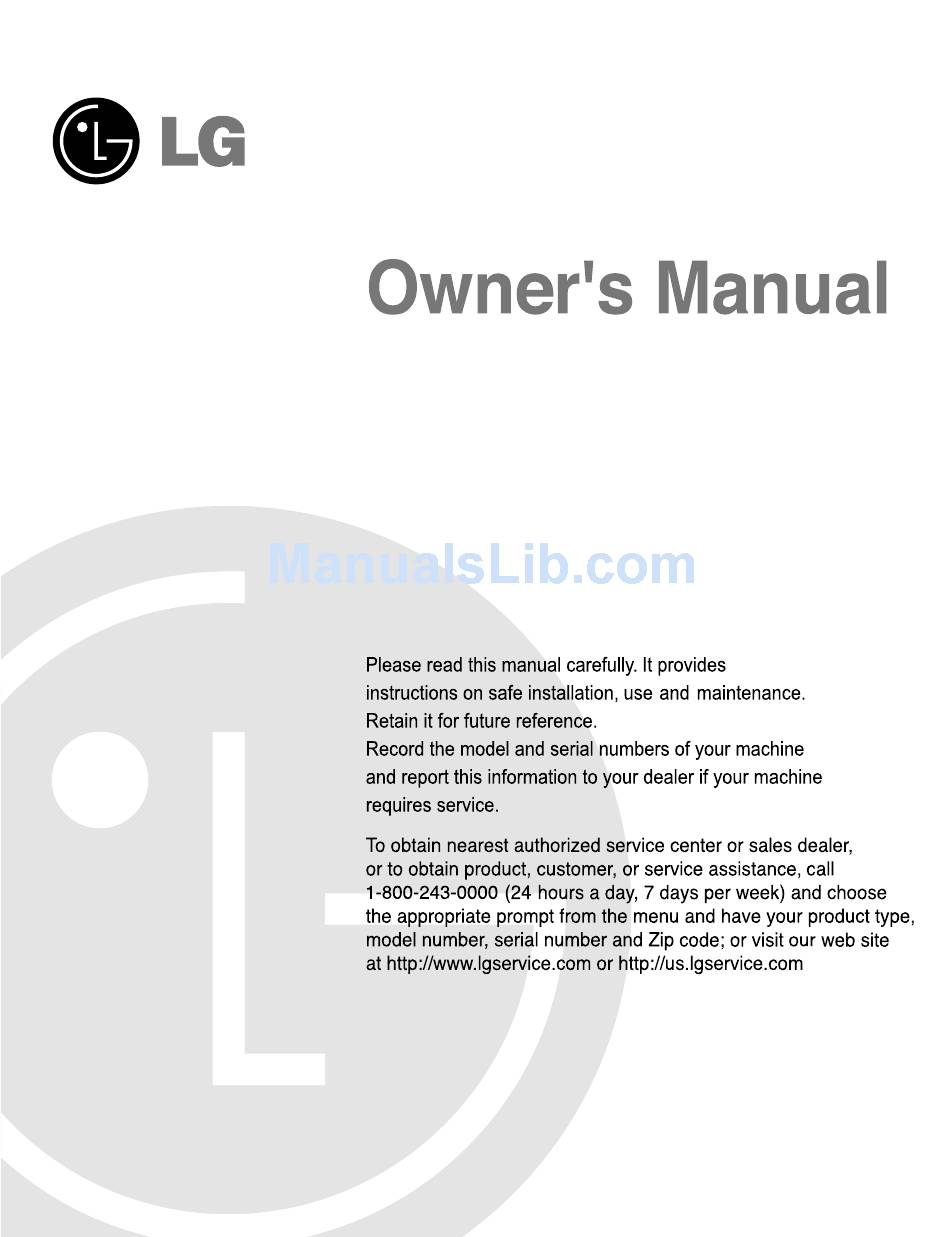

  • Page 1 ☎ ☎ 1-800-243-0000 24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE Dishwasher MODEL : LDS5811WW / LDS5811BB / LDS5811ST...

  • Page 2: Self Cleaning Filter

    If you raise the Upper Rack, you can load large dishes in the Lower Rack. (Max. 14 in.) The tall tub provides large dishes loading as well as large capacity. LG dishwashers let you load oversized items in the Lower and Upper Rack. Slim Direct Inverter Motor ■ ■...

  • Page 3: Operating Instructions

    �Read all instructions (manuals) carefully before using the dishwasher. �Use the dishwasher only for its intended function, or household use. �Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.

  • Page 4: Installation

    Do not put excessive downward force on the open door as this could cause damage to the unit. The dishwasher can be used on completion of the installation. W W A A R R N N I I N N G G Serious injury or death may occur when not observing the following Instructions.

  • Page 5: Use And Maintenance

    �Controls may be locked using Child Lock mode to prevent settings from being changed by children. �Keep children away from detergents and rinse-aids. �Do not allow children to operate the dishwasher. �Young children should be supervised to ensure that they do not play with the appliance.
  • Page 6 It may cause water leakage. Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children. Improper detergents may cause malfunctions, electric shock or fire due to excessive suds.

  • Page 7: Specifications

    A A R R T T S S O O F F Y Y O O U U R R D D I I S S H H W W A A S S H H E E R R �...

  • Page 8: Child Lock

    • If you don't press Half Load, HALF LOAD upper or lower rack only to save energy. button cycles between upper rack only and lower rack only. the dishwasher runs normally, i.e, operation of upper and lower spray arm alternating periodically.

  • Page 9: Delay Start

    • Before starting, the display window shows the running time of the selected program. • After starting, the display window shows the remaining time. • If the dishwasher has a trouble, the trouble type is displayed. Dr y CANCEL PROGRAM •...

  • Page 10: Loading The Lower Rack

    Water supply temperature should be 120℉ (49℃) for better washing and reasonable cycle time. For this reason, use hot water faucet only. It is also important that the dishwasher is loaded according to instructions for the effective cleaning. When loading your dishwasher, make sure that insoluble items such as bones, toothpicks and pieces of paper have been removed.

  • Page 11: Loading The Upper Rack

    Loading the Upper Rack The upper rack is best loaded with more delicate items, small plates, cutlery basket, cups, glasses and dishwasher safe plastic items. Plates should be positioned upwards with the plate bottom facing the front of the rack. Cups, glasses and bowls must be positioned upside down.
  • Page 12 14 in. dishes. An upper rack that moves up and down lets you put tall and oversized items on it. LG dishwashers adjust enough to allow 14 in. dinner plates on the lower and 12 in. plates on the upper rack.
  • Page 13 Caution Detergent Information Use only the detergent intended for household dishwashers or the dishwasher may fill with suds during operation. Suds may reduce washing performance and could cause the unit to leak. (Hand- Wash detergent is not allowed for this dishwasher.)

  • Page 14: Adding Rinse Aid To Dispenser

    By removing them, drying performance will be increased. NOTE Only liquid rinse aids can be used for this dishwasher. �Filling Rinse Aid 1. Rotate the round cap counterclockwise and remove it.

  • Page 15: Cleaning Metallic Parts

    - During the winter season, if room temperature where dishwasher is located is exposed to freezing, it is recommended that you winterize the water supply lines and product itself.

  • Page 16: Press The Power Button

    Warning In general, it is not advisable to open the door while the dishwasher is running. If the door is opened, a safety device stops the machine. Care should be taken when opening the door immediately following the cycle, as steam may escape.

  • Page 17: Quick Wash

    R R O O G G R R A A M M WASH Program Main Pre-Wash Wash 140~149 Soak 49℃ ℃ 60~65℃ ℃ 131~145 Power Scrub 55~63℃ ℃ 113~140 Normal 45~60℃ ℃ 113~120 Delicate 45~50℃ ℃ Quick Wash 46℃ ℃ Rinse Only S S o o a a k k...

  • Page 18: Recommended Actions

    Drainage Sound at the early stage. Reposition your dishwasher. Reposition your dishes. Underload the dishwasher and use a rinse aid to minimize this process. Remove aluminum markings with a mild cleaner. Eliminate the soil by using a stain removal product.
  • Page 19 LG Dishwasher Limited Warranty - USA Your LG Dishwasher will be repaired or replaced, at LG’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”) set forth below, effective from the date (“Date of Purchase”) of original consumer purchase of the product.
  • Page 20 P/No.: 3828DD3002Q...
  • Page 21 ☎ ☎ 1-800-243-0000 para el Servicio LG (Atención al Cliente) 24 horas al día, 7 días a la semana MODELO : LDS5811WW / LDS5811BB / LDS5811ST Le rogamos que lea con mucha atención el presente manual. Contiene instrucciones para instalarlo y realizar su mantenimiento de forma segura.
  • Page 22 Si levanta la bandeja superior, podrá lavar platos grandes en la bandeja inferior (máx. 14 in.). Esta cubeta alta permite lavar platos grandes, así como gran cantidad de vajilla. Los lavavajillas de LG le permiten lavar vajilla de gran tamaño tanto en la bandeja inferior como en la superior.
  • Page 23 í í N N D D I I C C E E PARTE1. SEGURIDAD Y PRECAUCIÓN ... 3~6 PARTE2. PARTES DEL LAVAVAJILLAS ... 7 PARTE3. FUNCIONES DEL PANEL DE CONTROL ... 8~9 PARTE4. USO DEL LAVAVAJILLAS ...10~14 PARTE5. MANTENIMIENTO Y CUIDADOS... 15 PARTE6.

  • Page 24: Instalación

    E E G G U U R R I I D D A A D D Y Y P P R R E E C C A A U U C C I I Ó Ó N N GUARDE ESTAS INSTRUCCIONES En el caso de lavavajillas que vayan a estar conectados permanentemente : Este electrodoméstico debe estar conectado a un sistema de cableado o equipo permanentes.

  • Page 25: Uso Y Mantenimiento

    E E G G U U R R I I D D A A D D Y Y P P R R E E C C A A U U C C I I Ó Ó N N A A D D V V E E R R T T E E N N C C I I A A Podría sufrir graves daños o morir si no sigue estas instrucciones.
  • Page 26 E E G G U U R R I I D D A A D D Y Y P P R R E E C C A A U U C C I I Ó Ó N N Si no respeta las siguientes instrucciones podría resultar herido, o el A A D D V V E E R R T T E E N N C C I I A A electrodoméstico podría funcionar mal o de forma incorrecta.

  • Page 27: Especificaciones

    A A R R T T E E S S D D E E L L L L A A V V A A V V A A J J I I L L L L A A S S �...

  • Page 28: Bloqueo Para Niños

    U U N N C C I I O O N N E E S S D D E E L L P P A A N N E E L L D D E E C C O O N N T T R R O O L L INTENSIDAD DE Soak (Prelavado)
  • Page 29 • Before starting, the display window shows the running time of the selected program. • After starting, the display window shows the remaining time. • If the dishwasher has a trouble, the trouble type is displayed. Dr y PROGRAMA • Pulse el...

  • Page 30: Instrucciones De Seguridad Importantes

    S S O O D D E E L L L L A A V V A A V V A A J J I I L L L L A A S S Rogamos lea atentamente las Instrucciones de Seguridad Importantes antes de utilizar su lavavajillas.
  • Page 31 S S O O D D E E L L L L A A V V A A V V A A J J I I L L L L A A S S Separadores desmontables Si desea lavar muchos platos grandes, podrá hacerlo sacando los separadores de la bandeja principal.
  • Page 32 S S O O D D E E L L L L A A V V A A V V A A J J I I L L L L A A S S Bandeja superior de altura ajustable para platos de 14 in. (en algunos modelos). El lavavajillas LG tiene el orgullo de indicarle cómo meter 14 in platos de .
  • Page 33 S S O O D D E E L L L L A A V V A A V V A A J J I I L L L L A A S S Adición de detergente en el dosificador �Se debe poner el detergente en su compartimento antes de iniciar cualquier programa, excepto con el Prelavado.
  • Page 34 S S O O D D E E L L L L A A V V A A V V A A J J I I L L L L A A S S Adición de abrillantador en el dosificador El abrillantador ayuda a conseguir platos sin las manchas que surgen al secarse las gotas de agua.
  • Page 35 A A N N T T E E N N I I M M I I E E N N T T O O Y Y C C U U I I D D A A D D O O S S Para obtener los mejores resultados, es importante comprobar y ocuparse periódicamente de los filtros y brazos pulverizadores Limpieza de las piezas metálicas...

  • Page 36: Selección Del Programa

    E E C C U U E E N N C C I I A A D D E E F F U U N N C C I I O O N N A A M M I I E E N N T T O O 1.
  • Page 37 R R O O G G R R A A M M A A LAVADO Programa Prelavad Lavado principal Aclarado 1 Aclarado 2 Aclarado 3 140~149 Soak (Prelavado) 49℃ ℃ 60~65℃ ℃ 131~145 Power Scrub (Intensivo) 55~63℃ ℃ 113~140 Normal 45~60℃...
  • Page 38 U U Í Í A A D D E E R R E E S S O O L L U U C C I I Ó Ó N N D D E E P P R R O O B B L L E E M M A A S S Problema El lavavajillas no arranca.
  • Page 39 Problema La cristalería está empañada Combinación de exceso de detergente y agua blanda. Señales negras o grises en Los objetos de aluminio han rallado los los platos. platos durante el programa. Hay una película amarilla o Manchas de café o té. marrón en las superficies interiores.
  • Page 40 Grantía Limitada En Los En Los Estados Unidos De Lavarajillas LG Su Lavajillas LG será reparada o reemplazada, a consideración de LG, si prueba ser defectuosa en material o en ejedución dentro de un uso normal, dentro del periodo de garantía (“periodo de garantía”) descrito en la parte inferior, efectivo desde la fecha (“fecha de compra”) de la compra del producto por el consumidor.
  • Page 41 E E M M O O...
  • Page 42 E E M M O O...
  • Page 43 E E M M O O...
  • Page 44 N。 de Ref.: 3828DD3002Q...
