Seak LUMiCHARGER DUAL User Manual

Hide thumbs

Advertisement

Table of Contents

User Guide
LUMiCHARGER DUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUMiCHARGER DUAL and is the answer not in the manual?

Questions and answers

Related Manuals for Seak LUMiCHARGER DUAL

Summary of Contents for Seak LUMiCHARGER DUAL

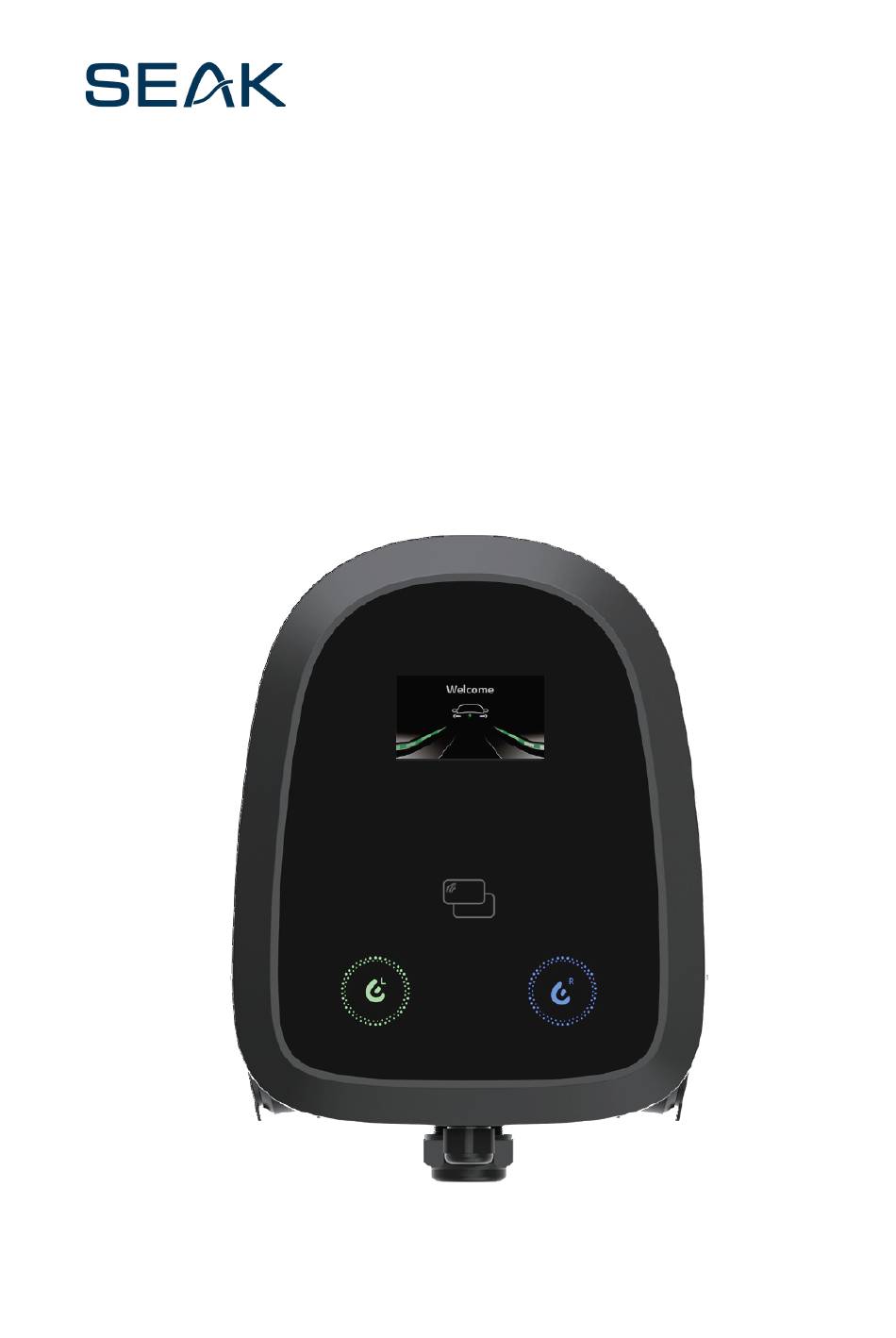

  • Page 1 User Guide LUMiCHARGER DUAL...

  • Page 2: Safety Information

    Please read carefully to understand the correct use of the device before installation, maintenance and operation! Please follow the safety notes; otherwise, it may lead to a danger of death, injury and damage to the device, supplier cannot accept any liability for claims resulting from this.

  • Page 3: User Information

    ● Electrical installation and testing must be carried out with reference to local rules by a qualified specialist electrical contractor, who, on the basis of their specialist training and experience, as well as their knowledge of the relevant standards, is able to assess and carry out the working steps described in this manual and recognise potential hazards.
  • Page 4 ● To disconnect the product completely from the electricity grid, the power supply must be interrupted using the upstream safety switches and fault current protection devices (if present) in the domestic power distribution. ● Never operate the product in a confined space. ●...
  • Page 5 Mounting fittings Components included in the productThe product is delivered including the following components: Charging station Safety notices & quick start guide Machine key Screws(Ф8 x 45 mm) RFID cards Wall anchors (8x40mm) Insulated ring terminals Check immediately after unpacking whether all components are included: should any components be missing, please contact the dealer from whom you purchased the wallbox.

  • Page 6: Installation

    Installation It is recommended to have the entire installation of the wallbox carried out by a qualifiedspecialist electrical contractor. Electrical installation, as well as final testing and certification for operation must be carried out by a qualified specialist electrical contractor, who, on the basis of their specialist training and experience, as well as their knowledge of the relevant standards, is able to assess and carry out the working steps described in this manual and recognise potential hazards.
  • Page 7 Minimum distances to the technical installations must be observed,50 cm is recommended. Ideally, the installation site should provide a ready connection to the electricity grid. Other wise, aseparate power supply cable must be installed. In order to operate group installations, suitable data cables must also be installed in the installation site.
  • Page 8 3. Verify absence of voltage 4. Ground and short-circuit 5. Cover or bar access to adjacent components under voltage 1. Place the backplate on the wall, drill a hole in the fixing point, and insert the wall plug into the fixing point The hole is 0.5-1.5m away from the ground. 2.
  • Page 9 4. Tighten the two screws at the bottom of the machine to secure the charger to the mounting backplate. 5. After fixing the charger, open the front overwith the key provided on the machine for the next step. 6. wiring,from left to right ,from bottom to up： Left to right: PE、N、L1、L2、L3(terminals) Bottom to up:SOLAR、CTA、CTB、CTC、485...
  • Page 10 7. After wiring, charger the cover and lock the cover. 8. Power on and connect the EV charger to your EV to set the charger.
  • Page 11 LCD setting Starting page Main page, 2 connector status, charging status and basic information. Before the actual charging and authorization, you need to switch the connector you want to use on the charging station on the display. Suspended, charging has been suspended by vehicle Charging properly...
  • Page 12 Faulted Charge mode and rated current setting. The default password to open the menu on the display is 1234, which can be changed after the first login. Dynamic Load Balancing： DLB Mode -Whether to enable dynamic load balancing function WiFi - Whether to enable the WiFiWiFi SSID and WiFi Password input...
  • Page 13 LAN - Whether to enable the LAN DHCP - Whether to dynamically obtain the IP address of the Ethernet port...
  • Page 14 WEB setting Web login Set the IP address of your computer to 192.168.1.XX, open the browser and enter it： http://192.168.1.10:8080 Web setting...
  • Page 15 Configuration CP Tool First you need to install the CP Tool app from Google Play or the App Store Open CP Tool, find the Bluetooth device corresponding to the Charger SN, and click. If the connection is successful, enter the password (default password: 12345678) in the password input box and click Confirm.
  • Page 16 Select Charge Mode, APP, RFID Only, Plug and Charge. If you choose App mode, select the communication type (Wifi, 4G, LAN) and set the parameters. Configure the parameters related to the OCPP connection.
  • Page 17 For all verification modes, you must set a limit for the charging current. If you have activated the load balancing function, you also need to set the parameters: After the parameters are modified, click SET, then return to the previous page, click Disconnect, and APP will disconnect the Bluetooth connection.

  • Page 18: Led Description

    LED description Description Solid yellow Not connected to EV and not connected to the app Solid blue Not connected to EV but connected to the appRFID or Plug & Charge Mode: Not connected to EV Flashing blue Connected to EV Slow flashing blue A schedule is active Glowing green...
  • Page 19 Charging ● During the charge session, do not disconnect the connector. There is a risk of damage to the connector or your EV charging port. ○ Never tough the power plug/connection with wet hands. App Mode Start charging ● Remove the connector from the holster. ●...

  • Page 20: Troubleshooting And Maintenance

    Troubleshooting and Maintenance Error Error Description Troubleshooting Suggestions Code ● Disconnect the leakage/over-current protection, Leakage switch off the distribution box immediately ● Check whether the charger’s output cable is damaged or has low-impedance ground or short circuit ● After troubleshooting the above problems, power on the charger again.

  • Page 21: Maintenance

    ● Check whether the communication cable of the Energy meter communication fault chargermeter is properly connected or loose ● Check that the baud rate of the meter is 9600(Optional) ● No vehicle diode detected, lf it is not a real car, Diode missing pleaseconfirm the presence of a diode ●...
  • Page 22 damage caused by defects of other components of the electrical system.If you have any questions, please contact us via email.
