Introduction
LUMiCHARGER is electric vehicle charger, which can be installed as stand-alone
EV charger (one or two sockets), wallpoint EV charger or EV charger sockets
integrated into public lighting. LUMiCHARGER can work independently or
communicate with Seak lighting control system to negotiate the power available
for electric vehicle (EV) charging. During the day, street lighting remains in
standby mode and we use full line capacity for EV charging. At night part of line
Quick Installation Guide
capacity is used for lighting and the rest for cars. Further, the power saved by
dimming of luminaires is used to increase the charging rate we can deliver to
for Electric Vehicle Charger
the EVs.

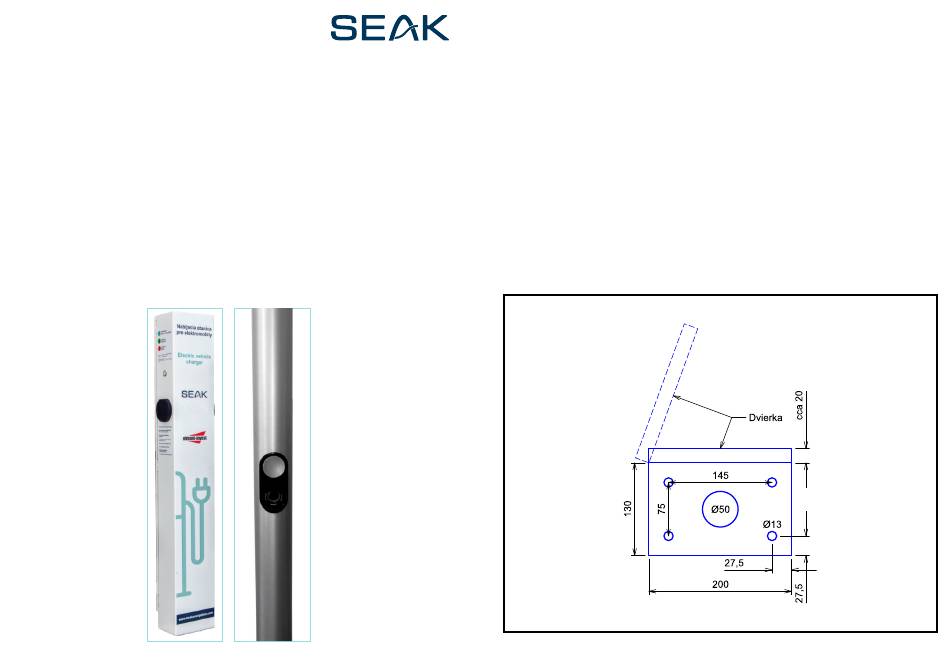

1 Mounting
LUMiCHARGER
Thread the connection cables from the bottom through the column upwards
through the cable opening. We recommend that you place the stand-alone
charger on your own base as shown below.
Dimension in mm
Advertisement
Table of Contents
Related Manuals for Seak LUMiCHARGER
Summary of Contents for Seak LUMiCHARGER
- Page 1 Introduction LUMiCHARGER is electric vehicle charger, which can be installed as stand-alone EV charger (one or two sockets), wallpoint EV charger or EV charger sockets integrated into public lighting. LUMiCHARGER can work independently or communicate with Seak lighting control system to negotiate the power available for electric vehicle (EV) charging.
- Page 2 LUMiCHARGER has a built-in current protector function to temporarily disconnect single charger only and provide extra level of protection. However, a standard RCD needs to be also installed on the line. Seak recommends following types with parameters: Rated Current - 25 A, Rated...
- Page 3 5 Connect PE of power cable Cut the PE wire of the power cable to the correct length to reach the PE connector. Use wire stripper pliers to remove 20 mm of the insulation from the end of the PE wire. Attach a cable lug to the end of the PE wire. Loosen the bolt of the PE connector.
