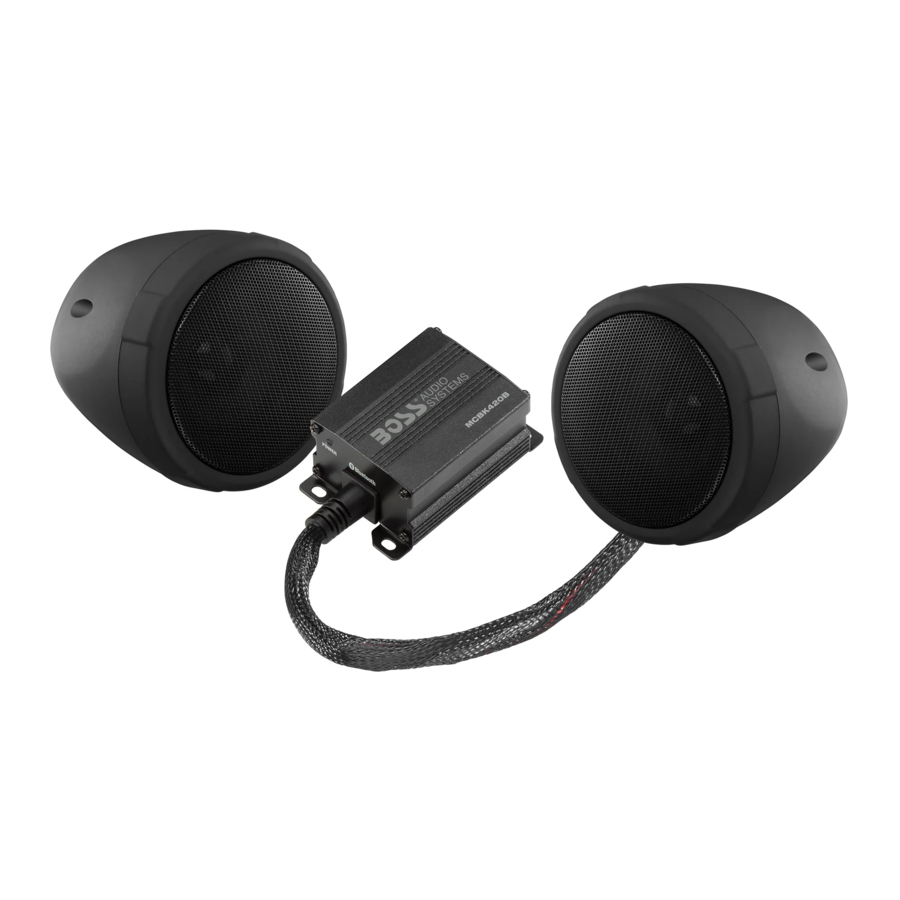

Boss MCBK420B Manual

Features

Aux-In (3.5mm)
Speaker Clamp Mounts
Weatherproof Volume Control
High-Impact, High Temp Speaker Enclosures
Weatherproof Speakers
Bluetooth Audio Streaming

Connections

Amplifier and Loudspeaker Mounting

Install Reminder
The components and wiring should not be installed around any moving parts, keep away from ignition parts, fuel lines, or any hot exhaust
Speakers should not be installed where they might inhibit safety features on the vehicle (i.e. lights, horns, brake levers, etc...)

12 VDC SPOT Relay
(Single Pole Double Throw)
NOT INCLUDED, SOLD SEPARATELY

Installation

1. Screw the brackets to the bottom of the speakers.
2. Find a safe, ideal mounting location and fit the brackets over the chosen mounting bars.
3. Fasten the mounting screws after you review the safety of the mounting location.

Wiring

1. Be sure to run the wiring securely and far away from any moving components.
2. Connecting the power cable to the power source: You will need to connect the 12V red wire to a (fused 7.5A) switched power source.
3. Use the 3.5mm stereo jack to connect to your entertainment source(MP3 player, etc).
4. Use your player device and wired remote volume controller to control your level of loudness.

Bluetooth

To pair and connect your Bluetooth device to the MCBK420B Enter Settings > Bluetooth Menu > Search > "Boss Audio MCBK4208" > If Prompted to enter a passcode enter: "0000"

Specifications
