Logitech K800 Manual

WHAT'S IN THE BOX

SET UP

logitech com/options

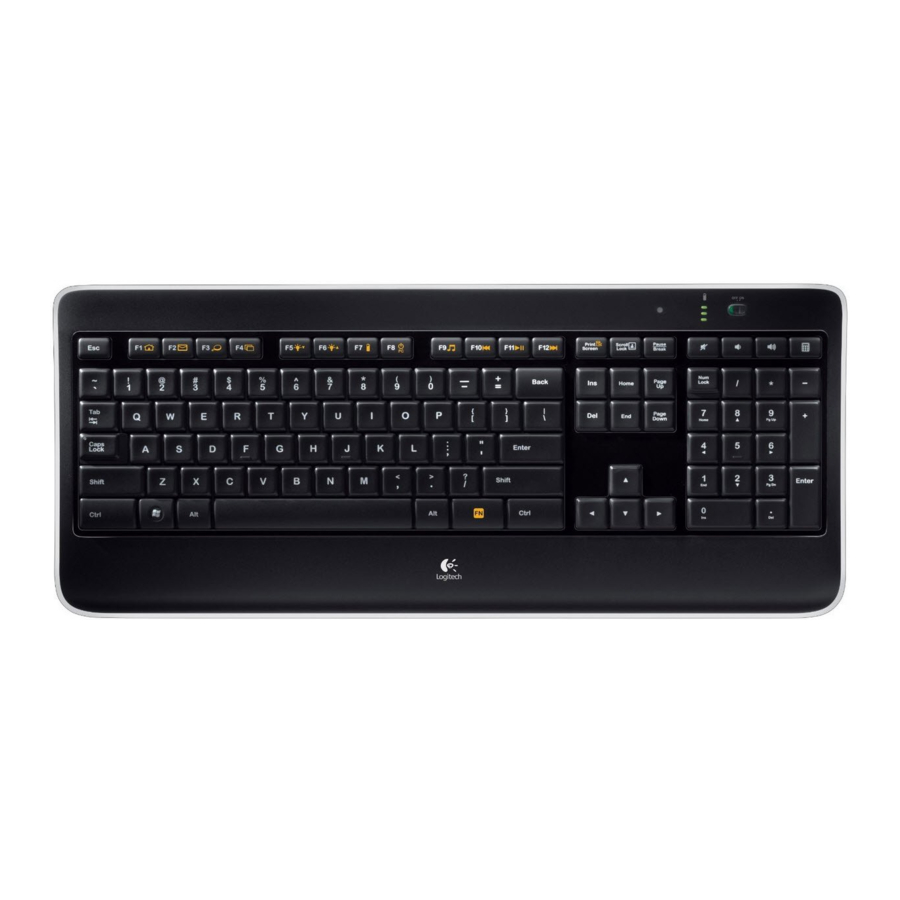

KEYBOARD FEATURES

1. Application zone
   + F1 Launch Internet browser
   + F2 Launch e-mail application
   + F3 Launch Search
   + F4 Flip
2. Convenience zone
   + F5 Backlight down by 25%
   + F6 Backlight up by 25%
   + F7 Battery check
   + F8 Sleep mode

3. Multimedia navigation zone
   + F9 Launch media
   + F10 Previous track
   + F11 Play/Pause
   + F12 Next track
4. Multimedia volume zone
   Mute
   Volume down
   Volume up
   Calculator

RECHARGING

Recharging the keyboard

Typically, you can expect about 10 days of battery life before you will need to recharge the keyboard battery * If the backlighting level is set to 100%, you have about 15 hours of battery life
To recharge the keyboard, connect it to your computer using the USB recharging cable A full battery recharge takes about 5 hours and only 3 hours if the keyboard has been switched off
Battery life varies with usage, backlighting level, and computing conditions Heavy usage usually results in shorter battery life

UNIFYING

Logitech^® Unifying technology connects up to six compatible Logitech mice and keyboards to the same receiver, using only one USB port for multiple devices To learn more, visit: www.logitech.com/support/unifying

TROUBLESHOOTING

Keyboard not working?

5. Try reconnecting the keyboard and Unifying receiver using the Logitech Unifying software (see the Unifying section)
6. Restart the computer

BATTERY REMOVAL INFORMATION

1. Remove 1 screw and battery door
2. Remove bottom panel
3. Remove 17 screws
4. Remove top case
5. Remove 6 screws
6. Remove keyframe, light guide panel and metal plate
7. Remove tape, then disconnect the battery cables from the main circuit board, remove battery from the bottom case
8. Dispose of the battery and product according to local laws
