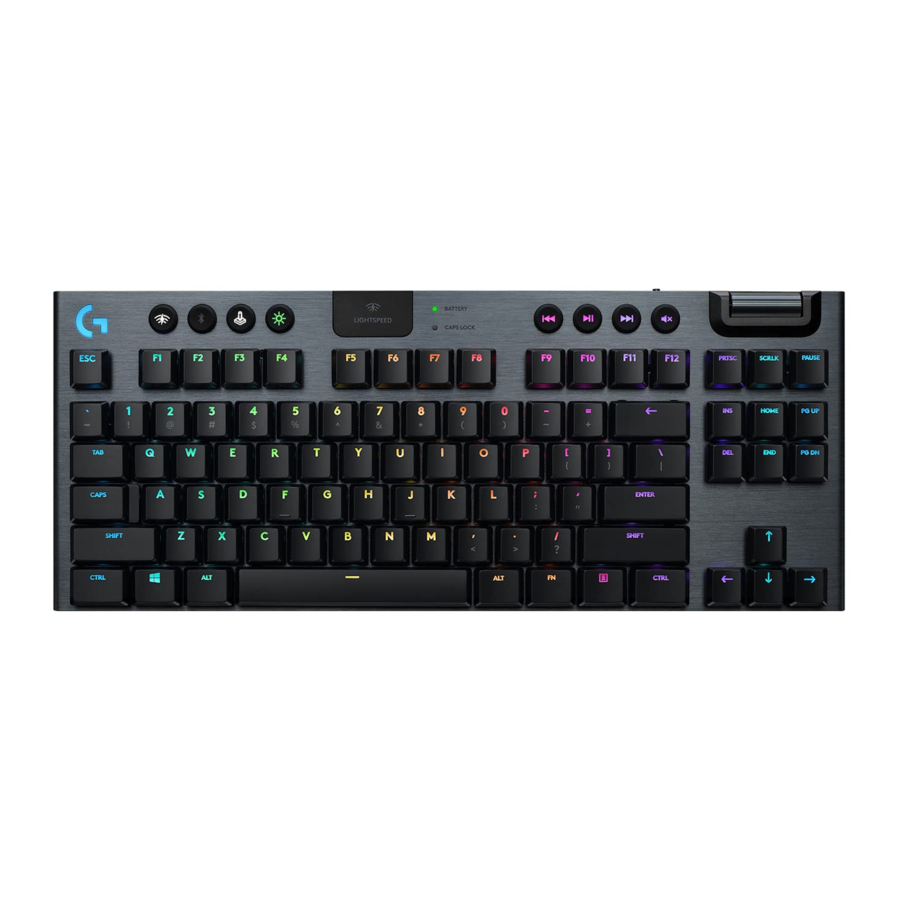

Logitech G915 TKL - Gaming Keyboard Manual

Logitech G915 TKL - Gaming Keyboard Manual

Also See for G915 TKL:

Advertisement

Logitech G915 TKL - Gaming Keyboard Manual

LIGHTSPEED CONNECTION

LIGHTSPEED CONNECTION

logitechG.com/support/G915-tkl

BLUETOOTH CONNECTION

BLUETOOTH CONNECTION

CHARGING

CHARGING THE UNIT

PRODUCT FEATURES

PRODUCT FEATURES

  1. Game Mode
  2. Brightness
  3. Battery Indicator
  4. Media Controls

LIGHTING FUNCTIONS

In addition to the lighting features available through G HUB software, G915 TKL has onboard lighting effects. To select these effects, press and hold the Brightness button while pressing the keyboard number keys to select an effect:
PRODUCT FEATURES - LIGHTING FUNCTIONS

  • Brightness + key 1: Colorwave (left to right)
  • Brightness + key 2: Colorwave (right to left)
  • Brightness + key 3: Colorwave (center out)
  • Brightness + key 4: Colorwave (bottom up)
  • Brightness + key 5: Color cycle
  • Brightness + key 6: Ripple
  • Brightness + key 7: Breathing
  • Brightness + key 8: User-stored lighting
  • Brightness + key 9: User-stored lighting
  • Brightness + key 0: Cyan blue
  • Brightness + key -: Decreases effect speed
  • Brightness + key +: Increased effect speed

User-stored effects are saved to the keyboard by G HUB software

GAME MODE BUTTON


This button disables the standard Windows key and Menu key to prevent the Windows Start menu from activating during a game, which might disrupt play. The game mode LED is lit during game mode.

DEVICE BACKLIGHTING


Adjust keyboard brightness by cycling the keyboard brightness button

ONBOARD MEMORY

ONBOARD MEMORY PROFILES
Three onboard profiles can be saved to G915 TKL. The profiles are downloaded into the G915 TKL through G HUB software, and are accessed by selecting M1, M2, or M3 when the keyboard is in Onboard mode (selected from G HUB software, or when G HUB software is off or not installed)

MEDIA CONTROLS

G915 TKL has media controls, located in the upper right corner of the keyboard
PRODUCT FEATURES - MEDIA CONTROLS

  • Volume roller — controls volume of the active audio on your PC
  • Skip back — goes to the beginning of a track, or to a previous track, depending on the application
  • Play/Pause — starts or stops the audio or video source playback
  • Skip forward — goes to the end of the track or to the next track, depending on the application
  • Mute — stops audio output

BATTERY INDICATOR

PRODUCT FEATURES - BATTERY INDICATOR

  • Pulses green when charging
  • Shows green momentarily when started when battery is above 15%
  • Shows red when keyboard needs charging

WIRELESS CONTROLS

  • LIGHTSPEED button selects LIGHTSPEED wireless connection, which connects to the PC or Mac using the included receiver dongle. It shows white when connected, blue when wired connection
    PRODUCT FEATURES - USING WIRELESS CONTROLS

BLUETOOTH

  • Bluetooth button connects to devices via a Bluetooth connection. It shows blue when connected.
    PRODUCT FEATURES - USING BLUETOOTH

KEY CAP REMOVAL + REPLACEMENT

KEY CAP REMOVAL + REPLACEMENT

CARE AND CLEANING

To clean the keyboard, use a soft, lint-free or microfiber cloth. A damp cloth can be used.
Do not use harsh cleaning solutions.
Do not immerse the keyboard or expose it to liquids.
