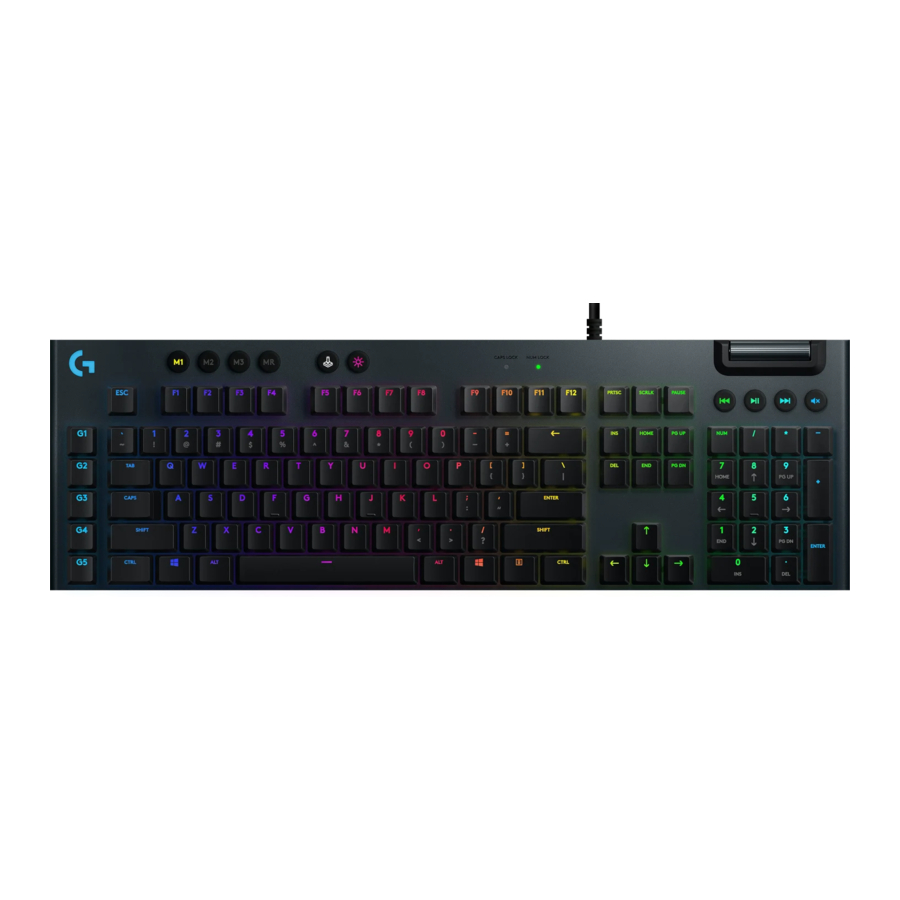

Logitech G815 Manual

LIGHTSPEED CONNECTION

www.logitech.com/support/g815

PRODUCT FEATURES

1. G-Keys
2. Mode Switches
3. Game Mode
4. Brightness
5. USB Pass-through
6. Media Controls

LIGHTING FUNCTIONS

In addition to the lighting features available through G HUB software, G915 has onboard lighting effects To select these effects, press and hold the Brightness button while pressing the keyboard number keys to select an effect:

• Brightness + key 1: Colorwave (left to right)
• Brightness + key 2: Colorwave (right to left)
• Brightness + key 3: Colorwave (center out)
• Brightness + key 4: Colorwave (bottom up)
• Brightness + key 5: Color cycle
• Brightness + key 6: Ripple
• Brightness + key 7: Breathing
• Brightness + key 8: User-stored lighting
• Brightness + key 9: User-stored lighting
• Brightness + key 0: Cyan blue
• Brightness + key -: Decreases effect speed
• Brightness + key +: Increased effect speed

User-stored effects are saved to the keyboard by G HUB software

G-KEYS

• 5 programmable G-keys and three M-keys provide up to 15 unique functions per game
• Customize the G-keys using Logitech G HUB Software
• To record a macro:
  1. Press the MR key
  2. Press a G-key
  3. Type the keys to be recorded
  4. Press the MR key
     • To record a second macro to the same G-key, press M2 and repeat steps 1–4
     • For a third macro, press M3 and repeat steps 1–4

Download and install the Logitech Gaming Software from www.logitech.com/support/g815

MEDIA CONTROLS

G815 has media controls, located in the upper tight corner of the keyboard

• Volume roller - controls volume of the active audio on your PC
• Skip Back - goes to the beginnign of a track, or to a previous track, depending on the application
• Play/Pause - starts or stops the audio or video source playback
• Skip forward - goes to the end of the track or to the next track, depsining on the application
• Mute - stops audio output

GAME MODE BUTTON

This button disables the standard Windows key and Menu key to prevent the Windows Start menu from activating during a game, which might disrupt play The game mode LED is lit during game mode

UNIT BACK-LIGHTING

Adjust keyboard brightness by cycling the keyboard brightness button

ONBOARD MEMORY

Three onboard profiles can be saved to G915 The profiles are downloaded into the G915 through G HUB software, and are accessed by selecting M1, M2, or M3 when the keyboard is in Onboard mode (selected from G HUB software, or when G HUB software is off or not installed
