Lites
HPLED RJ C5
Colour RGBWA
Owner's and service manual
Read this manual totally and carefully follow all the instructions contained. File this
manual for future use
It is essential to read all the information contained to ensure correct installation,
service and full operation of the HPLED RJ C5
All operations must be accomplished, handled and carried out by qualified personnel
only.
NOT COMPLYNIG WITH GIVEN NOTICE IT WILL VOID WARRANTY AND WILL FREE
THE MANUFACTURER OF ANY KIND OF RESPONSABILITY AND LIABILITY.
www.litessrl.com
Advertisement
Related Manuals for Lites HPLED RJ C5
Summary of Contents for Lites HPLED RJ C5
- Page 1 Read this manual totally and carefully follow all the instructions contained. File this manual for future use It is essential to read all the information contained to ensure correct installation, service and full operation of the HPLED RJ C5 All operations must be accomplished, handled and carried out by qualified personnel only.
-
Page 2: Warranty

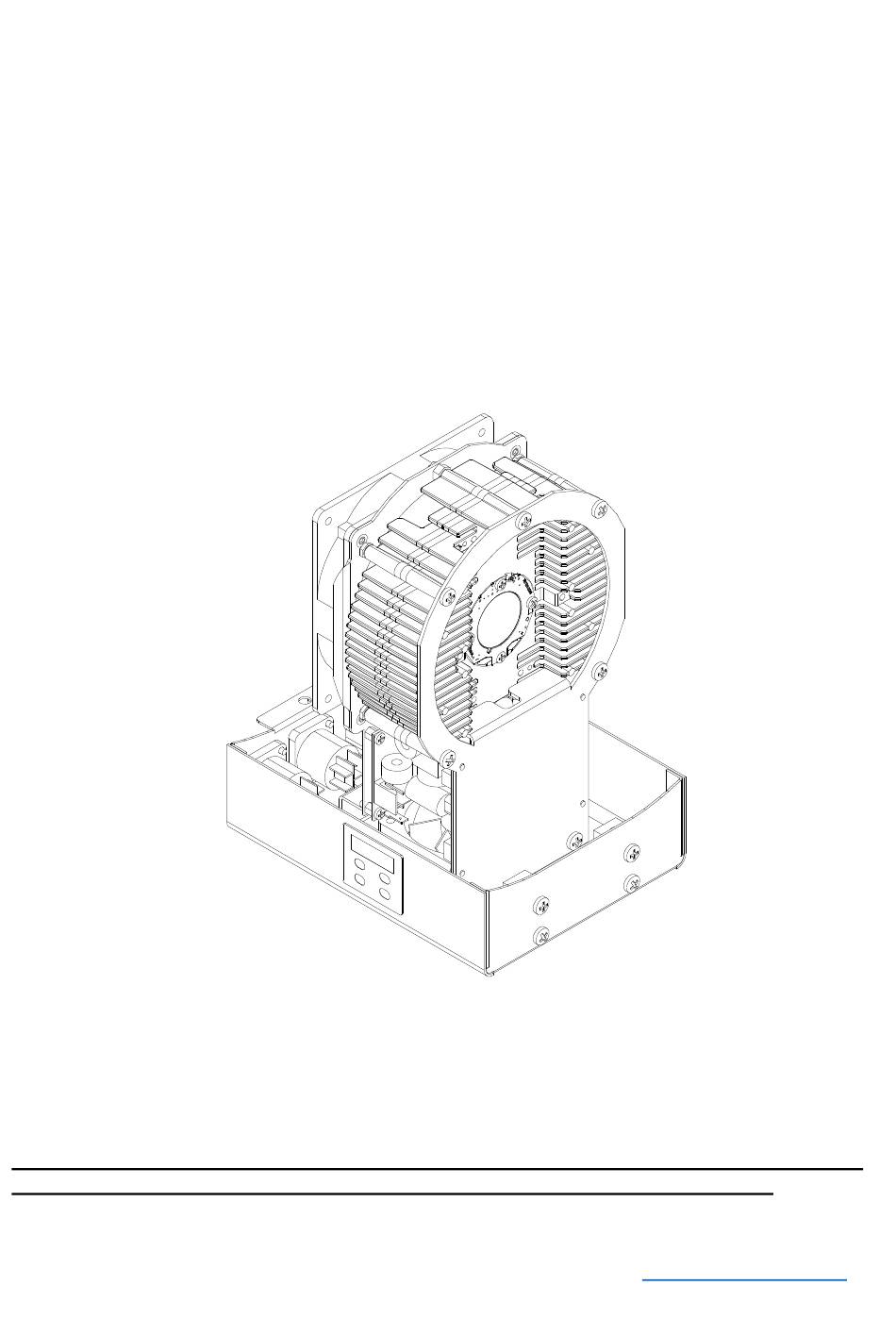

Unpacking Unpack the carton and gently remove HPLED RJ C5 from the box. Ensure HPLED RJ C5 is received in all its parts.In the event the HPLED RJ C5 shows any damage, do not use it and contact immediately your transporter as well as your seller. - Page 3 When orders are placed with Lites, it is essential that customer clearly states the Juliat model code and item name that needs to be used to house HPLED RJ C5 unit in. Place the Juliat fixture on a robust and firm flat even base and ensure that lamp-access door is facing up (view fig.1).
- Page 4 Fig.1 Fig.2 Fig.3 Replace the 2 existing M6 wing nutts Fig.4 Fig.5 Fig.6 Fig.7 Fig.8 Fig.9 Fig.10 Fig.11 Fig.12 Fig.13 Pagina 4 di 8...
- Page 5 (Controller sets the device in a listing to read: settings, DMX address, personality settings, (Read all DMX mode including all DMX channels above) ON/OFF ”Identify”: This mode is used to identify the manufacturer’s device (Lites srl). It gives a flash of light from the LED. Model information (HPLED RJ-T) Software version information (HPLEDII –T v.x.xx)
- Page 6 Menu items Displayed Allowed or displayed Function Message values Addr 001..508 Set Up DMX Address co01 Preset 1 red co02 Preset 2 orange co03 Preset 3 yellow co04 Preset 4 c light green co05 Preset 5 green co06 Preset 6 cyan Values between co001 through co12 allow for co07 Preset 7 light blue...
- Page 7 DMX Operating Modes (Mode) Selecting 1 of the 4 available modes it enables the number of channels required, and its relevant modes, needed to operate HPLED RJ C5 mode 8 ch RGBWA i (default) Function dmx levels 0..255 From 0 to max 255 green 0..255...
- Page 8 Do not touch nor clean the LEDs nor the sourranded area with solvent Device disposal information At the end of its life, HPLED RJ C5 must be disposed to an appropriate electrical and electronic equipment waste collection centre. Eco-friendly disposal, helps to avoid possible negative impact on the environment and human health and promotes the reuse and/or recycling of the materials making up the product.
