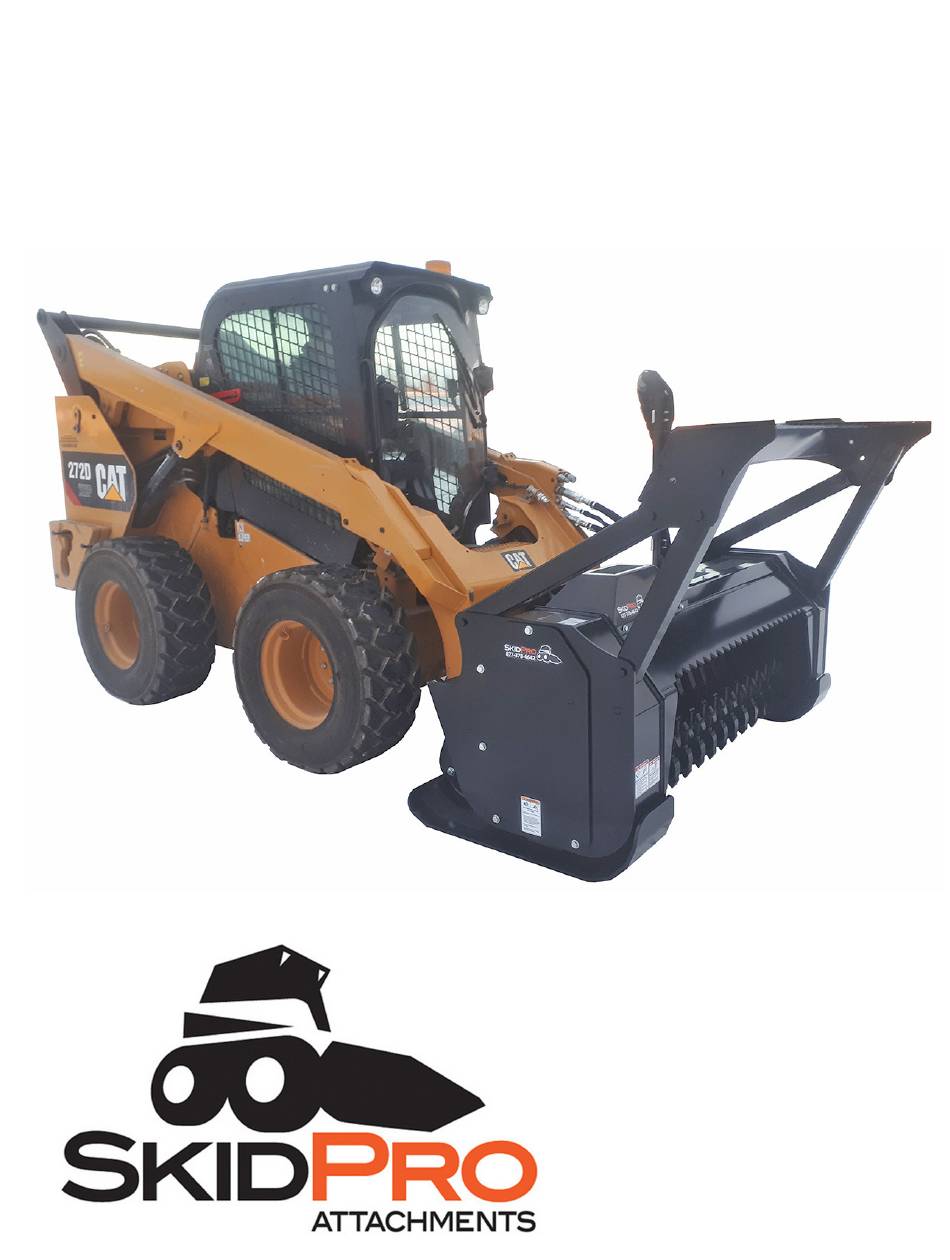

- Page 1 QA95 Mulcher Operators Manual Skid Pro Attachments PO Box 982 Alexandria, MN 56308 www.skidpro.com January 2021...
-
Page 2: Table Of Contents
Contents 1. Introduction .............................. 1 1.1 Overview .............................. 1 1.2 Intended Use And Foreseeable Misuse .................... 1 2. Safety ................................. 2 2.1 Safety Alert Symbol And Safety Words ..................... 2 2.2 Operational Hazards ..........................2 2.2.1 Prepare For Emergencies ....................... 3 2.2.2 Replace Safety Signs ...................... -
Page 3: Introduction
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Skid Pro dealer, distributor or the factory if you need assistance, information or additional copies of the manuals. When this machine is worn out and no longer in use, it should be returned to the retailer or other party for recycling. -
Page 4: Safety
2. Safety 2.2 Operational Hazards 2.1 Safety Alert Symbol And Safety WARNING Words Prevent serious injury or death. You must read, understand and follow the instructions given by the operating unit manufacturers, as well as Read and understand this manual before the instructions in this manual. -
Page 5: Prepare For Emergencies
If you do not understand any part of this manual, • Avoid sharp turns & sudden movement on slopes. contact Skid Pro at 866-820-5603. • Carry loads close to the ground. • Avoid holes, ditches and other obstructions which 2.2.1 Prepare For Emergencies... -
Page 6: Avoid Powerlines & Underground Utilities
2.2.9 Avoid Loud Noise 2.2.6 Avoid Powerlines & Underground Utilities WARNING Prolonged exposure to loud noise can DANGER cause impairment or loss of hearing. Prevent electrocution. Wear a suitable hearing protective device such as earmuffs or earplugs to protect Death or serious injury can result if against objectionable or uncomfortable equipment comes near or contacts power loud noises. -
Page 7: Avoid High Pressure Fluids
“Do Not Operate” tag on control panel. Read and WARNING understand this manual. If you do not understand any part of the manual, contact Skid Pro at 866-820-5603. Burn hazard. Always wear face and/or eye protection, safety shoes, Hot and high pressure hydraulic oil. -
Page 8: Safety Signs
2.4 Safety Signs A. MTB-178 Safety Sign Dashed line indicates item hidden from view unless cover is removed. NS - Non-Slip Pad B. MTB-176 Safety Sign Never allow riders; especially children on carrier or cutter. cutting www.skidpro.com... - Page 9 E. MTB-185 Safety Sign C. MTB-177 Safety Sign F. MTB-182 Safety Sign D. MTB-175 Safety Sign unsafe www.skidpro.com...
-
Page 10: Initial Setup
3. Initial Setup The mulcher is equipped with a bearing support housing vent (B). If oil emerges from vent, safety seal in motor has been activated. This is caused by an 3.1 Hydraulics undersized, disconnected or blocked case drain hose. WARNING Pressurized fluids can penetrate the skin. -
Page 11: Operation
4. Operation Remove any masking materials affixed during painting. Inspect the mulcher and any accessory equipment to verify that nameplates and all safety warning, caution 4.1 Preparation For Use signs and decals provided with the equipment are in place and clearly visible. WARNING Visually inspect the unit before each start up. -
Page 12: Machine Components
4.3 Machine Components 4.4 Attach To Skid Steer Dashed line indicates item hidden from view unless cover is removed. WARNING To prevent injury or machine damage put transmission in “Park”. Never position yourself between skid steer and brush mulcher. Only experienced and properly trained operator’s should operate the skid steer and brush mulcher. -
Page 13: Transporting
4.6 Transporting 4.8 First Time User Tips 1. Verify all reflectors and Slow Moving Vehicle • First, operate all functions in a clear area with (SMV) sign are visible. skid steer at idle speed to get a good feel for the controls before you actually move into any brush. -
Page 14: Field Operation
4.9 Field Operation 2. Lower mulcher so skid plates are on ground. 3. Set engine speed to low idle and engage mulcher. WARNING 4. Slowly increase engine speed to high idle. Verify mulcher is operating smoothly and start travel. Prevent serious injury or death caused by 5. -
Page 15: Clearing Jams
4.10 Clearing Jams If the rotor stalls, stop rotor motion and raise slightly and try again. 1. If still stalled, lower unit so teeth tips dig slightly into sod. 2. Reverse hydraulic flow. A freewheeling check valve will let the pressure pass, but you still must do this to open the hydraulic lock on the rotor. -
Page 16: Routine Maintenance
5. Routine Maintenance 5.1 Maintenance Maintenance Chart General Inspection Inspect the unit for any buildup of contamination (dirt, Daily stones, etc.). Cutting Teeth The teeth bolts must be retighten every ten minutes for First hour of use. the first hour of use on a new mulcher. Cutting Teeth Check and replace one at a time as necessary. -
Page 17: Check Belt Tension
5.3 Check Belt Tension 1. Lower mulcher to ground. 2. Set parking brake, stop engine and remove key. WARNING Moving parts can crush and cut. Keep clear of moving components. Follow lockout procedure before servicing. 3. Open inspection cover (A). 4. -
Page 18: Replace Belt
5.4 Replace Belt 15. Install inspection cover (A). Do not operate mulcher with cover (A) removed. 1. Lower mulcher to ground. 2. Set parking brake, stop engine and remove key. WARNING Moving parts can crush and cut. Keep clear of moving components. Follow lockout procedure before servicing. -
Page 19: Replace Cutting Teeth
5.5 Replace Cutting Teeth 5.6 Motor Shaft Seal 1. Park skid steer and mulcher on a level surface. NOTICE 2. Lower mulcher to the ground. 3. Shut off engine and remove key. If oil emerges, safety seal in motor has been activated. 4. -
Page 20: Lubricate Rotor Bearings
5.7 Lubricate Rotor Bearings The bearings are factory lubricated with a lithium or lithium complex base grease which is suitable for most applications. Select a grease that is compatible with a lithium or lithium complex grease. The bearings should contain as much grease as speed will permit. -
Page 21: Troubleshooting
6. Troubleshooting PROBLEM CHECK SOLUTION Rotor does not spin. Rotor jammed. Remove material from rotor. See Clearing Jams. Low oil level. Check oil level in skid steer. Add if necessary. Low oil flow. Check flow control on skid steer. See your dealer. -
Page 22: Storage
7 STORAGE 7.2 Removing From Storage 7.1 Storing Mulcher 1. Review Operator’s manual and check adjustments. 2. If parts have been replaced, verify they run 1. Store mulcher in a dry place. properly. 2. Clean mulcher thoroughly. Dirt and wood chips will draw moisture and cause rust. -
Page 23: Warranty
8. Warranty Skid Pro warrants products purchased from Skid Pro to the Original Retail Purchaser to be free from defects in material and workmanship for a period of twelve (12) months from the warranty start date. Skid Pro warranty service includes parts and labor costs required to repair or replace products purchased from Skid Pro at the selling dealer’s business location. - Page 24 Skid Pro Attachments PO Box 982 Alexandria, MN 56308 www.skidpro.com January 2021...
