Summary of Contents for Skid Pro QA4205

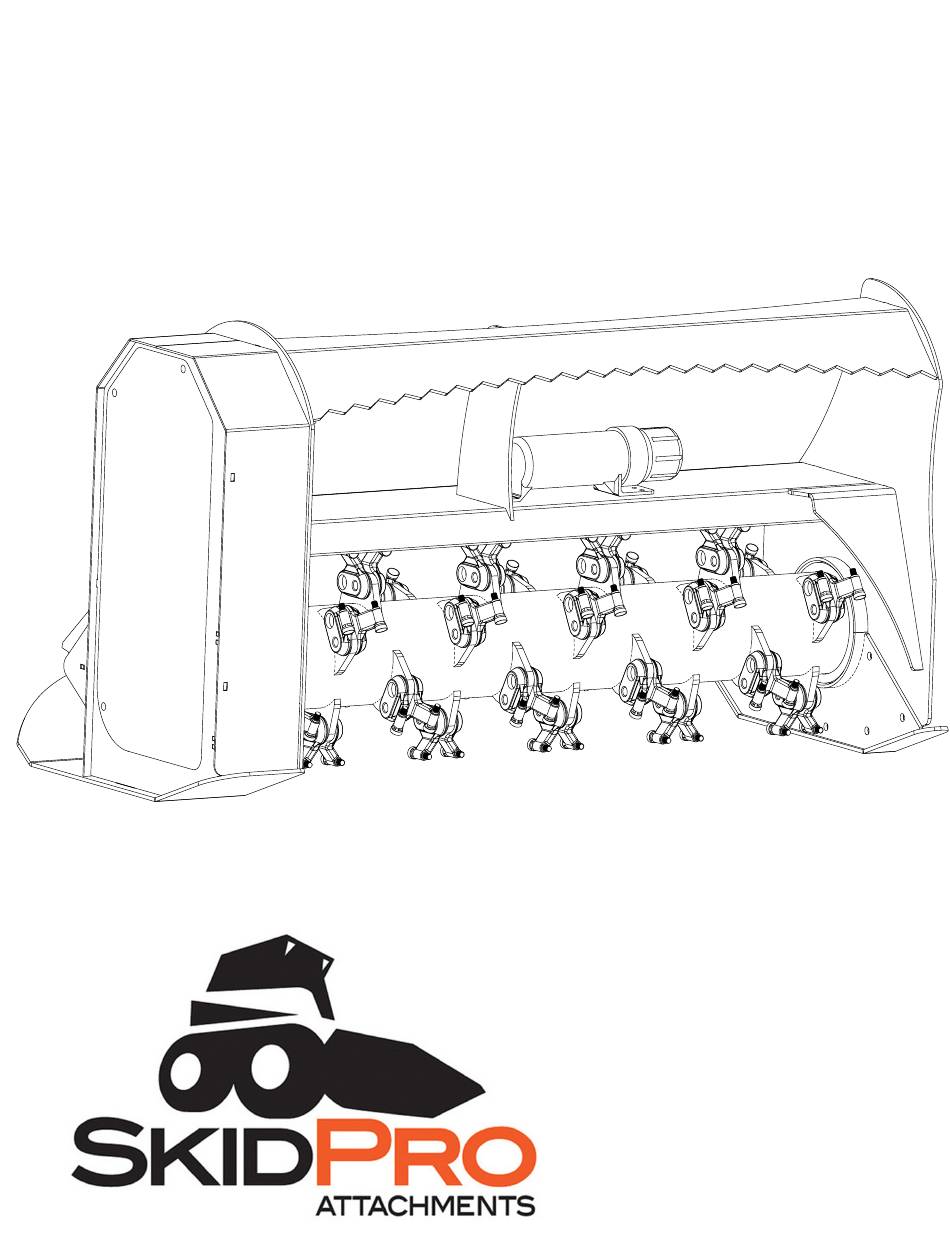

- Page 1 QA4205 Mulcher Operators Manual Skid Pro Attachments PO Box 982 Alexandria, MN 56308 www.skidpro.com October 2021...
-
Page 2: Table Of Contents
Contents 1. INTRODUCTION ............................1 1.1 Overview ............................. 1 1.2 Intended Use And Foreseeable Misuse ..................1 2. Safety ................................2 2.1 Safety Alert Symbol And Safety Words ..................2 2.2 Operational Hazards ........................2 2.2.1 Prepare for Emergencies ....................... 3 2.2.2 Replace Safety Signs ...................... -
Page 3: Introduction
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Skid Pro dealer, distributor or the factory if you need assistance, information or additional copies of the manuals. -
Page 4: Safety
2. Safety 2.2 Operational Hazards WARNING 2.1 Safety Alert Symbol And Safety Words Prevent serious injury or death. You must read, understand and follow the instructions Read and understand this manual before given by the operating unit manufacturers, as well as operating brush mulcher. -
Page 5: Prepare For Emergencies
• Avoid sharp turns & sudden movement on slopes. If you do not understand any part of this manual, contact Skid Pro at 866-820-5603. • Carry loads close to the ground. • Avoid holes, ditches and other obstructions which 2.2.1 Prepare for Emergencies... -
Page 6: Avoid Powerlines & Underground Utilities
2.2.6 Avoid Powerlines & Underground 2.2.9 Avoid Loud Noise Utilities WARNING DANGER Prolonged exposure to loud noise can Prevent electrocution. cause impairment or loss of hearing. Death or serious injury can result if Wear a suitable hearing protective device equipment comes near or contacts power such as earmuffs or earplugs to protect lines. - Page 7 Prevent the hazard by relieving pressure (See skid steer Operator’s Manual.) before connecting or disconnecting hydraulic lines. Verify all connections are tight before applying pressure. Search for leaks with a piece of cardboard or wood. Protect hands and body from high pressure fluids. If an accident occurs, see a doctor immediately.
-
Page 8: Maintenance Hazards
“Do Not Operate” tag on control panel. Read and Hot and high pressure hydraulic oil. understand this manual. If you do not understand any part of the manual, contact Skid Pro at 866-820-5603. Allow oil to cool before servicing. Always wear face and/or eye protection, safety shoes, and other protective equipment appropriate for the job. - Page 9 This page intentionally left blank.
-
Page 10: Safety Signs
2.4 Safety Signs Dashed line indicates item hidden from view unless cover is removed. NS - Non-Slip Pad A. MTB-178 Safety Sign B. MTB-176 Safety Sign Never allow riders; especially children on carrier or cutter. cutting... - Page 11 C. MTB-177 Safety Sign E. MTB-185 Safety Sign F. MTB-182 Safety Sign D. MTB-175 Safety Sign unsafe...
-
Page 12: Initial Setup
3. Initial Setup 3.1 Hydraulics WARNING Pressurized fluids can penetrate the skin. Disconnect and lock out power source before disconnecting and/or connecting hydraulic hoses. The mulcher is equipped with short hoses that are connected to the hydraulic motor. You must connect your skid steer hoses to these hoses. -
Page 13: Operation
4. Operation Remove any masking materials affixed during painting. Inspect the mulcher and any accessory 4.1 Preparation For Use equipment to verify that nameplates and all safety warning, caution signs and decals provided with WARNING the equipment are in place and clearly visible. Wear an approved respirator (N95 Type as Visually inspect the unit before each start up. -
Page 14: Machine Components
4.3 Machine Components 4.4 Attach To Skid Steer Dashed line indicates item hidden from view unless cover is removed. WARNING A. Operators Manual Storage Tube To prevent injury or machine damage put B. Quick Attach transmission in “Park”. C. Safety Push Bar Never position yourself between skid steer D. -
Page 15: Detach From Skid Steer
4.6 Transporting 4.5 Detach From Skid Steer 1. Verify all reflectors and Slow Moving Vehicle WARNING (SMV) sign are visible. Prevent serious injury or death caused 2. Raise brush mulcher slightly off ground. by unexpected movement: 3. Verify hydraulics are disengaged. Park skid steer on a level surface. -
Page 16: First Time User Tips
4.8 First Time User Tips • First, operate all functions in a clear area with skid steer at idle speed to get a good feel for the controls before you actually move into any brush. • Choose low density brush and move into it slowly, do not expect to get the first area done fast. -
Page 17: Field Operation
4.9 Field Operation 1. Attach brush mulcher to skid steer. See Attach Brush Mulcher in this section. WARNING WARNING Prevent serious injury or death caused by Prevent serious injury or death. unexpected movement: Park skid steer on a level surface. Operating unit must be equipped with a forestry guard to protect the operator. -
Page 18: Clearing Jams
4.10 Clearing Jams If the rotor stalls, stop rotor motion and raise slightly and try again. 1. If still stalled, lower unit so teeth tips dig slightly into sod, a log or stump. 2. Reverse hydraulic flow to mulcher. Reversing the flow does not power the rotor in the reverse direction, it only opens the hydraulic lock on the rotor. -
Page 19: Routine Maintenance
5. Routine Maintenance 5.1 Maintenance Maintenance Chart General Inspection Inspect the unit for any buildup of contamination (dirt, Daily stones, etc.). Cutting Teeth The teeth bolts must be retighten every ten minutes for First hour of use. the first hour of use on a new mulcher. Cutting Teeth Check and rotate replace one at a time as necessary. -
Page 20: Check Belt Tension
5.3 Check Belt Tension 1. Lower mulcher to ground. 2. Set parking brake, stop engine and remove key. WARNING Moving parts can crush and cut. Keep clear of moving components. Follow lockout procedure before servicing. 3. Open inspection cover (A). 8. -
Page 21: Replace Belt
5.4 Replace Belt 13. Belt deflection (J) should be 0.5 in. (13 mm) at 4.25 lbs of force. 1. Lower mulcher to ground. 14. Adjust tension and tighten motor mounting bracket. 2. Set parking brake, stop engine and remove key. 15. -
Page 22: Rotate Cutting Teeth
5.5 Rotate Cutting Teeth 5.6 Replace Cutting Teeth Each tooth can be rotated up to two times before 1. Park skid steer and mulcher on a level surface. replacement is necessary. 2. Lower mulcher to the ground. 3. Shut off engine and remove key. 1. -
Page 23: Replace Tooth Holder
5.7 Replace Tooth Holder 1. Park skid steer and mulcher on a level surface. 2. Lower mulcher to the ground. 3. Shut off engine and remove key. 4. Inspect tooth holders (A) for damage and wear. Replace individual tooth holders as needed. 5. -
Page 24: Lubricate Rotor Bearings
5.8 Lubricate Rotor Bearings The bearings are factory lubricated with a general purpose grease which is suitable for most applications The bearings should contain as much grease as speed will permit. A full bearing with consequent slight leakage through the seal is the best protection against contaminant entry. -
Page 25: Troubleshooting
6. Troubleshooting PROBLEM CHECK SOLUTION Rotor does not spin. Rotor jammed. Remove material from rotor. See Clearing Jams. Low oil level. Check oil level in skid steer. Add if necessary. Check flow control on skid steer. See your Low oil flow. dealer. -
Page 26: Storage
7. Storage 7.2 Removing From Storage 1. Review Operator’s manual and check adjustments. 7.1 Storing Mulcher 2. If parts have been replaced, verify they run properly. 1. Store mulcher in a dry place. 2. Clean mulcher thoroughly. Dirt and wood chips will draw moisture and cause rust. -
Page 27: Warranty
8. Warranty Skid Pro warrants products purchased from Skid Pro to the Original Retail Purchaser to be free from defects in material and workmanship for a period of twelve (12) months from the warranty start date. Skid Pro warranty service includes parts and labor costs required to repair or replace products purchased from Skid Pro at the selling dealer’s business location. - Page 28 Skid Pro Attachments PO Box 982 Alexandria, MN 56308 www.skidpro.com October 2021...
