Rompa SNOEZELEN 24509 Instruction Manual

Fireworks extravaganza sensory room wall panel

Advertisement

Quick Links

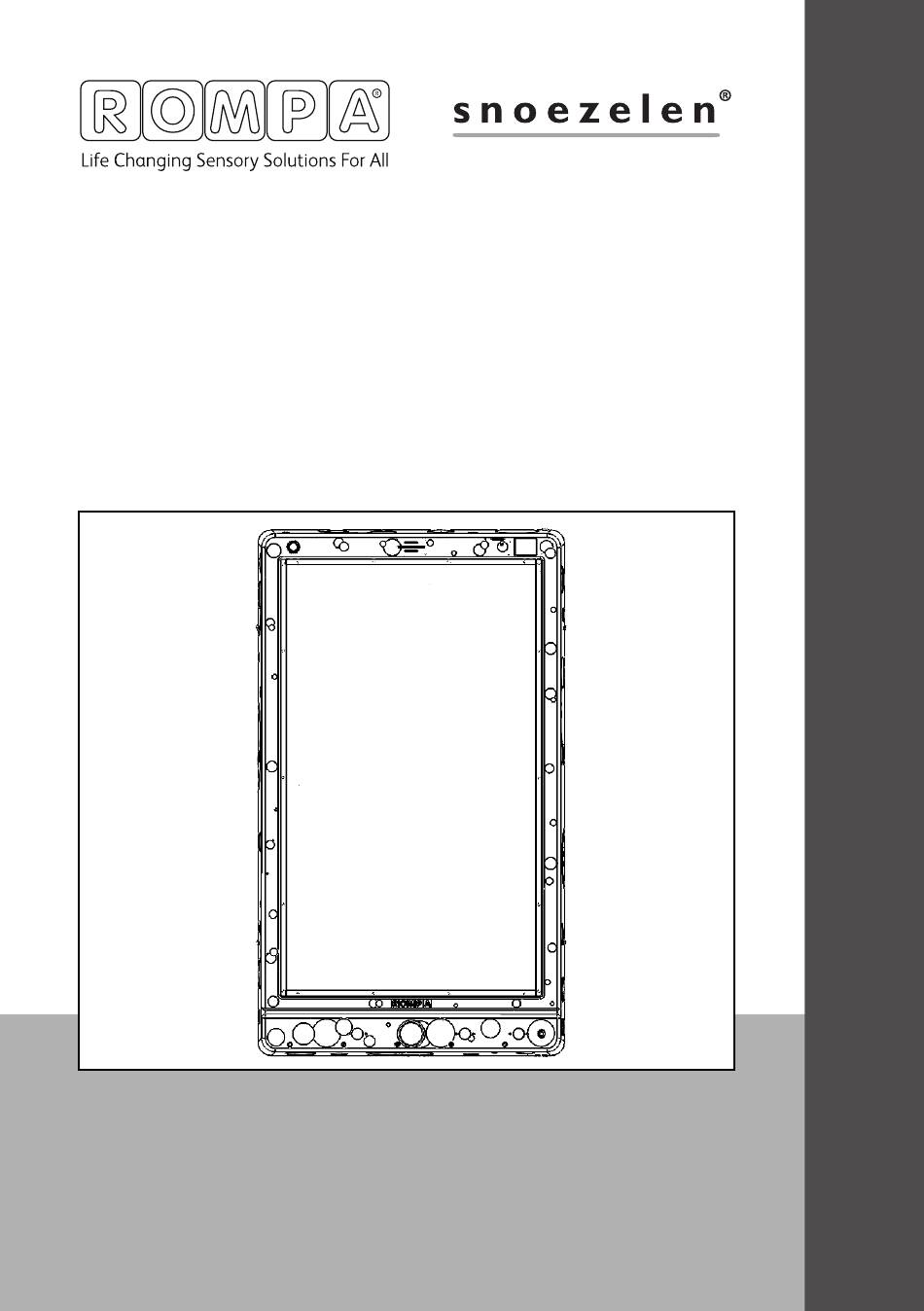

R
INSTRUCTION
MANUAL
SNOEZELEN
FIREWORKS
®
EXTRAVAGANZA
SENSORY ROOM WALL
PANEL
24509

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNOEZELEN 24509 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rompa SNOEZELEN 24509

  • Page 1 INSTRUCTION MANUAL SNOEZELEN FIREWORKS ® EXTRAVAGANZA SENSORY ROOM WALL ™ PANEL 24509...
  • Page 2 CONTENTS...
  • Page 3: Table Of Contents

    CONTENTS ABOUT THE PRODUCT ������������������������������������������������������������������������������������ 4 Product Description ����������������������������������������������������������������������������������������������������������������������������������������������������5 User Benefits ����������������������������������������������������������������������������������������������������������������������������������������������������������������5 Product Compatibility ������������������������������������������������������������������������������������������������������������������������������������������������5 TECHNICAL SPECIFICATION ��������������������������������������������������������������������������� 6 Included Parts���������������������������������������������������������������������������������������������������������������������������������������������������������������7 Technical Specification ����������������������������������������������������������������������������������������������������������������������������������������������7 SAFETY AND CARE ������������������������������������������������������������������������������������������� 8 Product Safety and Care Instructions �������������������������������������������������������������������������������������������������������������������9 ASSEMBLY & INSTALLATION GUIDE Product Assembly Guide/Installation ����������������������������������������������������������������������������������������������������������������� 11 Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: About The Product

    ABOUT THE PRODUCT...
  • Page 5: Product Description

    Product Description Create amazing displays by selecting from a number of patterns, colours and speeds each paired to sound effects. Rompa appreciates that for some user’s fireworks could be associated with ® being ‘too loud and/ or over stimulating’. As a result, this panel offers a number of different sound effect themes for a more relaxing and varied sensory experience, for example water or carnival sounds.
  • Page 6: Technical Specification

    TECHNICAL SPECIFICATION...
  • Page 7: Included Parts

    Included Parts 1x Fireworks Extravaganza Panel ™ 2x Wall Mounting Bracket 4x M4 Screws 1x UK Mains Lead 1x US Mains Lead 1x EU Mains Lead Technical Specification Weight: 13.5kg Dimensions: 115H x 67W x 10cm Input: 100-240V 50/60Hz Output: 5V DC 10A Material: ABS (Phthalate-Free) 67cm 115cm...
  • Page 8: Safety And Care

    SAFETY AND CARE...
  • Page 9: Product Safety And Care Instructions

    Disconnect any cables when installing or moving the product. Pulling of the cables can cause premature wear or damage to the product and/or accessories. • If the product generates abnormal sounds, a burning smell or smoke disconnect immediately and contact Rompa customer services. ® •...
  • Page 10: Assembly & Installation Guide

    ASSEMBLY & INSTALLATION GUIDE...
  • Page 11: Product Assembly Guide/Installation

    Installing Wall Bracket, Tank & Panel Ensure that, after installation, the mains plug and/or power switch for the Panel is easily accessible to facilitate removal of power. Due to the size of the product, it is recommended that two people are required to install the product.
  • Page 13 Unscrew the 4x M4 screws which secure the 2x brackets to the panels. The brackets are secured to avoid any damage during transit. Be sure to place the 4x M4 screws in a safe place as they will be required later. Remove the brackets from the panel by sliding the bracket down and then lift them out of panel.
  • Page 14 Secure both brackets to the wall* ensuring the centre of the bracket mounting holes line up with the marks just made to ensure the bracket is level when mounting it to the wall. The top bracket mounting holes should line up with the top 2x marks and the bottom bracket mounting holes should line up with the bottom 2x marks.
  • Page 15: Troubleshooting

    Clean the wall and brackets of any dust and debris which may have been created whilst mounting the brackets. Place the panel on the brackets. To do this have the panel slightly higher than its final resting position. When you feel the panel has slotted into the bracket gradually lower the panel into position.
  • Page 16 The IEC power cable plugs into the panel as illustrated by the line with the Power In & Floor Pad In text next to it: If troubleshooting does not solve the issue please contact Rompa® Customer Services +44 (0) 1246 211 777...
  • Page 17: User Guide

    USER GUIDE...
  • Page 18 Modes Overview The mode controls how the panel behaves. The Fireworks Extravaganza has 2 modes which can ™ be selected via the touchscreen and an additional mode when a microphone is plugged into the ¼”/6.35mm microphone input: Mode 1: Interactive The panel does not change current pattern, colour or speed unless told to do so via the illuminated push buttons.
  • Page 19 Mode • Press the light blue mode button to cycle through the modes of the panel. • Press the red forward or back buttons to cycle through the other menu options. Media* • Press the ‘play/ pause’ button to play or pause music. Press the ‘skip forward’ to play the next track or ‘skip back’...
  • Page 20 Wireless Pressing the purple wireless button will cycle the panel wireless on or off. With wireless turned on the panel will respond to other Rompa compatible wireless products. With wireless turned off it will ® ignore Rompa compatible wireless products.
  • Page 21 Stats • Pressing the blue stats button will open the stats screen. • From the stats screen you can see in real time the amount of button presses that have been made on the panel and the duration the panel has been used for. To return to the main menu press the Red backward button Press the red forward or back buttons to cycle through the other menu options.
  • Page 22 Play/ Pause The panel has can be paused or resumed via the ‘Play/ Pause’ illuminated push button or an external switch plugged into the ‘Play/ Pause’ input jack. A different sound effect is associated with play and pause. Speed The panel has 3 speeds which can be selected via the ‘Speed’ illuminated push button or an external switch plugged into the ‘Speed’...
  • Page 23 8 Colour Wirefree Controller Simple and Deluxe Pressing the colour buttons turns the all the LEDs in array the corresponding colour selected. The panel will remain this colour unless a new colour is selected via the panel or a Rompa wireless...
  • Page 24 5 of the panel’s patterns. Other Wireless Products Selecting a colour turns the all the LEDs in array the corresponding colour selected. The panel will remain this colour unless a new colour is selected via the panel or a Rompa wireless controller ®...
  • Page 25: Notes

    NOTES...
  • Page 28 Rompa Limited, Goyt Side Road, ® Chesterfield, S40 2PH customer.service@rompa.com www.rompa.com 24509_110425...
