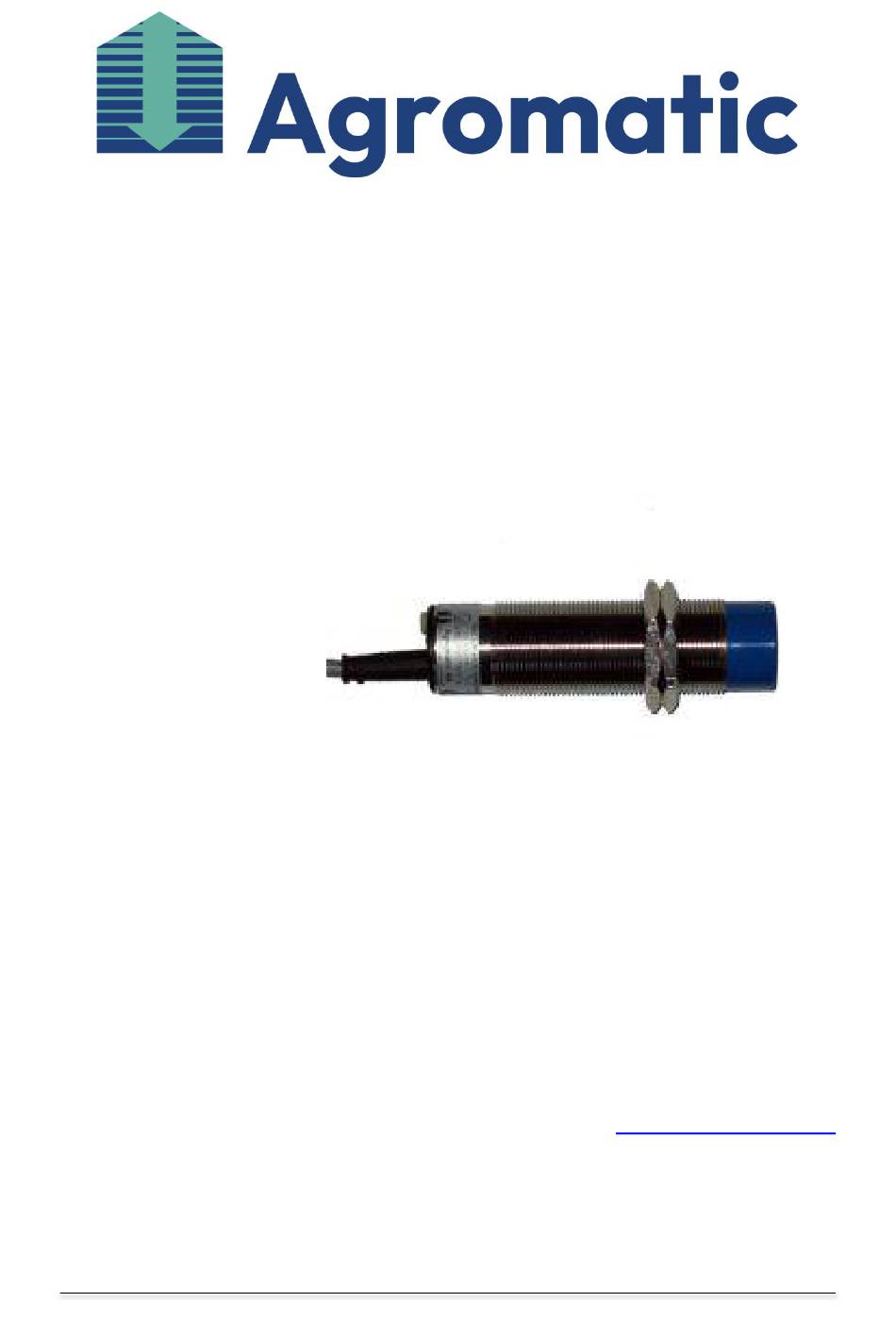

- Page 1 Operation manual capacitive sensor ASC30M-AE25, ATEX Agromatic AG Goldingerstrasse 30 8637 Laupen Switzerland Phone +41 (0)55 256 21 00 info@agromatic.com www.agromatic.com Agromatic AG, Goldingerstr. 30, 8637 Laupen, Switzerland, Tel:+41 (0)55 256 21 00, www.agromatic.com Page 1 of 12...
-
Page 2: Table Of Contents
Function ......................8 Maintenance ..................... 9 Type plate ......................9 Copyrights / license terms ................9 Declaration of conformity ................10 Revision history ..................... 10 Agromatic AG, Goldingerstr. 30, 8637 Laupen, Switzerland, Tel:+41 (0)55 256 21 00, www.agromatic.com Page 2 of 12... -
Page 3: Safety Instructions
Keep the main control unit in the original packing at a suitable place until you finally place it. Please determine the final place before unpacking the unit. Agromatic AG, Goldingerstr. 30, 8637 Laupen, Switzerland, Tel:+41 (0)55 256 21 00, www.agromatic.com Page 3 of 12... -
Page 4: Instructions For Application In Dangerous Explosion Areas Acc. To Atex
The sensor must then be replaced. The internal temperature fuse cannot be replaced! 2. Scope of delivery Capacitive sensor ACS30M-AE25, ATEX with technical data sheet Agromatic AG, Goldingerstr. 30, 8637 Laupen, Switzerland, Tel:+41 (0)55 256 21 00, www.agromatic.com Page 4 of 12... -
Page 5: Mounting
It must be ensured that no explosive climate or dust deposits or swirls are present during assembly. Agromatic AG, Goldingerstr. 30, 8637 Laupen, Switzerland, Tel:+41 (0)55 256 21 00, www.agromatic.com Page 5 of 12... -
Page 6: Dimensions
Do not install these cables together or parallel with high voltage or high current leading cables; neither with cables driving frequency-controlled machines or motors (minimum distance 25cm). Agromatic AG, Goldingerstr. 30, 8637 Laupen, Switzerland, Tel:+41 (0)55 256 21 00, www.agromatic.com Page 6 of 12... -
Page 7: Adjustage
The LED lights up when material has been detected. An adjustment is necessary in any case. Recommendation: Adjust to driest and lightest material first, then check with dampest and heaviest material. Agromatic AG, Goldingerstr. 30, 8637 Laupen, Switzerland, Tel:+41 (0)55 256 21 00, www.agromatic.com Page 7 of 12... -
Page 8: Function
1.0 x Sn ≈ Water 1.0 x Sn ≈ Plastic 0.5 x Sn ≈ Glass 0.5 x Sn ≈ Wood 0.4 x Sn Agromatic AG, Goldingerstr. 30, 8637 Laupen, Switzerland, Tel:+41 (0)55 256 21 00, www.agromatic.com Page 8 of 12... -
Page 9: Maintenance
Agromatic's products and services - including images, text and software downloads ("Content") - belong either to Agromatic AG or to third parties who have granted Agromatic permission to use the Content. Agromatic cannot give you permission to use content that belongs to third parties. -
Page 10: Declaration Of Conformity
Subject of the declaration: - Capacitive sensor ASC30M-AE25, ATEX, art. 0003846 Agromatic AG declares under its sole responsibility that the product to which the declaration refers conforms to the following standard(s) or normative document(s). In accordance with the provisions of the Directives: Low Voltage Directive;... - Page 11 Safety relevant data Protection class Protection class III IP protection class IP67 Zone allocation Zone 22 ATEX certification Ex II 3D Ex tc IIIC T80°C Dc X Agromatic AG, Goldingerstr. 30, 8637 Laupen, Switzerland, Tel:+41(0)552562100, www.agromatic.com Page 11 of 12...
- Page 12 Bottom view 1) cable 2) LED, yellow 3) sensitivity adjusts (to adjust remove screw) 4) switch NO/NC Instructions for correct installation Side by side mounting Non flush mounting Agromatic AG, Goldingerstr. 30, 8637 Laupen, Switzerland, Tel:+41(0)552562100, www.agromatic.com Page 12 of 12...
