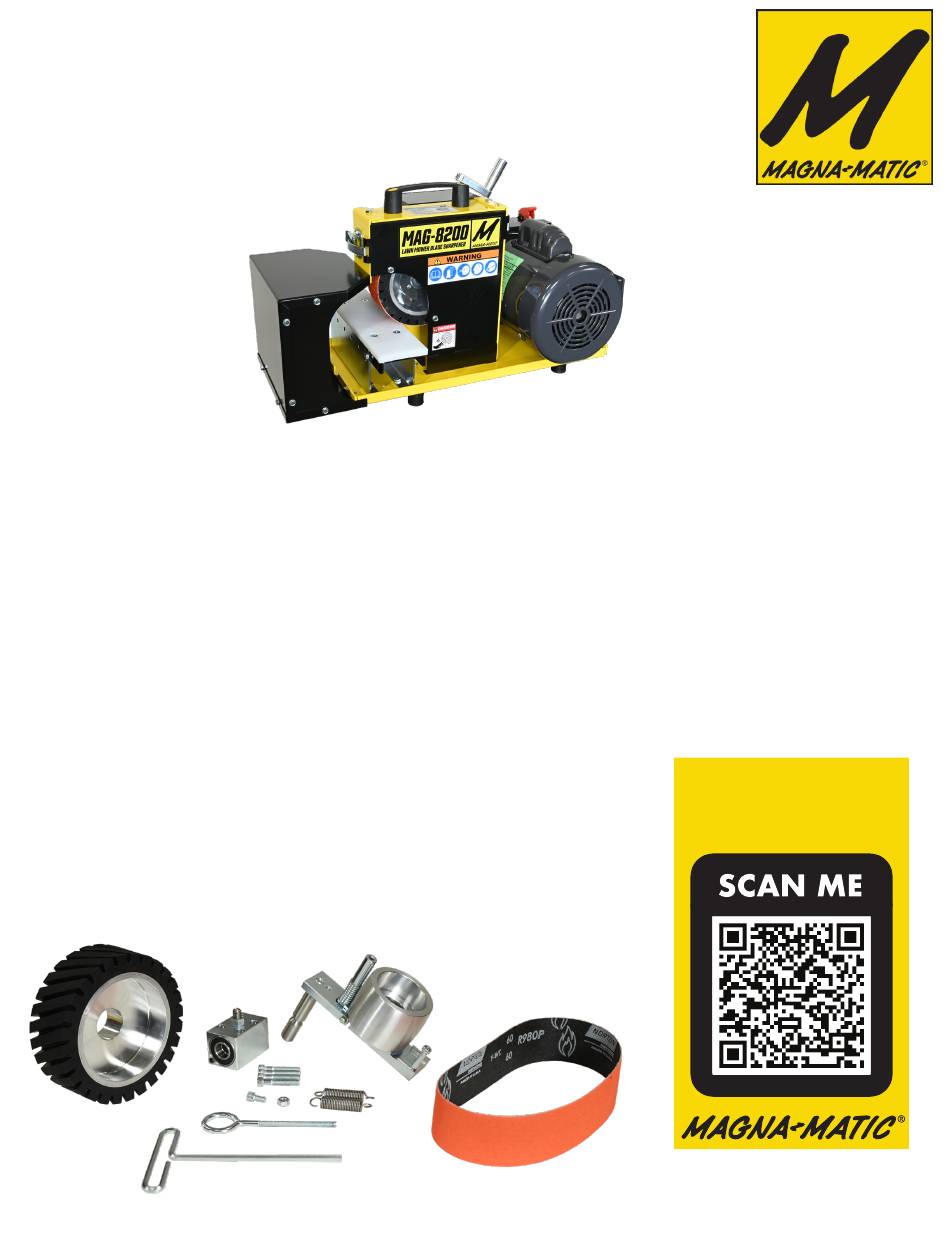

MAG-8200 SERIES
BELT GRINDER UPGRADE KIT INSTALL INSTRUCTIONS
Please be sure all the items are in the box and inspect for shipping damage, or for
missing parts. Contact Magna-Matic right away to remedy any problems due to
shipping. 800-328-1110
We have videos for all these installs - scan the QR code to watch videos.
BOX INVENTORY
Belt Grinder Option
• (1) T-Handle wrench
• (1) Eyelet pull tool
• (1) Contact wheel and idler wheel assembly
• (1) 8200-215 abrasive belt
• (2) Springs
• (1) Pivot block (with bearings)
• Hardware
QUICK START
VIDEOS
Advertisement
Related Manuals for Magna-Matic MAG-8200 Series
Summary of Contents for Magna-Matic MAG-8200 Series
- Page 1 BELT GRINDER UPGRADE KIT INSTALL INSTRUCTIONS Please be sure all the items are in the box and inspect for shipping damage, or for missing parts. Contact Magna-Matic right away to remedy any problems due to shipping. 800-328-1110 We have videos for all these installs - scan the QR code to watch videos.
- Page 2 Locate your span- ner wrench and arbor wrench (both supplied by Magna-Matic.) The arbor wrench fits into a square notch in the arbor behind the grinding wheel, and the spanner wrench fits into the two holes in the arbor nut.
-
Page 3: Important - Please Read
IMPORTANT - PLEASE READ! MOUNTING 1” WIDE GRINDING WHEEL = ONLY ARBOR NUT 1” WIDE WHEEL + FLAT WHITE TABLE = CONVENTIONAL FLAT BLADES MOUNTING ORDER 1. WHEEL 2. ARBOR NUT IMPORTANT - PLEASE READ! MOUNTING 1/2” WIDE GRINDING WHEEL = SPACER + ARBOR NUT 1/2”... - Page 4 UPGRADING TO THE BELT GRINDER OPTION CAUTION TURN OFF AND UNPLUG BEFORE SERVICING! This will guide you through the steps to upgrade your 8200 into the 2” wide belt grinder. Do this conversion on a work bench or larger table so you have room to work. The motor is tethered to the body, so you need a place to set the motor next to the body.
- Page 5 Remove rear adjustment cover 3 screws on pulley side. 4 on rear of cover 4 Socket screws connect pivot bearing block to adjustment truck. Install 1/2” long socket screw with 1/4” nut in yellow body. Knockout the oval blank to expose the pivot bearing block.
- Page 6 Connect the two springs to the yellow body Insert the idler pulley assembly into the pivot bearing block. Replace rear adjustment cover Reinstall the motor Install belt, and covers. Mount the contact wheel in the same manner Insert the idler pulley assembly into the pivot you would install a grinding wheel.
- Page 7 MAG-8200 DRIVE BELT REPLACEMENT CAUTION TURN OFF AND UNPLUG BEFORE SERVICING! GENERAL CARE: Keep the MAG-8200 clean, use compressed air to blow the machine off periodically. Use mild soapy water to clean powder coated surfaces and Lexan® guards. Remove large build-ups of grit in the grit guard, and inside the MAG-8200 body.
- Page 8 ABRASIVE BELT REPLACEMENT CAUTION TURN OFF AND UNPLUG BEFORE SERVICING! Be sure the MAG-8200 power cord is unplugged. Remove the front steel grinding wheel cover by releasing the two catch clamps on each side of the grinding cavity. Use the crank handle to raise up the contact wheel.
- Page 9 CHANGING FROM A BELT TO A GRINDING WHEEL CAUTION TURN OFF AND UNPLUG BEFORE SERVICING! Be sure the MAG-8200 power cord is unplugged. Remove the front steel grinding wheel cover by releasing the two catch clamps on each side of the grinding cavity. Use the crank handle to raise up the contact wheel.
