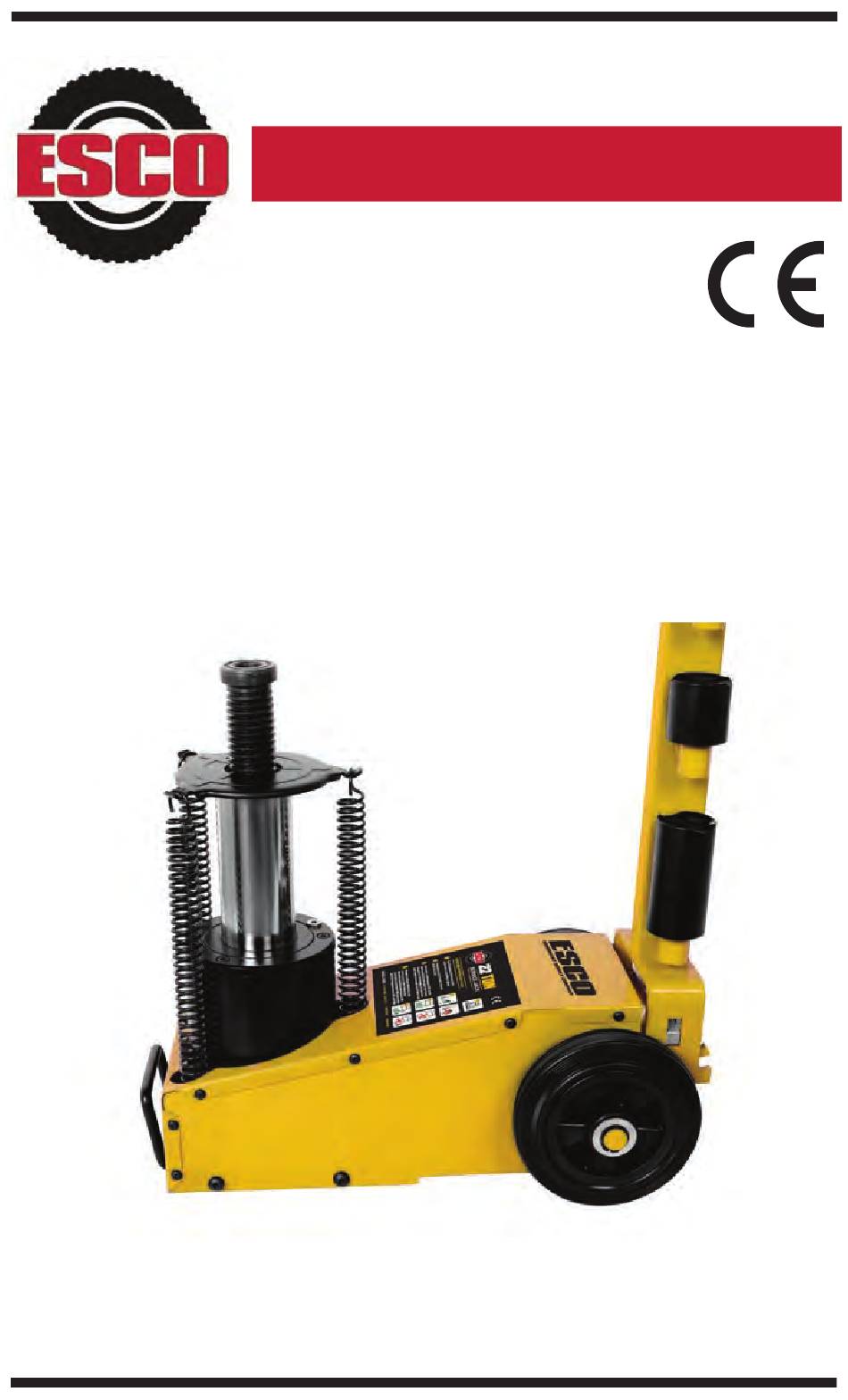

- Page 1 I n s t r u c t i o n M a n u a l 22 Ton A ir Hydrau lic Service J a ck E SCO # 10390 Copyright © 2015 Equipment Supply Co., All rights reserved...
- Page 2 2 2 T o n A i r H y d r a u l i c S e r v i c e J a c k M o d e l # 1 0 3 9 0 WARNING: THIS PRODUCT, AS WELL AS ALL TIRE TOOLS, SHOULD NEVER BE USED BY PERSONS UNLESS THEY HAVE BEEN TRAINED PROPERLY ACCORDING TO OSHA REGULATIONS 29CFR...
- Page 3 2 2 T o n A i r H y d r a u l i c S e r v i c e J a c k M o d e l # 1 0 3 9 0 Product Description The ESCO Model #10390 22 Ton Air Hydraulic Service is a professional lifting jack designed for truck shops, service trucks, and other commercial vehicle lifting applications.
- Page 4 2 2 T o n A i r H y d r a u l i c S e r v i c e J a c k M o d e l # 1 0 3 9 0 ASSEMBLY NOTICE: To insure the proper operation of the jack, please make sure that all parts are included in the box in order to assemble the jack.
- Page 5 2 2 T o n A i r H y d r a u l i c S e r v i c e J a c k M o d e l # 1 0 3 9 0 POSITIONING THE HANDLE: Lever used to adjust the position of the handle.
- Page 6 2 2 T o n A i r H y d r a u l i c S e r v i c e J a c k M o d e l # 1 0 3 9 0 PARTS BREAKDOWN - CYLINDER 1 .
- Page 7 2 2 T o n A i r H y d r a u l i c S e r v i c e J a c k M o d e l # 1 0 3 9 0 PARTS BREAKDOWN - AIR MOTOR 1 .
- Page 8 2 2 T o n A i r H y d r a u l i c S e r v i c e J a c k M o d e l # 1 0 3 9 0 PARTS BREAKDOWN - FRAME ASSEMBLY & HANDLE 1 .
- Page 9 2 2 T o n A i r H y d r a u l i c S e r v i c e J a c k M o d e l # 1 0 3 9 0 OTHER PRODUCTS AVAILABLE THROUGH ESCO Tire Spreaders •...
- Page 10 Not only do we service our own products, but we also service our competitors’ products. In addition to ESCO’s 30 years of providing quality repair service, ESCO has reached out and partnered with more than 50+ hydraulic repair facilities across the US & Canada, to deliver quality repair and timely return of products.
- Page 11 2 2 T o n A i r H y d r a u l i c S e r v i c e J a c k M o d e l # 1 0 3 9 0 NOTES ________________________________________________ ________________________________________________ ________________________________________________...
-
