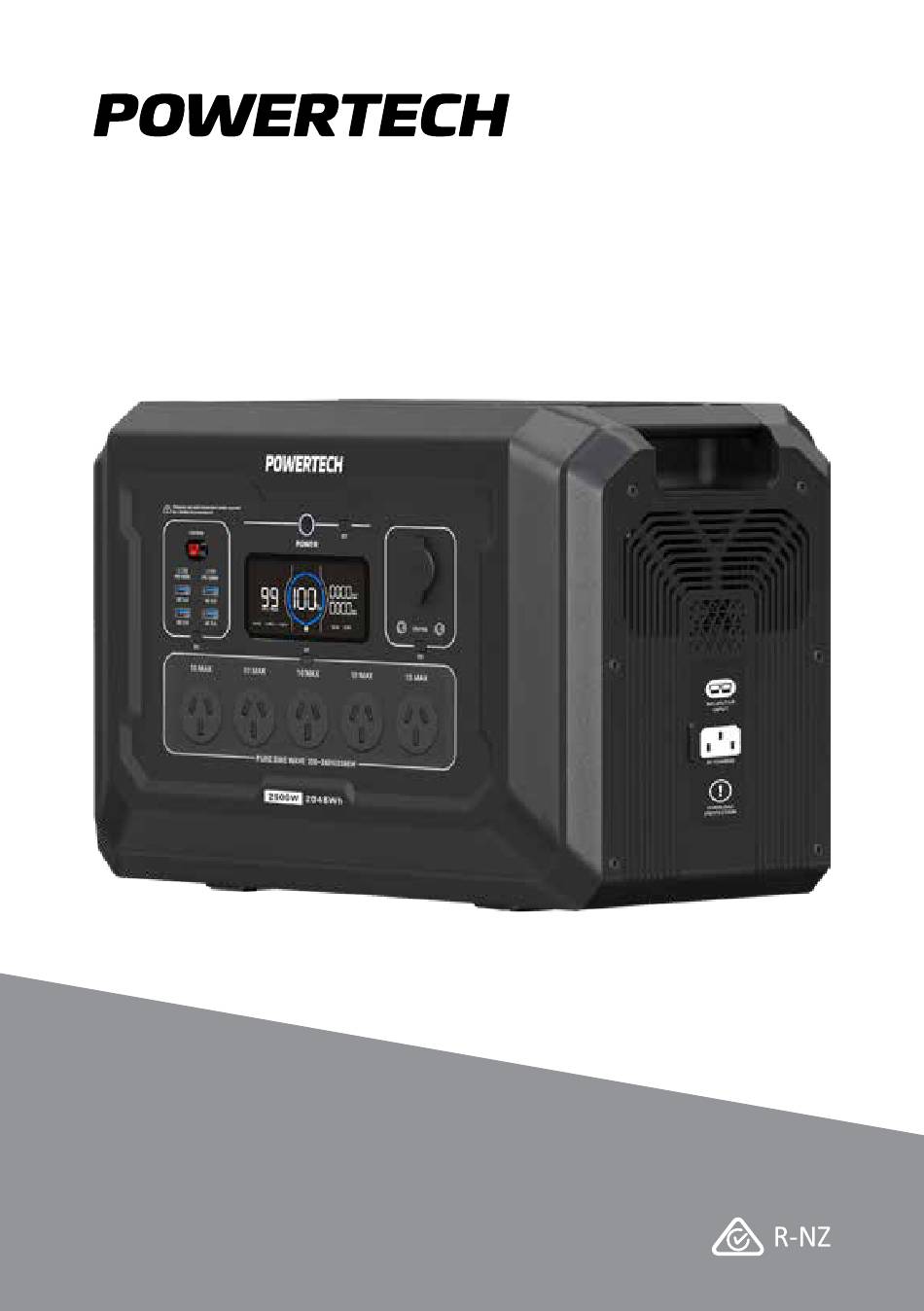

- Page 1 MB4104 2048Wh Power Station Instruction Manual Please read and save all instructions to ensure safe and effective use of this product.
-
Page 2: Table Of Contents
CONTENTS General Information & Safety Instructions ..........3 Box Contents ....................4 Product Diagram ................... 5 LCD Screen Description ................6 Before First Use .....................6 Operating Instructions ................. 7 Charging Instructions ..................8 Using the Bluetooth App ................13 Error Codes ....................22 Cleaning, Care, Storage & Maintenance ..........24 Specifications ....................25 Warranty Information .................26 After Sales Support | AU 1300 738 555 | NZ 0800 235 328 | sales@electusdistribution.com.au... -
Page 3: General Information & Safety Instructions
GENERAL INFORMATION & SAFETY INSTRUCTIONS • The default standby time of this product is 6 hours. If other output power keys are not turned on and no load is connected to the product, the product will automatically shut down after 6 hours. •... -
Page 4: Box Contents
BOX CONTENTS Power Station Mains Charging Cable 12V Charging Cable Solar Charging Cable User Manual Anderson Cable Anderson 7909 Cable After Sales Support | AU 1300 738 555 | NZ 0800 235 328 | sales@electusdistribution.com.au... -
Page 5: Product Diagram
PRODUCT DIAGRAM 1. AC Outputs 9. 12V Car Charger Output Port 2. LCD Display 10. DC 5521 Output Port 3. Anderson Output Port 11. DC Output Power On/Off Switch 4. USB-C Output Port 12. Power pack connection port 5. USB-A Output Port 13. -
Page 6: Lcd Screen Description
LCD SCREEN DESCRIPTION BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Power Powering the unit To power the unit on, press and hold the Main Power button (7) until the LCD screen lights up. The power button indicator light will turn to a steady state. To power the unit off, press and hold the Main Power button (7) until the LCD screen displays the word “off”... -
Page 8: Charging Instructions
CHARGING INSTRUCTIONS AC Charging To begin charging, take the included Mains Charging Cable and plug the mains end into a free mains outlet, and the other end into the AC Charging Input. Turn on the mains outlet to begin charging. After fully charging the power station, all blue capacity segments will be illuminated. - Page 9 Solar Charging Use the included Solar Charging Cable to connect a 12V solar panel (not included) to the device. To begin charging, take the included Solar Charging Cable and plug MC4 solar connectors into your solar panel (not included), and the other end into the DC &...
- Page 10 Car Charging Use the included Car Charging Cable to charge the power station to your vehicle. To begin charging, take the included Car Charging Cable and plug the cigarette plug into a free socket in your vehicle, and the other end into the DC & Solar Charging Input.
- Page 11 Extended Battery Charging To use the optional extended battery, connect the power station via the connecting cable, which is supplied with the extended battery. The device will start to charge when a reading appears on the input power on the screen. WARNING: Only use the cable supplied to connect the power station to the extended battery.
- Page 12 Circuit Protection If the unit is overloaded, it may trigger the circuit braker to protect the power station and any connections. If this occurs, please disconnect the power station from any devices and charging inputs before resetting the circuit breaker, located at Circuit Protection (15).
-
Page 13: Using The Bluetooth App
USING THE BLUETOOTH APP Control, monitor and customize your power station from afar with the App. Download at: https://wp2-us.doiting.com/release/wpoem/ downLoad.html?param=1,JTEnK3,0 Scan the QR code to download the smart control APP. Sign Up Open the App, click “Sign up now” to sign up. After Sales Support | AU 1300 738 555 | NZ 0800 235 328 | sales@electusdistribution.com.au... - Page 14 Log In Log In by third-party account If you have an account already, tap The Android version App supports us- “Log in” to enter your account name & ers to log in through Google accounts. password. If you forget your password, The lOS version app supports users to on the password login page, click log in through Facebook, Google, and...
- Page 15 Connection Setup There are three connection methods for the devices: Bluetooth, the device’s Wi- Fi hotspot, and loT. When the App establishes a Bluetooth or a Wi-Fi hotspot connection with the de- vice, you can view the real-time status of the device through the App, then con- trol and manage the device wirelessly.
- Page 16 Click the pairing button and match the 2.4GHz frequency Wi-Fi signal, enter the password and click OK. After the Wi-Fi matching is successful, start to connect the device. After the loading is completed, the connection is successful. NOTE: The device only supports 2.4GHz frequency Wi-Fi connection, please use 2.4GHz frequency Wi-Fi.
- Page 17 Automatically discover Bluetooth If the “Discover devices” dialog does not appear on the home page of the App, you can click the “Add Device” button to search for nearby Bluetooth devices. If you click the “Add Device” button, the App does not scan the Bluetooth of the device to be added, you can manually select the corresponding device, and reset it according to the App guidelines, then connect the Bluetooth.
- Page 18 Device’s Wi-Fi hotspot connection Click the “Add Device” button on the home page of the App, you can select the corresponding device that supports a Wi-Fi hotspot connection in the manually added device list, and according to the instructions of the App, click the “loT” button to reset the device and connect to Wi-Fi hot spot.
- Page 19 loT connection Before establishing a Bluetooth or a Wi-Fi hotspot connection between the App and the device, please ensure that the device is installed with App and connected to the internet. At this time, the device is connected to the loT, and the device can be controlled by App anywhere with the Internet.
- Page 20 Firmware upgrade The firmware upgrade function is an essential feature of the App. A new firmware version will be released to fix known bugs, improve performance, and add new features. Check for new firmware version There are two methods to check whether the current device has a firmware version to be upgraded: automatic detection and manual checking.
- Page 21 Personal Settings and More Modify avatar and nickname Enter the App, click the “ ” button at the upper left to enter the homepage, and then click the avatar and nickname area at the top to enter the Personal Settings page.
-
Page 22: Error Codes
ERROR CODES FAULT FAULT INFORMATION STATUS REMARKS CODE E000 AC output short circuit Flashing, no output Press the AC output power protection on/off button for recovery E001 Output overload Flashing, no output Flashing icons indicates protection which circuit overload. Overload protection needs to be restored manually, UPS function overload 2000W 1 sec. - Page 23 FAULT FAULT INFORMATION STATUS REMARKS CODE E020 BMS communication Flashing, no Check BMS communication failure output at all cable ports E021 Battery cell high voltage E021 code flashing Set the device aside and alarm wait for the battery voltage to recover automatically E022 Battery cell low voltage Battery capacity...
-
Page 24: Cleaning, Care, Storage & Maintenance
CLEANING, CARE, STORAGE & MAINTENANCE • When storing, please turn off this product first and then store it in a dry, ventilated place at room temperature. • Do not place this product near water and fire sources. • During long-term storage, it is recommended to charge and discharge the battery every three months to extend the service life of this product. -
Page 25: Specifications
SPECIFICATIONS Model AC Output Rated Voltage 230VAC Rated Power 2500W Peak Power 5400W Frequency 50Hz DC 12V & Car Rated Voltage Lighter Output Rated Current Mini Anderson Output 12V / 30A USB-A Output 5V/3A; 9V/2A; 12V/1.5A [18W Max] USB-C Output 5V/3A;... -
Page 26: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
