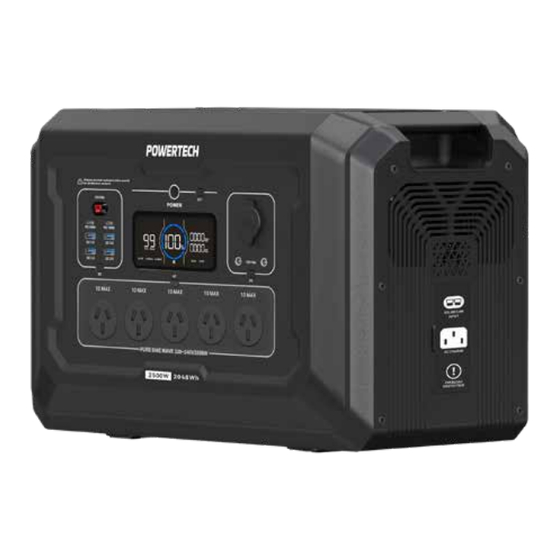

PowerTech MB4104 Instruction Manual

2048wh power station
Hide thumbs

Advertisement

Quick Links

Download this manual
MB4104
2048Wh Power Station
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MB4104 and is the answer not in the manual?

Questions and answers

Related Manuals for PowerTech MB4104

Summary of Contents for PowerTech MB4104

  • Page 1 MB4104 2048Wh Power Station Instruction Manual...

  • Page 2: Table Of Contents

    CONTENTS Warnings & Safety Information ..............3 Before First Use .....................4 Box Contents ....................4 Product Diagram ................... 5 LCD Screen Description ................6 Usage Instructions ..................6 Charging Instructions ..................8 Other Functions ..................13 FAQ ........................ 14 Error Codes ....................15 Maintenance ....................17 Specifications ....................

  • Page 3: Warnings & Safety Information

    WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse • Read this user manual carefully before using the product to ensure that you completely understand the product and can correctly use it. After reading this user manual, keep it properly for future reference.

  • Page 4: Before First Use

    BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use.

  • Page 5: Product Diagram

    PRODUCT DIAGRAM 1. AC Outputs 10. DC 5521 Output Port 2. LCD Display 11. DC Output Power On/Off Switch 3. Andreson Output Port 12. Power pack connection port 4. USB-C Output Port 13. Andreson Input Port 5. USB-A Output Port 14.

  • Page 6: Lcd Screen Description

    LCD SCREEN DESCRIPTION USAGE INSTRUCTIONS LCD battery capacity circle indicates battery level. The capacity circle is divided into six sections, accounting for approximately 17%~35%~51%~68%~85%~100% of the capacity. When in use, the LCD display automatically wakes up. When discharging, the blue capacity segment disappears from the display, indicating remaining capacity.
  • Page 7 NOTE: After the product is turned on, short press the main power button. The LCD screen will turn off but the product will not shut down. If the product is not operated within 5 minutes, the product will automatically shut down. NOTE: The default standby time of this product is 6 hours.

  • Page 8: Charging Instructions

    CHARGING INSTRUCTIONS AC Charging Use the standard AC charging cable to charge the device, connect as shown in the figure, when the input power on the screen shows a reading, the device starts to charge. The maximum fast charge can be 1600W and the device can be fully charged in about 1.5 hours.
  • Page 9 Fast charge & Slow charge function Settings Note: The product must be turned on, and the input and output ports must be cut off. Long press the DC button +IOT button and hold for 5 seconds, the screen flashes and shows the word “SET”, the product enters the input power switching interface, then tap the IOT button to switch, L means slow charge (800W input), H means fast charge (1600W input);...
  • Page 10 Solar Charging Connect the standard solar panels to the device by using the fittings “Anderson to MC4 cable” ×1 and “MC4 to 7909 cable” ×6. Up to 6 standard solar panels can be connected to the device, which takes about 1.5 hours to be fully charged. NOTE: The solar charging cable (MC4-7909 cable) and solar panel need to be purchased separately.
  • Page 11 Car Charging Use the car charger port of the car to charge this product, supporting 12V/ 8A car charging. For protecting the car battery from losing power and unable to start, it is necessary to use the car charger to charge after the car is started. At the same time, ensure that the car charger port and the cigarette lighter of the car charger input cable are in good connection.
  • Page 12 Extended Battery Charging Up to one extended battery can be connected to this product. Only use the supplied cable to connect the power station and the extended battery, the device will start to charge when a reading appears on the input power on the screen. NOTE: Please make sure that both the product and the power pack are turned off Before connecting the extended battery to this product.

  • Page 13: Other Functions

    OTHER FUNCTIONS Circuit Break Protection Function When the AC input current is continuously more than 10A, the device charge input port will protect itself. The AC input overload protector button will pop up automatically. After confirming that the product is not faulty, press the AC input overload protector to reset the circuit breaker.

  • Page 14: Faq

    1. What type of battery does the product use? This product uses high-quality lithium iron phosphate batteries. 2. What equipment can be connected to the AC output port of the product? The AC output port of this product has a rated power of 2500W and a peak power of 5400W.

  • Page 15: Error Codes

    ERROR CODES FAULT FAULT INFORMATION STATUS REMARKS CODE E000 AC output short circuit Flashing, no output Press the AC output power protection on/off button for recovery E001 Output overload Flashing, no output Flashing icons indicates protection which circuit overload. Overload protection needs to be restored manually, UPS function overload 2500W 1 sec.
  • Page 16 FAULT FAULT INFORMATION STATUS REMARKS CODE E020 BMS communication Flashing, no Check BMS communication failure output at all cable ports E021 Battery cell high voltage E021 code flashing Set the device aside and alarm wait for the battery voltage to recover automatically E022 Battery cell low voltage Battery capacity...

  • Page 17: Maintenance

    MAINTENANCE Please store the product away from water sources, heat sources, and metal objects. In order to extend the service life of the battery, it is recommended to use or store this product in an environment of 20C to 30°C. If long-term storage is required, please charge and discharge this product once every 3 months (first discharge to 0%, then fully charge, then discharge to 60% for long-term storage);...

  • Page 18: Warranty Information

    WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
