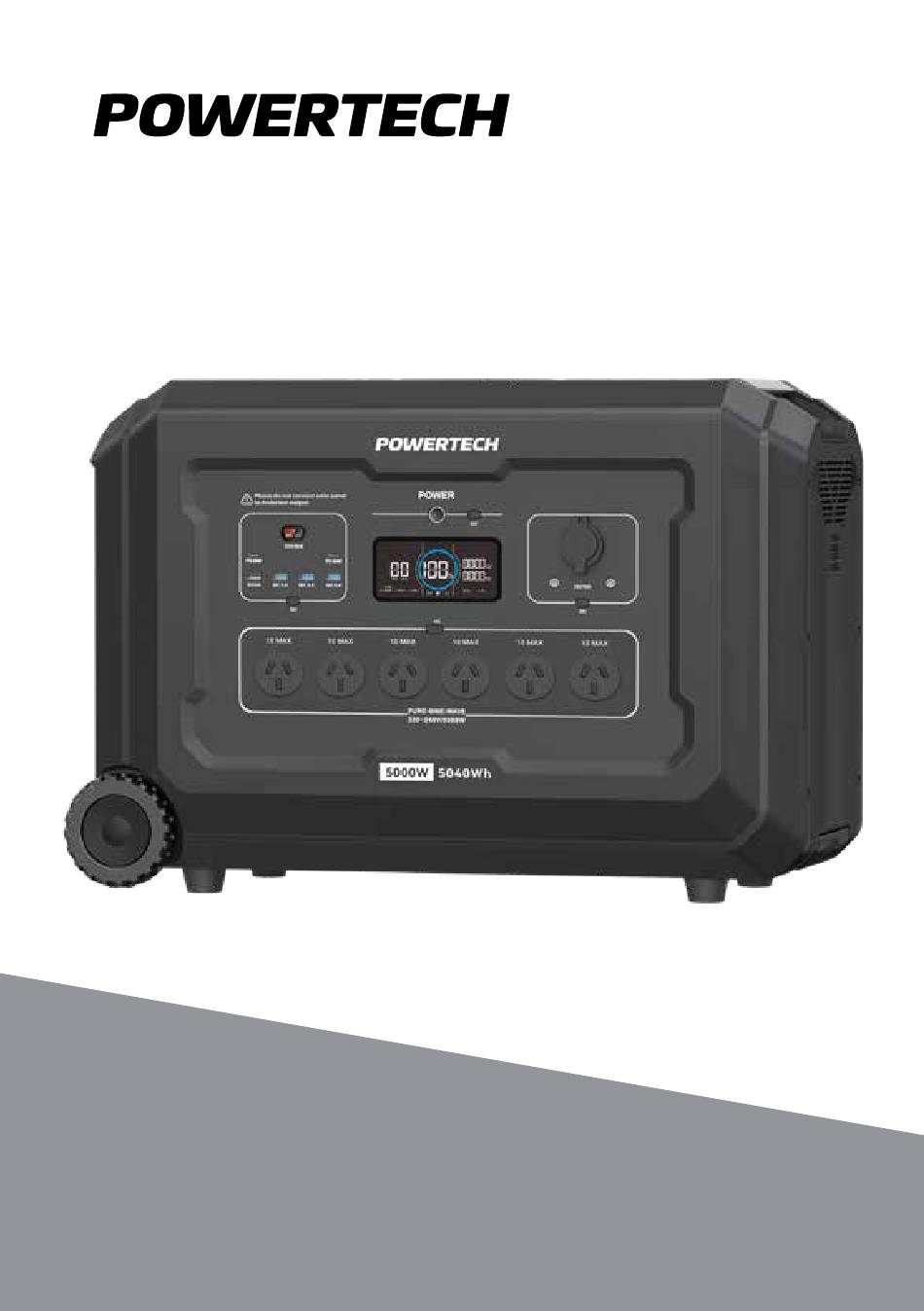

  • Page 1 MB4108 5040Wh Power Station Instruction Manual...

  • Page 2: Table Of Contents

    CONTENTS Warnings & Safety Information ..............3 Before First Use .....................4 Box Contents ....................4 Product Diagram ................... 5 LCD Screen Description ................6 Usage Instructions ..................6 Charging Instructions ..................8 Other Functions ..................13 FAQ ........................ 14 Error Codes ....................15 Maintenance ....................17 Specifications ....................

  • Page 3: Warnings & Safety Information

    WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse • Read this user manual carefully before using the product to ensure that you completely understand the product and can correctly use it. After reading this user manual, keep it properly for future reference.

  • Page 4: Before First Use

    BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use.

  • Page 5: Product Diagram

    PRODUCT DIAGRAM 1. AC Output Port (16A Max) 10. DC 5521 Output Port 2. LCD Screen 11. DC Output Power On/Off Switch 3. Anderson Output Port 12. Anderson input port 4. USB-C Output Port 13. Reset switch 5. USB-A Output 14.

  • Page 6: Lcd Screen Description

    LCD SCREEN DESCRIPTION USAGE INSTRUCTIONS LCD battery capacity circle indicates battery level. The capacity circle is divided into six sections, accounting for approximately 17%~35%~51%~68%~85%~100% of the capacity. When in use, the LCD display automatically wakes up. When discharging, the blue capacity segment disappears from the display, indicating remaining capacity.
  • Page 7 NOTE: After the product is turned on, short press the main power button, the LCD screen will turn off but the product will not be turned off. NOTE: If the product is not operated within 5 minutes, the product will enter the sleep state and the LCD screen will automatically turn off.

  • Page 8: Charging Instructions

    CHARGING INSTRUCTIONS AC Charging Use the standard AC charging cable to charge the device, connect as shown in the figure, when the input power on the screen shows a reading, the device starts to charge. The maximum fast charge can be 2000W and the device can be fully charged in about 2.8 hours.
  • Page 9 Fast charge & Slow charge function Settings Note: The product must be turned on, and the input and output ports must be cut off. Long press the DC button +IOT button and hold for 5 seconds, the screen flashes and shows the word “SET”, the product enters the input power switching interface, then tap the IOT button to switch, L means slow charge (1000W input), H means fast charge (2000W input);...
  • Page 10 Solar Charging Connect the standard solar panels to the device by using the fittings “Anderson to MC4 cable” ×1 and “MC4 to 7909 cable” ×6. Up to 6 standard solar panels can be connected to the device, which takes about 3.5 hours to be fully charged. NOTE: The solar charging cable (MC4-7909 cable) and solar panel need to be purchased separately.
  • Page 11 Car Charging Use the car charger port of the car to charge this product, supporting 12V/ 8A car charging. For protecting the car battery from losing power and unable to start, it is necessary to use the car charger to charge after the car is started. At the same time, ensure that the car charger port and the cigarette lighter of the car charger input cable are in good connection.
  • Page 12 Extended Battery Charging Power pack(up to one) can be connected to this product. Use the product-specific power pack cable to connect the product and the battery pack, and the device starts to charge when a reading appears on the input power on the screen. NOTE: Please make sure that both the product and the power pack are turned off before connecting the extended battery to this product.

  • Page 13: Other Functions

    OTHER FUNCTIONS Circuit Break Protection Function The main function of the circuit breaker is to cut off and connect the load circuit, and cut off the fault circuit to prevent the expansion of the accident and ensure safe operation. In the case of electrical overload or abnormal operation, if a fauit occurs, the circuit breaker will automatically disconnect the switch to protect electrical appliances and circuits.

  • Page 14: Faq

    1. What type of battery does the product use? This product uses high-quality lithium iron phosphate batteries. 2. What equipment can be connected to the AC output port of the product? The AC output port of this product has a rated power of 5000W and a peak power of 7000W.

  • Page 15: Error Codes

    ERROR CODES FAULT FAULT INFORMATION STATUS REMARKS CODE E000 AC output short circuit Flashing, no output Press the AC output power protection on/off button for recovery E001 Output overload Flashing, no output Flashing icons indicates protection which circuit overload. Overload protection needs to be restored manually, UPS function overload 3600W 1 sec.
  • Page 16 FAULT FAULT INFORMATION STATUS REMARKS CODE E011 Overload and short Flashing, no output at You need to manually press circuit of the USB-A the DC power button to all ports port recover E012 Overload and short Flashing, no output at You need to manually press circuit of the USB-C the DC power button to...

  • Page 17: Maintenance

    MAINTENANCE Please store the product away from water sources, heat sources, and metal objects. In order to extend the service life of the battery, it is recommended to use or store this product in an environment of 20C to 30°C. If long-term storage is required, please charge and discharge this product once every 3 months (first discharge to 0%, then fully charge, then discharge to 60% for long-term storage);...

  • Page 18: Warranty Information

    WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
