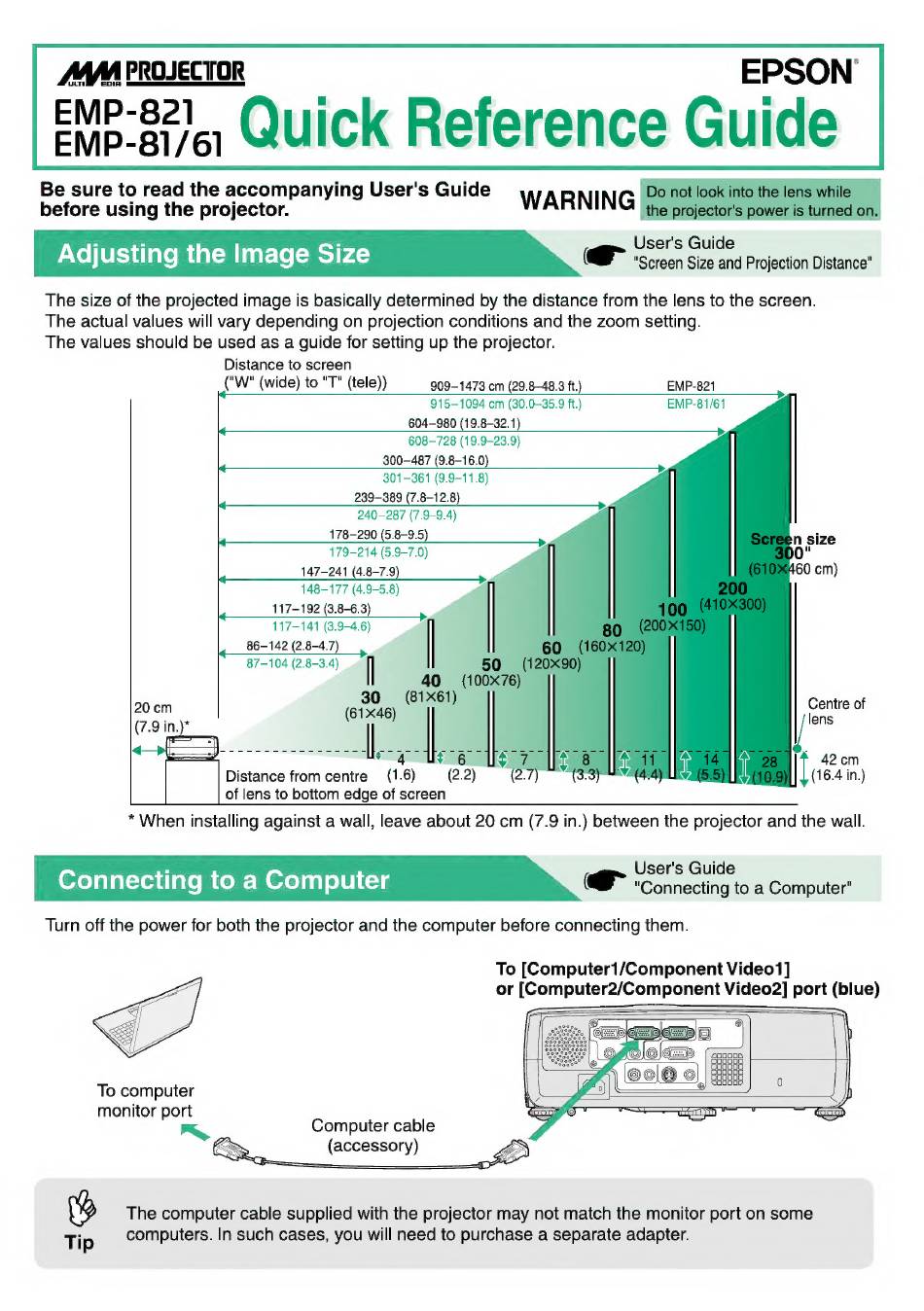

Epson EMP-821 Quick Reference Manual

AMAMA PROJECTOR EPSON'
EMP-821 Quick Reference Guide
Be sure to reed the accompanying User's Guide WarninG [ii
. . . User's Guide
Adjusting the Image Size ( "Screen Size and Projection Distance"
The size of the projected image is basically determined by the distance from the lens to the screen.
The actual values will vary depending on projection conditions and the zoom setting.
The values should be used as a guide for setting up the projector.
Distance to screen
et (wide) to "T" (tele)) 909-1473 cm (29.8-48.3 ft.) EMP-821
915-1094 cm (30.0-35.9 ft.) EMP-81/61
604-980 (19.8-32.1)
Å 608-728 (19.9-23.9) z
l; 300-487 (9.8-16.0)
301-361 (9.9-11.8)
k 239-389 (7.8-12.8)
240-287 (7.9-9.4)
k 178-290 (5.8-9.5)
179-214 (5.9-7.0)
147-241 (4.8-7.9) y
148-177 (4.9-5.8) |
117-192 (3.8-6.3)
hy 117-141 (3.9-4.6) |
86-142 (2.8-4.7)
87-104 (2.8-3.4) l
Centre of
20 cm (61x46) lens
(7.9 in.)*
A E Ë 42cm
Distance from centre (1.6) (2.2) ; z A (16.4 in.)
of lens to bottom edge of screen
* When installing against a wall, leave about 20 cm (7.9 in.) between the projector and the wall.
. User's Guide
Connecting toa Computer C "Connecting to a Computer"
Turn off the power for both the projector and the computer before connecting them.
To [Computer1/Component Video1]
or [Computer2/Component Video2] port (blue)
= S)
ED; aooo
g J
To computer
monitor port
Computer cable
(accessory)
The computer cable supplied with the projector may not match the monitor port on some
Tip computers. In such cases, you will need to purchase a separate adapter.
