Quick Start Guide
PROGRAMMABLE DC POWER SUPPLY
APS-7306L/LS
Thank you for choosing AKTAKOM Power Supply.
www.tmatlantic.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the APS-7306L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aktakom APS-7306L

Summary of Contents for Aktakom APS-7306L

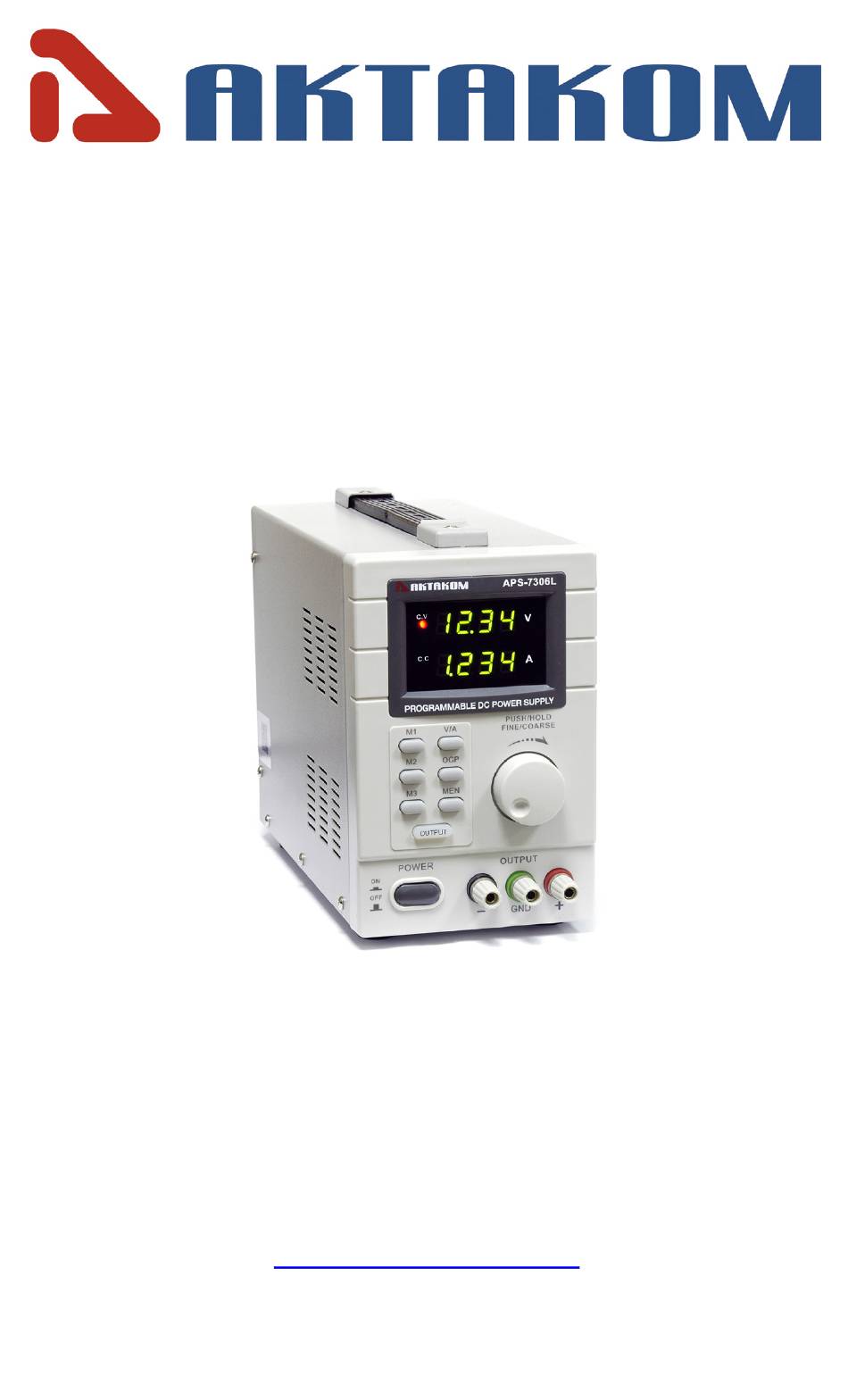

  • Page 1 Quick Start Guide PROGRAMMABLE DC POWER SUPPLY APS-7306L/LS Thank you for choosing AKTAKOM Power Supply. www.tmatlantic.com...

  • Page 2: Brief Product Introduction

    Power Supply APS-7306L/LS in addition to stand-alone control (control and monitoring from the front panel) can be operated remotely by computer via USB 1.1 interface and LAN, or by a mobile device (IPod, IPhone, any Android-based mobile devices) via Ethernet.

  • Page 3: Technical Parameters

    Model APS-7306L/LS Output voltage 0-30V Output current 0-5A Output power 150W LED display Channel TECHNICAL PARAMETERS These parameters are tested under 77 ±9°F (25±5°C) and after 2s power on. Power effect: CV≤0.01%+3mV (AC±5%) Load effect: CV≤0.01%+2mV Ripple and noise: ≤2.0mVrms Output accuracy: 0.5%+20mV...
  • Page 4 DIAGRAMS OF PANELS Front Panel 1. Power: on/off button 2. Off/On: output on/off 3. MEN: memory save 4. M1-M3: memory recall 5. Voltage/Current: select between voltage or current 6. OCP: over current protection 7. CC indicator: constant current mode 8. CV indicator: constant voltage mode 9.

  • Page 5: Manual Mode

    The Power Supply can operate in several control modes: MANUAL MODE. CONTROL MODE WITH BUILT-IN MEMORY. REMOTE CONTROL MODE OF APS-730XL/LS BY COMPUTER VIA USB INTERFACE. REMOTE CONTROL MODE OF APS-730XL/LS BY COMPUTER VIA LAN INTERFACE. REMOTE CONTROL MODE OF APS-730XL/LS BY COMPUTER VIA WEB INTERFACE.
  • Page 6 Aktakom Power Manager Max software Aktakom Power Manager Max is application software to control APS- 7306L/LS from a PC using an USB cable or a local area network (LAN). This software provides control of output voltage and current in arbitrary (manual) mode as well as external trigger function (synchronization).
  • Page 7 Software Comparison Table Aktakom Power Manager Max vs Aktakom Power Manager Max Software Function Max Pro Connection, communication USB, LAN USB, LAN Load voltage indication Load current indication Load power indication Indication of operation under load Operating mode indication VC/CC...

  • Page 8: Product Registration

    Updates and technical support The software for power supplies is constantly being improved and supplemented in accordance with the requirements of the operating system. To update the software and receive AKTAKOM proprietary technical support, you can visit our website on the Internet: www.tmatlantic.com.
