TELEWAVE 44D-LX Quick Start Manual

Telewave.io 44D-LX Quick Start Guide
Quick Start Guide
The complete 44D-LX User Manual is available for download at www.telewave.com.
•
Unpack the 44D-LX and accessories (8.4V DC charger)
•
Check the box and contents for any damage immediately after it arrives
•
In case of damage or missing items, contact Telewave.io immediately at 408-929-4400 Opt 1.
•
Charge the Batteries (See Page 5)
o Connect the supplied USB cable to the 44D-LX (connector on the back) and into the
supplied AC power supply. Plug the power supply into a 90 to 250 VAC (50 or 60 Hz) wall
socket (Charging will begin automatically - when the 44D-LX is turned off the display will
flash on for a moment & then go dark, the blue power ring will remain on.)
o The 44D-LX must be fully charged before turning on for first use.
o The 44D-LX cannot be switched ON or OFF while charging via the USB. Disconnect the USB
cable, toggle the power button, and then re-connect the USB to continue charging.
o See the section
• Build or procure "Primary Cables" (see "Appendix - Connecting the 44D-LX to the Circuit")
•
Press and release the power button. The blue power indication in the switch will illuminate.
•
The 44D-LX will be functional in three to five seconds as indicated by:
o The backlight will be illuminated
o Frequency and battery indicators are displayed
•
The HOME screen & menu tree:
o Freq Range >
o Modulation > Selects the modulation type*
o Settings
o Info & Help >
•
*Set the Frequency Range and Modulation before use or
measurement will be inaccurate, other settings are optional
•
When in any MENU screen other than the HOME Screen, the function
buttons will be UP, SELECT/EXIT, and DOWN.
Press SELECT implements the selection & returns HOME
•
Once the 44D-LX has been configured, the cables can be connected.
•
Connect the primary cable to the port labeled TX on the left side of the 44D-LX (RF input)
•
Connect the cable leading to the antenna to the port on the right side of the 44D-LX (RF output)
•
The RF Sample port can be connected to any monitor or source test equipment. The sample port is
bi-directional, with connectivity to both the Thru Line TX and Thru Line ANT ports.

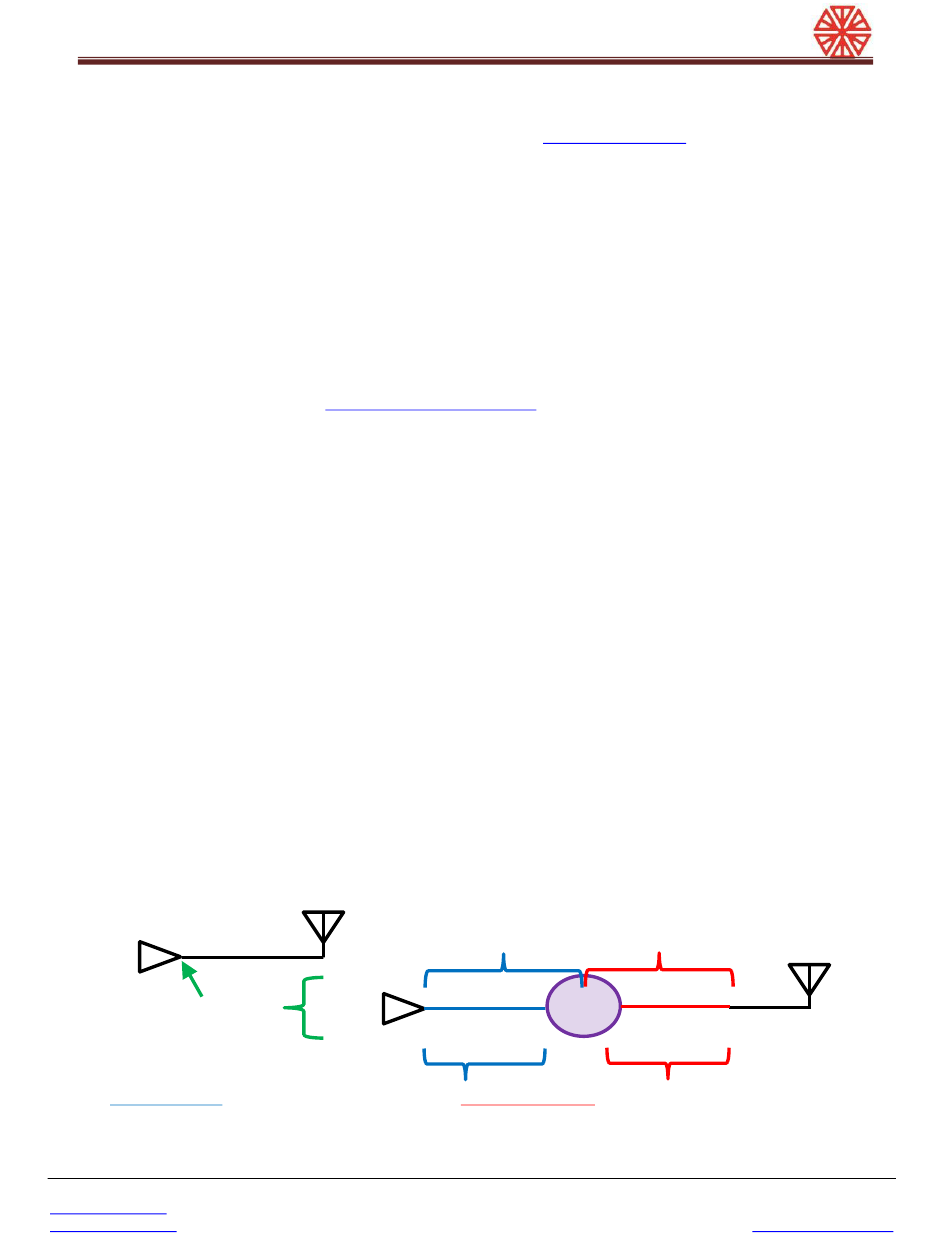

Original Circuit
Insert test cables
& 44D-LX at the
Component output
Primary Cable (1/2 WL increment minus 3")
Copyright © Telewave.io.
www.telewave.com
sales@telewave.com
"Lithium Battery Management" for battery management details.
Set operating frequency range*
> Select dB, watts, backlight Adj.
Show Version, Telewave.io contact
Wiring Diagram
Secondary Cable (Optional = ½ WL incr. - 3")
Page 1 of 2
1-408-929-4400
½ WL Increment
44D-LX
TX ANT
Specifications subject to change without notice
250310
