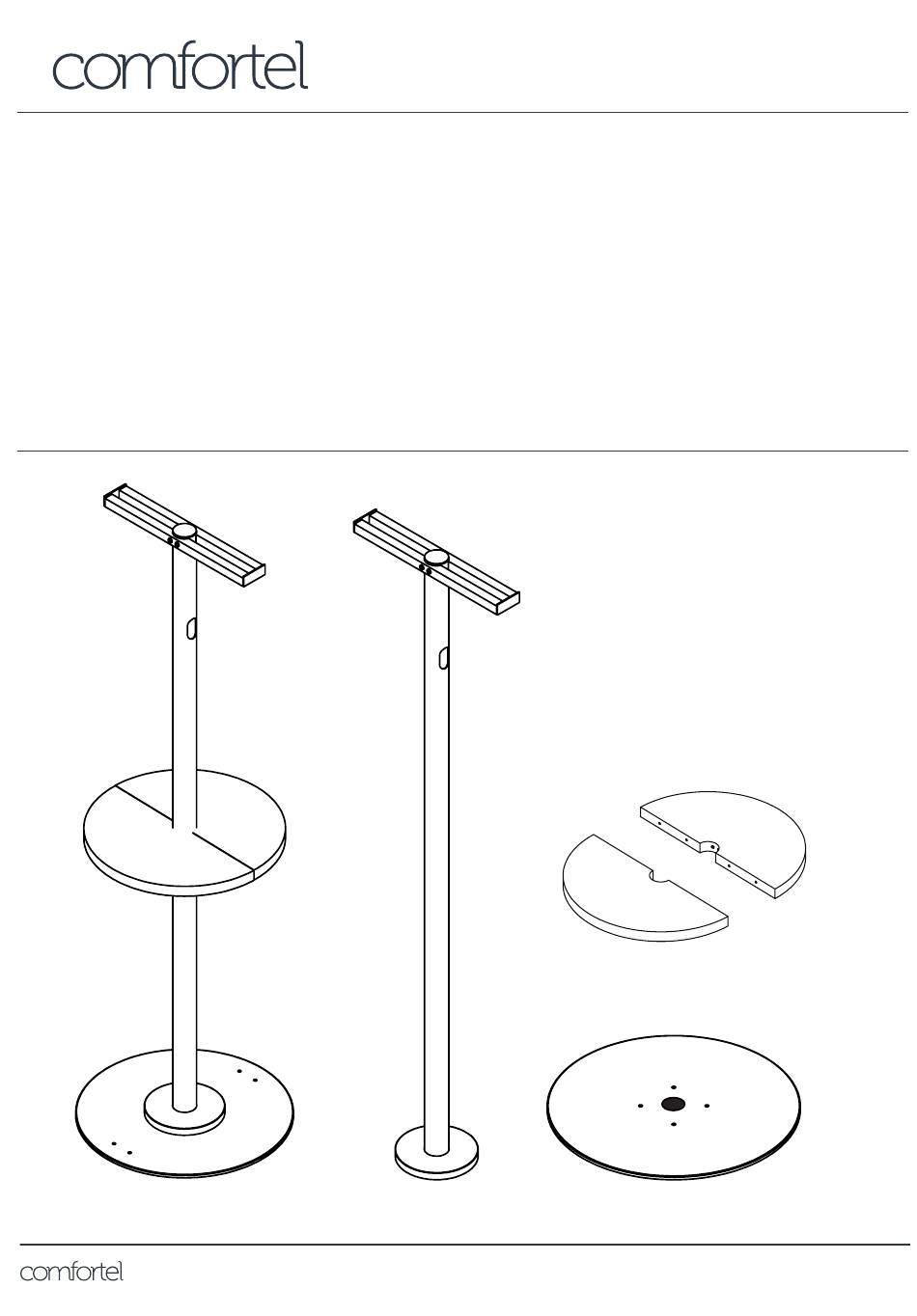

- Page 1 II #8045.01 SALON MIRROR POLE JOINER II #8046.01 BASE PLATE #8045.02 BENCH help.comfortel.com.au...
-
Page 2: Specifications
[19.3] POLE BENCH X2 500 [19.7] FLOOR TO TOP OF THE POLE WITHOUT BASE PLATE 1800 [ 70.9] BASE PLATE [19.7] [2.3] Ø50MM [0.9] FLOOR TO TOP OF BENCH WITHOUT BASE PLATE 850 [ 33.5] [7.9] 540.00 [21.3] [21.3] help.comfortel.com.au... - Page 3 BOX 2 #8045.02 BENCH 1. BENCH 2. M6 BOLT 3. M6 NUT 4. M8 BOLT 5. ALLEN KEY X10 MM X60 MM BOX 3 #8045.02 BASE PLATE FOR FOOTRESTS 1. BASE PLATE 2. M8 X 15MM 3. ALLEN KEY BUTTONHEAD M8X20MM help.comfortel.com.au...
- Page 4 ASSEMBLY : MIRROR JOINER POLE POLE COVER PLATE STEP 1 SLIDE POLE COVER PLATE OVER BASE BASE 4.LID FOR POLE M8 x 60mm 3.MIRROR MOUNTING RIG 5.HOOK M8 x 60mm 1.POLE 2.POLE COVER PLATE help.comfortel.com.au...
- Page 5 ASSEMBLY : MIRROR JOINER POLE WITH BASE PLATE POLE COVER PLATE STEP 1 SLIDE POLE COVER PLATE OVER BASE BASE 4.LID FOR POLE M8 x 60mm 3.MIRROR MOUNTING RIG 5.HOOK M8 x 60mm 1.POLE 2.POLE COVER PLATE BASE PLATE help.comfortel.com.au...
- Page 6 ASSEMBLY : WITH FOOTRESTS INCLUDED WITH BASE PLATE M8X20MM FINAL help.comfortel.com.au...
- Page 7 POWER ACCESS FROM BASE (CAN BE DONE WITH OR WITHOUT BASE PLATE) THROUGH MAIN POLE and POLE BASE PLATE COVER. (MUST BE DONE BY ELECTRICIAN) POWER CAN RUN FLOOR MOUNT FLOOR MOUNT THROUGH HOLE WITHOUT WITH BASE PLATE IN BASE PLATE BASE PLATE help.comfortel.com.au...
- Page 8 GET STARTED : CREATE A SEAMLESS FLOOR-TO-CEILING LOOK WITHOUT POWER CONNECT POLE JOINER TO CEILING POWER THROUG If you prefer the seamless floor-to-ceiling aesthetic (MUST B without integrated power, you can purchase a matching coloured tube from your local contractor or building supplier to extend the look effortlessly. help.comfortel.com.au...
- Page 9 Wall Fixings are not supplied. Wall noggins are not required when installing mirrors. © Comfortel Furniture Pty Ltd. All rights are reserved. No part of this product design or document may be reproduced or distributed without written consent of Comfortel Furniture Pty Ltd.
- Page 10 Wall Fixings are not supplied. Wall noggins are not required when installing mirrors. © Comfortel Furniture Pty Ltd. All rights are reserved. No part of this product design or document may be reproduced or distributed without written consent of Comfortel Furniture Pty Ltd.
- Page 11 Wall Fixings are not supplied. Wall noggins are not required when installing mirrors. © Comfortel Furniture Pty Ltd. All rights are reserved. No part of this product design or document may be reproduced or distributed without written consent of Comfortel Furniture Pty Ltd.
- Page 12 Wall Fixings are not supplied. Wall noggins are not required when installing mirrors. © Comfortel Furniture Pty Ltd. All rights are reserved. No part of this product design or document may be reproduced or distributed without written consent of Comfortel Furniture Pty Ltd.
- Page 13 Wall Fixings are not supplied. Wall noggins are not required when installing mirrors. © Comfortel Furniture Pty Ltd. All rights are reserved. No part of this product design or document may be reproduced or distributed without written consent of Comfortel Furniture Pty Ltd.
-
Page 14: Cleaning And Care
· Damage caused by any improper treatment is not covered by the product warranty MAINTENANCE A periodic inspection of all components and fasteners should be made to ensure that your Comfortel product is structurally intact and functioning properly. Damaged and broken parts should be replaced and loose fasteners tightened.
