Summary of Contents for comfortel Salon mirror joiner 8030

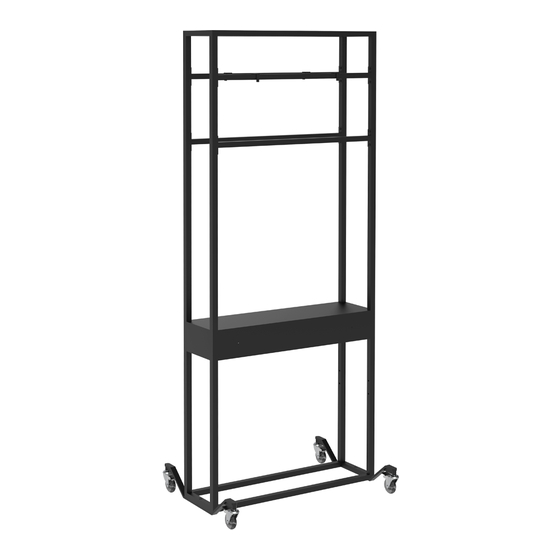

- Page 1 #8030 SALON MIRROR JOINER FRAME #8030-W SALON MIRROR JOINER - WHEELS STANDARD PACKAGE #8030-B SALON MIRROR JOINER - BASE PLATE #8030-S SALON MIRROR JOINER - SHELF comfortel.com.au...
- Page 2 IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS GENERAL SAFETY IMPORTANT 1. Read carefully and keep these instructions in a safe place. PLEASE REFER TO MIRROR USER 2. Use this product only for its intended function and GUIDE WHEN INSTALLING TO do not use attachments not recommended by the DETERMINE BEST PRACTICE WEIGHT manufacturer.
- Page 3 GET STARTED: INSIDE THE BOX #8030 SALON MIRROR JOINER FRAME M6X15MM 4PCS 4PCS 16PCS 2PCS INSTALLATION HOOK OPTIONS REFER TO SALON MIRROR OWNERS GUIDE TO DETERMINE WHICH HOOK SUITS INSTALLATION FOLDED HOOK HANGER HOOK 4PCS 4PCS #8030-W SALON MIRROR JOINER - WHEELS M8X40MM 2PCS 4PCS...
- Page 4 ASSEMBLY: MIRROR JOINER FRAME IT MUST BE BOLTED TO THE GROUND WHEN USING IT AS A FRAME ONLY M6X15MM 4PCS 4PCS 16PCS FINAL...
- Page 5 ASSEMBLY: WHEEL OPTION M8X40MM 2PCS 4PCS 4PCS FINAL...
- Page 6 ASSEMBLY: BASE PLATE OPTION M8X40MM 4PCS 10PCS FINAL...
- Page 7 ASSEMBLY: WORKBENCH ASSEMBLY: SHELF OPTION: USING CROSS BARS OPTION: TOP OF SALON JOINER...
- Page 8 SALON MIRROR JOINER FRAME STANDARD PACKAGE Comfortel Furniture Pty Ltd. assumes no responsibility for any errors that may appear in #8030-W SALON MIRROR JOINER WHEELS this document nor does it make expressed or implied warranty of any kind with regard...
