Summary of Contents for comfortel Vogue CleanSpa Pedi

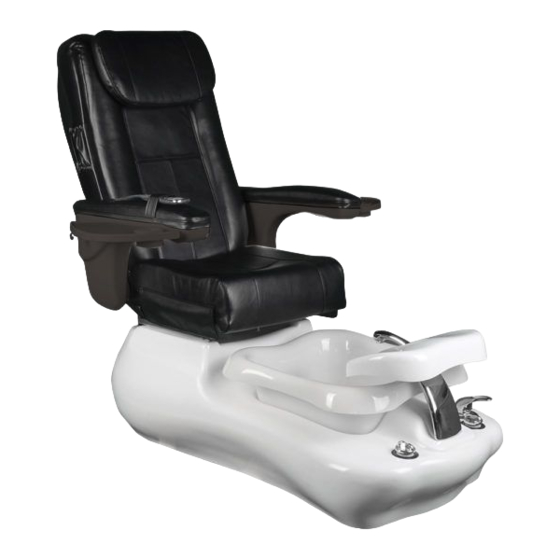

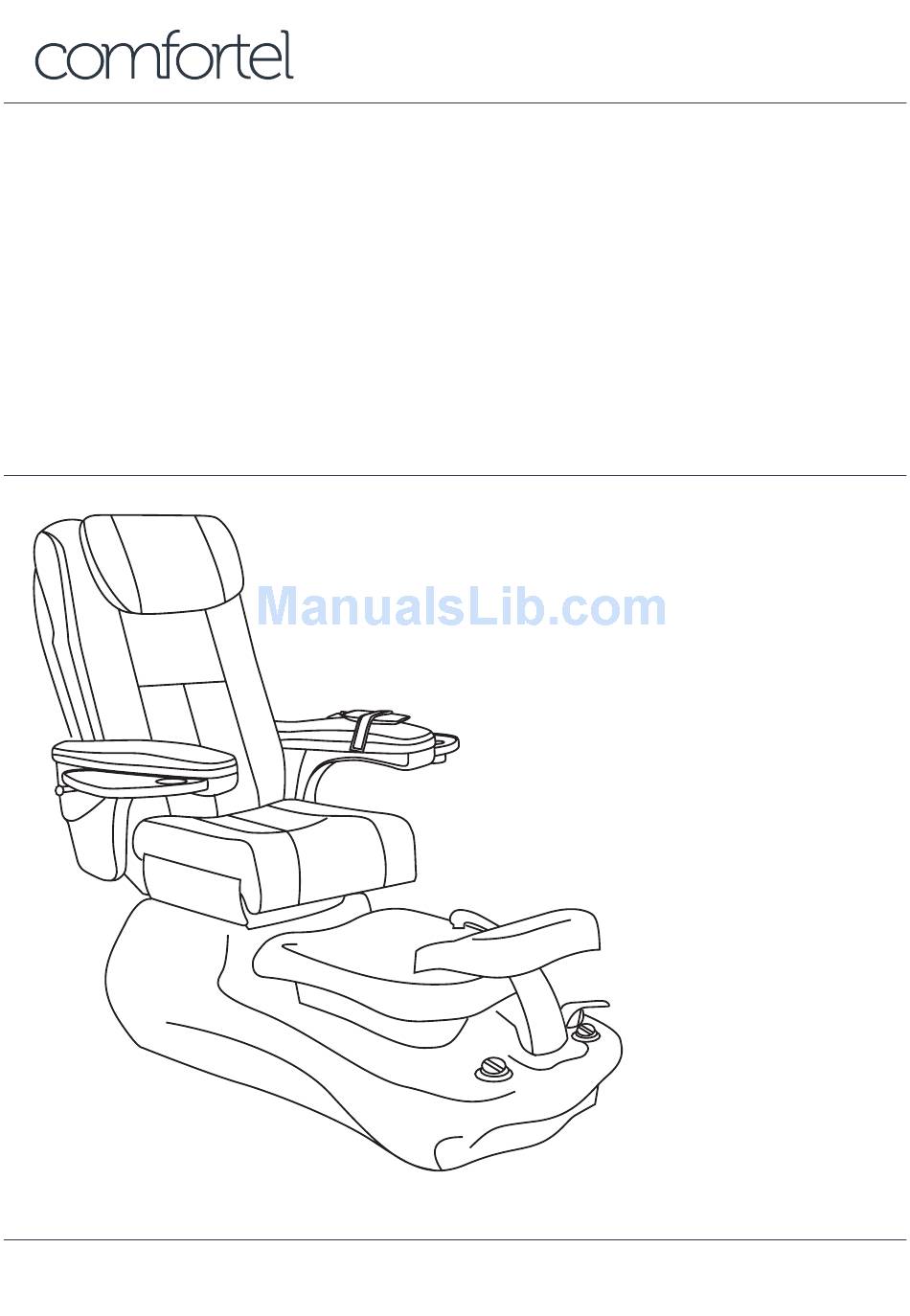

- Page 1 #6790 VOGUE CLEANSPA PEDICURE CHAIR comfortel.com.au...
- Page 2 IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS ELECTRICAL APPLIANCES GENERAL SAFETY 1. All GPO’s must be installed by a qualified Electrician in 1. Read carefully and keep these instructions in a accordance with local electrical standards. safe place. 2. DO NOT allow children to operate the electric motors in 2.
-
Page 3: Getting Started
GETTING STARTED PEDICURE SPA ASSEMBLY ABOUT Chair with Massage Armrest V O G U E Shiatsu Massage Remote Control CleanSpa Pedicure Chair Manicure-Tray The ultimate in luxury pedicure spas, this pedicure Wellness Chromotherapy Tub spa is designed to be used with disposable Shower head Cleanspa basin liners. - Page 4 POSITIONING DIAGRAM C DIAGRAM A Wall PLUMBING OPTION 1 ø215 OPTION 1 PLUMBING OPTION 2 OPTION 2 1370 1910 DIAGRAM B 1525 762.5 All measurements are in mm. BEFORE INSTALLING YOU SHOULD CONSIDER IMPORTANT THE FOLLOWING ALL ELECTRICAL GPO'S MUST BE INSTALLED BY •...
- Page 5 ASSEMBLY: CHAIR Line-up backrest frame and locking screws to the Connect actuator power connectors by following open trenches located on seat frame and system wire's color. will auto lock the backrest frame. Line-up & install 2 screws beneath Attaching Armrests the seat cushion onto seat frame.
-
Page 6: Installation: Plumbing
INSTALLATION: PLUMBING DIAGRAM C DIAGRAM D Wall Wall 1 1/4” Flex Hose with Removable Connection Drain 1/2 “ Hot/Cold Water Inlet 1/2” Hot/Cold Water Inlet 1 1/4” Flex Hose Underground to Waste with Removable Connection OPTION 1: PLUMBING FLOW PATTERN FOR GRAVITY DRAIN PLUMBING AND WASTE CONNECTION Follow diagram above for plumbing specifications. - Page 7 INSTALLATION: PLUMBING DIAGRAM E DIAGRAM F Wall Wall Extraction Pump 1 1/4” Flex Hose with Removable Connection To be connected to an indirect waste connector To Waste 1/2 “ Hot/Cold Water Inlet ø215 Extraction Pump 1/2 “ Hot/Cold Water Inlet OPTION 2: PLUMBING FLOW PATTERN WITH EXTRACTION/DRAIN PUMP PLUMBING AND WASTE Follow diagram above for plumbing specifications.
- Page 8 OPERATION & DRAINAGE DIAGRAM H FUNCTIONS On/Off Drainage with Discharge On/Off Hot/Cold Water Flick Mixer On/Off Whirpool Jets & LED Light GENERAL OPERATION DRAINAGE Turn Hot/Cold Flick Mixer to adjust optimal water When activating the switch, it will raise the drain-stopper temperature.
- Page 9 OPERATION: SHITASHU MASSAGE REMOTE OPERATING THE REMOTE POWER ON/OFF Press Power Button to start Auto mode. Press again to turn off massage. Auto and Manual mode will run for duration of 20min. MASSAGE MODE ON/OFF Press any button (Rolling/Spot, Kneading, Tapping, Combine) to enter Manual mode Press Rolling/Spot to stop rolling up/down and stop at desired spot.
-
Page 10: Cleaning Recommendations
CLEANING RECOMMENDATIONS FOOT BATH THE PEDICURE SPA TUB/FOOT BATH MUST BE CLEANED BETWEEN EVERY CLIENT · Drain water from the tub by piecing the bag above the drain. Once water is drained dispose of the Clean Spa Liner. · We recommend cleaning with Spa Giene or Pedi Giene. These are approved spa cleaners and hospital grade disinfectants. -
Page 11: Maintenance
CLEANING RECOMMENDATIONS CHAIR & UPHOLSTERY · All upholstery needs some care; good housekeeping will help to prolong the life of any upholstered products. · Avoid extreme temperatures. Extreme cold can make your vinyl prone to cracking, while extreme heat can cause permanent stretching. - Page 12 Comfortel Furniture Pty Ltd. #6790 VOGUE PEDICURE SPA Comfortel Furniture Pty Ltd. assumes no responsibility for any errors that may appear in 1 x10 amp GPO required this document nor does it make expressed or implied warranty of any kind with regard...
