GENERAL INSTRUCTION
2023-ING
GALVANIZED OLIVE LEAF REMOVER
ON-OFF
Art. DEFP-23
USER AND MAINTENANCE MANUAL
WARNING: After opening the packaging and before doing any work on the machine,
carefully read all the instructions in this manual and follow them during use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEFP-23 and is the answer not in the manual?

Questions and answers

Related Manuals for Grifo DEFP-23

Summary of Contents for Grifo DEFP-23

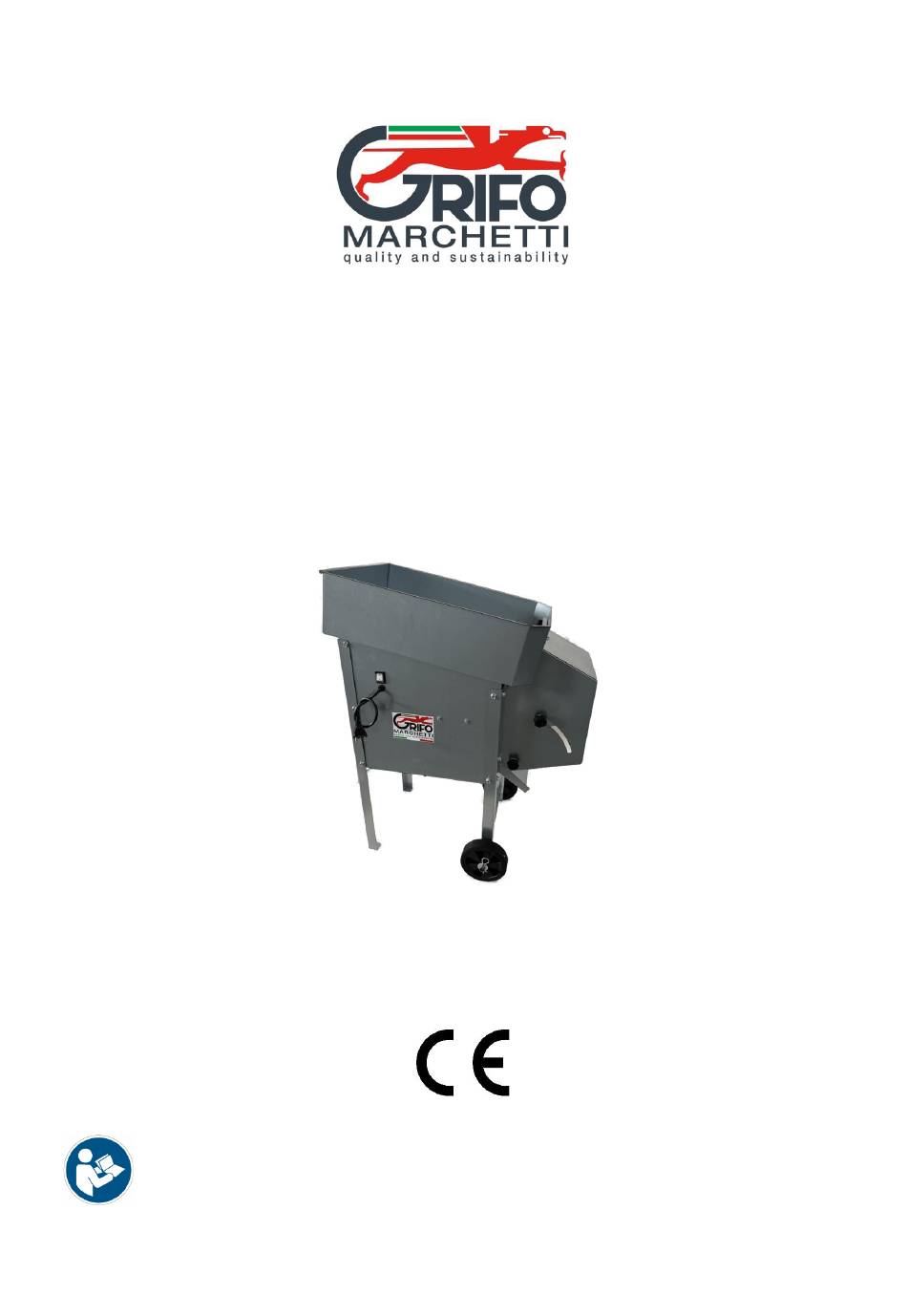

  • Page 1 GENERAL INSTRUCTION 2023-ING GALVANIZED OLIVE LEAF REMOVER ON-OFF Art. DEFP-23 USER AND MAINTENANCE MANUAL WARNING: After opening the packaging and before doing any work on the machine, carefully read all the instructions in this manual and follow them during use...
  • Page 2 GRIFO MARCHETTI S.r.l. Via Mantova, 1 - 26034 Piadena Drizzona (CR) Tel. +39 0375/98601 Fax +39 0375/980879 e-mail: info@grifomarchetti.com pec: grifosnc@ticertifica.it sito: www. grifomarchetti.com P.I.: 01219570197 Codice SDI: SUBM70N Page 2 of 25...

  • Page 3: Table Of Contents

    SUMMARY EC Declaration of Conformity 1.INTRODUCTION Purpose and content of the instructions How to Read and Store the Instruction Manual Symbology and abbreviations used Responsability Warranty DESCRIPTION OF THE MACHINE Purpose and limits of use Components and working principle Nameplate Controls Safety Devices Technical Data...

  • Page 4: Ec Declaration Of Conformity

    EC Declaration of Conformity (Directive 2006/42 EC, Annex II, letter A) As manufacturer GRIFO MARCHETTI S.r.l. Via Mantova, 1 26034 Piadena Drizzona (CR) Italy DECLARES THAT The machine GALVANIZED OLIVE LEAF REMOVER ON-OFF model DEFP-23 complies with the relevant provisions of Directive 2006/42/EC (Machinery), as well as with Directives 2014/35/EU (Low Voltage) and 2014/30/EU (Electromagnetic Compatibility).

  • Page 5: Introduction

    INTRODUCTION 1.1 Purpose and content of the instructions The purpose of this instruction manual is to provide the user of the machine with the information necessary for safe operation and maintenance. The recipient of this information is the operator, defined as the person responsible for installing, operating, adjusting, cleaning, repairing, and moving a machine or performing maintenance on it.

  • Page 6: How To Read And Store The Instruction Manual

    Grifo Marchetti S.r.l. reserves all intellectual and editorial rights to this technical publication, ownership of which it claims, prohibiting its duplication and transfer to third parties without prior written consent.

  • Page 7: Symbology And Abbreviations Used

    The only permissible configurations and uses of the machine are those expressly stated in the manual. With reference to the contents of this instruction manual, Grifo Marchetti S.r.l. declines all responsibility in case of: •...

  • Page 8: Warranty

    The repair or replacement of defective materials will take place at the Grifo Marchetti S.r.l. plant or at the authorized service center, to which the returned materials must be shipped carriage paid. Grifo Marchetti S.r.l.

  • Page 9: Description Of The Machine

    2 DESCRIPTION OF THE MACHINE 2.1 Purpose and limits of use The GALVANIZED OLIVE LEAF REMOVER ON-OFF, model DEFP, is particularly suited to meet the needs of small and medium-sized olive growers. The machine is designed and built to separate olives from leaves and twigs by blowing air.

  • Page 10: Nameplate

    Loading hopper Adjustable Shutter Grab handle Air Conveyor Control Olive slide Fig. 2.1 – General view 2.3 Nameplate Each machine has an identification plate showing the model, serial number, year of manufacture and essential technical data. In case of warranty and non-warranty claims, the serial number must be provided Fig.

  • Page 11: Controls

    It is forbidden to remove the nameplate until the machine is decommissioned, at which time it is detached from the stand and destroyed 2.4 Controls Starting and stopping the OLIVE LEAF REMOVER ON-OFF, model DEFP is done by an ON-OFF switch located on the side of the machine.

  • Page 12: Technical Data

    Fig. 2.5 – Suction side grid Fig. 2.4 – Ventilation side grid 2.6 Technical data Material Galvanized steel Voltage 230 V single phase Power Motor 220 W Dimensions 98x50x105 cm Body 65x50 cm Weight 32 kg Operating temperature + 5°C/+45°C Recommended humidity 50% a 40°C Page 12 of 25...

  • Page 13: Safety

    3 Safety 3.1 General warnings For the protection of your and other people's safety, it is important to behave carefully and responsibly, and in particular to comply strictly with the instructions and warnings described in the instruction manual. In addition to the general warnings, see also the specific warnings in the various chapters, where the different stages of using the machine are set out.
  • Page 14 Tampering with shelters and protective devices is prohibited. Tampering with or removing guards or protective devices exposes persons approaching the machine to serious risk to their own safety. If guards must be opened or removed for cleaning or maintenance, they must be restored before restarting the machine. It is forbidden to operate on moving organs.

  • Page 15: Operator Requirements

    3.2 Operator requirements The use of the machine is permitted only to professional users who are adequately trained and specially authorized. Workers entrusted with the use of this machine must receive adequate education and training in relation to safety, concerning the conditions of use of the equipment and foreseeable abnormal situations, pursuant to Article 73 of Legislative Decree 81/08.

  • Page 16: Residual Risks

    3.3 Residual risks The machine must be used in accordance with this manual, particularly in compliance with the intended purpose and limits of use. The machine has been designed to eliminate or minimize risks to the operator and any third parties. In any case, attention must be paid to residual risks by taking the necessary behavioural measures.
  • Page 17 PPE must be selected, depending on the actual conditions and environment of use, on the basis of risk assessment and identification of the characteristics necessary for PPE to be appropriate to the risks. To this end, reference should be made to the machine's instruction manual and other information sources (technical standards, guidelines, etc.).

  • Page 18: Handling And Installation

    4 HANDLING AND INSTALLATION 4.1 Packaging and supply The machine is delivered disassembled in one package and must be assembled before use. Check that the packaging has not been damaged in transport and that the delivery corresponds to the order 4.2 Installation site requirements The machine must be installed in an environment: protected from the elements;...
  • Page 19 For mains connection, it is important: Check that the mains voltage is the same as indicated on the identification plate and that the socket is suitable. Check that the power supply network is equipped with a grounding system that complies with the regulations in force in the country of installation.

  • Page 20: Machine Use

    5 MACHINE USE 5.1 Safety control The following checks must be carried out before putting the machine into operation: Check the integrity of the electrical cables, and if they are damaged or deteriorate, replace them with others with the same characteristics. Check that there are no foreign bodies inside the work area.
  • Page 21 Do not manoeuvre if people are close to dangerous areas. It is forbidden to carry out operations that are not within its competence. Maintenance work may only be carried out by specially authorised personnel. Tampering with the guards and safety devices of the machine is prohibited. Report faults and malfunctions to maintenance personnel in good time.

  • Page 22: Maintenance

    6 MAINTENANCE 6.1 Warnings The machine must be subjected to the maintenance provided for in the instruction manual and according to the rules of good technique to ensure that the correct functioning of the machine and in particular of the means of protection present is maintained over time. Scheduled maintenance includes checks and interventions on wear parts, with the aim of preventing interruptions and breakdowns.

  • Page 23: Planned Interventions

    After the maintenance work is complete, check that the machine's safety devices are in place and in proper working order. Work on the electrical system must only be carried out by qualified personnel. 6.3 Planned interventions To maintain the functionality and safety of the machine over time, the following interventions must be carried out.

  • Page 24: Decommissioning

    7 DECOMMISSIONING 7.1 Decommissioning and storage If the machine is to be taken out of service for a long period, it must be disconnected from the power supply, covered with a cloth and stored in a place that protects it from atmospheric agents, humidity, dust, corrosive agents and in general from all factors that may affect its integrity.
  • Page 25 Electrical components are collected separately and must be disposed of in accordance with the regulations in force in the country of installation regarding electrical and electronic waste (WEEE). Page 25 of 25...
