Delphi series f48sa, 700w full brick family dc/dc power module: 48vin, 28vout

Table of Contents

ELECTRICAL CHARACTERISTICS CURVES

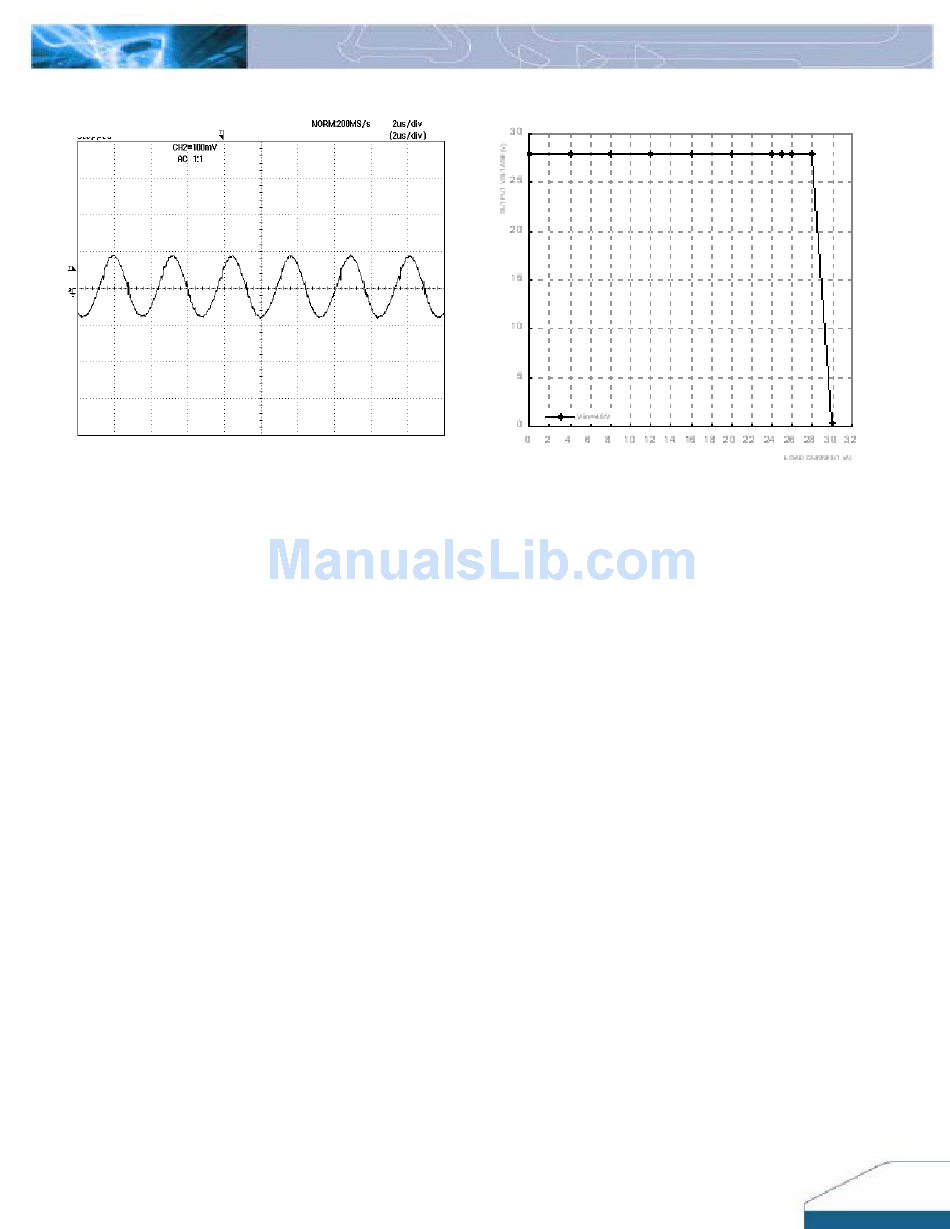

Figure 13: Output voltage ripple at nominal input voltage and

rated load current (100 mV/div). Load capacitance:470uF

aluminum, 1µF ceramic capacitor and 10µFlow ESR capacitor.

Bandwidth: 20 MHz. Scope measurement should be made

using a BNC cable (length shorter than 20 inches). Position the

load between 51 mm to 76 mm (2 inches to 3 inches) from the

module.

DS_F48SA28025_12072007

Figure 14: Output voltage vs. load current showing typical

current limit curves and converter shutdown points.
