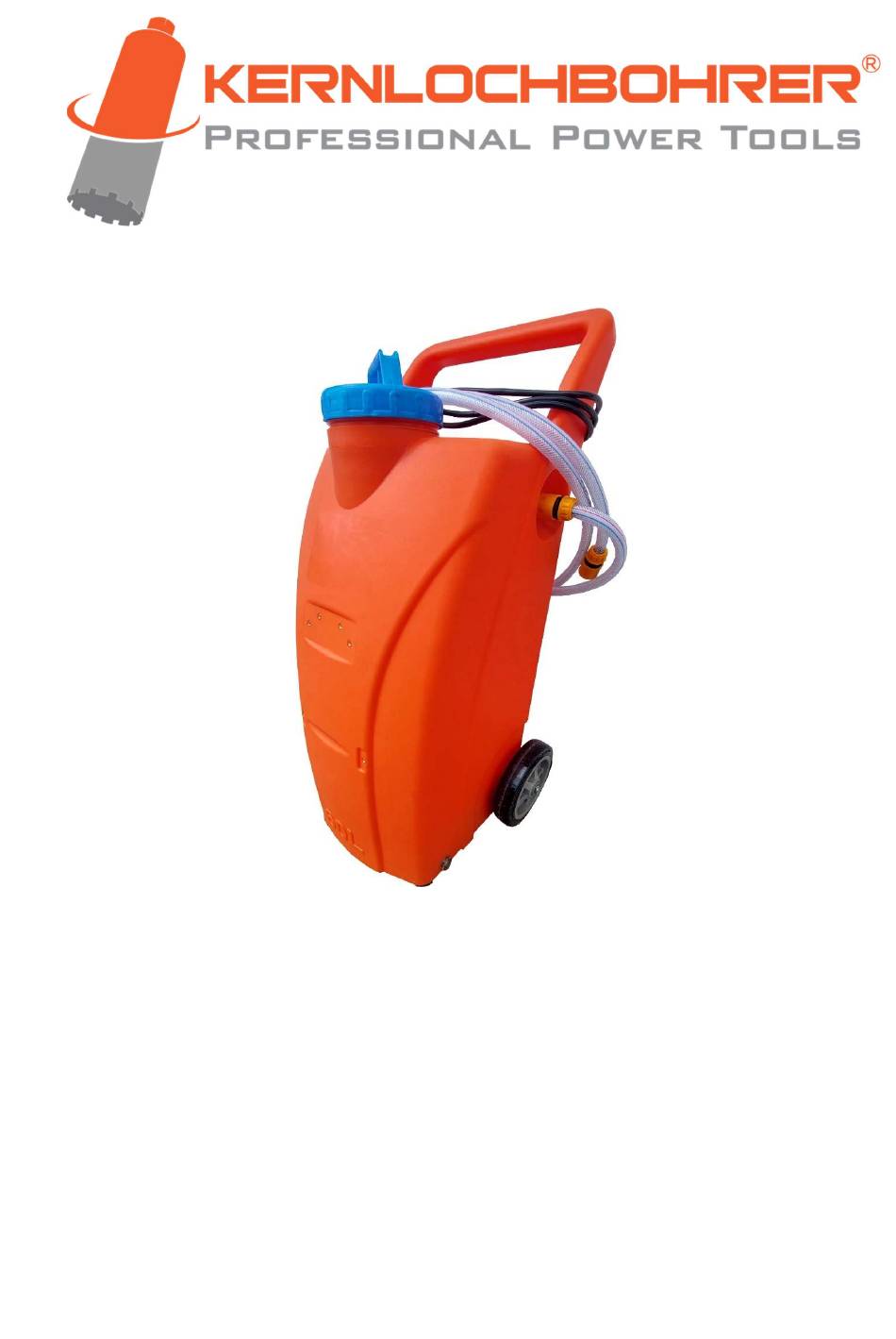

- Page 1 Operating instructions Water tank WT-60 | WT-60/S BA-08-000001-01-EN...
- Page 3 Kernlochbohrer GmbH. Subject to errors and technical changes. Kernlochbohrer GmbH is not liable for any errors in this documentation. Liability for direct or indirect damages arising in connection with the delivery or use of this documentation is excluded to the extent permitted by law.
-
Page 4: Table Of Contents
Operating instructions Water tank WT-60 | WT-60/S Table of contents Information and support ................6 Thanks to the buyer ................6 Application of the Operating instructions ..........6 Changes ....................6 Explanation of symbols ................ 7 Warranty ....................7 Environmental protection..............7 1.6.1... - Page 5 Operating instructions Water tank WT-60 | WT-60/S Control panel ..................20 Scope of delivery ................21 Use of the device ..................22 Specific precautions ................22 Commissioning ................... 23 Optical inspection ................25 Filling the water tank ................25 Establishing the power supply ............26 5.5.1...
-
Page 6: Information And Support
By following the Operating instructions, you will be able to fully uti- lise the outstanding performance of our product. If you have any questions regarding the operation of the machine, please con- tact Kernlochbohrer GmbH directly. We are available to answer your questions at any time. Using the Operating instructions The machine is intended for professional use and may only be operated by trained personnel. -
Page 7: Explanation Of Symbols
Background information or reference to special features. Guarantee In accordance with Kernlochbohrer GmbH's general terms and conditions of delivery, a warranty period of 12 months applies to material defects in busi- ness transactions with companies (proof by invoice or delivery note). -
Page 8: Disposal Of The Product
Operating instructions Water tank WT-60 | WT-60/S 1.6.2 Disposal of the product Follow national regulations on environmentally friendly disposal and recycling of used machines and accessories. For EU countries only: Do not dispose of the machine with household waste! In accordance with Eu-... -
Page 9: Safety
"Technical data" chapter. Any other or additional use is considered improper use - risk of accident! Kernlochbohrer GmbH is not liable for any resulting damage. The risk is borne solely by the operator. Intended use also includes observing the operating instructions and complying with the prescribed maintenance intervals. -
Page 10: Safety Instructions For The Operator
Changes to the machine The operator may not make any modifications to the machine without written authorisation from Kernlochbohrer GmbH. If the operator carries out modifica- tions without authorisation, the warranty becomes void. Kernlochbohrer GmbH is not liable for damage caused by unauthorised modifications. -
Page 11: Spare Parts
Spare parts Spare parts must comply with the properties defined by Kernlochbohrer GmbH. This is always guaranteed for spare parts supplied by Kernlochbohrer GmbH. Kernlochbohrer GmbH is not liable for damage caused by the use of unsuitable spare parts. 2.3.4... -
Page 12: Safety Regulations For Personnel
Operating instructions Water tank WT-60 | WT-60/S Safety regulations for staff 2.4.1 Safe behaviour All persons responsible for commissioning, operating and maintaining the ma- chine must have read and understood the Operating instructions beforehand. The machine may only be operated by persons who have been adequately in- structed beforehand. -
Page 13: Safe Operation
Operating instructions Water tank WT-60 | WT-60/S 2.4.2 Safe operation Operating the machine requires the full concentration and ability of the person- nel. Persons who are overtired, unable to concentrate or under the influence of alcohol, drugs or medication must not work on or with the machine. -
Page 14: Protective Equipment
Operating instructions Water tank WT-60 | WT-60/S 2.4.3 Protective equipment Wearing protective equipment reduces the risk of injury: - Safety shoes with non-slip sole and protective toe cap - Cut-resistant and non-slip gloves - Safety goggles according to standard EN 166 or face protection... -
Page 15: Safety During Maintenance
Operating instructions Water tank WT-60 | WT-60/S Safety during maintenance 2.5.1 General information The machine may only be serviced by persons who have completed the ap- propriate specialised training for this activity. The maintenance activities and intervals specified in the Operating instructions must be observed. -
Page 16: Technical Data
Operating instructions Water tank WT-60 | WT-60/S Technical data WT-60 The WT-60 water tank corresponds to the WT-60/S water tank, but does not have a hose reel. Article number 6270 Container volume 60 litres Pump Flow rate 12.5 litres/min Dynamic pressure 2.4 bar... -
Page 17: Wt-60/S
Operating instructions Water tank WT-60 | WT-60/S WT-60/S The WT-60/S water tank is the same as the WT-60 water tank, but also has an attachable hose reel. Article number 6271 Container volume 60 litres Pump Flow rate 12.5 litres/min Dynamic pressure 2.4 bar... -
Page 18: Device Description
Operating instructions Water tank WT-60 | WT-60/S Device description Device components BA-08-000001-01-EN 2024-05-29... - Page 19 Operating instructions Water tank WT-60 | WT-60/S Filler opening cover Connection socket for mains cable (on the side) Fastening thread (6 pieces) for hose reel of the WT-60/S Water tank Handle Mains cable Water hose Control panel (on rear) Hose connection...
-
Page 20: Control Panel
Operating instructions Water tank WT-60 | WT-60/S Control panel Main switch Pressure gauge Pressure regulator Battery holder Note on the pressure gauge: 0.1 MPa = 1 kg/cm² = 1 bar BA-08-000001-01-EN 2024-05-29... -
Page 21: Scope Of Delivery
Split pin - Mains cable - Water hose - Hose reel (only for WT-60/S) - Fastening set for hose reel (only for WT-60/S) - Operating instructions Kernlochbohrer GmbH offers an extensive range of machines, tools and accessories. The webshop http://www.kernlochboh-... -
Page 22: Use Of The Device
Operating instructions Water tank WT-60 | WT-60/S Use of the device Specific precautions The water container of the water tank may only be filled with clean water (preferably of drinking water quality)! Contaminated water can damage the pump. The water tank must not be filled with corrosive, aggressive or... -
Page 23: Commissioning
Operating instructions Water tank WT-60 | WT-60/S Commissioning The supplied wheel set must be fitted before working with the water tank. The wheel set elements must be fitted as follows on each side of the axle at- tached to the water tank: Fit the first disc on the axle. - Page 24 Operating instructions Water tank WT-60 | WT-60/S Attachment of the hose reel (only for WT-60/ S): The six fastening threads on the front of the water tank are used to mount the hose reel. Attach the upper retaining clip to the water tank using four cylinder screws.
-
Page 25: Optical Inspection
Operating instructions Water tank WT-60 | WT-60/S Optical inspection Before working with the water tank, it must be visually inspected: - Check general condition and cleanliness. - Check that all covers and components are present. - Check that all screws are tight. -
Page 26: Establishing The Power Supply
Operating instructions Water tank WT-60 | WT-60/S Establish power supply 5.5.1 Operation with mains voltage The following points must be observed when connecting the water tank to an AC power supply: - Observe the electrical connection values of the water tank. -
Page 27: Operation With Rechargeable Battery
Operating instructions Water tank WT-60 | WT-60/S 5.5.2 Operation with rechargeable battery The following points must be observed when operating the water tank with a "Bosch Professional 18V" rechargeable battery: - Only rechargeable batteries that are suitable for the water tank may be used. -
Page 28: Switch On The Water Tank
Operating instructions Water tank WT-60 | WT-60/S Switch on the water tank Procedure: Visual inspection carried out. Water tank filled. Power supply established. Connect the water hose to the hose connection of the water tank. Connect the free end of the water hose to the consumer. If necessary, close the stopcock on the consumer to prevent water from leaking. -
Page 29: Switch Off The Water Tank
Operating instructions Water tank WT-60 | WT-60/S Switch off the water tank Procedure: Consumer no longer needs water. Switch off the water tank pump at the main switch. For power supply with mains voltage: - Remove the mains plug from the socket. -
Page 30: Spare Parts
Operating instructions Water tank WT-60 | WT-60/S Spare parts BA-08-000001-01-EN 2024-05-29... - Page 31 Operating instructions Water tank WT-60 | WT-60/S Pos. Designation Pos. Designation Tank Voltage transformer Plug-in base Direct current transformer Plug Battery holder Screw plug Screw Sealing ring Screw Straight nozzle Mother Lid filler opening Metal piece Pipe Hose Wheel Pump plate...
-
Page 32: Eu Declaration Of Conformity
Operating instructions Water tank WT-60 | WT-60/S EU Declaration of Conformity The manufacturer/distributor Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Germany hereby declares that the following product Product description: Water tank Type: WT-60 | WT-60/S complies with all relevant provisions of the applicable legal regulations (hereinafter) - including their amendments valid at the time of the declaration.
