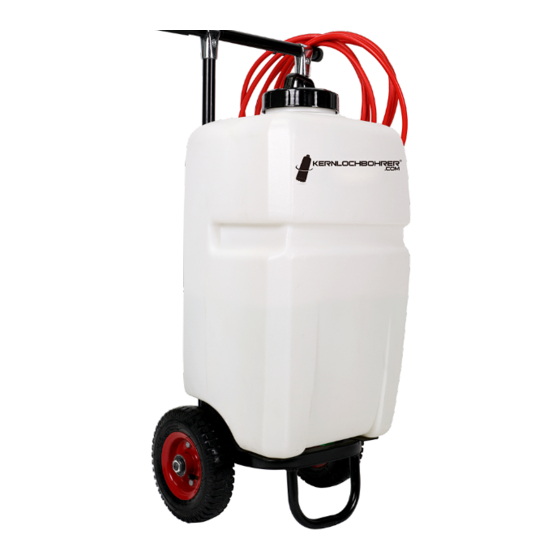

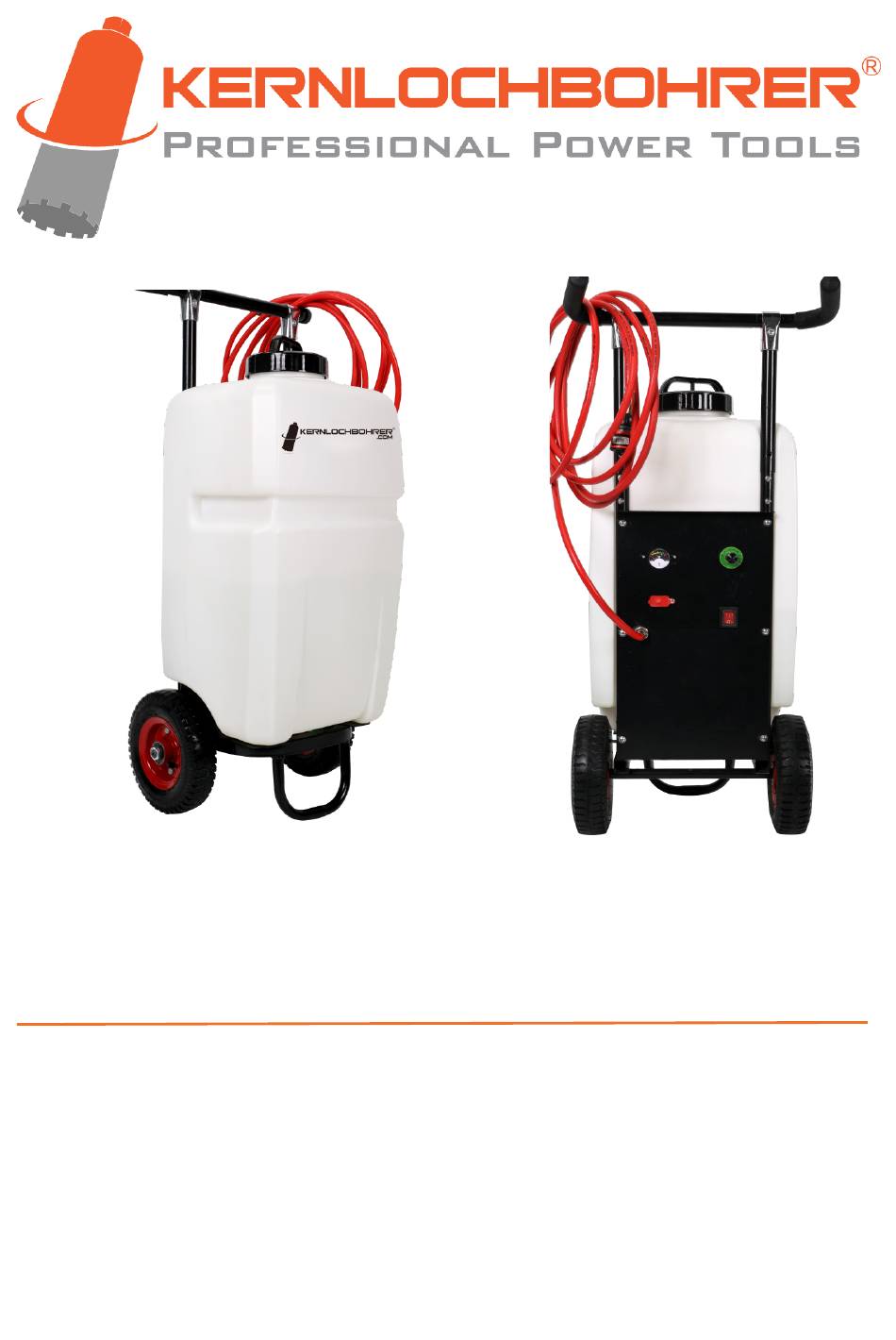

- Page 1 Operating instructions Water tank WT-35/P-PRO Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Phone: 07022-5034900 Email: info@kernlochbohrer.com Version 1 2. Output 05/2023...
-
Page 2: Table Of Contents
Content Introduction About this guide Note Explanation of symbols Safety regulations Before commissioning Using the water tank Battery level indicator Transport Cleaning and storage Technical data Troubleshooting Environmental protection Warranty Exploded view EC Declaration of Conformity... -
Page 3: Introduction
Introduction Thank you for choosing the WT-35/P-PRO water tank from Kernlochbohrer GmbH. This is a high-quality product based on state-of-the-art technology. We hope that this device is to your satisfaction and meets your expectations. We are constantly striving to improve our products in our product segment and will continue to supply the market with new equipment. -
Page 4: Explanation Of Symbols
Explanation of symbols Warning of general danger. Failure to observe these safety precautions and instructions may result in electric shock, fire and/or serious injury. Safety regulations Read all precautions before commissioning and keep the operating ❖ instructions. Please follow the operating instructions carefully, as failure to observe these ❖... - Page 5 7. If the mains connector is damaged, the unit must no longer be charged. 8. Please ensure that the mains connection cable is not damaged by being driven over, squeezed, tugged and the like. 9. Couplings of mains connection or appliance connection cables must be at least splash-proof.
- Page 6 16. Do not pull or carry the cable, use the cable as a handle, close a door on the cable or pull the cable around sharp edges or corners. Do not run over the cable. Keep the cable away from hot surfaces. 17.
-
Page 7: Before Commissioning
Before commissioning THE BATTERY MUST BE CHARGED 12 HOURS BEFORE FIRST USE! It is important that you connect the battery correctly. Make sure that there is no confusion here. Connect the red wire to the anode (+) and the black wire to the cathode (-). -
Page 8: Battery Level Indicator
After filling the tank, tighten the cap on the filler neck clockwise. If you spill anything during filling, wipe the tank with a cloth. Flow switch Battery indicator Charger socket On/Off switch Water hose Battery level indicator If the water tank's battery is low on power, the flow decreases, which means the battery needs to be recharged. -
Page 9: Technical Data
Make sure that the battery is fully charged after each use. Keep the tank in a cool place that is inaccessible to children. If you place the tank in a cold environment, you must empty all liquids in the tank. Technical data Capacity Battery... -
Page 10: Troubleshooting
Troubleshooting Problem Cause Solution The power supply was Reconnect the battery cable. disconnected. The pump does not run although the unit is Battery is empty Charge the battery. switched on. Damaged power switch Replace the power switch The pump makes very loud Loose screws Tighten the screws. -
Page 11: Environmental Protection
Environmental protection Raw material recovery instead of waste disposal! To avoid transport damage, the unit must be delivered in sturdy packaging. Packaging as well as the unit and accessories are made of recyclable materials. The plastic parts of the unit are labelled according to the material. This enables environmentally friendly, sorted disposal via the collection facilities offered. -
Page 12: Exploded View
Exploded view... - Page 13 Item no. Designation Number 11E40101 Tank 11E40102 Inlet filter 11E40103 Cover 11E40104 Cover gasket 11E40105 Outlet seal 11E40106 Outlet cover 11E40107 Pump 11E40108 11E40109 Axis 11E40110 Wheel 200*50 11E40111 Circlip 11E40112 Setting 11E40113 Handle 11E40114 Pipe connector 11E40115 Rubber cover 11E40116 Battery 11E40117...
- Page 14 11E40135 Gardena adapter 11E40136 Seal 11E40137 Schlauch tauchen 11E40138 Cross screw M3.5*16 11E40139 Cylinder head screw M8*16 11E40140 Cylinder head screw M8*25 11E40141 Nut M8 11E40142 Nut M8 11E40143 Hexagon head screw M8*35 11E40144 Hexagon head screw M5*25 11E40145 Cross screw M5*12 11E40146 Washer Φ5mm 11E40147...
-
Page 15: Ec Declaration Of Conformity
EC Declaration of Conformity The manufacturer/marketer Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen hereby declares that the following product Product name: Water tank Typ: WT-35/P-PRO complies with all relevant provisions of the applied legal regulations (hereinafter) - including their amendments in force at the time of the declaration. The sole responsibility for issuing this declaration of conformity lies with the manufacturer.
