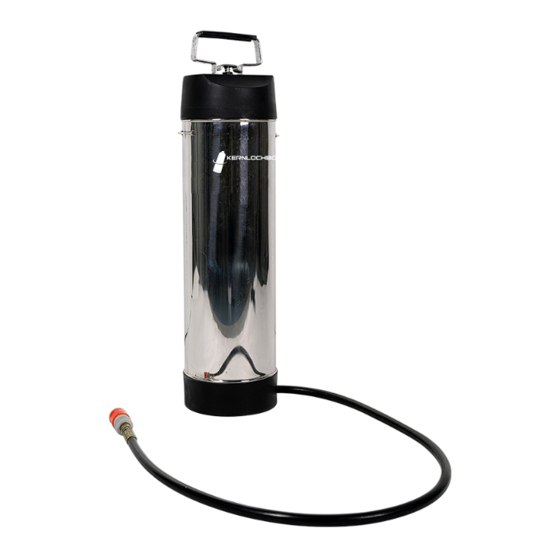

- Page 1 Operating instructions Water tank WT-10/H-PRO Geigersbühlweg 52 72663 Großbettlingen Tel. 07022-5034900 E-Mail: info@kernlochbohrer.com Version 0 2. Output 08/2021...
-
Page 2: Table Of Contents
Content Introduction About this guide Note Explanation of symbols Safety regulations Using the water tank Maintenance and care Transport Cleaning and storage Technical data Environmental protection Warranty Exploded view... -
Page 3: Introduction
Read the entire instruction manual carefully before using the water tank. Special attention should be paid to the section "Safety precautions". Kernlochbohrer.com reserves the right to change the design and appearance of the products and their operating instructions. Future changes to the operating... -
Page 4: Explanation Of Symbols
Explanation of symbols Warning of general danger. Failure to comply with these safety precautions and instructions may result in electric shock, fire and/or serious injury. Safety regulations Read all precautions before commissioning and keep the operating ❖ instructions. Please follow the operating instructions carefully, as failure to observe these ❖... -
Page 5: Using The Water Tank
6. No liability is accepted for any damage caused by misuse, improper operation or improper repair. 7. Only use original spare parts and accessories for maintenance and repair. 8. Only use the water tank when you are in full possession of your faculties. Using the water tank Place the tank on a level surface when filling. -
Page 6: Maintenance And Care
Maintenance and care If the pressure decreases, becomes irregular or drops, first release the pressure, then clean the coupling if it is clogged. Do not use wire for this. If no pressure builds up in the tank, check the pressure relief valve. If necessary, tighten or replace it. -
Page 7: Technical Data
Technical data Total capacity Nominal capacity Working 25-55Psi (1,7-3,3bar) pressure Environmental protection Raw material recovery instead of waste disposal! To avoid transport damage, the unit must be delivered in sturdy packaging. Packaging as well as the unit and accessories are made of recyclable materials. The plastic parts of the unit are labelled according to the material. -
Page 8: Exploded View
Exploded view... - Page 9 Number Number Part designation Part designation Ring Φ14*Φ1.9 Hexagon from Hose Ring Φ16*12*1.9 Hose connector Pressure gauge Ring Φ14*8*2 Hexagonal outside Output connector Safety valve core Ring Φ9*Φ1.9 Flat gasket Φ9*Φ4*2.4 Plastic funnel Safety cavity core Pump nut Spring Spring Containment lid Pump thimble Cingulum...
