BTD 700
®
Bluetooth
USB adapter
Instruction manual
Use the search function, the navigation (left) or the following links:
„Start "
"Product overview"
"Getting started"
"Using the dongle"
"Care and maintenance"
"FAQ/If a problem occurs..."
"Specifications"
Sonova Consumer Hearing GmbH
Am Labor 1
30900 Wedemark
Germany
www.sennheiser-hearing.com
Version: 05/25 A01
Advertisement
Table of Contents
Related Manuals for Sennheiser BTD 700
Summary of Contents for Sennheiser BTD 700
- Page 1 BTD 700 ® Bluetooth USB adapter Instruction manual Use the search function, the navigation (left) or the following links: „Start “ “Product overview” “Getting started” “Using the dongle” “Care and maintenance” “FAQ/If a problem occurs...” “Specifications” Sonova Consumer Hearing GmbH...
-
Page 2: Important Safety Instructions
GmbH or companies commissioned by Sonova Consumer Hearing GmbH and is not processed. Using the Sennheiser Dongle Control program, you can update the product’s firmware free of charge via an Internet connection. If the PC/Mac on which the program is installed is connected to the... - Page 3 Sonova Consumer Hearing GmbH does not accept liability for damage arising from misuse or improper use of this product and its attachments/accessories. Before putting the product into operation, please observe the respective country-specific regulations. BTD 700 | 3...
-
Page 4: Package Contents
Quick guide Safety guide Com- Compliance sheet pliance Sheet Online you can find: • this detailed instruction manual and additional information (www.sennheiser-hearing.com/download) • the Sennheiser Dongle Control program to update the dongle firmware (www.sennheiser-hearing.com/download or www.sennheiser-hearing.com/btd-700) 4 | BTD 700... -
Page 5: Product Overview

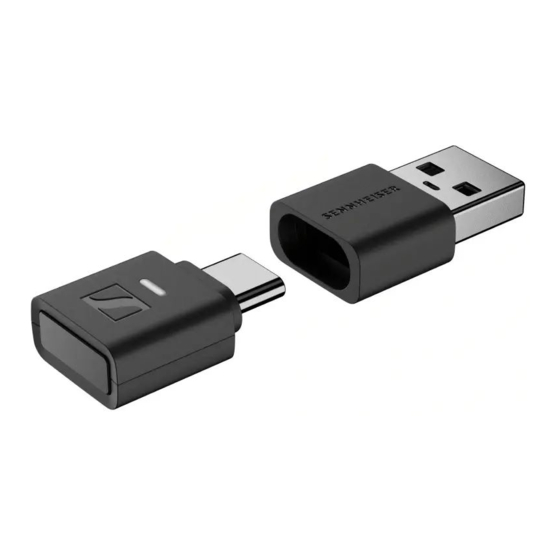

Product overview Dongle with USB-A adapter Pairing button triggers device functions, e.g. the pairing process USB-C dongle Status LED indicates the operating state of the dongle USB-C connector USB-C socket USB-A adapter (USB-C to USB-A) USB-A connector BTD 700 | 5... - Page 6 Incoming call Reset to factory default set- flashes pink 3x tings Disconnected from head- phones or device lights up red Mute function is active ™ lights up amber Auracast Broadcasting mode lights up green Gaming mode 6 | BTD 700...
-
Page 7: Getting Started
Connect the dongle to a USB-C socket of your mobile device or PC/Mac. Connecting the dongle to a USB-A socket USB-C USB-A USB-A ▷ Connect the dongle to the supplied USB-A adapter. ▷ Connect the USB-A adapter to a USB-A socket of your PC/Mac. BTD 700 | 7... - Page 8 Bluetooth headphones in the pairing list. When you reconnect the paired dongle to a mobile device or a PC/Mac, the dongle will automatically try to reconnect to the paired Bluetooth headphones. 8 | BTD 700...
- Page 9 ▷ Briefly press the dongle’s pairing button. During the connection attempt, the status LED of the dongle flashes white 3x repeatedly. The connection process can take up to 20 seconds. BTD 700 | 9...
- Page 10 If audio encoding via SBC codec is active, the status LED lights up solid white. Muting and unmuting during a call During a call you can mute or unmute yourself. ▷ To mute yourself during a call, briefly press the pairing button. 10 | BTD 700...
- Page 11 To switch back to high-quality streaming mode, briefly press the pairing button 2x again. Switching to gaming mode ▷ To enter the gaming mode, briefly press the pairing button 3x. During audio streaming, the status LED lights up green. BTD 700 | 11...
- Page 12 The dongle can only save one connection profile. If you pair the dongle with another pair of Bluetooth headphones, the saved con- nection profile will be overwritten. 12 | BTD 700...
-
Page 13: Care And Maintenance
▷ Clean the dongle and the adapter only with a soft, dry cloth. Firmware updates Firmware updates can be downloaded free of charge from the Inter- net using the Sennheiser Dongle Control program: www.sennheiser-hearing.com/btd-700 or www.sennheiser-hearing.com/download BTD 700 | 13... - Page 14 If a problem has occurred, proceed in the following order until the problem is solved and you can use the dongle again: 1. Connect the dongle to the Sennheiser Dongle Control program to install the latest firmware (see page 13).
- Page 15 The saved connection profile of the last paired Bluetooth headphones will be deleted from the pairing list. ▷ Press and hold the pairing button of the dongle for 10 seconds. As soon as the reset is performed, the status LED flashes pink 3x. BTD 700 | 15...
-
Page 16: Specifications
™ HFP, A2DP, Auracast Output power 10 mW (max) Codec ® ™ Qualcomm aptX ® ™ Qualcomm aptX Adaptive Audio, ® ™ Qualcomm aptX Lossless, SBC, LC3 Device name BTD 700 Range up to 50 m 16 | BTD 700... -
Page 17: Manufacturer Declarations
EU declaration of conformity • RoHS Directive (2011/65/EU) Hereby, Sonova Consumer Hearing GmbH declares that the radio equipment type BTD 700 is in compliance with the Radio Equipment Directive (2014/53/EU). The full text of the EU declaration of conformity is available in English language at the following Internet address: www.sennheiser-hearing.com/download... - Page 18 Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with per- mission. Other product and company names mentioned in the user documen- tation may be the trademarks or registered trademarks of their respective holders. 18 | BTD 700...
