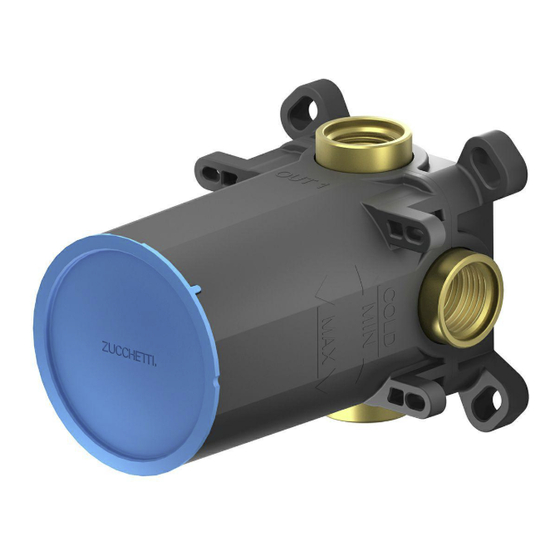

R96710
R96725
Istruzioni per l'installazione della rubinetteria
I
Instructions for the installation of the faucets
GB
Instructions pour l'installation de la robinetterie
F
Montageanleitungen zur installation der armaturen
D
Instrucciones para la instalacion de la griferia
E
ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ
RU
Instrukcje instalacji armatury
PL
R96715
R96716
R96737
R96720
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ZUCCHETTI R96710
Summary of Contents for ZUCCHETTI R96710

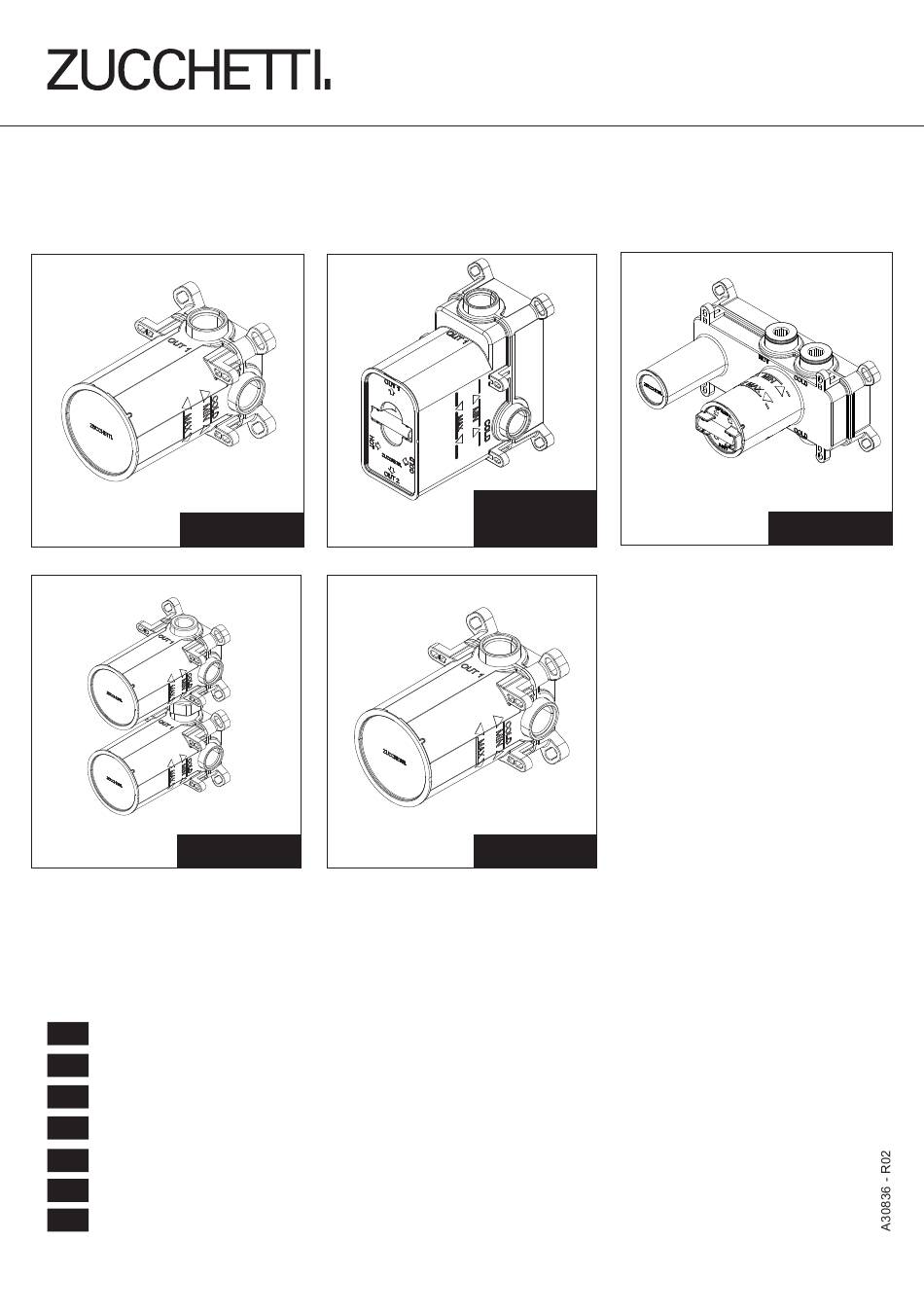

- Page 1 R96715 R96720 R96710 R96716 R96725 R96737 Istruzioni per l’installazione della rubinetteria Instructions for the installation of the faucets Instructions pour l’installation de la robinetterie Montageanleitungen zur installation der armaturen Instrucciones para la instalacion de la griferia ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ...
- Page 2 Installazione - Installation R96710-R96715-R96716-R96725-R96720-R96737 Utensili necessari - Necessary tools TEFLON R96710 MAX. 73,5 mm PIASTRELLA TILE MIN. 48,5 mm EXIT INLET INLET MURO / WALL G 1/2” TEFLON G 1/2” G 1/2”...
- Page 3 R96715 PRIMARY EXIT 1 MAX. 92 mm R96716 PIASTRELLA MIN. 67 mm TILE INLET INLET MURO / WALL SECONDARY EXIT 2 G 1/2” TEFLON G 1/2” G 1/2” G 1/2”...
- Page 4 R96720 CH.10 SVITARE TAPPI UNSCREW CAPS EXIT EXIT INLET INLET INLET INLET PLUG UNUSED INLETS TAPPARE ENTRATE NON UTILIZZATE MAX. 78 mm PIASTRELLA TILE MIN. 53 mm G 1/2” G 1/2” TEFLON MURO / WALL...
- Page 5 R96725 MAX. 73,5 mm PIASTRELLA TILE MIN. 48,5 mm EXIT 2 EXIT 1 INLET INLET MURO / WALL TEFLON G 1/2” EXIT 2 EXIT 1 G 1/2” G 1/2” G 1/2”...
- Page 6 R96737 MAX. 73,5 mm PIASTRELLA TILE MIN. 48,5 mm EXIT 2 EXIT 1 MURO / WALL INLET G 1/2” G 1/2” G 1/2” TEFLON...
- Page 7 INSTALLAZIONE INSTALLATION TEFLON TEFLON TEFLON...
- Page 8 PROVA IMPIANTO PLUMBING TEST MAX. 10 BAR 145 PSI TESTING 70°C / 4 MIN MAX. 80°C CEMENTO/ CARTONGESSO/ CONCRETE DRYWALL PAG 8...
- Page 9 R96710 R96725 FORO HOLE (mm) R96710 Ø 68 R96715 100x59 R96716 100x59 R96715 UTILIZZARE DIMA (TAPPO) R96725 Handle Ø 68 USE TEMPLATE (CAP) R96716 Distance 100 R96720 Handle Ø 50 Spout Ø 35 Distance 80 R96737 Ø 68...
- Page 10 NON INCLUSE FISSAGGIO CARTONGESSO NOT INCLUDED DRYWALL INSTALLATION PAG 8 PER MISURA FORO FOR HOLE DIMENSION...
- Page 11 SEGUIRE INSTALLAZIONE DA PAG.6 FOLLOW INSTALLATION FROM PAG.6 SEGUIRE INSTALLAZIONE DA PAG.6 SEGUIRE INSTALLAZIONE DA PAG.6 FOLLOW INSTALLATION FROM PAG.6 FOLLOW INSTALLATION FROM PAG.6...
- Page 12 Sostituzione cartuccia - Cartridge replacement CH. 29 Sostituzione cartuccia deviatrice - Diverter cartridge replacement CH. 29...
- Page 13 Pressure difference between hot /cold water: 1 bar max. Maximum temperature: 80°C Recommended temperat.: 60-65°C Zucchetti taps can be used with electric storage water heathers and instant gas types, centralised system, combi wall-mounted gas boilers and district heating systems. Before connecting the taps we recommend draining the system thoroughly. Should the water pres- sure be higher than 5 bar, a pressure reducer should be fitted upstream of the supply pipes.
- Page 16 Zucchetti Rubinetteria S.p.A. Via Molini di Resiga, 29 - 28024 Gozzano (No) - Italy - Tel. +39 0322 954700 - Fax +39 0322 954823 - www.zucchettidesign.it...
