I
GB
F
D
MONTAGEANLEITUNGEN ZUR INSTALLATION DER ARMATUREN
E
RU
PL
Via Molini di Resiga, 29 - 28024 Gozzano (No) - Italy - Tel. +39 0322 954700 - Fax +39 0322 954823 - zucchettidesign.it

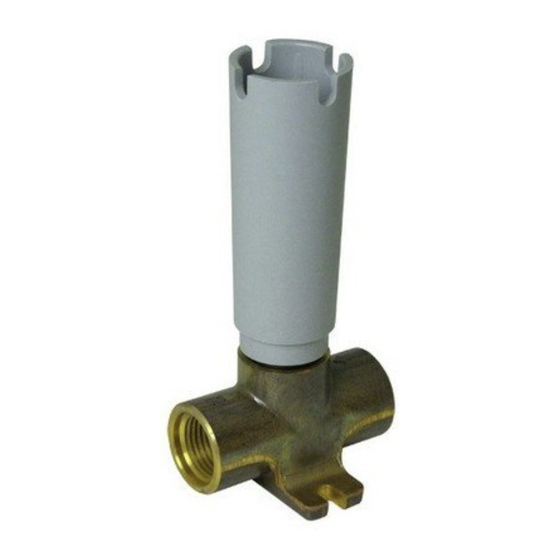

R99779 - R99502
R99503 - R99504
ISTRUZIONI PER L'INSTALLAZIONE DELLA RUBINETTERIA
INSTRUCTIONS FOR THE INSTALLATION OF THE FAUCETS
INSTRUCTIONS POUR L'INSTALLATION DE LA ROBINETTERIE
INSTRUCCIONES PARA LA INSTALACION DE LA GRIFERIA
ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ
INSTRUKCJE INSTALACJI ARMATURY
Zucchetti Rubinetteria S.p.A.
Advertisement
Table of Contents
Related Manuals for ZUCCHETTI R99779
Summary of Contents for ZUCCHETTI R99779
- Page 1 R99779 - R99502 R99503 - R99504 ISTRUZIONI PER L’INSTALLAZIONE DELLA RUBINETTERIA INSTRUCTIONS FOR THE INSTALLATION OF THE FAUCETS INSTRUCTIONS POUR L’INSTALLATION DE LA ROBINETTERIE MONTAGEANLEITUNGEN ZUR INSTALLATION DER ARMATUREN INSTRUCCIONES PARA LA INSTALACION DE LA GRIFERIA ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ...
- Page 2 INSTALLAZIONE / INSTALLATION R99779 R99779 / R99502 / R99503 / R99504 Min 75 mm - Max 106 mm Min 2 15/16” - Max 4 3/16”...
- Page 3 INSTALLAZIONE / INSTALLATION R99504 R99503 R99503 R99502 R99502...
- Page 4 Recommended temperat.: 60-65°C Zucchetti taps can be used with electric storage water heathers and instant gas types, centralised system, combi wall-mounted gas boilers and district heating systems. Before connecting the taps we recommend draining the system thoroughly; it is also advisable to install under basin stop valves with filter (art. Z9126P). Should the water pressure be higher than 5 bar, a pressure reducer should be fitted upstream of the supply pipes.
