ZT2545
Via Molini di Resiga, 29 - 28024 Gozzano (No) - Italy - Tel. +39 0322 954700 - Fax +39 0322 954823 - zucchettidesign.it

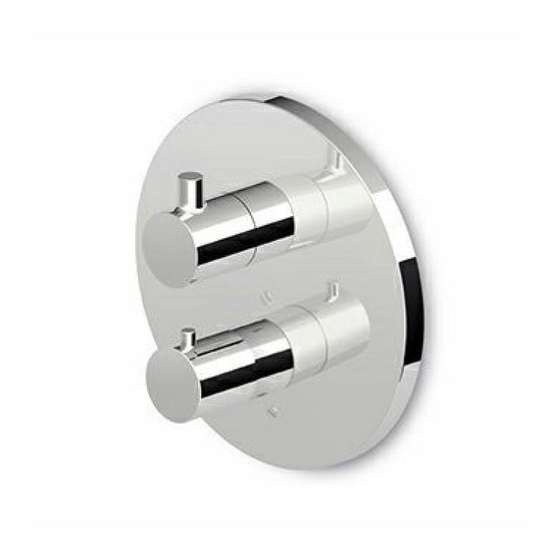

R97900
ISTRUZIONI PER L'INSTALLAZIONE DELLA RUBINETTERIA
INSTRUCTIONS FOR THE INSTALLATION OF THE FAUCETS
INSTRUCTIONS POUR L'INSTALLATION DE LA ROBINETTERIE
MONTAGEANLEITUNGEN ZUR INSTALLATION DER ARMATUREN
INSTRUCCIONES PARA LA INSTALACION DE LA GRIFERIA
ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ
INSTRUKCJE INSTALACJI ARMATURY
Zucchetti Rubinetteria S.p.A.
R97900
ZT2645
ZT2750 - ZT2751
Advertisement
Related Manuals for ZUCCHETTI R97900
Summary of Contents for ZUCCHETTI R97900

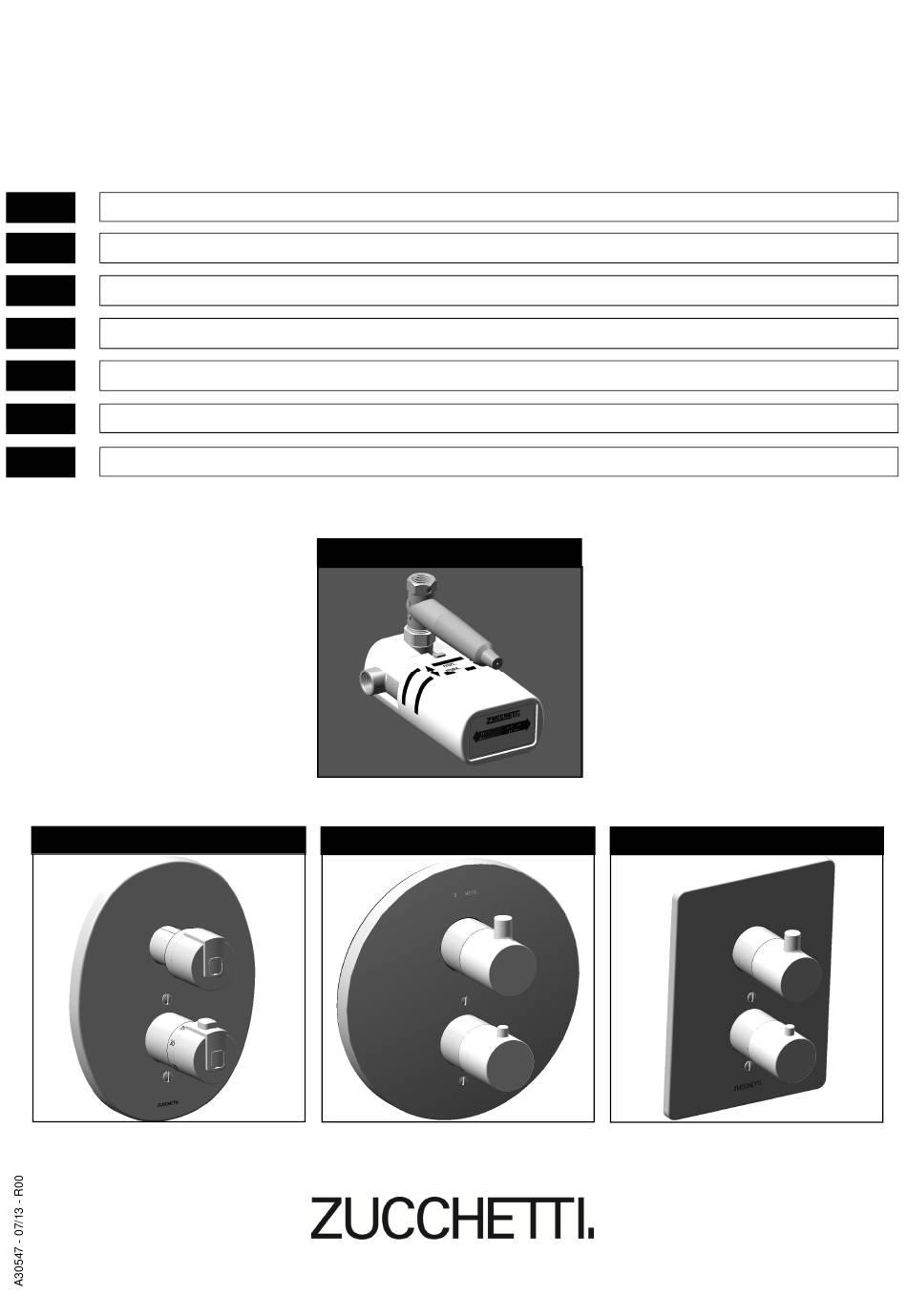

- Page 1 ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ INSTRUKCJE INSTALACJI ARMATURY R97900 ZT2545 ZT2645 ZT2750 - ZT2751 Zucchetti Rubinetteria S.p.A. Via Molini di Resiga, 29 - 28024 Gozzano (No) - Italy - Tel. +39 0322 954700 - Fax +39 0322 954823 - zucchettidesign.it...
-
Page 2: Installazione / Installation
ZT2545 - ZT2645 - ZT2750 - ZT2751 INSTALLAZIONE / INSTALLATION Max. 24 mm. Max. 0”7/16 Min 56mm.—2”3/16 TAPPARE SE NON UTILIZZATO COLLEGARE AL RUB. D’ARRESTO PLUG IF NOT USED CONNECTING WITH STOP VALVE Max 80mm.—3”1/16... - Page 3 ZT2545 - ZT2645 - ZT2750 - ZT2751 INSTALLAZIONE / INSTALLATION...
- Page 4 ZT2545 - ZT2645 - ZT2750 - ZT2751 INSTALLAZIONE / INSTALLATION ZT2545...
- Page 5 ZT2545 - ZT2645 - ZT2750 - ZT2751 INSTALLAZIONE / INSTALLATION OPERATING INSTRUCTIONS: The lowest handle has a degree scale and it controls the thermostatic element. The button on the handle blocks the maximum rotation at 49°C (120°F) for safety and anti scald purposes. ADJUST TEMPERATURE LIMIT STOP: To increase or decrease the maximum temperature of hot water proceed as follows: •...
