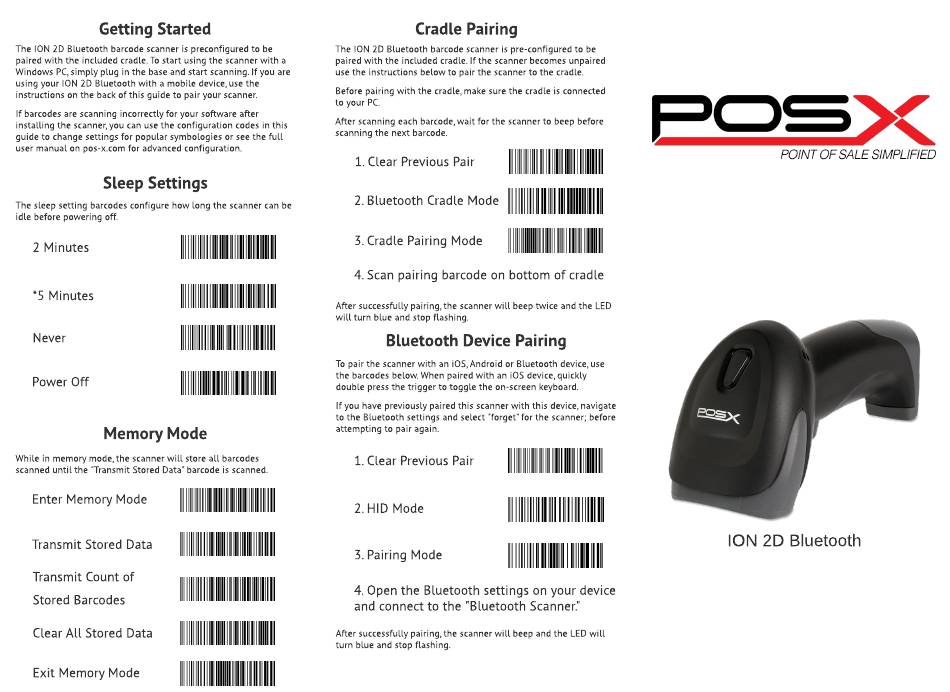

POSX ION 2D Bluetooth Quick Start Manual

ION 2D Bluetooth
Sleep Settings
The sleep setting barcodes configure how long the scanner can be
idle before powering off.
2 Minutes
*5 Minutes
Power Off
Memory Mode
While in memory mode, the scanner will store all barcodes
scanned until the "Transmit Stored Data" barcode is scanned.
Enter Memory Mode
Transmit Stored Data
Clear All Stored Data
Exit Memory Mode
Transmit Count of
Stored Barcodes
Never
Getting Started
The ION 2D Bluetooth barcode scanner is preconfigured to be
paired with the included cradle. To start using the scanner with a
Windows PC, simply plug in the base and start scanning. If you are
using your ION 2D Bluetooth with a mobile device, use the
instructions on the back of this guide to pair your scanner.
If barcodes are scanning incorrectly for your software after
installing the scanner, you can use the configuration codes in this
guide to change settings for popular symbologies or see the full
user manual on pos-x.com for advanced configuration.
Bluetooth Device Pairing
To pair the scanner with an iOS, Android or Bluetooth device, use
the barcodes below. When paired with an iOS device, quickly
double press the trigger to toggle the on-screen keyboard.
If you have previously paired this scanner with this device, navigate
to the Bluetooth settings and select "forget" for the scanner; before
attempting to pair again.
2. HID Mode
3. Pairing Mode
1. Clear Previous Pair
The ION 2D Bluetooth barcode scanner is pre-configured to be
paired with the included cradle. If the scanner becomes unpaired
use the instructions below to pair the scanner to the cradle.
Before pairing with the cradle, make sure the cradle is connected
to your PC.
After scanning each barcode, wait for the scanner to beep before
scanning the next barcode.
Cradle Pairing
4. Open the Bluetooth settings on your device
and connect to the "Bluetooth Scanner. "
After successfully pairing, the scanner will beep and the LED will
turn blue and stop flashing.
After successfully pairing, the scanner will beep twice and the LED
will turn blue and stop flashing.
2. Bluetooth Cradle Mode
4. Scan pairing barcode on bottom of cradle
1. Clear Previous Pair
3. Cradle Pairing Mode
