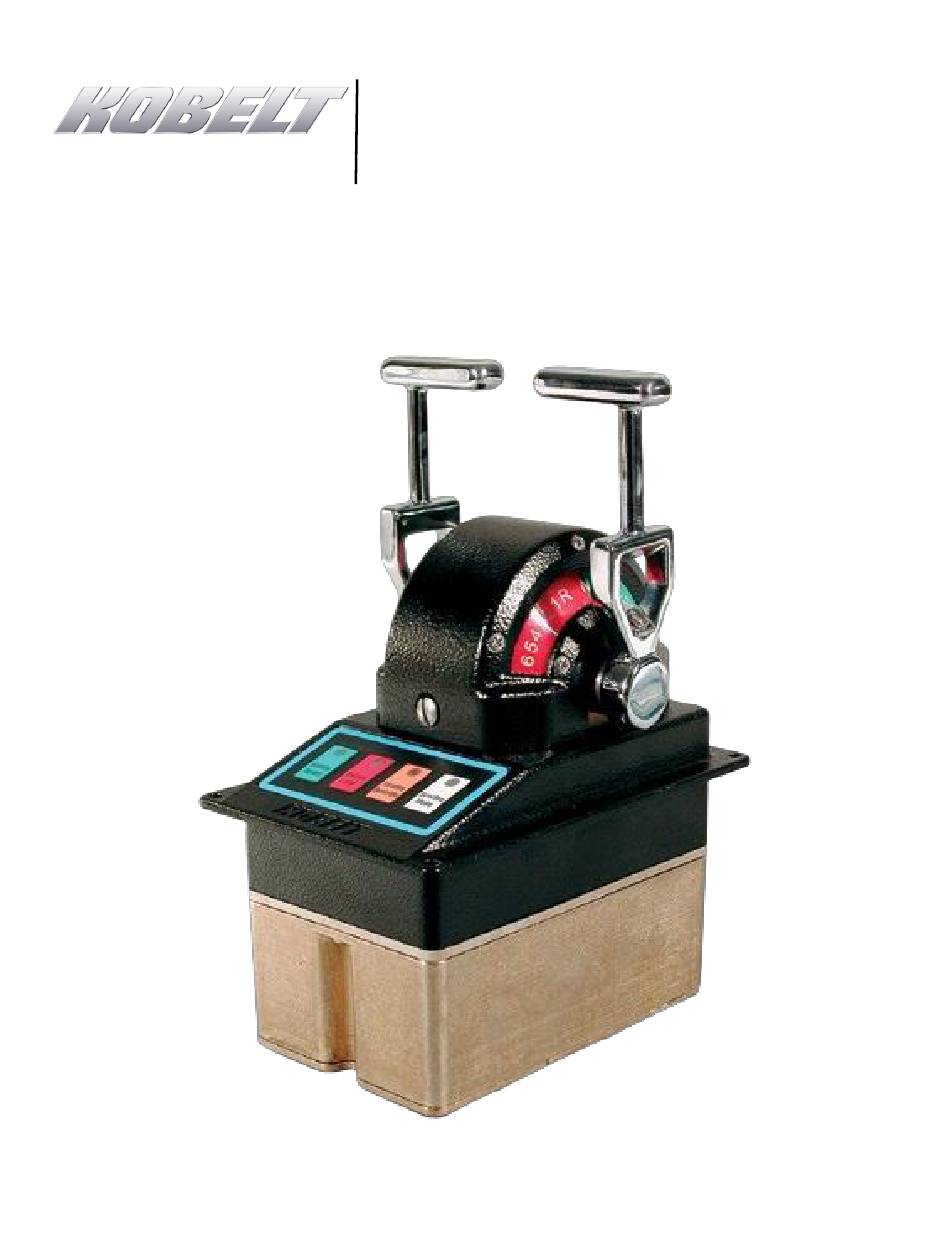

- Page 1 6501 Electronic Control Head Owner’s Operation, Installation & Maintenance Manual Kobelt Manufacturing Co. Ltd.
- Page 2 6501 Control Head Kobelt Manufacturing Co. Ltd. NOTES RECORD DATA BEFORE INSTALLATION FOR FUTURE REFERENCE Model #: Serial #: Date of Purchase: Date of Installation: Rev A MNL-6501 2 of 25...
-
Page 3: Table Of Contents
Warranty ........................17 Revisions History ......................18 Appendix A: Installation Dimensions ................19 Appendix B: Parts List ....................20 10.1 6501-ATX Parts List ........................20 10.2 6501-SUB-TX Parts List ......................22 Appendix C: Installation Cut-out Template ..............24 Rev A... -
Page 4: Introduction
This document is intended to clearly present comprehensive product data and provide technical information to assist the end user in design applications. Kobelt reserves the right, without notice, to change the design, or construction, of any products and to discontinue or limit distribution of any products. -
Page 5: 1.2.3 Product Hazards
Ensure that all power sources are locked out prior to performing work. Pinch Points: The 6501 control head contains pinch points, which can cause bodily harm. Ensure that hands and fingers remain clear of the pinch points when performing work. -
Page 6: Product Description
The Kobelt 6501 compact electronic control head provides a 10-bit digital output, communicated via CANbus or RS485, that is proportional to the handle position. This output is used by Kobelt’s Mighty Mariner or 6525 controller to control engine throttle, clutch engagement or propellor pitch. The handle also has three detent positions;... -
Page 7: Technical Data
6501 Control Head Kobelt Manufacturing Co. Ltd. ECHNICAL Handle Travel: • Neutral: detented • Clutch in: +/- 20 detented • Full travel: +/- 68 Output: 10 bit Connection CANbus (Mighty Mariner) RS485 (6525 system) Terminals: 22-16 AWG, screw clamp Voltage:... -
Page 8: Model Configuration Key
6501 Control Head Kobelt Manufacturing Co. Ltd. ODEL ONFIGURATION Notes: 1. Only available with 6525 system 2. Not available with single engine option 3. SS = station select SL = station lock TO = throttle override SM = engine synchronizer mode... -
Page 9: Installation
[4 Nm] with an anaerobic thread locker such as Loctite 243. LECTRICAL The 6501 control head is equipped with two cable glands with which to make the electrical connections. Use 0.20 inch [5 mm] to 0.47 inch [12 mm] OD cable with 18 AWG conductors for external connections to the engine controller. - Page 10 6501 Control Head Kobelt Manufacturing Co. Ltd. Figure 3: 6501 Wire Connections – 6525 System Table 1: CPU Connector termination Pin # Signal Conductor Function + VDC WHT 2 Bus supply BLK 2 Bus common DATA+ WHT 1 Bus data -H...
-
Page 11: Dip Switch Settings
Before completing the wiring, remember to leave enough extra cable length to permit removal of the control head without disconnection the wiring. The two LED boards for side illumination are connected together and are wired as follows: Table 2: 6501 Wire Connections – LED boards 6501 LED boards Wire... -
Page 12: Functional Test
The Functional Test should be carried out while the equipment is safely secured. PERATION The 6501 control head is equipped with four membrane buttons, with their functions varying depending on the propeller type. IXED ITCH... -
Page 13: Controllable Pitch Propeller Vessels
6501 Control Head Kobelt Manufacturing Co. Ltd. STATION LOCK allows the operator to lock out the other control stations. THROTTLE OVERRIDE disables the clutch function so that the engine can be operated to full throttle without turning the propellors. This feature is useful for engine warm-up or testing. -
Page 14: Calibration
6501 Control Head Kobelt Manufacturing Co. Ltd. o Replace potentiometers ALIBRATION When replacing the potentiometer or if the setting has become disturbed, follow these steps to center the output: 1. Position the handle in the center (neutral) position. 2. Remove the control head bottom cover. -
Page 15: Lubrication
The spare parts kept on hand will depend on the severity of the service. The User should monitor the condition of their control head to predict necessary spare parts and ensure they are on hand when needed. As a minimum Kobelt recommends keeping the following parts for each control head in service:... -
Page 16: Troubleshooting
Kobelt for assistance. If the steps below do not resolve your issue, please reach out either Kobelt directly or our Dealers in your area. -
Page 17: Warranty
Buyer. Kobelt’s sole obligation to the Applicant will be to repair or replace the defective part with same or similar product, to a maximum value of the list price of the product or part. The Kobelt warranty does not cover labour charges, travel or any other associated expenses. -
Page 18: Revisions History
6501 Control Head Kobelt Manufacturing Co. Ltd. EVISIONS ISTORY Table 10: Table of revision changes Document Release Date Author Revision Summary Revision • 2025-05-26 Initial release Rev A MNL-6501 18 of 25... -
Page 19: Appendix A: Installation Dimensions
6501 Control Head Kobelt Manufacturing Co. Ltd. A: I PPENDIX NSTALLATION IMENSIONS Rev A MNL-6501 19 of 25... -
Page 20: Appendix B: Parts List
6501 Control Head Kobelt Manufacturing Co. Ltd. 10 A B: P PPENDIX ARTS 10.1 6501-ATX P ARTS Rev A MNL-6501 20 of 25... - Page 21 6501 Control Head Kobelt Manufacturing Co. Ltd. ITEM PART # DESCRIPTION 6501-SUB-TB Control head subassembly, black paint finish 6501-SUB-TC Control head subassembly, chrome finish 6501-0002-B Mounting panel, black paint finish 6501-0002-K Mounting panel, chrome finish 6501-1002-CBOARD Circuit subassembly, dome illumination...
-
Page 22: 6501-Sub-Tx Parts List
6501 Control Head Kobelt Manufacturing Co. Ltd. 10.2 6501-SUB-TX P ARTS Rev A MNL-6501 22 of 25... - Page 23 6501 Control Head Kobelt Manufacturing Co. Ltd. ITEM PART # DESCRIPTION 6501-0001-B Dome, black paint finish 6501-0001-K Dome, chrome finish 6501-0003 Frame 6501-0004-L Cam, left 6501-0004-R Cam, right 6501-0005-K Handle, chromed 6501-0006-K Pointer, bright finish 6501-0007 Bracket 6501-0008 Dowel pin, Ø5/16 X 7/8 long, 18-8 SS...
-
Page 24: Appendix C: Installation Cut-Out Template
6501 Control Head Kobelt Manufacturing Co. Ltd. 11 A C: I PPENDIX NSTALLATION EMPLATE Scale may not be exactly 1:1 due to PDF and printer scaling. Verify primary dimension with a ruler after printing and before using to cut. Reference Appendix A: Installation Dimensions , for the cut-out dimensions. - Page 25 Kobelt Manufacturing Co. Ltd. 8238 129th Street Surrey, British Columbia, Canada, V3W 0A6 Sales Tel: +1-604-572-3935 Fax: +1-604-590-8313 Email: sales@kobelt.com Website: www.kobelt.com Made in Canada / Printed in Canada...
