Summary of Contents for Paradigm Essentials Sub 12

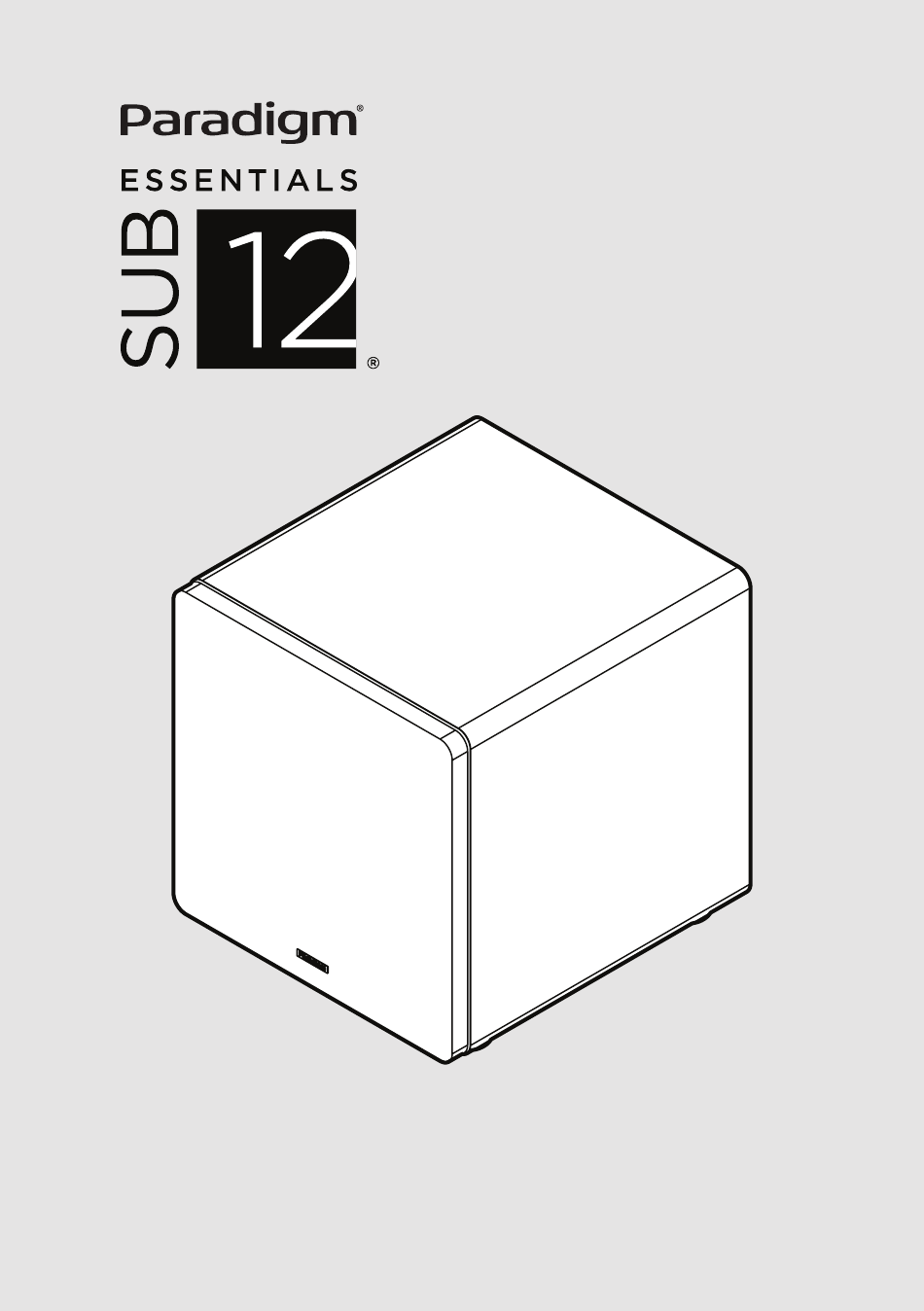

  • Page 1 Owner’s Manual...
  • Page 3 WEEE directive, require special reuse and recycling processing. For this reason Paradigm has arranged with our distributors in WARNING! European Union member nations to collect and recycle • Refer servicing to a qualified technician.
  • Page 4 éliminés, selon la directive DEEE, nécessitent un traitement spécial de réutilisation et de recyclage. Pour cette raison, Paradigm s’est arrangé avec nos ATTENTION! distributeurs dans les pays membres de l’Union européenne pour •...
  • Page 5: Table Of Contents

    TABLE OF CONTENTS Unboxing & Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Controls .
  • Page 6: Unboxing & Contents

    UNBOXING & CONTENTS...
  • Page 8: Controls

    CONTROLS Low-Pass Filter The Low-Pass Filter lets you adjust the Low-Pass frequency for the left and right inputs. The Low-Pass filter value sets the point where the subwoofer will begin to “roll off” or gradually reduce its output. You do not want your subwoofer playing sounds that are too high in frequency, nor do you want to give your subwoofer too little content to play.
  • Page 9 Phase continued If you are using the subwoofer to augment other Paradigm products, we suggest starting with the phase set at 0°. In a system where phase and polarity are properly set, the main speakers and subwoofer should work together and sound as if there is more total bass in the system. If your main speakers and subwoofers are out of phase their sound waves will cancel each other and total bass output in the system will sound decreased.
  • Page 10: Audio Signal Connections

    AUDIO SIGNAL CONNECTIONS Line Level Input (Left In / Right In) Connect from the Main Out/Pre Out/Sub Out on your receiver/pre-amp/electronic device. The setting for the Low-Pass Filter control is applied to the signal received through these inputs unless the Low-Pass filter control is set to Bypass.
  • Page 11: Placement

    PLACEMENT Placement As a starting point, we recommend placing the subwoofer in one of the shaded areas below. The corners will typically yield the highest output, while the front wall near the speakers typically provides the most seamless blend with the main speakers. When using multiple subwoofers try to place them in opposite corners or opposite walls in order to help spread the bass into the room more evenly.
  • Page 12: Benefits Of Multiple Subwoofers

    • Check that all system components are turned • If you are unable to resolve your problem, on and source material is playing. please contact your dealer or Paradigm custom- • Check speaker wires and connections. er service (see below).
  • Page 13: General Information

    SERVICE Should you use your Paradigm product in a country other than the one in which it was originally purchased, we ask that you note the following: 1. The appointed Paradigm distributor for any given country is responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.
  • Page 14: Specifications

    SPECIFICATIONS* ® Essentials Sub 12 24Hz-200Hz (in bypass mode) Frequency Response . . . . . . . . . . . . . . . . . . .
  • Page 15: Product Dimensions

    PRODUCT DIMENSIONS 2.290cm 35.600cm 35.600cm 0.902" 14.016" 14.016" 35.660cm 37.515cm 14.039" 14.770" FRONT VIEW SIDE VIEW 27.100cm 10.669" 27.880cm 10.976" BOTTOM VIEW 35.600cm 14.016" 39.667cm 15.617" 37.860cm 14.906" TOP VIEW...
  • Page 16 .com ©2024 Paradigm Electronics Inc. All rights reserved. 2024-08-07...
