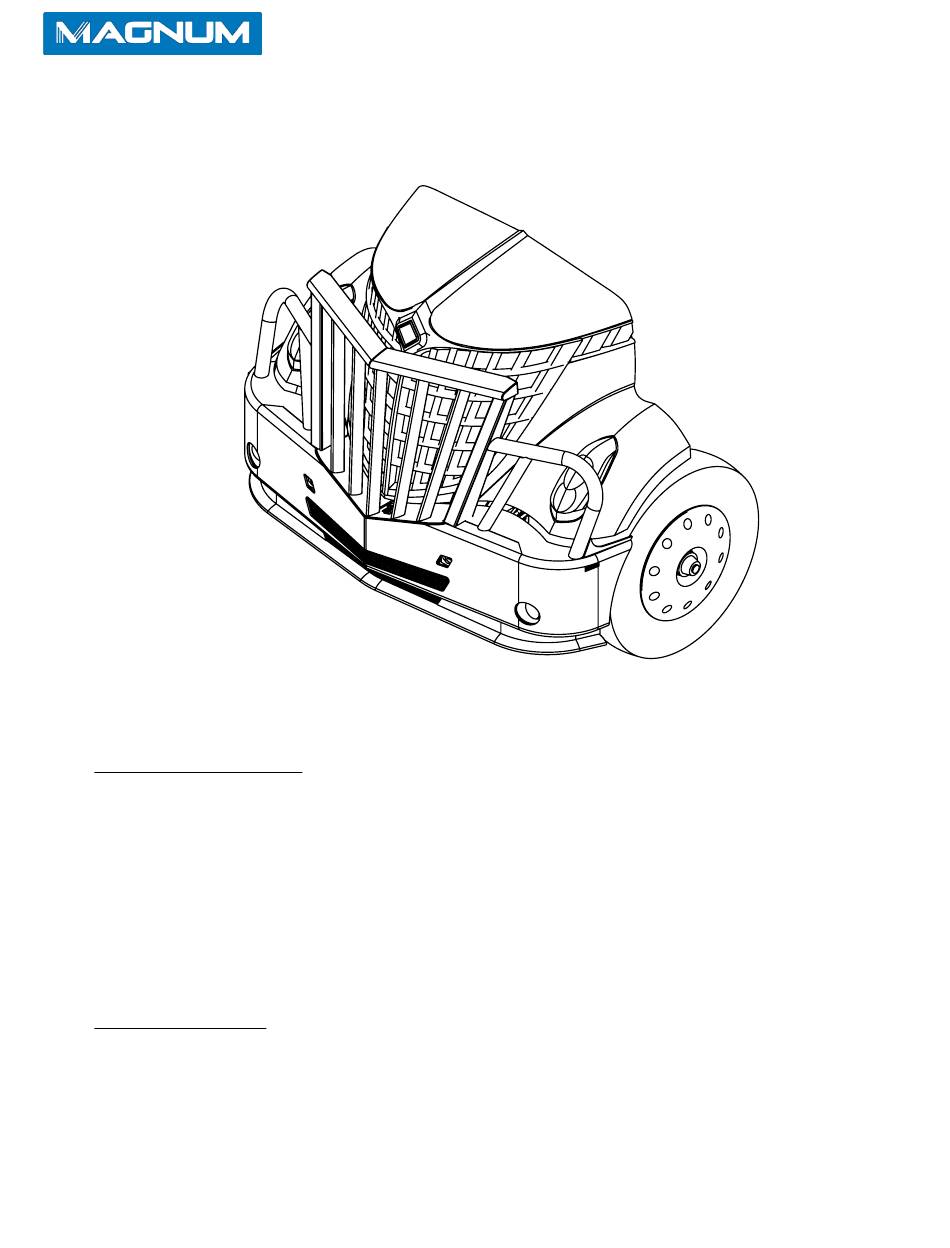

INSTALLATION GUIDE
MODEL NUMBER: 17072
TRUCK MODEL: 2009+ INTERNATIONAL LONESTAR
IMPORTANT INFORMATION
- THIS GUIDE IS ONLY APPLICABLE TO PRODUCTS AND TRUCK MODELS SPECIFIED.
- THE CORRECT SIZE AND GRADE OF HARDWARE SPECIFIED IN THIS GUIDE MUST BE USED.
- CHECK ALL MOUNTING POINTS AFTER THE FIRST 5000KM'S IN SERVICE AND PERIODICALLY THERE AFTER.
RE-TORQUE IF NECESSARY.
- RECOMMENDED ADDING THREADLOCKER (LOCTITE BLUE 242) TO ALL THREADS BEFORE INSTALLING.
- ALL MAGNUM PRODUCTS MUST BE INSTALLED ACCORDING TO THIS INSTALLATION GUIDE. ANY
DEVIATIONS MAY RESULT IN VOID OF WARRANTY.
- ANY ALTERATIONS TO THE PRODUCT MAY RESULT IN VOID OF WARRANTY.
SAFETY INFORMATION
- PROPER PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHEN INSTALLING THIS PRODUCT.
- SOME PARTS OF THIS PRODUCT MAY BE HEAVY OR AWKWARD TO HANDLE. USE CAUTION WHEN
HANDLING.
MODEL NUMBER: 17072
DATE: 5/2/2024
REVISION: E
1
1-800-661-3406
www.magnumtrailer.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 17072 and is the answer not in the manual?

Questions and answers

Related Manuals for Magnum 17072

Summary of Contents for Magnum 17072

  • Page 1 RE-TORQUE IF NECESSARY. - RECOMMENDED ADDING THREADLOCKER (LOCTITE BLUE 242) TO ALL THREADS BEFORE INSTALLING. - ALL MAGNUM PRODUCTS MUST BE INSTALLED ACCORDING TO THIS INSTALLATION GUIDE. ANY DEVIATIONS MAY RESULT IN VOID OF WARRANTY. - ANY ALTERATIONS TO THE PRODUCT MAY RESULT IN VOID OF WARRANTY.
  • Page 2 17072 MOOSE BUMPER 20060M 90379 95023 94026 20060 90345 95019 16530 90348 20051 95003 94013 20056 90370 DETAIL C DETAIL D DETAIL E SCALE 1 : 6 SCALE 1 : 6 SCALE 1 : 6 MODEL NUMBER: 17072 DATE: 5/2/2024...
  • Page 3 GR. 8 3/4" DIA SAE .055 102169 95019 FLAT WASHER - PLATED GR. 8 5/8" DIA SAE .035 102172 95023 FLAT WASHER - PLATED GR. 8 1/2" DIA SAE .024 102167 MODEL NUMBER: 17072 DATE: 5/2/2024 1-800-661-3406 REVISION: E www.magnumtrailer.com...

  • Page 4: Installation Procedure

    SIDE LAMP OEM BUMPER DRIVER SIDE LAMP 2. ENLARGE THE HOLE SHOWN IN THE FIGURE TO THE RIGHT. REPEAT FOR BOTH SIDES OF THE TRUCK. ENLARGE EXISTING HOLE TO 1/2" DIAMETER MODEL NUMBER: 17072 DATE: 5/2/2024 1-800-661-3406 REVISION: E www.magnumtrailer.com...
  • Page 5 TYP (4) (NOT SUPPLIED) M12 CL10.9 FLAT WASHER TYP (4) (NOT SUPPLIED) 4. INSERT THE TWO TOW MOUNT INSERTS 20056 INTO BOTH TOW SOCKETS AND TURN 90 TO LOCK IN PLACE. 20056 MODEL NUMBER: 17072 DATE: 5/2/2024 1-800-661-3406 REVISION: E www.magnumtrailer.com...

  • Page 6: Hex Bolts

    - 12 X 95023 WASHERS - 6 X 94026 NUTS 20061 TORQUE TO 80 FT-LBS (LUBRICATED) / 110 FT-LBS (DRY). 20060 94026 95023 90370 90379 MODEL NUMBER: 17072 MODEL NUMBER: 17072 DATE: 5/2/2024 DATE: 5/2/2024 1-800-661-3406 1-800-661-3406 REVISION: E REVISION: E www.magnumtrailer.com www.magnumtrailer.com...
  • Page 7 9. SECURE THE TOW MOUNT INSERTS 20056 WITH THE FOLLOWING HARDWARE: - 2 X 90348 BOLTS - 2 X 95003 WASHERS 16530 95019 TORQUE TO 160 FT-LBS (LUBRICATED) / 210 FT-LBS 94013 (DRY). MODEL NUMBER: 17072 DATE: 5/2/2024 1-800-661-3406 REVISION: E www.magnumtrailer.com...
  • Page 8 INTO POSITION AND COMPLETE, AND PLEASE REMEMBER TO CHECK FOR BOLT THRU RATTLES AND UNWANTED MOVEMENTS PERIODICALLY. SILICONE TOP OF BRACKET AND THANK YOU FOR CHOOSING MAGNUM. UP TO ARROW BOTH SIDES TYP (2) MODEL NUMBER: 17072 DATE: 5/2/2024 1-800-661-3406 REVISION: E www.magnumtrailer.com...
