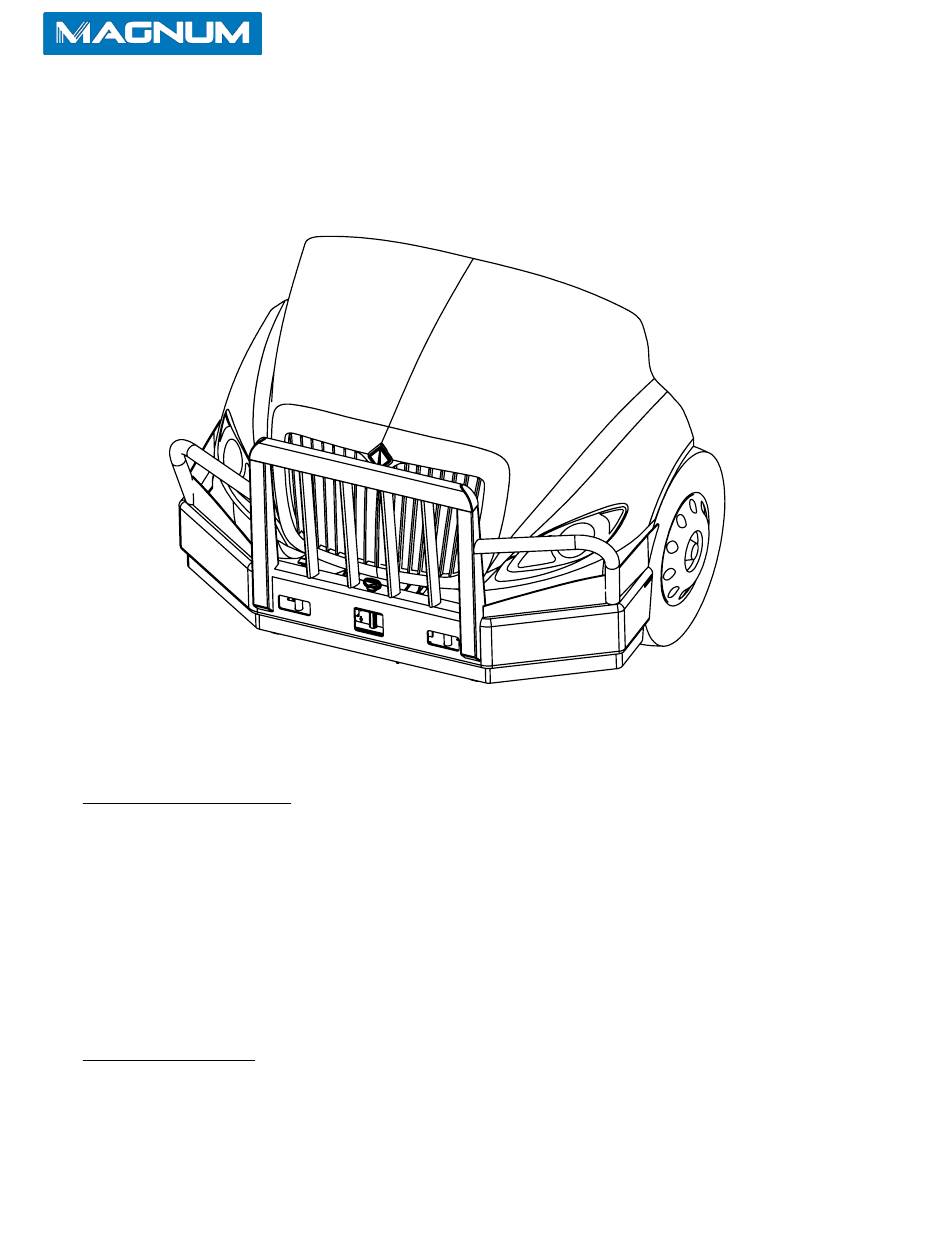

INSTALLATION GUIDE
MODEL NUMBER: 17295
TRUCK MODEL: 2008/2017 INTERNATIONAL PROSTAR/LT
IMPORTANT INFORMATION
- THIS GUIDE IS ONLY APPLICABLE TO PRODUCTS AND TRUCK MODELS SPECIFIED.
- THE CORRECT SIZE AND GRADE OF HARDWARE SPECIFIED IN THIS GUIDE MUST BE USED.
- CHECK ALL MOUNTING POINTS AFTER THE FIRST 5000KM'S IN SERVICE AND PERIODICALLY THERE AFTER.
RE-TORQUE IF NECESSARY.
- RECOMMENDED ADDING THREADLOCKER (LOCTITE BLUE 242) TO ALL THREADS BEFORE INSTALLING.
- ALL MAGNUM PRODUCTS MUST BE INSTALLED ACCORDING TO THIS INSTALLATION GUIDE. ANY
DEVIATIONS MAY RESULT IN VOID OF WARRANTY.
- ANY ALTERATIONS TO THE PRODUCT MAY RESULT IN VOID OF WARRANTY.
SAFETY INFORMATION
- PROPER PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHEN INSTALLING THIS PRODUCT.
- SOME PARTS OF THIS PRODUCT MAY BE HEAVY OR AWKWARD TO HANDLE. USE CAUTION WHEN
HANDLING.
MODEL NUMBER: 17295
DATE: 8/28/2023
REVISION: A
1
1-800-661-3406
www.magnumtrailer.com
Advertisement
Related Manuals for Magnum 17295
Summary of Contents for Magnum 17295
- Page 1 RE-TORQUE IF NECESSARY. - RECOMMENDED ADDING THREADLOCKER (LOCTITE BLUE 242) TO ALL THREADS BEFORE INSTALLING. - ALL MAGNUM PRODUCTS MUST BE INSTALLED ACCORDING TO THIS INSTALLATION GUIDE. ANY DEVIATIONS MAY RESULT IN VOID OF WARRANTY. - ANY ALTERATIONS TO THE PRODUCT MAY RESULT IN VOID OF WARRANTY.
- Page 2 17295 MOOSE GUARD 63719 42818 51975 94245 90317 DETAIL C SCALE 1 : 6 *SEE NEXT PAGE FOR LIST OF PARTS INCLUDED* 90373 95023 94026 95003 ∆16769M 1X 95023 94077 90350 95023 94026 11486 94006 90324 ∆16769 DETAIL A DETAIL B...
- Page 3 STOVER NUT - PLATED GR. C 1/4 NC .0082 101476 95003 FLAT WASHER - PLATED GR. 8 3/4" DIA SAE .055 102169 95023 FLAT WASHER - PLATED GR. 8 1/2" DIA SAE .024 102167 MODEL NUMBER: 17295 DATE: 8/28/2023 1-800-661-3406 REVISION: A www.magnumtrailer.com...
-
Page 4: Installation Procedure
MOUNTING HARDWARE SEEN IN THE FIGURE TO THE RIGHT: - 3 X ADJUSTABLE STANDOFFS - 3 X ADJUSTMENT SCREWS 3 X ADJUSTMENT SCREWS - 6 X TORX SCREWS 6 X TORX SCREWS 3 X ADJUSTABLE STANDOFFS MODEL NUMBER: 17295 DATE: 8/28/2023 1-800-661-3406 REVISION: A www.magnumtrailer.com... - Page 5 6. SECURE THE BRACKETS WITH 11486 USING THE FOLLOWING HARDWARE: ∆16769 2 X 94077 NUTS 2 X 95003 WASHERS 11486 TORQUE TO 200 FT-LBS (LUBRICATED) / 260 FT- LBS (DRY). 95003 94077 MODEL NUMBER: 17295 DATE: 8/28/2023 1-800-661-3406 REVISION: A www.magnumtrailer.com...
- Page 6 94026 16 X 95023 WASHERS 95023 8 X 94026 NUTS TORQUE TO 80 FT-LBS (LUBRICATED) / 110 FT- LBS (DRY). 95023 90373 MODEL NUMBER: 17295 MODEL NUMBER: 17295 DATE: 8/28/2023 DATE: 8/28/2023 1-800-661-3406 1-800-661-3406 REVISION: A REVISION: A www.magnumtrailer.com www.magnumtrailer.com...
- Page 7 HOWEVER, IF THE TRUCK IS EQUIPPED WITH RADAR SWITCH IT TO 63719 . THE LONGER PIN IS NOT COMPATIBLE WITH THE RADAR. CLOSE THE GUARD TO COMPLETE THE INSTALL. THANK YOU FOR CHOOSING MAGNUM. MODEL NUMBER: 17295 DATE: 8/28/2023 1-800-661-3406 REVISION: A...
