Summary of Contents for TEGRAS Concept AR20

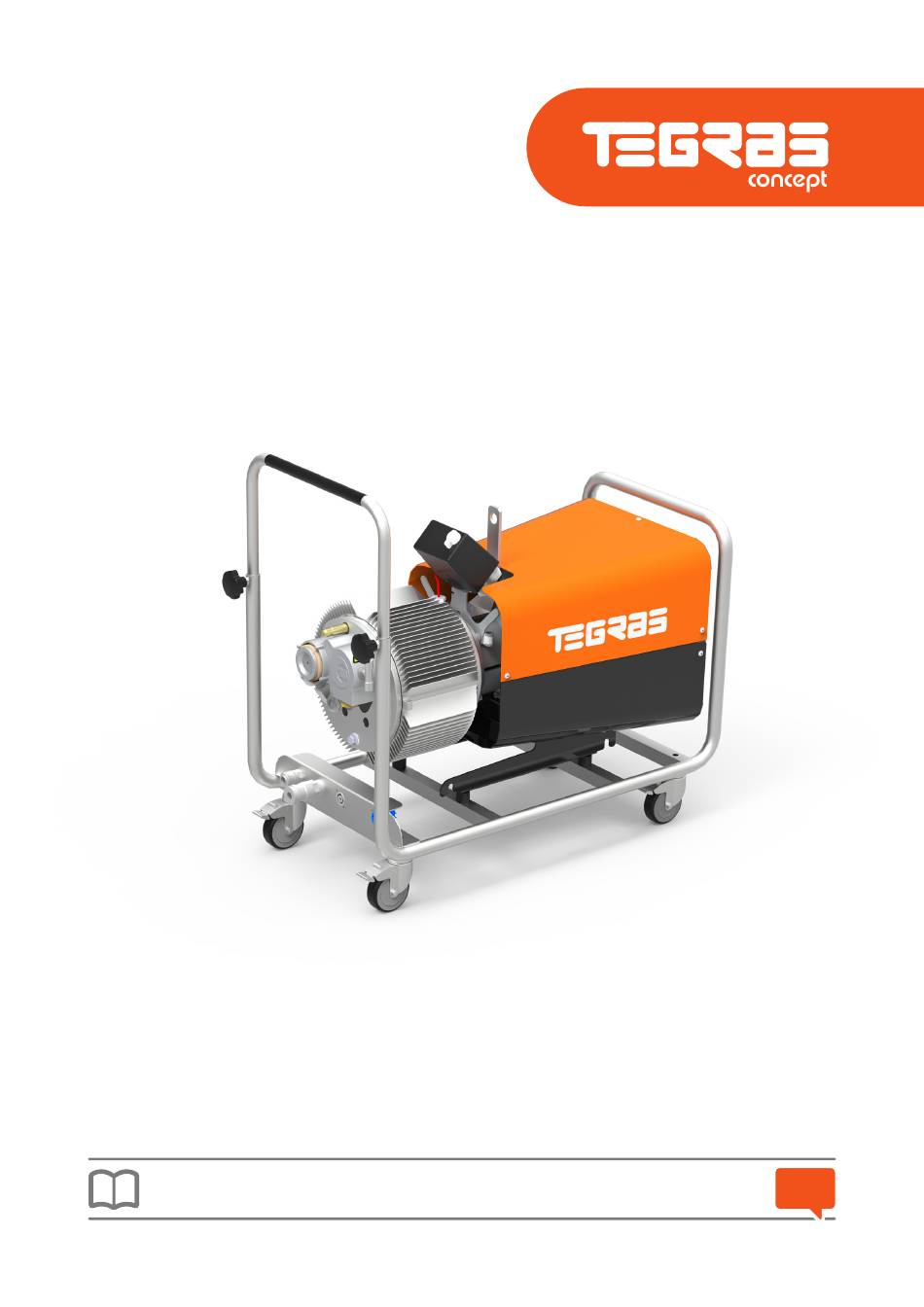

- Page 1 AR20 Compressed air generator user manual 1-30 Original manual translation...
-
Page 2: Training Services
introduction Dear customer: Many thanks for having placed your trust in a quality product from TEINNOVA. This product has been made using modern manufacturing procedures and a range of measures to guarantee quality. We endeavour to do everything possible to ensure you are satisfied with the product and have no problems when working with it. - Page 3 contents symbols 5-30 safety warnings 6-30 conditions of use 7-30 get to know your machine 8-30 accessories and related equipment 9-30 operating instructions 11-30 transport 20-30 maintenance and care 21-30 Compressed air generator 3-30...
- Page 4 contents waste management 27-30 technical specifications 28-30 guarantee conditions 29-30 declaration of conformity “CE” 30-30 Compressed air generator 4-30...
- Page 5 symbols All the symbols used in this manual, as well as those on the equipment, are explained in this section. It is important to read the text associated with these symbols carefully, since it is about personal safety and equipment safety.
-
Page 6: Safety Warnings
The AR20 compressed air generating equipment must not be used for purposes other than those listed in this instruction manual. The use of the AR20 by several people at the same time is unnecessary and is also prohibited for safety reasons. -
Page 7: Conditions Of Use
It can be used in combination with either a TECAI brushing robot, or a TEGRAS brushing robot as shown in the usage diagram. Your AR20 also has a second air outlet in case you want to use another pneumatic tool. It also has an electric power outlet at the same voltage and frequency as the intake. This enables us to power other electrical equipment through the AIRNET 320. -
Page 8: Get To Know Your Machine
Components: 1- AR20 carrying handle 9- Wheel brake 2- Clasp Carrying handle 10- Wheel 3- Pressure gauge (for internal pressure) 11- Auxiliary compressed air outlet 4- Oil tank in take 12- Main compressed air outlet... -
Page 9: Related Equipment
accessories and related equipment Related equipment: Pneumatic saw Pneumatic reciprocating saw capable of working at 10,000 strokes per minute. With a stroke length of 3/8”. Code HE7100200 Pneumatic drill 1/2 HP 2,000 rpm free speed pneumatic drill, pistol grip. Aluminium tool with rubber handle. - Page 10 accessories and related equipment forte Pneumatic duct-cleaning brushing machine. Code TG3310102 multipro Pneumatic duct-cleaning brushing machine. Code TG3310202 Electro-pneumatic duct-cleaning brushing machine. Code TC3120200 Compressed air generator 10-30...
- Page 11 Steps to install the ifoam correctly: Positioning your AR20: Place your AR20 on a smooth and stable surface. Position the machine close to a mains power socket. Once the machine has been positioned in the best place for working, lock the front wheels so that the machine remains stable.
- Page 12 This combined hose is not provided with the AR20. If your AR20 is to be connected with other Tegras or Tecai brushing machines, use a hose with only pneumatic connections which is not provided with the AR20.
- Page 13 Once stopped, operate the tool so that any compressed air remaining in the circuit can be released. This image shows the AR20, which is stopped by turning the on/off switch to the left, as shown in the diagram. Disconnect the combined hose from the inlet connection of the TEGRAS MULTIPRO.
- Page 14 Power connection: Connect the combined hose to your AR20. The connection to your AR20 is made by turning the blue connector to the right, as shown in the image. Connect the combined hose to the mains connection of the Tegras Multipro.
- Page 15 Multipro. The disconnection is made by turning the blue connector to the left and pulling it out as shown in the image. Disconnect the blue electrical connection of the AR20. The disconnection is made by turning the blue connector to the left and pulling it out as shown in the image.
- Page 16 Using the auxiliary tool: Use a low pressure hose to make this connection. Connect the low pressure hose to the AR20. Connect the low pressure hose with the pneumatic intake connection on the auxiliary tool. Compressed air generator...
- Page 17 Once stopped, operate the tool so that any compressed air remaining in the circuit can be released. This image shows the AR20, which is stopped by turning the on/off switch to the left, as shown in the diagram. Disconnect the low pressure hose from the intake connection on the pneumatic tool that has been used.
- Page 18 Turning on the AR20: Once the tool or machine which the AR20 is going to power has been connected, turn the AR20 on using the switch located on the side of the machine as shown in the diagram.
- Page 19 Stopping the AR20: Turn off the AR20 when the work is finished and unplug it. Stop the AR20 by turning the on/off switch to the left, as shown in the diagram. Remove the AR20 from the mains by turning the blue connector to the left and pulling it out as shown in the image.
- Page 20 transport The machine has been designed to be transported in a small van. When transporting the machine it should be firmly tied in order to prevent any type of damage. Additionally, it should be placed in its normal working position (vertical) and the front wheel brakes should be on.
-
Page 21: Maintenance And Care
The AR20 has a safety system which stops the compressor when the interior temperature is higher than the optimal value for operation. This safety system consists of two temperature sensors, one located in the motor area and another near the compressor. -
Page 22: Maintenance Operations
Maintenance operations: Lubrication of the AR20 Use only the amount of lubricant needed for the AR20, because the machine can be damaged by using too much or too little lubricant. Carefully clean any oil or grease left over after lubrication. - Page 23 Cleaning and/or replacing the air filter: Loosen the locking bolts and remove the cover in order to clean or replace the air filter of the AR20. Once the filter cartridge is accessible, as in the second image, remove it for replacement or cleaning.
- Page 24 Cleaning and/or replacing the return valve: Loosen the locking bolts and remove the aspiration cover in order to clean or replace the return valve of the AR20. Once the oil tank is accessible, loosen the return valve of oil remove the sintered filter.
- Page 25 Replacing the air-oil separator: Loosen the locking bolts and remove the aspiration cover in order to replace the return valve of the AR20. Once the air-oil separator is accessible , extract it and replace it with a new one.
-
Page 26: Spare Parts
maintenance and care Spare parts: TEINNOVA has replacements for all parts of the machine as well as for consumables for all the maintenance tasks mentioned in this manual. If you require any part or consumable, contact TEINNOVA’s Customer Service Department on telephone number: +34 941 44 50 56. -
Page 27: Waste Management
waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not dispose of electrical equipment in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recovery process. -
Page 28: Technical Specifications
Features AR20 400V / 3 / 50Hz 110V / 60Hz 220V / 50Hz Min. size cable: 2,5 mm 3,88 x 10 Nominal pressure: 10 bar // 145,04 psi Air supply (5 bar // 72,52 psi): 240 liters/min // 8,48 cfm... -
Page 29: Guarantee Conditions
guarantee conditions 1. “TEINNOVA” guarantees its products for a period of the product’s non-conformity and it shall not apply said of 15 days as regards aesthetic defects or faults which guarantee until coverage has been expressly proven. are noticeable with the naked eye. In terms of all other In the case that the product is covered, “TEINNOVA”... - Page 30 “CE” MODEL: AR20 SERIAL NUMBER: CO33302020000 - CO33302029999 MANUFACTURER INFORMATION: Manufacturer name: tecai innova s Telephone number: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies...
