Summary of Contents for TEGRAS Concept AR18

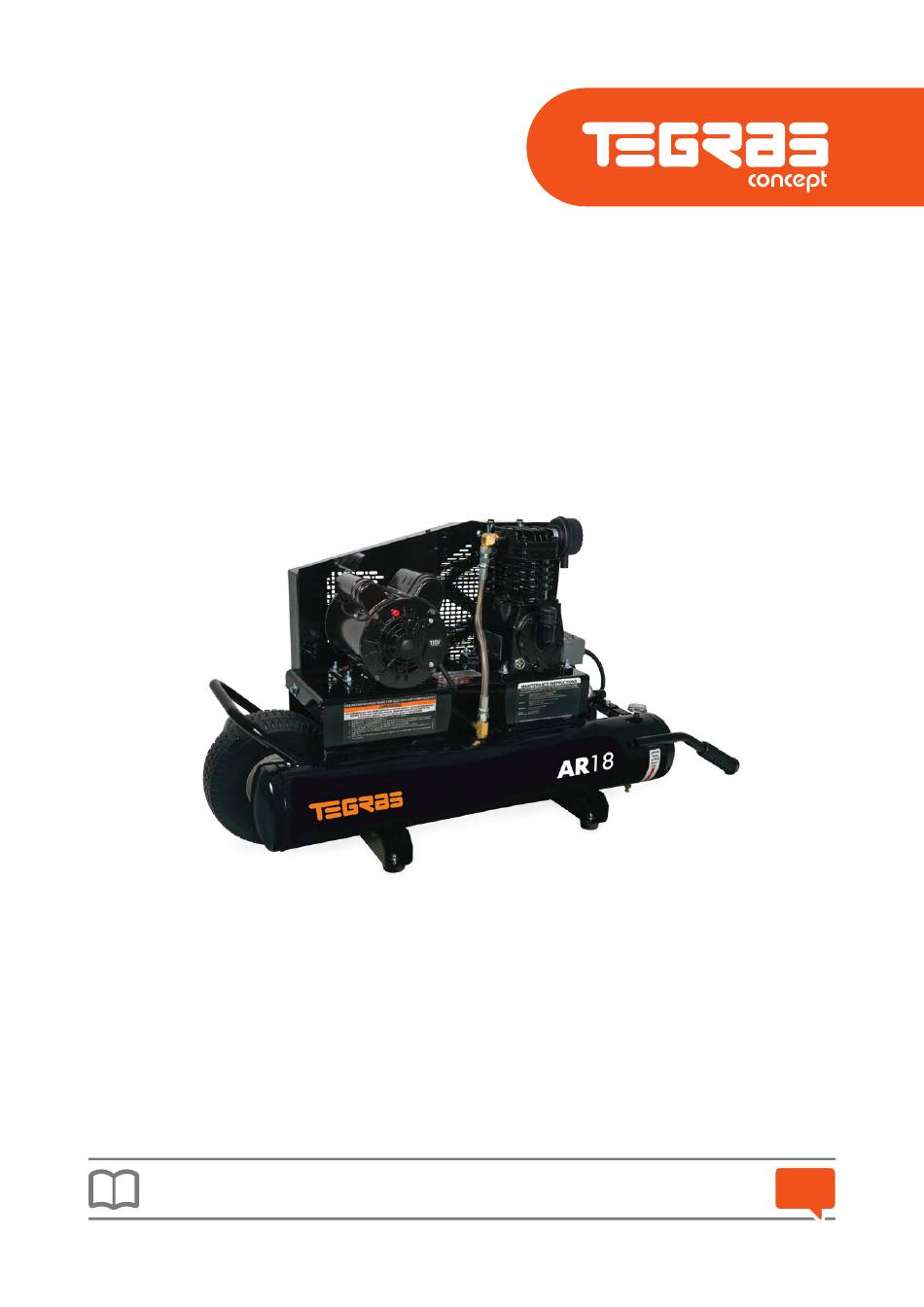

- Page 1 AR18 Compressed air generator user manual Original manual translation...
-
Page 2: Training Services
We have every type of replacement available for your equipment as well as related accessories. 941445056 941445056 This instruction manual is protected by copyright. We reserve all rights, especially the right to produce, translate and create using electronic systems. AR18 Compressed air generator 2-30... - Page 3 5-31 safety warnings 6-31 intended conditions of use 11-31 get to know your machine 12-31 accessories and related equipment 15-31 operating instructions 17-31 transport 21-31 maintenance and care 22-31 waste management 24-31 AR18 Compressed air generator 3-30...
- Page 4 25-31 technical specifications 29-31 specifications of the warranty conditions 30-31 declaration of compliance “CE” 31-31 AR18 Compressed air generator 4-30...
-
Page 5: Important Note
This symbol warns of a situation that could cause damage to property without causing personal injuries if the indicated instructions are not followed appropriately. IMPORTANT NOTE! This symbol warns of information relating to the optimal use of the equipment in order to avoid possible handling errors. AR18 Compressed air generator 5-30... -
Page 6: Safety Warnings
The AR18 compressed air generating equipment must not be used for purposes other than those listed in this instruction manual. The use of the AR18 by several people at the same time is unnecessary and is also prohibited for safety reasons. - Page 7 Allow air compressor to cool down. Never assume the air compressor is safe to work on just because it is not operating. It could restart at any time! Service in a clean, dry, flat area. AR18 Compressed air generator 7-30...
-
Page 8: Risk Of Bursting
Because of extreme heat, do not use sories are used. plastic pipe or lead tin soldered joints for a discharge line. Never use air compressor to inflate small, low pressure objects such as toys. AR18 Compressed air generator 8-30... - Page 9 Do not move the air compressor while air tank is under pressure. Do not attempt to move the air compressor by pulling on the hose. AR18 Compressed air generator 9-30...
- Page 10 DAMAGE Do not operate air compressor in a corrosive environment. Always operate the air compressor in a stable, secure position to prevent air compressor from falling. Follow all maintenance instructions listed in this manual. AR18 Compressed air generator 10-30...
-
Page 11: Intended Conditions Of Use
It can be used in combination with either a TECAI brushing robot, or a TEGRAS brushing robot as shown in the usage diagram. Your AR18 also has a second air outlet in case you want to use another pneumatic tool. It also has an electric power outlet at the same voltage and frequency as the intake. This enables us to power other electrical equipment through the AR18. -
Page 12: Get To Know Your Machine
5- Pump oil fill port 14- Ventilation holes 6- Tank drain valve 15- Air filter 7- Presure gauge - Tank PSI 16- Air compressor pump 8- Presure gauge - Outlet PSI 17- Beltguard 9- Oulet fitting 18- Electric motor AR18 Compressed air generator 12-30... - Page 13 OIL FILL PORT/VENT: Pour oil into the Oil Fill Port/Vent when required. OIL SIGHT GLASS: The Oil Sight Glass displays the oil level in the pump. The oil level should be at the center of the Oil Sight Glass. If low, add SAE 30W non-detergent oil. AR18 Compressed air generator 13-30...
- Page 14 OUTLET PRESSURE GAUGE: The outlet pressure gauge indicates the air pressure available at the outlet side of the regulator. This pressure is contro- lled by the regulator and is always less or equal to the air tank pressure. AR18 Compressed air generator 14-30...
-
Page 15: Related Equipment
With an impact length of 3/8”. Code: HE7100200 Pneumatic drill 1/2HP Pistol-type pneumatic drill with 2000rpm free rotation speed. Aluminium tool with rubber handle. Code: HE7100100 forte Pneumatic brushing robot for cleaning ducts. Code: TG3310102 AR18 Compressed air generator 15-30... - Page 16 Pneumatic brushing robot for cleaning ducts. Code: TG3310202 Pneumatic brushing robot for cleaning ducts. Code: TC3120100 Electric-pneumatic brushing robot for cleaning ducts. Code: TC3120200 AR18 Compressed air generator 16-30...
-
Page 17: Preparation Instructions
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal. The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire. AR18 Compressed air generator 17-30... - Page 18 The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. AR18 Compressed air generator 18-30...
- Page 19 Valve with the motor still running. 5. Set pressure by adjusting the Pressure Regulator counterclockwise for less pressure and clockwise for more pressure. 6. If you notice any unusual noise or vibration, stop the air compressor and refer to “Troubleshooting”. AR18 Compressed air generator 19-30...
- Page 20 4. Allow the air compressor to cool down. 5. Wipe the air compressor clean and store in a safe, non-freezing area with the cord coiled up and protec- ted from accidental damage. EXAMPLES OF POSSIBLE CORD PLUGS AND CORRESPONDING RECEPTACLE AR18 Compressed air generator 20-30...
- Page 21 Placing the machine on a transport pallet or anything similar is not advised. The machine must be placed on a completely flat and horizontal surface. The machine must be transported in its working position. Never on this side. AR18 Compressed air generator 21-30...
-
Page 22: Maintenance And Care
*The pump oil must be changed after the first 50 hours of operation and every 200 hours or 3 months, whichever comes first. Every two years, an Authorized Service Technician should check the check valve, intake valves and delivery valves. AR18 Compressed air generator 22-30... -
Page 23: Spare Parts
Take it to an official collection point for it to be recycled. Old appliances contain valuable materials for recycling and subsequent use. Do not throw the packaging away with domestic waste. Take it to an official collection point. AR18 Compressed air generator 23-30... -
Page 24: Waste Management
Please dispose of the materials in the appropriate container or go to your local collection point. Directive 2012/19/EU of 4 July 2012 on waste electrical and electronic equipment (WEEE). AR18 Compressed air generator 24-30... -
Page 25: Troubleshooting
Bleed the line by moving the switch to re Switch has not unloaded pump head the “Off” position. pressure. Check valve stuck open. Remove and clean or replace. Defective motor, or Motor/Pressure Defective motor, or Motor/Pressure Switch. Switch. AR18 Compressed air generator 25-30... - Page 26 Tighten the connections where leaks are present. Defective Check Valve or Pilot Valve. Remove, clean or replace. Air leak in air tank. Air tank must be replaced. Do not attempt to repair air tank! AR18 Compressed air generator 26-30...
- Page 27 Run air compressor a minimum of one ge air. level of atmospheric humidity. hour to prevent condensation buildup. Drain air tank after every use. Drain air tank more often in humid weather and use an air line filter. AR18 Compressed air generator 27-30...
- Page 28 Contact TEINNOVA Customer Service cylinder. Oil has milky Water in oil due to condensation. Change oil and move air compressor to appearance. a less humid environment. Unit runs bac- Reversed wiring. Contact qualified electrician. kward. AR18 Compressed air generator 28-30...
-
Page 29: Technical Specifications
Características AR18 110V / 60Hz Nominal pressure: 9 bar // 125 psi Flow rate (90 psi): 9,2 cfm // 260 l/min Motor power: 2.0 HP, 120V, 18.8A Sound level: 79dB Pistón Operating principle: Tank size: 30 l // 8 gal... -
Page 30: Conditions Of The Warranty
TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), Spain. TTEINNOVA reserves the right to make changes to the equipment without giving prior notice. AR18 Compressed air generator 30-30... -
Page 31: Manufacturer Information
“CE” MODEL: AR18 SERIAL NUMBER: CO33302050000 - CO33302059999 MANUFACTURER INFORMATION: Manufacturer name: tecai innova s Telephone number: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies...
