Dorel Home Products Zayden 4744219 Assembly Instructions Manual

Dorel Home Products Zayden 4744219 Assembly Instructions Manual

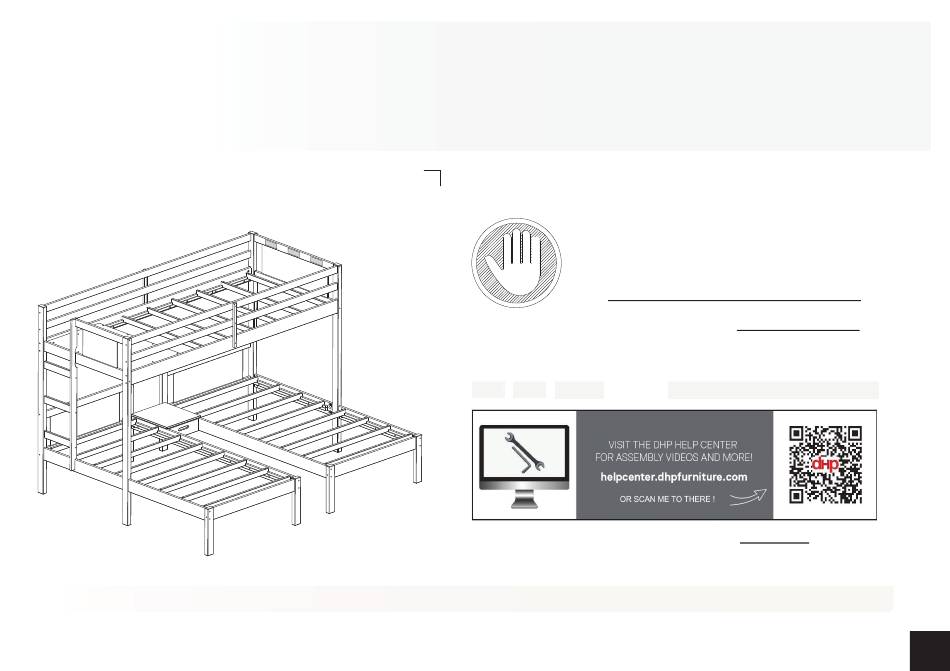

Triple bunk bed with nightstand
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Weight Limit:
Upper: 200 lbs / 90 kg
Lower: 200 lbs / 90 kg
EFN – 09/
26
/24
© 2024 Dorel Home Products All Rights Reserved
4744219
(Mocha Espresso),
Zayden Triple Bunk Bed with Nightstand
Thank you for purchasing from DHP!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll -Free 1-800-267-1739.
You can also chat with us atwww.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
47
44119 (
White
Lot Number
(TAKEN FROM CARTON)
IMPORTANT SAFETY
B34474421900MK
)
1
