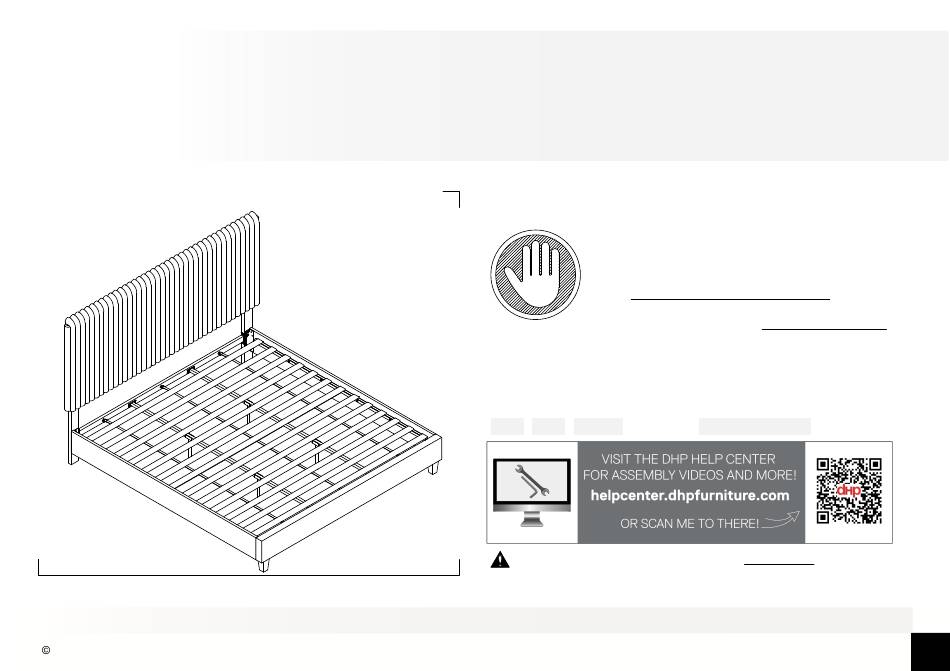

CosmoLiving Mondo Bed
Thank you for purchasing from DHP!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit https://parts.dorelhome.com/eng/
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4722449CL (Gray)
King
Lot Number
(TAKEN FROM CARTON)
B344722449CL00KT
1
Advertisement
Table of Contents
Related Manuals for Dorel Home Products CosmoLiving Mondo 4722449CL
Summary of Contents for Dorel Home Products CosmoLiving Mondo 4722449CL
- Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. KT - 2024/11/27 B344722449CL00KT 2024 Dorel Home Products All Rights Reserved...
-
Page 2: Limited 1-Year Warranty
Limited 1 year Warranty Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product. - Page 3 PARTS...
-
Page 4: Parts List
PARTS LIST Headboard Footboard Side Panel 1 PC 1 PC 1 PC 1 PC 1 PC End Rail Side Panel Center Rail Cross Brace Side Rail 1 PC 1 PC 2 PCS 2 PCS 1 PC PART NUMBERS 4722449CL PART Each part has a unique part number. - Page 5 PARTS LIST Bracket Bracket Bracket Bracket Support Leg 4 PCS 1 PC 1 PC 1 PC 1 PC Wooden Slats Back Cover 1 PC 2 PCS 1 PC PART NUMBERS 4722449CL PART Each part has a unique part number. (Gray) Please reference the appropriate part LABELS number when contacting customer...
-
Page 6: Hardware List
HARDWARE LIST 1/4" X 3/4" 1/4" X 1 9/16" 1/4" X 2" 1/4" 5/16" X 2 9/16" Bolt Bolt Bolt Bolt Metal Washer 50 PCS 12 PCS 4 PCS 2 PCS 4 PCS Hardware Pack 4722449CL (Gray) HP#:24681649N0KT Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. -
Page 7: Helpful Hints
Helpful Hints How To Use The Ratchet 1. Before assembling the furniture, please adjust the lock tool as Before assembling the furniture, please read the instructions on how to use ratchet, it will help you needed. to assemble the furniture quickly. Please don't throw away the ratchet in case you may need to use in future. - Page 8 Step 1 Attach A1 and A2 to A with OPTION 1 (Highest): OPTION 2 (Middle): OPTION 3 (Lowest):...
- Page 9 Step 2 Stick N to the back of A with Velcro as illustrated.
- Page 10 Step 3 Attach L to A1 and A2 with Screw into A1 and A2 as illustrated, making sure to leave half of the threads exposed. Slot should be facing inside of the bed. Do not completely tighten the bolts leave half of the thread exposed. X 12...
- Page 11 Step 4 Attach S and W to C with Attach T and V to D with X 14...
- Page 12 Step 5 Attach Z x 2 to B with using Screw into B as illustrated, making sure to leave half of the threads exposed. Do not completely tighten the bolts leave half of the thread exposed.
- Page 13 Step 6 Hang C and D on B as illustrated. Hang C and D on A1 and A2 as illustrated. Don't completely tighten the bolts until STEP 10 is complete.This will help with alignment.
- Page 14 Step 7 Attach J x 2 to F with...
- Page 15 Step 8 Attach subassemblies ( F & J x 2 ) from previous step to L and B with...
- Page 16 Step 9 Velcro towards the top! Attach E x 2 to C and D with X 12...
- Page 17 Step 10 Attach K to E x 2 and F x 2 with Fully tighten all bolts.
- Page 18 Step 11 11.1 Attach one end of P to L by inserting the tab into the slot and turn it to the level position. 11.2 Spread the slats P along the bed with equal spacing, engage the velcro at the end of slat with the counter part on E. 11.1 11.2...
- Page 19 Step 12 Attach the other end of P to B by inserting the tab into the slot and turn it to the level position.
- Page 20 CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
- Page 21 Preguntas, inquietudes, partes que faltan? CONTACTE 4722449CL (Gris) NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. Cama Tapizada Si le faltan piezas o las que se incluyen est n da adas, con mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra. King Visite https://parts.dorelhome.com/eng/ , llame gratis al 1-800-267-1739 o chatea con nosotros al www.dhpfurniture.com...
- Page 22 Partes Paquete de componentes Paquete #: 24681649N0KT Piezas de reemplazo, visite https://parts.dorelhome.com/eng/ IMPORTANTE: La lista de n meros de piezas que aparece a continuaci n es Nota: Por favor no apriete completamente los pernos hasta que el exclusiva de su producto. Por favor, mant ngalo a mano cuando solicite piezas ensamblaje sea completado, a menos de que se indique espec ficamente en de repuesto.
- Page 23 Consejos útiles Cómo usar la llave de trinquete 1. Antes de comenzar el montaje, ajuste la cerradura en la dirección • Antes de comenzar a ensamblar, lea correcta. las instrucciones sobre cómo usar la llave de trinquete, le ayudará a ¡Bloquee a la ¡Bloquee a ensamblar los muebles rápidamente.
- Page 24 Instrucciones Limite de peso - Cama : 1000LBS / 454KG Paso 1 Consejos tiles Una A1&A2 con A con & Paso 2 Mueva sus muebles nuevos con cuidado, se requiere de dos personas para Coloque N en la parte posterior de A con el cierre m gico como se ilustra. levantar y trasladar su mueble a su nueva ubicaci n.
-
Page 25: Informations Sur La Garantie
Des questions, des pr occupations ou des pi ces manquantes? CONTACTEZ NOTRE SERVICE LA CLIENT LE 4722449CL (Gris) AVANT DE RETOURNER LE PRODUIT AU D TAILLANT. Si des pi ces sont manquantes ou endommag es, nous Lit Rembourr e exp dierons volontiers vos pi ces de rechange gratuitement. Visitez https://parts.dorelhome.com/fre/ ,appelez sans frais au Tres grand lit deux places 1-800-267-1739 ou clavardez avec nous au www.dhpfurniture.com. - Page 26 Pi ces Quincaillerie Pour des pi ces de rechange, visitez https://parts.dorelhome.com/fre/ # de paquet : 24681649N0KT IMPORTANT: La liste des r f rences ci-dessous est propre votre produit. Remarque: Sauf indication contraire dans les instructions, ne pas resserrer Veuillez l'avoir sous la main lorsque vous appelez pour des pi ces de rechange. compl tement les vis et les boulons, jusqu' ce que l'assemblage soit termin .
- Page 27 Conseils utiles Comment utiliser la Clé à Rochet 1. Avant de commencer l’assemblage, ajustez le verrou dans le bon Avant de commencer l’assemblage, • sens. lisez les instructions sur l'utilisation de la clé à rochet, cela vous aidera à assembler les meubles rapidement. Verrou vers la Verrou vers Ne jetez pas la clé...
- Page 28 Instructions Limite de Poids - Lit : 1000LBS / 454KG tape 1 Conseils utiles Attacher A1 et A2 A avec tape 2 D placez votre nouveau mobilier avec soin, nous recommandons deux Coller N l'arri re de A avec le Velcro, comme illustr . personnes pour soulever et transporter le mobilier vers son nouvel tape 3 emplacement.
